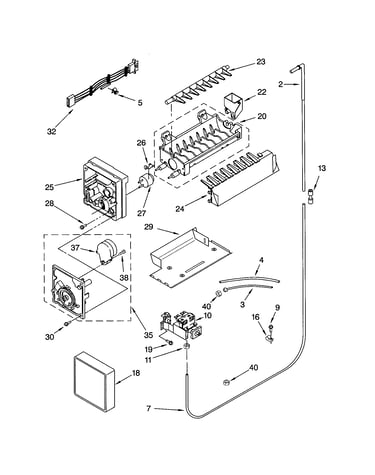

How to replace an ice maker in a side by side refrigerator?
To replace the ice maker in your Kenmore 10653562201 side-by-side refrigerator, we shut off ice production, remove the ice bin or bucket, disconnect the ice maker wiring and mounting screws, then install the new assembly and restore power and water. Use the 10653562201 owner's manual for your exact ice bin style and shutoff method.
Before you start (safety and prep)
- Unplug the refrigerator (or switch off the breaker).
- Turn the ice maker OFF (wire shutoff arm up, or ON/OFF switch to OFF depending on style).
- Turn off the household water supply to the refrigerator.
- Empty the ice bin or door bucket; melt stuck ice with warm water (never sharp tools).
- Protect floors; keep towels handy for small drips.
Replacement steps (typical for this model family)

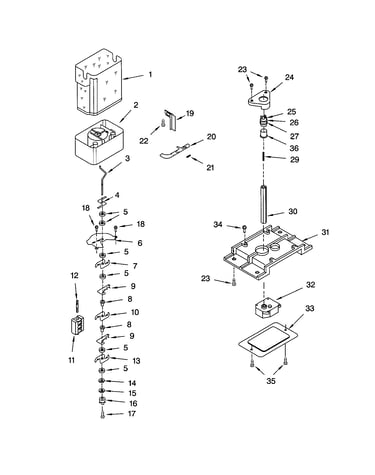

- Remove the ice storage
- Interior bin style: pull the cover panel, lift the shutoff arm to OFF, lift the bin front and pull out.

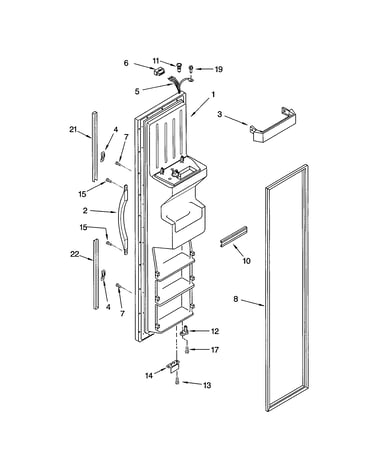

- Door bucket style: press the release button and lift the bucket straight up and out.
- Access the ice maker: remove the ice maker cover (if equipped).
- Disconnect wiring: unplug the ice maker harness connector.
- Remove the ice maker: loosen or remove mounting screws; lift the ice maker off the mounts.
- Install the new ice maker: hang it on the mounts, tighten screws, reconnect wiring.
- Reinstall bin or bucket: push the bin fully in (or snap the bucket level into place).
- Turn everything back on: restore water supply, plug in, then turn the ice maker ON.

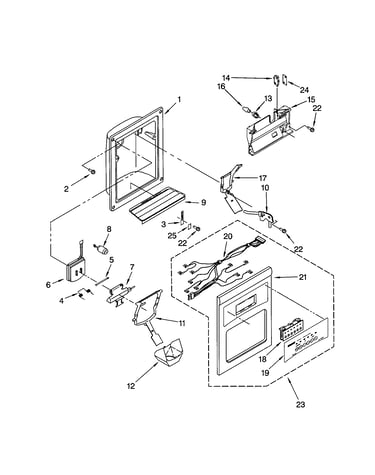

Which part usually fixes “no ice” issues?
If the ice maker itself is failed, the correct replacement is typically the complete assembly.
| Symptom | Most likely fix | Part to consider |
|---|---|---|
| No ice production, ice maker not cycling | Replace ice maker assembly | Whirlpool refrigerator ice maker assembly 2198597 |
| No water filling ice maker, dispenser also weak | Check water inlet valve and supply | Refrigerator inlet valve W10408179 |
| Ice maker works but production is slow | Adjust freezer control colder; wait 24 hours | Use 10653562201 owner's manual |
Why it matters
A misaligned bin or bucket can stop dispensing, and an ice maker left OFF (arm up or switch OFF) stops production. After replacement, normal output is about 7 to 9 batches per 24 hours; some models have a MAX mode for higher output.
Last updated: February 2026

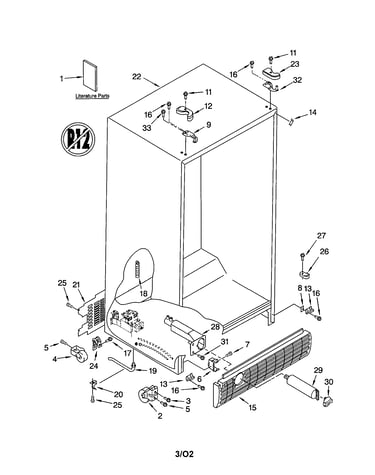

How wide is a Kenmore side-by-side refrigerator?
Most Kenmore side-by-side refrigerators are about 33 inches to 36 inches wide; your Kenmore 10653562201 falls in that common full-size range. For the exact cabinet width and required clearances for your kitchen opening, use the dimensions listed in the 10653562201 owner's manual.
Typical widths you will see (and what to plan for)
When you are measuring for a replacement or a tight install, we recommend planning around these common side-by-side sizes:
- 33 in. class: common for many standard-capacity models
- 36 in. class: very common for larger-capacity models
- Counter-depth models: often still 36 in. wide, but shallower front-to-back
- Built-in style units: can vary more and often require custom cabinetry
Quick planning table
| What you are measuring | What to use | Typical value |
|---|---|---|
| Cabinet width | Refrigerator body (not handles) | 33 to 36 in. |
| Door swing clearance | Space needed so doors open fully | 2 in. minimum to a fixed wall (varies) |
| Ventilation clearance | Space around the cabinet for airflow | 1/2 in. on each side and top |
How to measure width the right way
Use a tape measure and record all three numbers so you do not get surprised during delivery or reinstall.
- Measure the opening width at the top, middle, and bottom
- Measure the refrigerator cabinet width (exclude handles unless you need total projection)
- Check door swing space next to walls or cabinets
- Confirm you have ventilation space around the refrigerator
- Verify the path in (doorways, hallways) is wider than the unit
Why it matters
Width is only part of fit. Door swing and ventilation clearances affect cooling performance and whether you can fully open bins, shelves, and the ice bucket without hitting a wall.
For model-specific clearance guidance and installation spacing, follow the 10653562201 installation guide.
Last updated: February 2026
What are the most common problems with Kenmore refrigerators?
The most common problems we see on Kenmore refrigerators like model 10653562201 are cooling issues (often airflow or defrost related), water leaks, ice maker or dispenser problems, and unusual noises. Many fixes start with cleaning, checking door sealing, and confirming the controls are set correctly per the 10653562201 owner's manual.
Common problems and what usually causes them

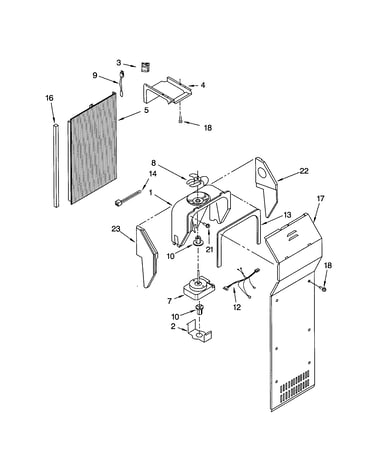

- Not cooling or warm temperatures: blocked air vents, dirty condenser area, failed evaporator fan, or a defrost system problem (ice buildup on the evaporator).
- Ice maker not making ice: clogged or incorrectly installed water filter, low water supply, or a failing ice maker.
- Water leaking or puddles: clogged defrost drain, loose water line connections, or a door not sealing.
- Moisture buildup inside: frequent door openings, high room humidity, or blocked vents (air cannot circulate).

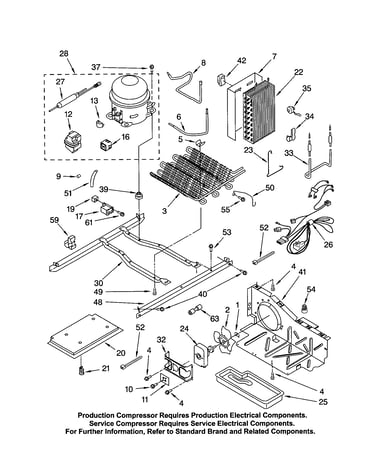

- Noises (buzzing, rattling, clicking): fan blade hitting ice, condenser fan issues, or normal cycling sounds that get louder when airflow is restricted.
Quick checks we recommend first (no parts needed)
- Check airflow: make sure packages are not blocking interior vents.

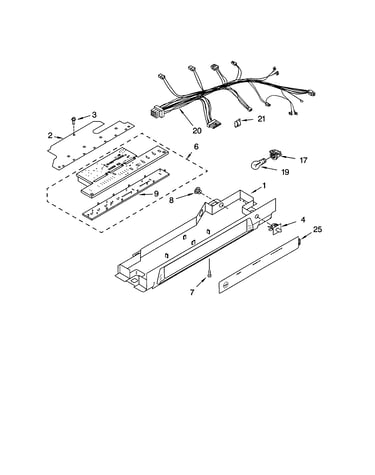

- Confirm control settings: verify the temperature controls match your kitchen conditions; some models can be reset by turning the unit OFF then ON.

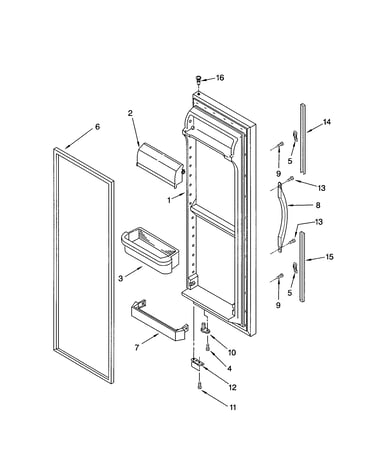

- Inspect door closing and sealing: look for gaps, torn gasket areas, or doors that do not sit level.
- If ice tastes bad or looks gray: discard the first batches after new plumbing work; clean the bin and keep food tightly wrapped.
- If ice maker output is low: allow up to 24 hours after heavy use or adjustments for production to recover.
Parts that commonly solve these symptoms on 10653562201

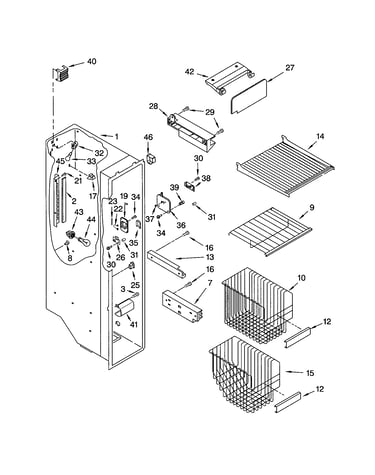

| Symptom | Common part to check/replace | What it affects |
|---|---|---|
| No ice or weak ice production | Refrigerator inlet valve W10408179 | Water supply to ice maker and dispenser |
| Ice maker stops cycling | Whirlpool refrigerator ice maker assembly 2198597 | Ice harvest and refill sequence |
| Frost buildup, warm fridge | Refrigerator defrost bi-metal WPW10225581 | Defrost temperature sensing and safety |
| Frost buildup persists | Refrigerator heater WP2323198 | Melts frost off the evaporator |
Why it matters
Most “big” refrigerator complaints trace back to airflow (vents blocked, fan problems) or water flow (filter, valve, tubing). Fixing those early helps protect food temperatures, reduces ice and odor issues, and prevents repeat icing or leaking.
You can order replacement parts for model 10653562201 from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
Where is the model number on a Kenmore side by side refrigerator?

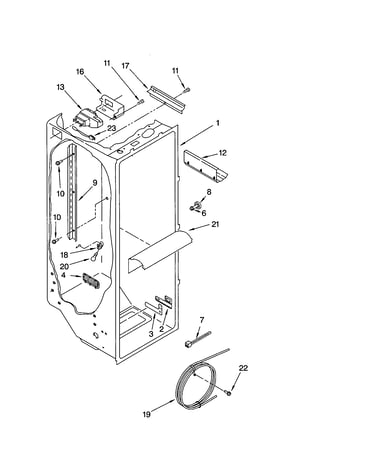

On Kenmore side-by-side refrigerator model 10653562201, the model number is printed on the model and serial number label located on the inside wall of the refrigerator (fresh food) compartment. You can confirm the exact label location and what the tag looks like in the 10653562201 owner's manual.
How to find the label quickly
- Open the refrigerator (fresh food) door and look along the inside side walls.

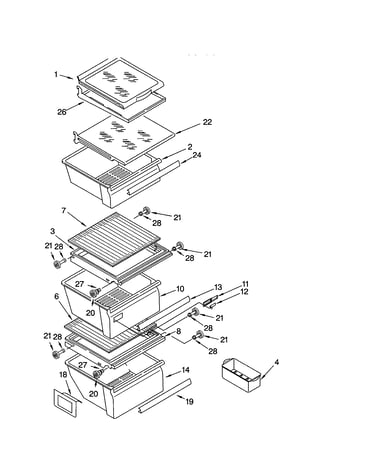

- Check near the crisper area and shelf supports; the label is often placed where it stays visible.
- Look for a tag that lists both model and serial information.
- Write the model number down exactly as shown (for this unit it is 10653562201).
- Keep the number handy before ordering parts like an ice maker, water inlet valve, or door gasket.
What you will see on the tag
Most Kenmore refrigerator ID tags include both a model number and a serial number. Here is what each is used for:
| Item on the label | What it’s used for | Why it matters |
|---|---|---|
| Model number | Identifies the exact refrigerator design | Ensures parts diagrams and replacement parts match |
| Serial number | Identifies the production unit | Helps narrow down version-specific changes |
Why it matters
Using the correct model number prevents ordering the wrong replacement part and saves time during troubleshooting. For example, parts such as the refrigerator inlet valve W10408179 or whirlpool refrigerator ice maker assembly 2198597 must match the exact design used in model 10653562201.
You can order replacement parts for model 10653562201 from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
