Model # CFEF3043RSB Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF3043RSB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |

Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

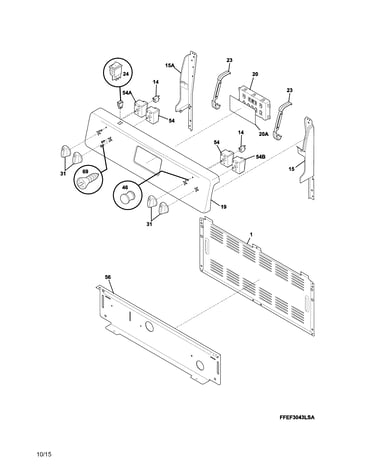

Backguard diagram

Range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.81
12% OFF Phone Price : $41.81
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

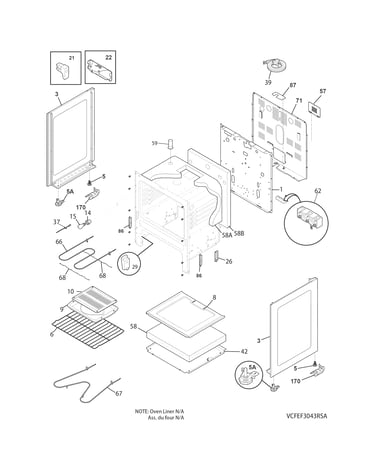

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.78
11% OFF Phone Price : $17.78
In Stock
Range Oven Door Inner Glass (replaces 316117502, 316117503) 5304503232
#8

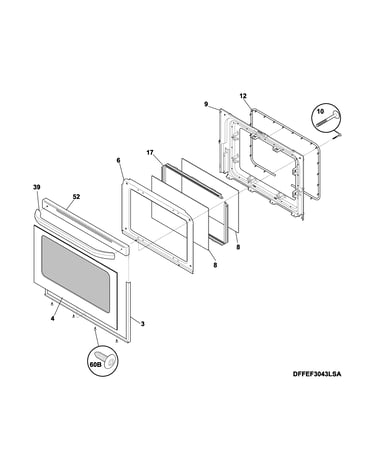

Door diagram

Range oven door inner glass (replaces 316117502, 316117503)

Part #5304503232

BEST SELLER
$85.47
6% OFF Phone Price : $90.47
In Stock
Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$57.73
8% OFF Phone Price : $62.73
In Stock
Range Oven Temperature Sensor 316233902
#37

Body diagram

Range oven temperature sensor

Part #316233902

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233902. Substitute parts can look different from the original.
BEST SELLER
$25.89
16% OFF Phone Price : $30.89
Back Order
Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

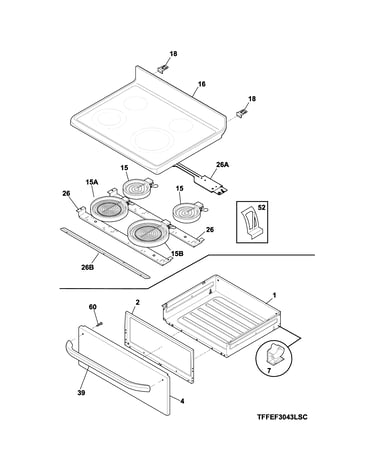

Top/drawer diagram

Range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$151.57
6% OFF Phone Price : $161.57
In Stock
Range Bake Element (replaces 316225000) 316225001
#67

Body diagram

Range bake element (replaces 316225000)

Part #316225001

BEST SELLER
$132.14
7% OFF Phone Price : $142.14
In Stock
Range Oven Control Board And Clock 316455400
#20

Backguard diagram

Range oven control board and clock

Part #316455400

Replaced by #5304518660

?
Manufacturer substitution
This part replaces 316455400. Substitute parts can look different from the original.
BEST SELLER
$143.45
7% OFF Phone Price : $153.45
In Stock
Range Leveling Leg 316498900
#5A

Body diagram

Range leveling leg

Part #316498900

Replaced by #5304509869

?
Manufacturer substitution
This part replaces 316498900. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.89
15% OFF Phone Price : $6.89
In Stock
Range Oven Rack 316067902
#6

Body diagram

Range oven rack

Part #316067902

BEST SELLER
$71.79
7% OFF Phone Price : $76.79
In Stock
