Homelite
Gas Chainsaw

Model # UT10522 Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite UT10522 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

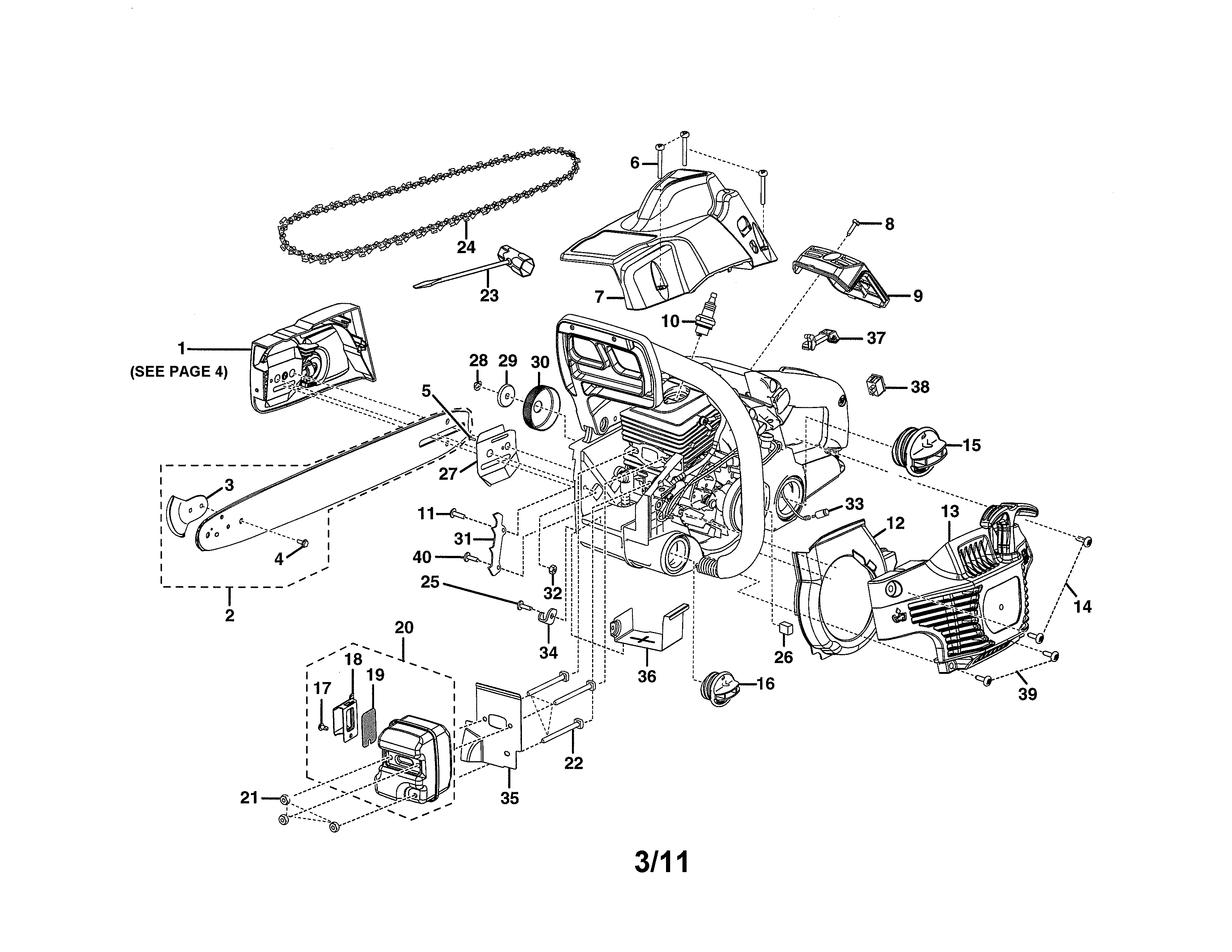

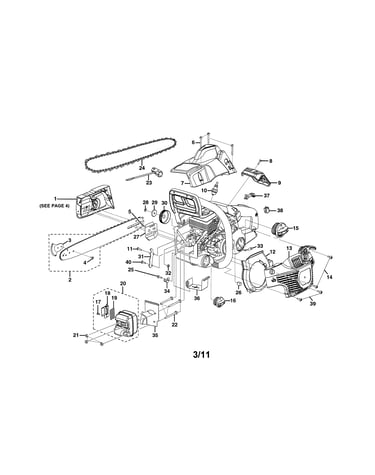

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Limiter Is 631050001
#44

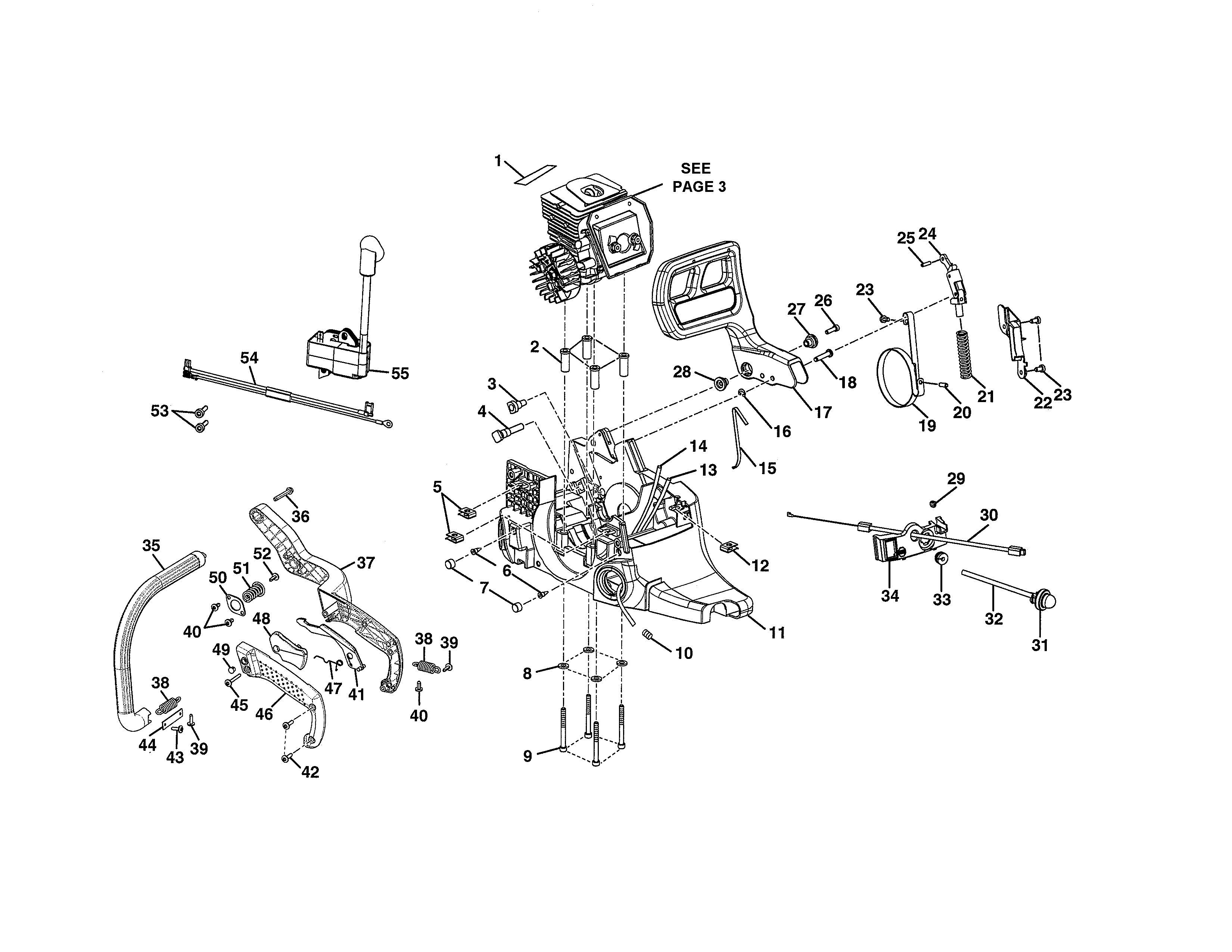

Chassis/handle diagram

Limiter is

Part #631050001

The manufacturer no longer makes this part, and there's no substitute part

Tube 570247002
#13

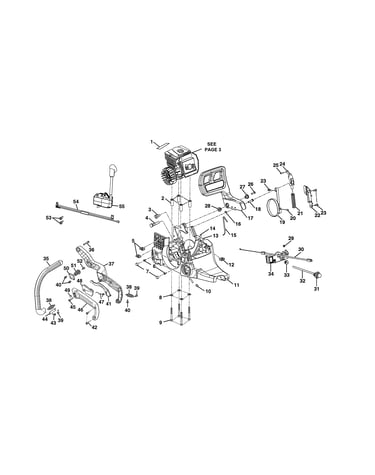

Chassis/handle diagram

Tube

Part #570247002

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 671072001
#24

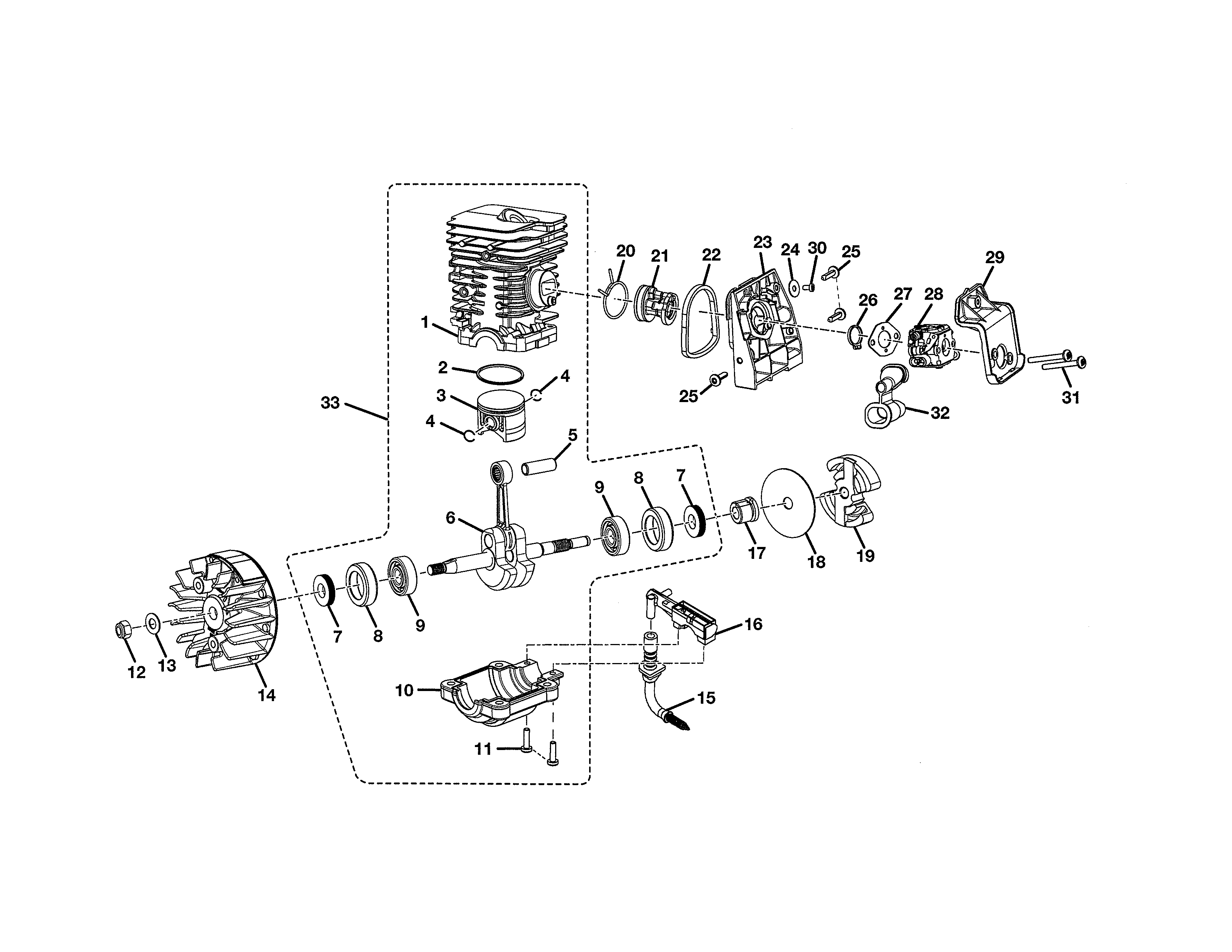

Short block diagram

Flat washer

Part #671072001

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 660627001
#11

Short block diagram

Pan screw

Part #660627001

The manufacturer no longer makes this part, and there's no substitute part

Lockout Th 518051013
#41

Chassis/handle diagram

Lockout th

Part #518051013

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cover 518796001
#1

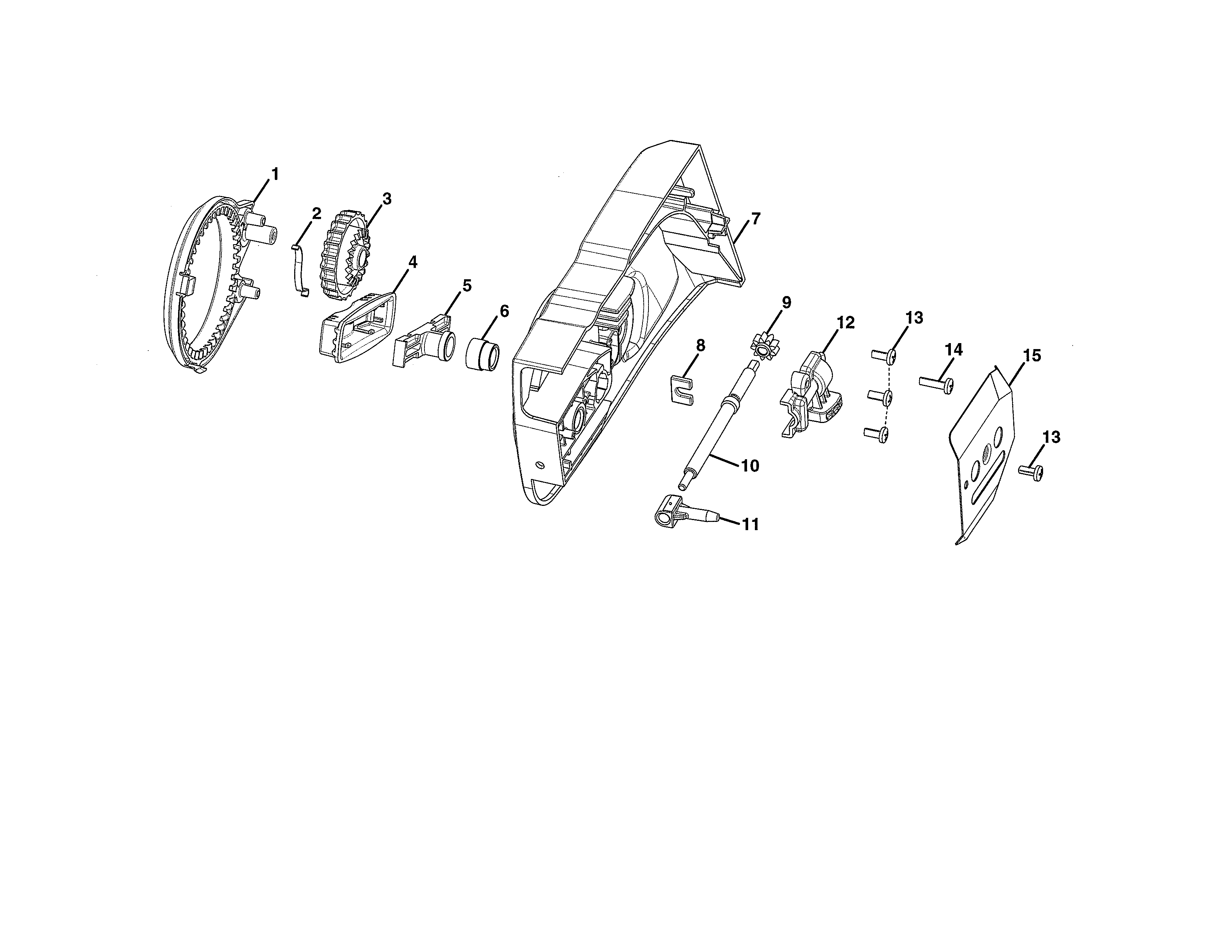

Clutch cover/gear cover diagram

Clutch cover

Part #518796001

The manufacturer no longer makes this part, and there's no substitute part

Chainsaw Throttle Cable 900885001
#30

Chassis/handle diagram

Chainsaw throttle cable

Part #900885001

The manufacturer no longer makes this part, and there's no substitute part

Adjustment 518767002
#3

Clutch cover/gear cover diagram

Adjustment

Part #518767002

The manufacturer no longer makes this part, and there's no substitute part

Front Hand 511724011
#35

Chassis/handle diagram

Front hand

Part #511724011

The manufacturer no longer makes this part, and there's no substitute part

Carburetor Plate 518045001
#26

Short block diagram

Carburetor plate

Part #518045001

The manufacturer no longer makes this part, and there's no substitute part
