Kenmore Elite 10651163210 refrigerator Parts

Common problems we see with the Kenmore Elite side-by-side refrigerator model 10651163210 are weak or warm cooling, frost buildup that blocks airflow, unusual fan noises, and water or ice dispenser issues (slow water flow, no ice, or leaks). The fastest wins are cleaning, filter changes, and checking airflow and door sealing; then you move to defrost and fan components.

Most common symptoms and what they usually point to

• Not cooling or uneven temps: dirty condenser coils, blocked vents, evaporator fan issue, or a temperature sensor problem
• Frost on the back wall or heavy ice in freezer: defrost system problem (heater, thermostat/bi-metal, control)
• Loud humming, buzzing, or rattling: evaporator fan blade rubbing ice, worn fan motor, or items vibrating
• Water under the refrigerator: clogged/iced defrost drain or a water line/valve seep
• No ice or slow water at dispenser: clogged water filter, low supply pressure, or a weak inlet valve

Quick checks we recommend before replacing parts

1. Confirm settings and airflow: keep vents clear and avoid overpacking.
2. Clean condenser coils: dust buildup commonly causes warm temps and long run times.
3. Inspect door sealing: look for gaps, torn gasket areas, or doors not closing squarely.
4. Check for freezer frost patterns: a solid ice sheet often signals a defrost failure.
5. Address water flow first: replace the filter and purge air from the lines.

Parts that commonly solve these problems (when symptoms match)

Symptom	Common fix	Example part for 10651163210
Slow water, weak dispenser flow, small ice cubes	Replace water filter	Refrigerator filter EDR1RXD1
Frost buildup, warm refrigerator section	Check defrost thermostat/bi-metal	Refrigerator defrost bi-metal WPW10225581

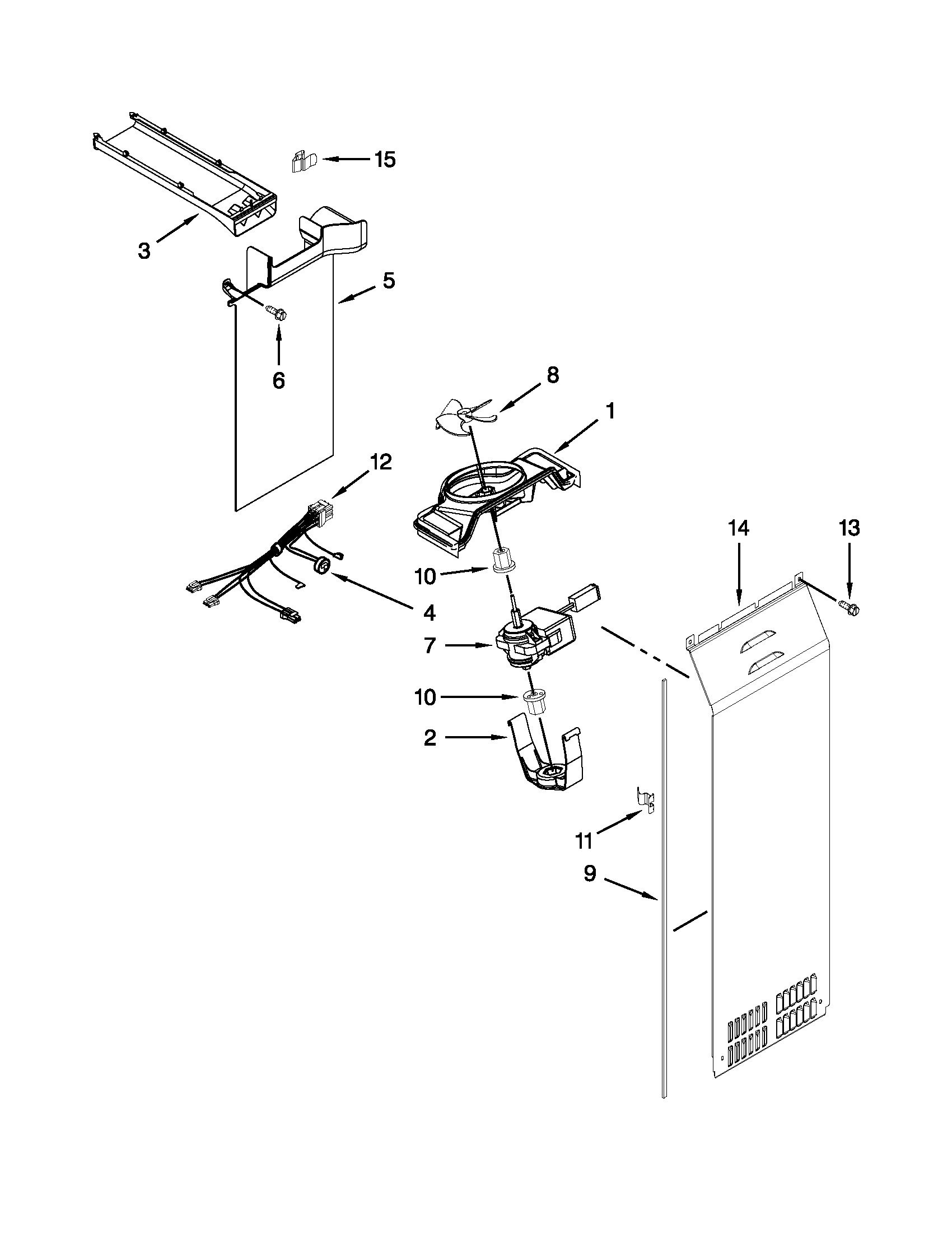

Warm temps with fan noise or no airflow	Inspect evaporator fan components	Refrigerator evaporator fan motor WP2315549
No ice or intermittent water fill	Diagnose inlet valve	Refrigerator water inlet valve WPW10341320

Why it matters

Cooling and ice maker complaints often start as airflow or water flow problems. Fixing those early helps prevent food spoilage, reduces frost-related fan damage, and keeps the compressor from running excessively.

Model-specific reference

Use the owner's manual for your 10651163210 to confirm control settings, filter location, and any model-specific troubleshooting steps.

Last updated: February 2026

A Kenmore Elite refrigerator like model 10651163210 typically lasts 12 to 15 years. Keeping the condenser area clean, maintaining good door seals, and replacing filters on schedule helps the cooling system run efficiently and reach that normal service life.

What affects lifespan the most

• Condenser airflow and cleanliness (dust buildup makes the compressor work harder)
• Door gasket condition (air leaks cause longer run times and frost issues)
• Water and air filter maintenance (protects water system and helps control odors)
• Ice maker and dispenser use (more moving parts, more wear)
• Stable temperatures (freezer near 0°F, fresh food near 37°F)

Maintenance schedule we recommend

Use your owner's manual for the exact locations and intervals for your 10651163210.

Item	Typical interval	Why it matters
Refrigerator water filter	Every 6 months	Protects water flow and taste; reduces strain on the valve and dispenser
Refrigerator air filter	Every 6 months	Helps reduce odors and keeps airflow fresher
Condenser coil cleaning	Every 6 to 12 months	Lowers compressor run time and heat load
Door seal inspection/cleaning	Every 3 months	Prevents warm air leaks and frost buildup

Parts that support long life on this model

If you are doing routine upkeep, these are common maintenance parts for Kenmore Elite 10651163210:

• Replace the refrigerator filter EDR1RXD1 on schedule
• Swap the refrigerator air filter W10311524 when odors linger
• If water flow gets weak, inspect the supply line and consider testing the inlet valve (this model lists options such as WPW10341320 and WPW10238100)

Why it matters

Most “early failures” come from heat and airflow problems. A clean condenser area and tight door seals reduce compressor workload, which is the single biggest factor in whether a side-by-side refrigerator reaches the 12 to 15 year range.

Last updated: February 2026

The exact cubic-foot capacity for Kenmore Elite model 10651163210 is listed on the model’s specification section in the owner's manual. For most Kenmore 106 side-by-side refrigerators, total capacity commonly falls in the 22 to 26 cu. ft. range.

How to find the exact cubic feet for model 10651163210

We recommend using the capacity shown in the documentation for your specific model and revision.

• Open the owner's manual
• Look for “Product specifications”, “Capacity”, or “Refrigerator features”
• Check whether it lists total capacity and separate refrigerator and freezer capacities
• If multiple capacities are shown, match the one tied to your exact model number 10651163210
• Use the total capacity number when comparing to a replacement refrigerator

Why capacity matters

Cubic feet helps you compare storage space across refrigerators, but it also affects airflow and temperature stability. Overpacking a side-by-side can reduce circulation and lead to warm spots or frost issues.

Quick reference: what “cubic feet” usually means

Spec term	What it describes	What to use it for
Total capacity (cu. ft.)	Fridge + freezer combined	Comparing overall size
Refrigerator capacity	Fresh food section only	Planning shelf and bin space
Freezer capacity	Freezer section only	Planning frozen storage

Related maintenance that helps performance

If you are checking capacity because cooling seems weak or space feels limited, these common maintenance items help side-by-sides run efficiently:

• Replace the water filter on schedule (see refrigerator filter EDR1RXD1)
• Replace the air filter if odors linger (see refrigerator air filter W10311524)
• Keep door bins seated correctly so doors close fully
• Avoid blocking air vents with large containers

Last updated: February 2026

Your Kenmore Elite refrigerator’s model number is printed on the model and serial tag, usually inside the fresh food compartment or freezer. For Kenmore Elite model 10651163210, the tag is commonly on an inside wall, inside the door area, or behind the lower toe grille.

Where to look for the model and serial tag

Check these spots in this order (most common first):

• Inside the refrigerator compartment on a side wall near the top
• Inside the refrigerator door opening on the cabinet frame
• Inside the freezer compartment on a side wall
• Behind the lower toe grille (kick plate) at the front
• Behind or near the crisper drawers (on the cabinet liner)

What the model number looks like

For this Kenmore Elite side-by-side, the model number is typically a 10 to 12 digit number starting with 106.

What you see on the tag	What it means	Why we need it
Model (example: 10651163210)	Exact refrigerator model	Ensures parts fit and instructions match
Serial	Unique unit identifier	Helps match production details

Why it matters

We use the exact model number to match the correct parts and diagrams for your refrigerator, especially for fit-critical items like a water filter, ice maker, door gasket, or electronic control.

Tip for confirming you have the right parts page

Once you find the tag, match the model number character-for-character. If it reads 10651163210, you are on the correct parts list and can use the 10651163210 owner's manual for model-specific guidance.

Last updated: February 2026
