KitchenAid KUDE70FXSS0 undercounter dishwasher Parts

For the KitchenAid KUDE70FXSS0 dishwasher, the most common problems we see are poor cleaning (dirty dishes) and drain or start issues. In many cases, the root cause is restricted water flow (clogged filter or spray arm) or a drain problem (pump or hose), not the detergent itself.

• Dirty dishes or gritty residue: filter buildup, blocked spray arm holes, or low water fill

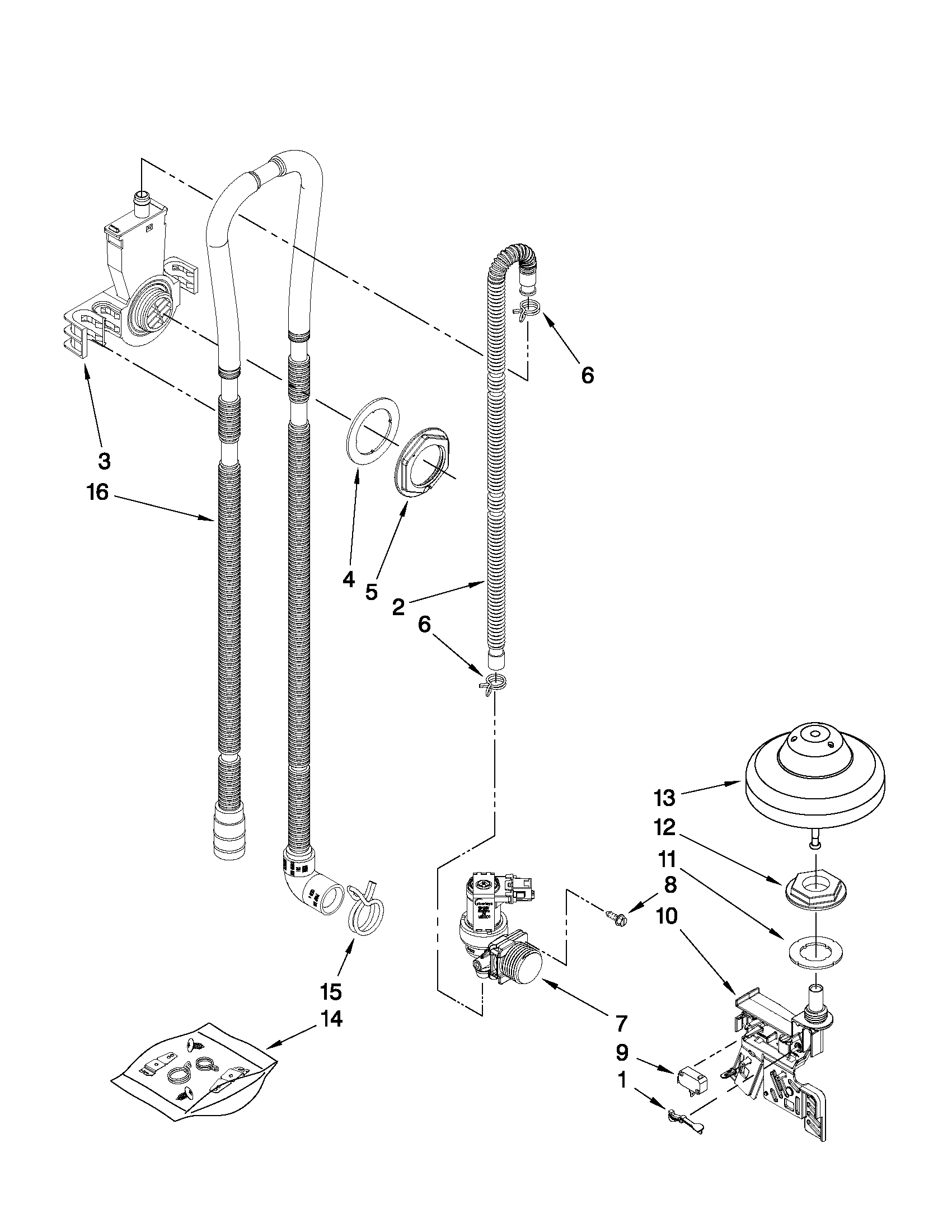

• Won’t drain or leaves water in the tub: drain pump issue, drain hose restriction, or a sink drain/air gap clog
• Won’t start: door not fully latched, power supply issue, or control problem
• Leaks at the bottom/front: door seal wear, loose hose connections, or over-sudsing
• Long cycle times: normal on many newer designs; some loads average 2 to 3 hours

Use these checks before replacing anything; they solve a large share of “common problems.”

• Confirm the water supply is turned on and the dishwasher is filling
• Verify the door closes tightly and latches
• Check the breaker/fuse if the unit is dead
• Run a short cycle and after about 2 minutes, open the door and confirm water is in the bottom of the tub
• Clean the filter area and inspect spray arm holes for debris

If cleaning and basic checks do not help, these model-matched parts are frequent fixes:

Dirty dishes, standing water, and leaks usually get worse over time. Catching a clogged filter, restricted drain path, or weak fill early helps protect the pump and motor assembly and keeps wash performance consistent.

For model-specific operating checks and installation-related drain and water supply requirements, use the KUDE70FXSS0 installation guide and the KUDE70FXSS0 owner’s manual.

Last updated: January 2026

Most KitchenAid dishwashers, including the KitchenAid KUDE70FXSS0 undercounter dishwasher, typically last 10 to 14 years. Lifespan depends most on water quality, how often you run it, and routine care like keeping the filter and spray arms clear.

• Hard water and mineral buildup: shortens the life of the heater, inlet valve, and pump.
• Heavy daily use: more wear on the motor, door hinges, and racks.
• Drain and fill issues: running with poor draining or low fill stresses the pump and motor.
• Drying heat and long cycles: normal for energy-efficient models, but blocked airflow or buildup can increase strain.
• Maintenance habits: cleaning the filter area and checking for debris prevents repeat clogs.

• Clean the filter area regularly; replace the dishwasher filter if it is damaged or won’t clean up well (see dishwasher filter W10872845).

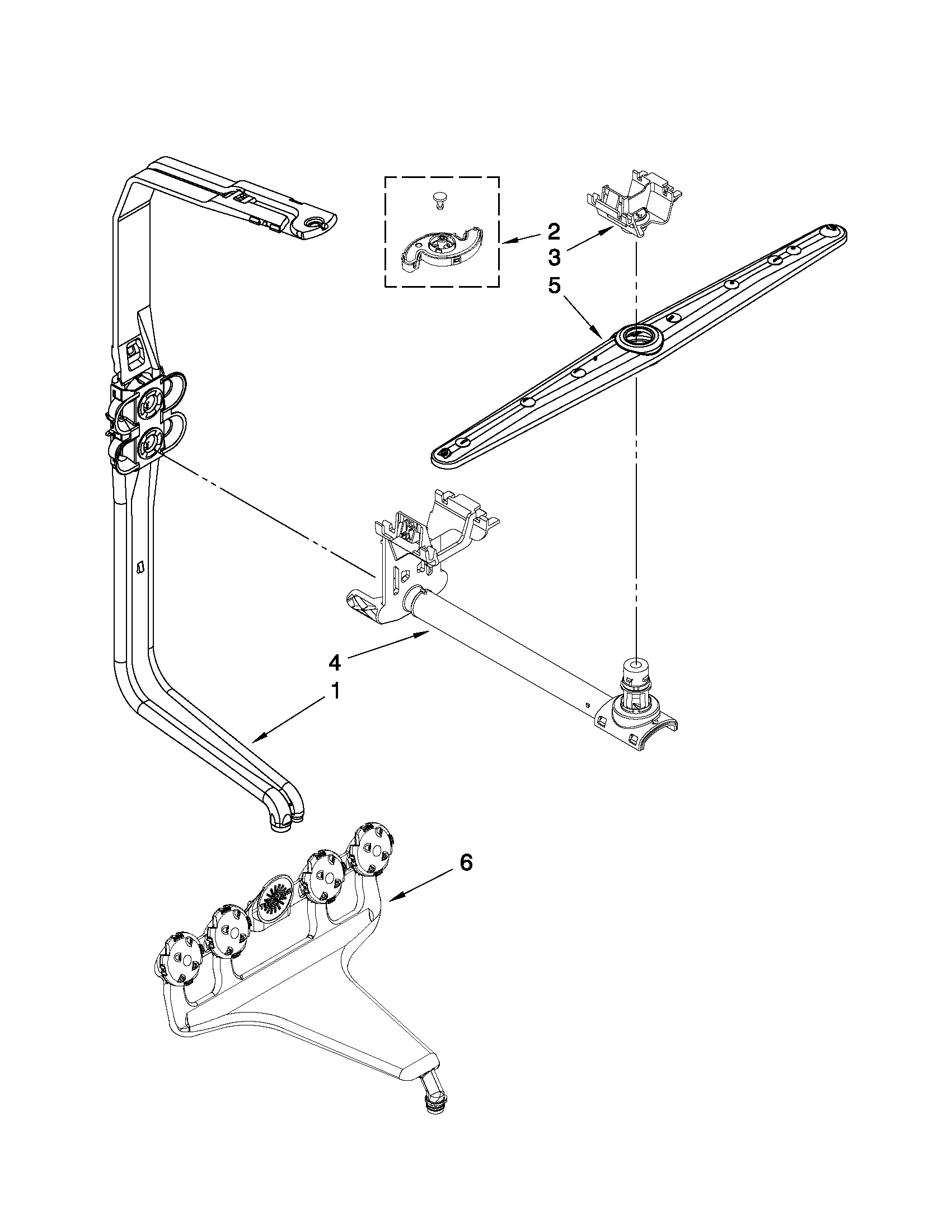

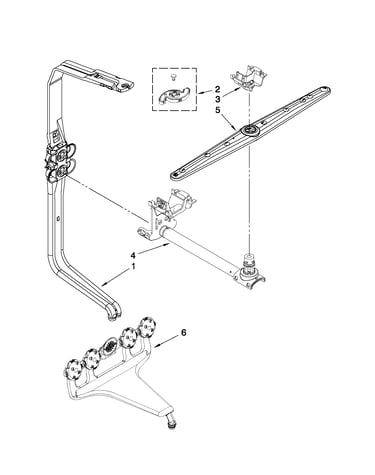

• Inspect and rinse the spray arm holes; replace a cracked or clogged arm (see dishwasher spray arm WPW10491331).
• Use rinse aid to improve drying and help control hard-water deposits.
• Make sure the dishwasher drains freely and the drain hose routing is correct.
• Confirm the door closes and latches firmly; avoid slamming the door.

A dishwasher that is maintained and draining correctly runs fewer extended cycles and avoids overheating and mineral buildup. That reduces stress on high-wear components like the pump and heater, which is the biggest factor in reaching the 10 to 14 year range.

For model-specific operating and care guidance, follow the cleaning and use recommendations in the KUDE70FXSS0 owner’s manual.

Last updated: January 2026

Yes. KitchenAid dishwashers are designed to run quietly, and your KitchenAid KUDE70FXSS0 uses built-in sound-reduction features such as insulation around the tub area. Keeping the insulation in place and the dishwasher properly leveled helps maintain the lowest operating noise.

Even a “quiet” dishwasher can seem noisy if something is loose, rubbing, or vibrating.

• The dishwasher is not level or is touching the cabinet on one side
• The insulation blanket is missing, shifted, or removed
• Dishes or racks are rattling against the spray arm during operation
• The drain hose or water line is vibrating against the cabinet
• A wash component is worn (spray arm, pump, or rack hardware)

These steps match common installation and fit issues that affect noise.

• Confirm the insulation blanket is installed; it is intended to reduce sound
• Verify the unit is centered in the opening so the door and sides do not rub
• Check that the leveling legs are firmly against the floor
• Make sure the drain hose and water line are not kinked or pinched
• Run a short cycle and listen for a repeating “tick” or “grind” that points to a moving part contact

If the sound is tied to wash action (not cabinet vibration), these model-compatible parts are common suspects.

• Dishwasher spray arm WPW10491331 (if it is cracked, warped, or rubbing)

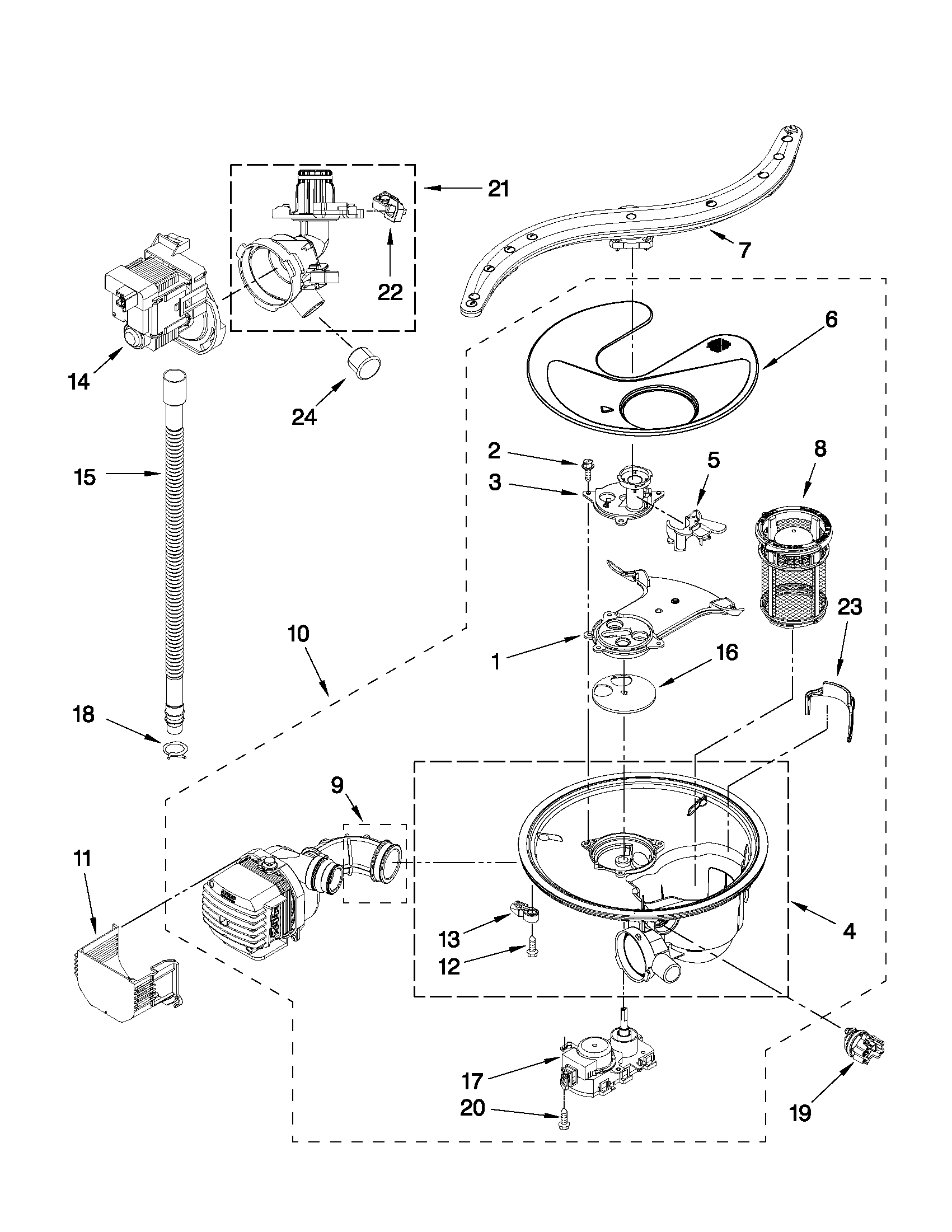

• Dishwasher pump and motor assembly WPW10328226 (if you hear loud grinding or growling)
• Dishwasher filter W10872845 (if debris is recirculating and causing noise)

A dishwasher that is properly installed and insulated runs quieter and also avoids door rubbing, hose pinching, and vibration that can lead to leaks or premature wear.

For installation fit, leveling, and insulation guidance, follow the KUDE70FXSS0 installation guide.
