Model #41797812701 Kenmore laundry center

Here are the diagrams and repair parts for Kenmore 41797812701 laundry center, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 185 parts

|

Dryer Door Catch

#25

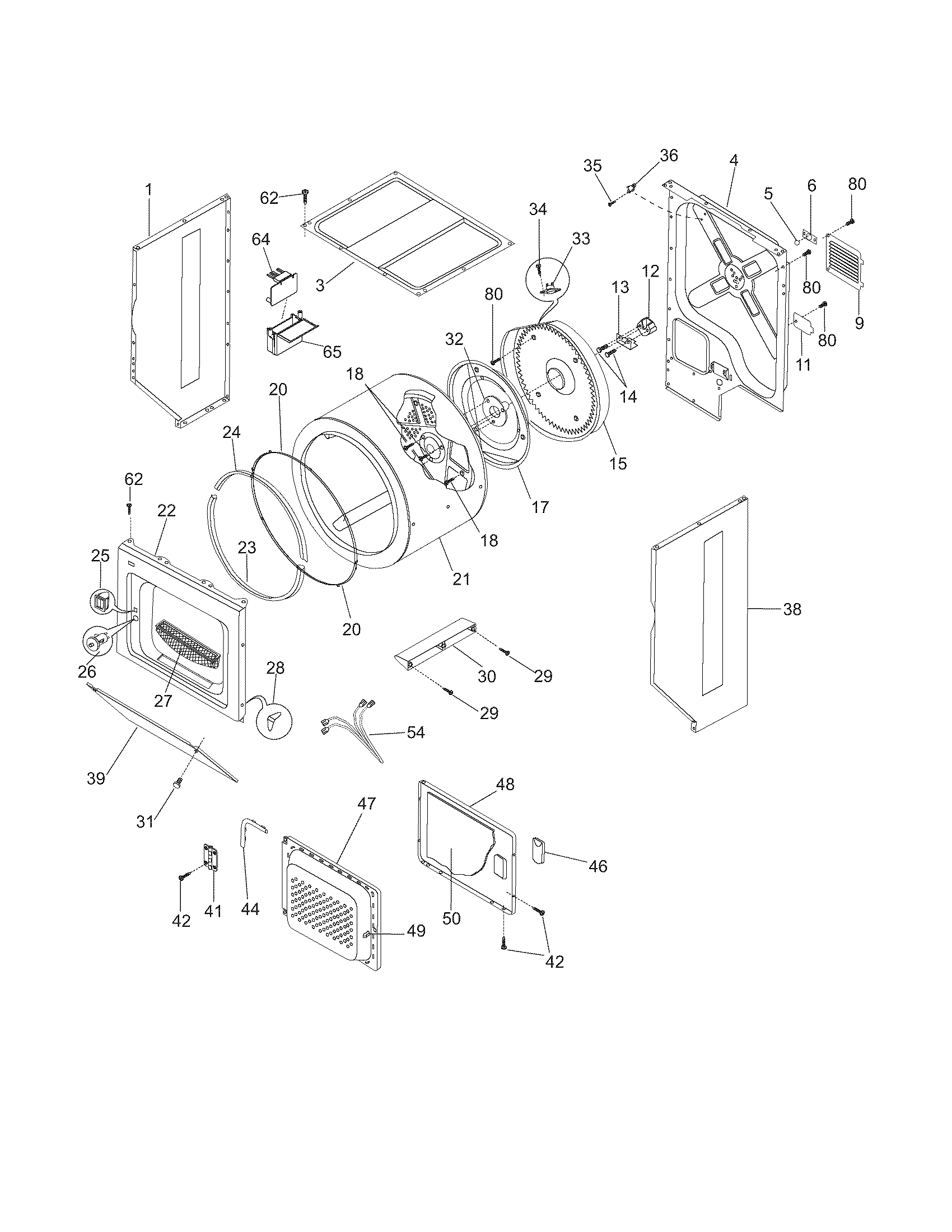

Upper cabinet/drum heater Diagram

Dryer door catch

Part #131658800
$38.62

In Stock

Dryer Drum Bearing

#12

Upper cabinet/drum heater Diagram

Dryer drum bearing

Part #131825900
This item is not returnable
$4.44 |
5% OFF MSRP:$4.67

In Stock

Laundry Center Dryer Rotary Start Switch

#10

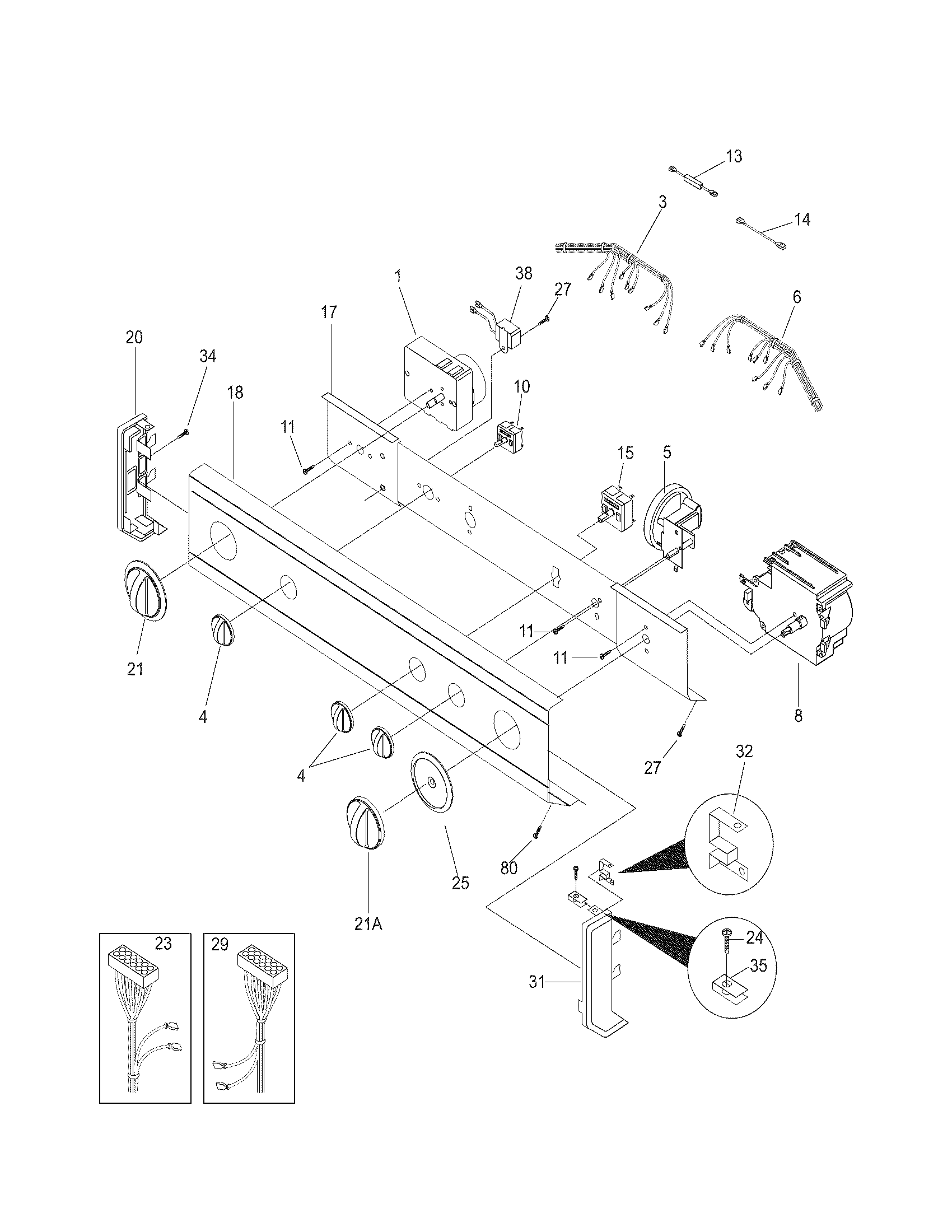

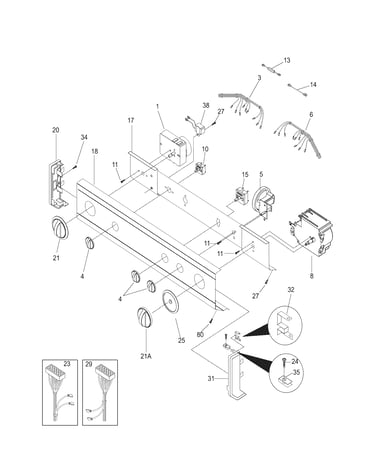

Control panel Diagram

$36.96 |
5% OFF MSRP:$39.00

In Stock

Dryer Grounding Ball

#5

Upper cabinet/drum heater Diagram

Dryer grounding ball

Part #5303281019
$13.13

In Stock

Washer Drain Hose

#45

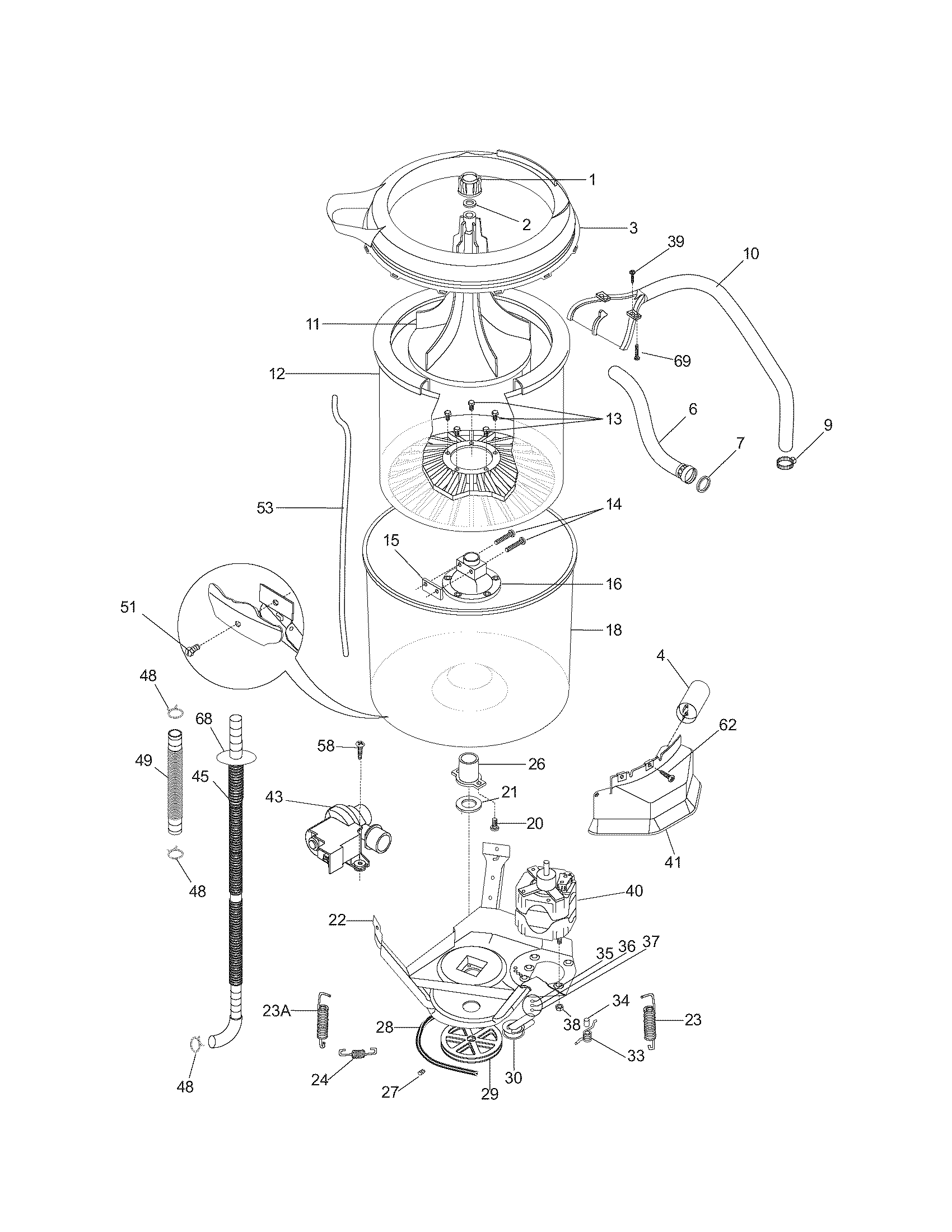

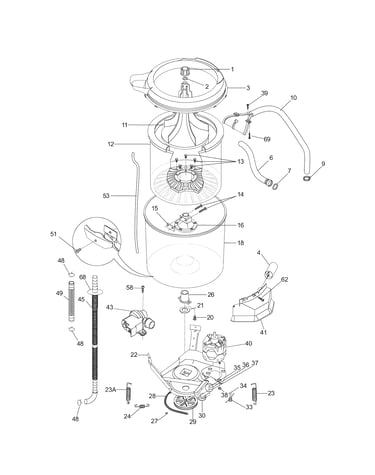

Motor/tub Diagram

Washer drain hose

Part #134592700
$53.90 |
10% OFF MSRP:$60.00

In Stock

Dryer Rear Bearing Clip

#6

Upper cabinet/drum heater Diagram

Dryer rear bearing clip

Part #5303281020
$12.94

In Stock

Laundry Center Control Knob (White)

#4

Control panel Diagram

$32.27 |
33% OFF MSRP:$48.00

In Stock

Washer Idler Pulley

#30

Motor/tub Diagram

Washer idler pulley

Part #131862900
$15.50

In Stock

Washer Spin Bearing

#26

Motor/tub Diagram

Washer spin bearing

Part #3204405
$52.25 |
17% OFF MSRP:$63.00

In Stock

Dryer Door Seal

#44

Upper cabinet/drum heater Diagram

Dryer door seal

Part #131129900
$30.82 |
33% OFF MSRP:$46.00

In Stock

Showing 10 of 185 parts

Symptoms common to all laundry centers

Choose a symptom to see related laundry center repairs.

Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad heating element
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply problem, blown fuse
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control board
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown fuse, control failure
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring
Main causes: clogged drain system, blocked drain hose, bad drain pump
Main causes: broken dryer drive belt, weak drive motor, binding drum seals
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failure, bad water valve
