Maytag HYE3460AYW washer/dryer Parts

For your Maytag dryer model HYE3460AYW, the most reliable way to confirm warranty coverage is to check the Service & Warranty section in your documentation and compare it to your purchase date and proof of purchase. Start with the warranty terms in the HYE3460AYW owner's manual.

What to check first

• Find your purchase date (receipt, invoice, or delivery paperwork).
• Locate the model and serial number (typically on the door opening, door frame, or rear panel).
• Review what the warranty covers and excludes (some items like light bulbs are commonly excluded).
• Confirm the appliance was used for household use (commercial use is typically excluded).
• Make sure the serial number label is intact and readable, since altered or missing serial numbers can void warranty coverage.

Warranty confirmation checklist

Use this quick checklist to decide your next step:

What you have	Why it matters	What to do next
Proof of purchase	Establishes warranty start date	Match date to warranty term in the manual
Model and serial number	Identifies the exact unit	Record both before scheduling service
Problem description	Speeds up service approval	Note symptoms, cycle used, and when it happens

If you need warranty service

If your paperwork shows the dryer is still within the warranty term, use your warranty documentation to follow the service instructions, or contact Sears PartsDirect support with:

• Model number HYE3460AYW and the serial number
• Purchase date and proof of purchase
• A clear description of the issue

Why it matters

Warranty coverage can change based on time since purchase, how the dryer was used, and whether the unit can be positively identified by its serial number. Checking the manual first helps you avoid unnecessary service costs for items that are excluded.

Last updated: March 2026

On Maytag dryer model HYE3460AYW, an E3 display indicates the dryer control detected an operating problem and is stopping the cycle to protect the machine. The most reliable next step is to follow the model’s troubleshooting steps in the HYE3460AYW owner’s manual and then check airflow and overheat protection.

What to do first (quick, safe checks)

• Unplug the dryer (or switch the breaker off) for 5 minutes, then restore power.
• Clean the lint screen and make sure it is fully seated.
• Run a timed dry cycle and confirm strong airflow at the outside vent hood.
• Inspect the vent hose for kinks, crushing, or excessive length.
• Stop using the dryer if you smell burning or the cabinet feels unusually hot.

What E3 is commonly tied to on dryers

E3-type faults are most often related to heat and airflow conditions. Use these checks to narrow it down.

Check area	What you may notice	What to do next
Exhaust venting	Long dry times, weak airflow outside	Clean the vent run and vent hood; shorten the run if possible
Lint path inside dryer	Hot cabinet, musty or hot-lint smell	Vacuum lint screen housing and blower inlet area
Overheat safety	Dryer stops mid-cycle or won’t restart	Test the thermal fuse and high-limit thermostat
Temperature control	Heat seems too hot or inconsistent	Test the operating thermostat and heater circuit

Parts that are often involved when overheating is the cause

If your checks point to overheating or poor airflow, these model-compatible parts are commonly replaced during diagnosis:

• Dryer thermal fuse kit LA-1053 (opens if the dryer overheats)
• Dryer thermostat WP31001192 (helps regulate operating temperature)

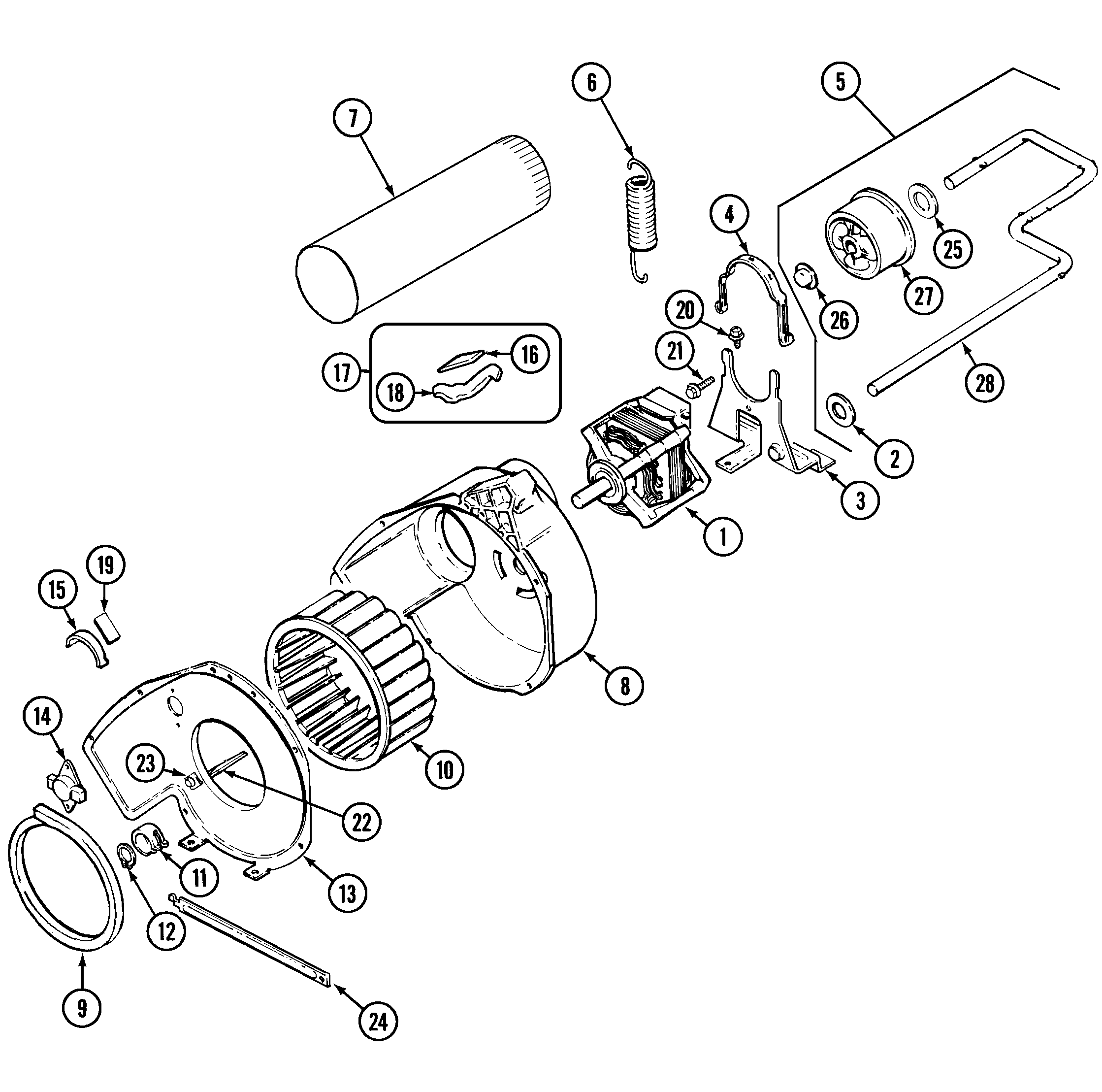

• Dryer blower wheel W11497304 (moves air through the drum and vent)

Why it matters

When airflow is restricted, the dryer runs hotter, trips safety devices, and can repeatedly shut down. Restoring proper venting and confirming the heat-safety parts test good prevents repeat errors and reduces dry time.

Last updated: February 2026

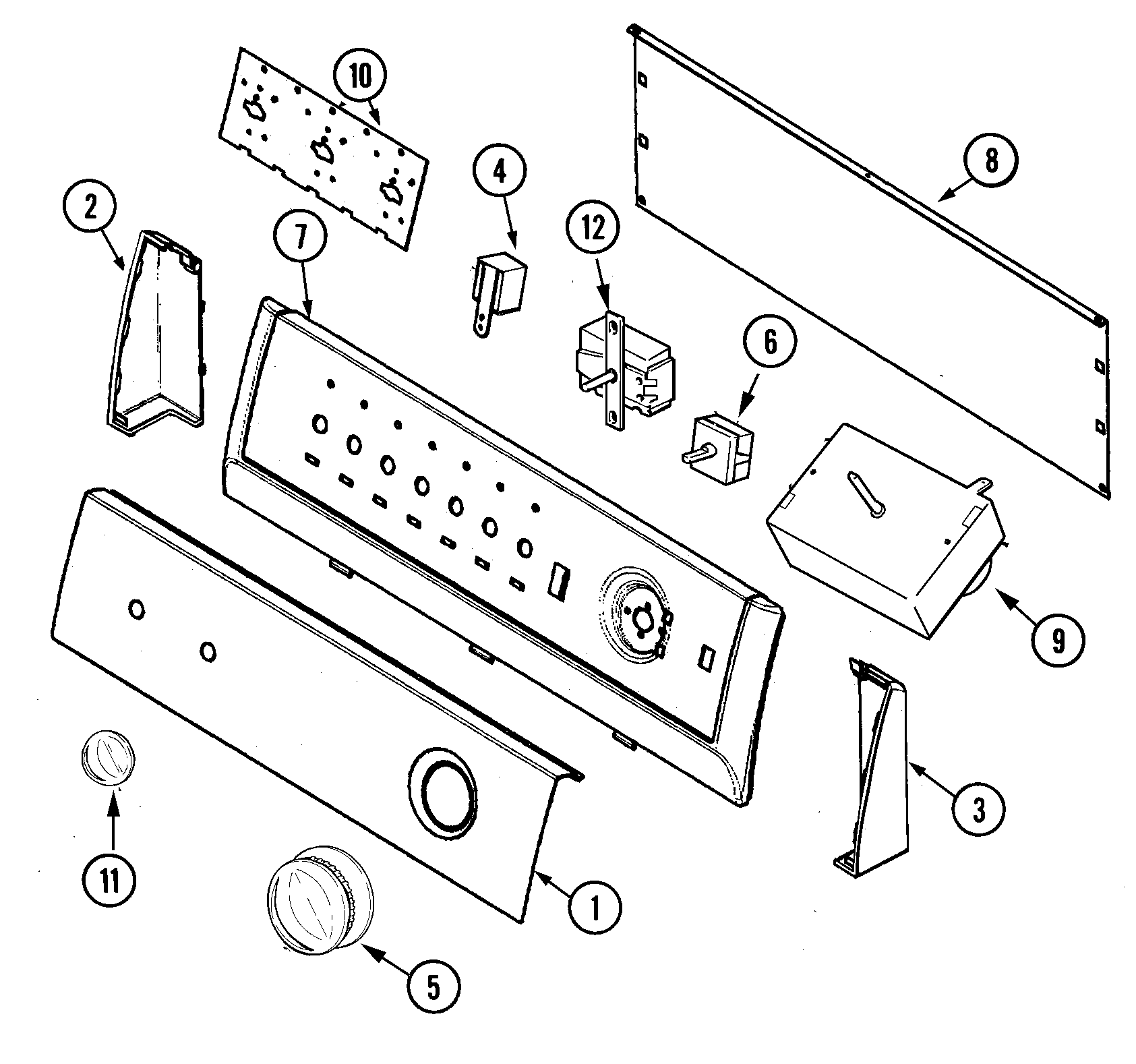

On Maytag model HYE3460AYW, the model and serial number are typically on the back center of the control panel. You can also commonly find the ID label inside the dryer door opening on the cabinet frame, or on the back of the dryer near the top. See the HYE3460AYW owner's manual for the exact label location and what the tag looks like.

Common places to check

• Back center of the control panel (most reliable for this model)
• Inside the door opening on the cabinet frame
• Rear panel near the top edge
• Side panel near the back (less common)
• Behind the lower access panel (only on some designs)

Quick steps to find it fast

1. Unplug the dryer (or switch off the breaker) before reaching around panels.
2. Open the door and inspect the cabinet frame around the opening.
3. If you do not see it, look at the back center area behind the control panel.
4. Wipe dust off the label so the characters are readable.
5. Write down both the model number and serial number; we use both to match Maytag dryer parts correctly.

What the label usually shows

Label item	What we use it for
Model number (HYE3460AYW)	Ensures parts diagrams and compatible parts match your dryer
Serial number	Helps confirm production series and correct substitutions

Why it matters

Using the exact model number prevents ordering the wrong dryer drum belt, thermostat, or motor parts for your Maytag dryer. Even small model changes can affect fit, wiring, and mounting.

Last updated: February 2026
