Kenmore Elite 79046709601 electric range Parts
Here are the diagrams and repair parts for Kenmore Elite 79046709601 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

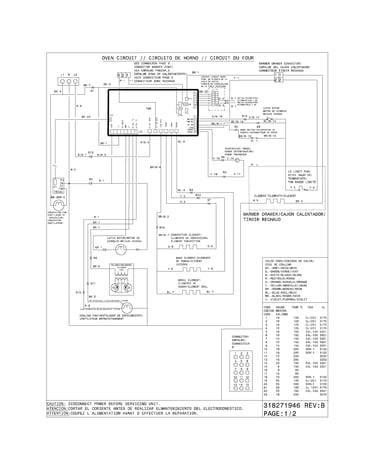

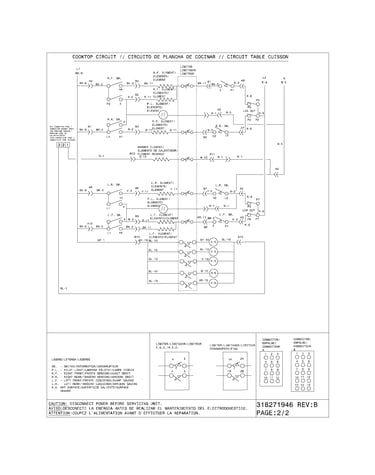

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 79046709601 Ranges

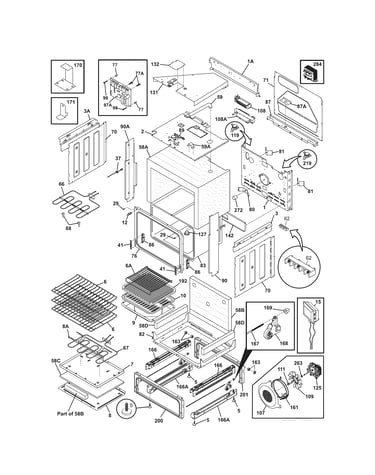

Body diagram
Frigidaire Range Oven Temperature Sensor
In Stock$56.8910% OFF Phone Price : $62.89
Qty

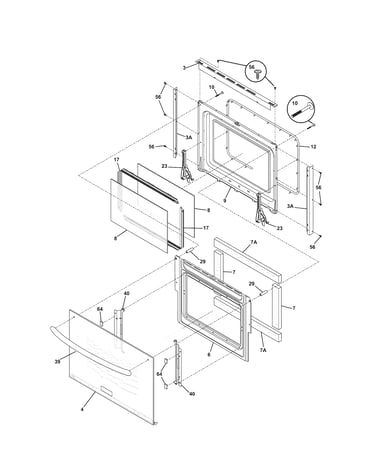

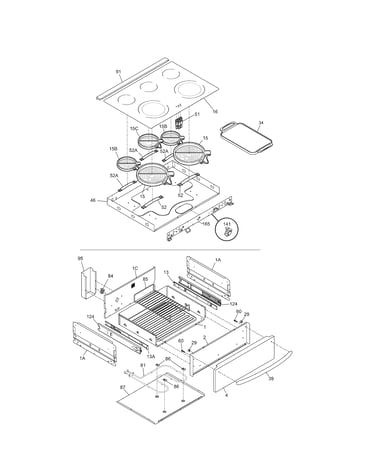

Top/drawer diagram
Element
Part #318198830Replaced by #318178110
Manufacturer substitutionThis part replaces 318198830. Substitute parts can look different from the original.In Stock$103.3210% OFF Phone Price : $115.32QtyDoor diagram
Range Oven Door Inner Glass
Part #316117500Replaced by #5304503232

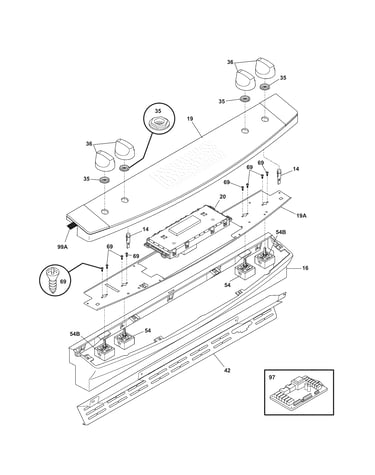

Manufacturer substitutionThis part replaces 316117500. Substitute parts can look different from the original.In Stock$67.968% OFF Phone Price : $73.96QtyBackguard diagram
Range Small Single Surface Unit Switch
Part #318369615
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Range Convection Fan Blade
Part #316136400
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Range Convection Fan Blade Nut
In Stock$21.2622% OFF Phone Price : $27.26QtyBackguard diagram
Range Control Panel Gasket
In Stock$44.4712% OFF Phone Price : $50.47QtyBody diagram
Oven Element
Part #318255800Replaced by #318255807
Manufacturer substitutionThis part replaces 318255800. Substitute parts can look different from the original.In Stock$203.646% OFF Phone Price : $215.64QtyBody diagram
Washer
Part #316136500Replaced by #316008401
Manufacturer substitutionThis part replaces 316136500. Substitute parts can look different from the original.In Stock$14.4512% OFF Phone Price : $16.45QtyBackguard diagram
Range Control Panel Seal
Part #318313230Replaced by #318313231
Manufacturer substitutionThis part replaces 318313230. Substitute parts can look different from the original.In Stock$44.4712% OFF Phone Price : $50.47Qty
