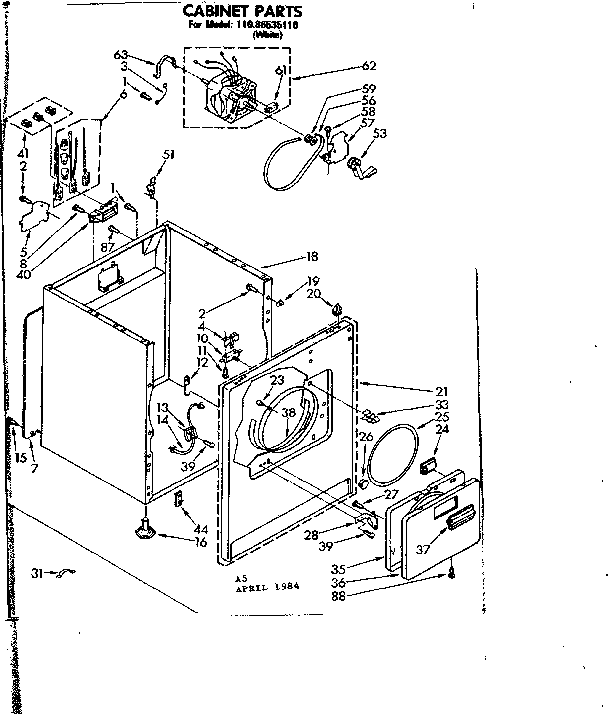

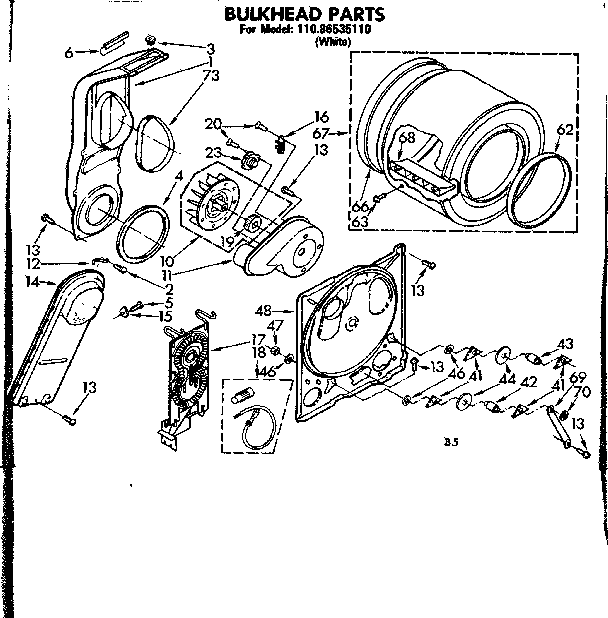

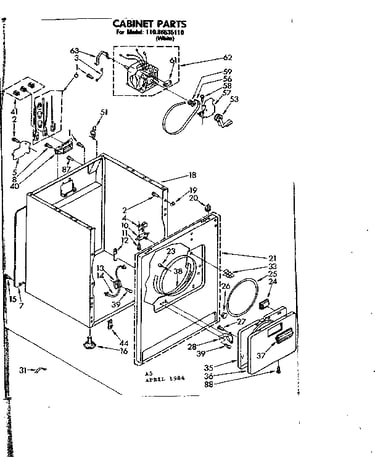

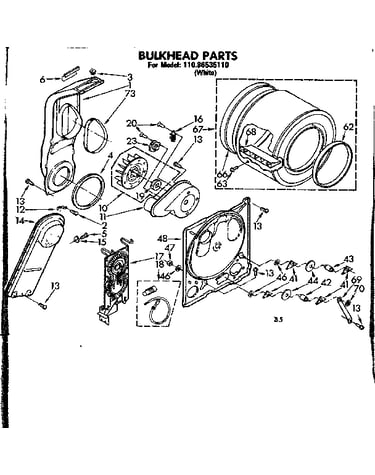

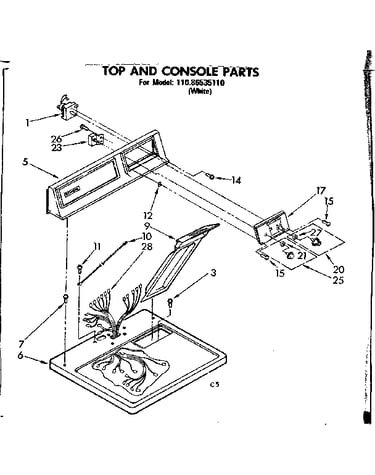

Kenmore 11086535110 electric dryer Parts

Your Kenmore dryer’s model number is printed on the appliance’s identification label; for Kenmore model 11086535110, you’ll typically find it inside the door opening on the front panel, or on the back of the cabinet. Once you have the full model number, we can match the correct parts and diagrams.

Where to look for the model number label

Check these common locations on Kenmore electric dryers:

• Inside the dryer door opening (around the door frame)
• On the back panel of the dryer cabinet
• Along the side of the door opening (left or right jamb)
• Near the lint screen housing area (depending on design)

What the model number looks like (and why it matters)

Kenmore model numbers are usually 10 to 12 digits. For example, 11086535110 is a complete model number; using the full number helps us pull the exact Kenmore parts list, including wear items like a belt, idler pulley, and thermal fuse.

Quick guide: model vs. serial

Item	What it tells you	Example
Model number	Which design and parts fit	11086535110
Serial number	Production sequence/date info	Varies

If the label is hard to read

If the sticker is worn or covered, these steps usually help:

• Wipe the label gently with a damp cloth and mild soap; dry it
• Use a flashlight at an angle to make faint printing easier to see
• Take a close-up photo and zoom in
• Write down every digit (including leading zeros)

Next step after you find the model number

Once you confirm the model number, use it to select exact-fit replacement parts. For example, if your dryer stops tumbling, a common fix is replacing the drum belt 341241 (part ID 341241), which drives the drum.

Why it matters

Kenmore dryers can look similar across series, but small design changes affect fit and wiring. Using the exact model number prevents ordering the wrong heating, drive, or door parts.

Last updated: February 2026

Common problems we see on Kenmore electric dryers like model 11086535110 are no heat, long dry times, drum not turning, and loud squealing or thumping. Most of these trace back to restricted airflow (lint buildup), a failed heating component, or normal wear on drive parts.

Most common symptoms and what usually causes them

• Dryer runs but won’t heat: failed heating element, blown thermal fuse, or wiring/terminal connection issue
• Takes too long to dry: clogged lint screen, blocked vent duct, crushed vent hose, or a weak blower wheel
• Drum won’t turn: broken belt, worn idler pulley, or a failing drive motor
• Loud noise (squeal, rumble, thump): worn belt, pulley wear, or drum support wear
• Door won’t stay closed: worn door strike or latch alignment issue

Parts that commonly fix these problems (for 11086535110)

Symptom	Common part to check	Example part for this model
Drum not turning	Belt and idler system	Drum belt 341241, dryer idler pulley WP691366
No heat	Heating circuit	Element WP4391960, fuse WP3392519, dryer heating element wire kit 279457
Long dry times	Air movement and lint path	Dryer blower wheel WP694089, screen W10874409
Door won’t latch	Door strike	Strike 279570

Quick checks we recommend before replacing parts

• Clean the lint screen and confirm air is blowing strongly outside at the vent hood.
• Inspect the vent hose for kinks, crushing, or heavy lint buildup.
• If the drum won’t turn, stop using the dryer and check for a broken belt or seized pulley.
• If the dryer heats intermittently, inspect wiring connections (especially at the heater and terminal block area).
• If you smell burning or see scorching, unplug the dryer and correct airflow restrictions before running again.

Why it matters

Airflow problems can cause long dry times and overheating, which commonly leads to a blown thermal fuse and repeated no-heat failures. Catching a worn belt or pulley early also helps prevent motor strain and bigger repairs.

For electronic display issues, we use the troubleshooting steps in Kenmore 110 series electronic control model dryer error codes.

Last updated: February 2026

A Kenmore electric dryer like model 11086535110 typically lasts 10 to 13 years. With good airflow, regular lint cleaning, and prompt repair of wear items (belt, idler pulley, thermal fuse), many dryers reach 15 years or more.

What affects dryer lifespan most

• Airflow and venting: restricted venting overheats the heater and safety devices.
• Lint control: lint buildup stresses the blower wheel and increases heat.
• Load habits: chronic overloading strains the drum belt, motor, and drum support.
• Heat settings: high heat on every load accelerates wear on the heating circuit.
• Timely part replacement: replacing small wear parts early prevents bigger failures.

Quick maintenance checklist (best ROI)

• Clean the lint screen every load; replace a torn or warped screen such as the screen W10874409.
• Vacuum lint from the lint screen housing and around the blower area periodically.
• Keep the exhaust duct short, smooth, and clear; clean the outside vent hood.
• Avoid overfilling the drum; stop the cycle if you smell overheating.
• If the dryer stops mid-cycle or will not run, check for overheating causes and inspect the fuse WP3392519.

Common “wear-out” parts and what they usually mean

Symptom	Most common wear area	Example part for 11086535110
Drum will not turn, motor runs	Belt or idler system	Drum belt 341241, dryer idler pulley WP691366
Loud rumbling or thumping	Drum support or drum components	Drum support components (varies)
Runs but dries slowly	Airflow, lint path, blower wheel	Dryer blower wheel WP694089
No heat	Heating circuit or wiring	Element WP4391960, dryer heating element wire kit 279457

Why it matters

A dryer’s heater, motor, and safety controls last longest when the machine runs cooler and moves air freely. Simple airflow and lint maintenance reduces overheating, shortens dry times, and helps your Kenmore 11086535110 reach its full service life.

Last updated: February 2026

Most Kenmore electric dryers like model 11086535110 are full-size, with typical exterior dimensions around 27 inches wide, 27 to 29 inches deep, and 43 to 44 inches tall (height varies most with leveling legs and control panel style). For exact clearance planning, we use the model’s spec label and installation requirements.

Typical dimensions you can plan around

These ranges fit most 27-inch Kenmore 110-series style dryers.

• Width: ~27 inches
• Depth: ~27 to 29 inches (deeper if the vent elbow sticks out)
• Height: ~43 to 44 inches (can change slightly when you level the dryer)
• Door swing clearance: allow extra space in front
• Vent clearance: allow space behind for the exhaust duct

Quick fit check (what to measure)

Measure your space and compare it to these common planning numbers.

What to measure	Where	What to allow
Width	Wall to wall	27 inches plus a little side clearance
Depth	Back wall to front edge	Add room for venting and cord
Height	Floor to top	Add room to level the legs
Front clearance	In front of door	Enough for full door swing

Why it matters

Correct sizing prevents crushed venting (slow drying), makes leveling easier (less vibration), and helps avoid door clearance issues. If your dryer is tight to the wall and drying is slow, checking airflow parts like the lint screen and seals can also help.

Related parts that affect fit and airflow

If you are troubleshooting poor airflow or lint leaks while planning placement, these model-matched parts are commonly involved:

• Screen W10874409
• Dryer lint screen housing foam seal WP339956
• Dryer lint chute seal W11415783
• Dryer blower wheel WP694089

Last updated: February 2026
