Does KitchenAid make a 33 inch wide refrigerator?
Yes. KitchenAid makes 33-inch wide refrigerators in multiple styles (commonly French door and bottom-freezer). Your KitchenAid KSRG25FVMS02 is a side-by-side model; for exact width and cutout requirements, use the dimensions listed in the KSRG25FVMS02 owner's manual.
Use these checks before you buy or swap refrigerators:
- Measure the cabinet opening width at the front and back (walls are not always square).
- Confirm door swing clearance and handle clearance.
- Verify depth needs (standard depth vs counter depth) and space behind for water line and power cord.
- Allow airflow space around the cabinet (top, sides, and rear) per the manual.
- Plan the path into the home (doorways, turns, stairs) before delivery.
Most “33-inch” refrigerators are slightly under 33 inches wide so they can slide into a 33-inch opening, but the required opening can vary by model and handle style.
| Item to check | What to measure | Why it matters |
|---|---|---|
| Cabinet opening width | Wall-to-wall at multiple points | Prevents binding and vibration |
| Door swing clearance | Door edge to nearby wall/cabinet | Avoids doors hitting surfaces |
| Depth clearance | Back wall to front edge of counters | Prevents sticking out too far |
| Water line space | Behind unit and at shutoff | Prevents kinks and leaks |
A refrigerator that is “33-inch wide” can still fail to fit if the opening is tight, the floor is uneven, or the doors need extra swing room. Confirming the opening and clearances first prevents delivery problems and helps the unit cool efficiently.
Last updated: January 2026
What is the most common problem with a KitchenAid refrigerator?
The most common problems we see on KitchenAid side-by-side refrigerators like model KSRG25FVMS02 are ice maker and water dispenser issues, followed closely by cooling problems (warm fridge or freezer). These symptoms are often tied to airflow, defrost, or water-supply components; use the KSRG25FVMS02 owner's manual troubleshooting section to narrow it down.

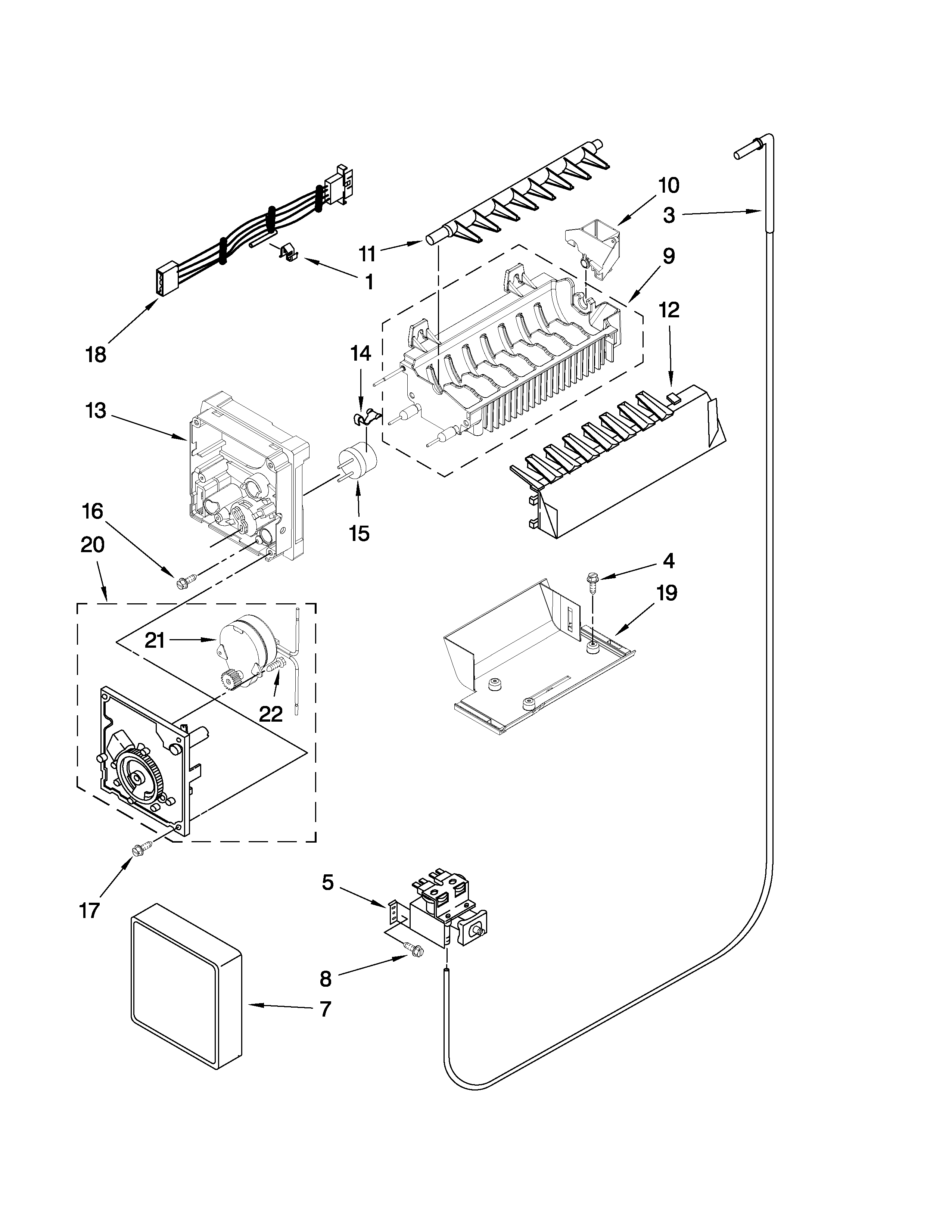

- Ice maker not making ice or slow ice: restricted water flow, frozen fill tube, or a failing inlet valve
- Water dispenser weak or not dispensing: clogged filter, air in the line, or inlet valve problem
- Fridge warm but freezer cold: evaporator fan or airflow blockage
- Frost buildup on freezer back wall: defrost heater, defrost thermostat, or control issue
- Water leaking inside or onto the floor: defrost drain issue or water line connection leak
- Noisy operation: fan blade interference, fan motor wear, or compressor start components
- Confirm the refrigerator has power and the controls are turned on (the manual’s troubleshooting section covers basic power checks).
- Set temperatures to typical targets and give the unit 24 hours to stabilize.
- If water or ice is affected, replace the filter if it is overdue and purge the dispenser.
- Listen for the evaporator fan running when the doors are closed (a failed fan often causes warm temperatures).
| Symptom | Common part to check/replace | Why it matters |
|---|---|---|
| No water or weak water | Refrigerator water filter EDR3RXD1 | A clogged filter restricts flow to the dispenser and ice maker |
| No ice and no water | Refrigerator water inlet valve W10408179 | The valve controls water flow into the refrigerator |
| Frost buildup, warm temps | Refrigerator defrost heater WP2323198 or refrigerator bi-metal thermostat WPW10225581 | Defrost failures block airflow across the evaporator |
| Warm fridge section | Refrigerator evaporator fan blade WP2169142 (inspect for damage) | Poor airflow prevents proper cooling distribution |
Ice, water, and cooling complaints often share the same root causes: restricted water flow, blocked airflow, or a defrost system problem. Catching the pattern early helps prevent food spoilage and reduces strain on the sealed refrigeration system.
Last updated: January 2026
How do I find the model number on my KSRG25FVMS02?
Your KitchenAid refrigerator’s model number is on the model and serial label inside the fresh food (refrigerator) compartment. On KSRG25FVMS02, the label is located on the inside wall of the refrigerator compartment; open the refrigerator door and look along the interior side walls.
- Open the refrigerator (fresh food) door, not the freezer door
- Look on the inside wall of the refrigerator compartment
- Check the side walls first (near the front edge)
- Look for a sticker or metal tag that lists Model and Serial
- Write the model number exactly as shown (letters and numbers)
| Label item | What it’s used for | Example |
|---|---|---|
| Model number | Ordering the correct parts and diagrams | KSRG25FVMS02 |
| Serial number | Identifying production details | Varies |
| Electrical ratings | Verifying power specs for service | Varies |
- Use a flashlight; labels can be dim or partially hidden by shelves
- Wipe dust or residue gently with a damp cloth, then dry
- If characters are hard to read, take a close-up photo and zoom in
- Match the model number exactly when selecting parts like a water filter or door switch
The exact model number ensures we match your KitchenAid KSRG25FVMS02 to the correct parts list, diagrams, and troubleshooting information, so you get the right fit and function the first time.
For the official location details and other identification info, use the KSRG25FVMS02 owner's manual.
Last updated: March 2026
