Kenmore
Bottom-Mount Refrigerator

Model # 59673502200 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 59673502200 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

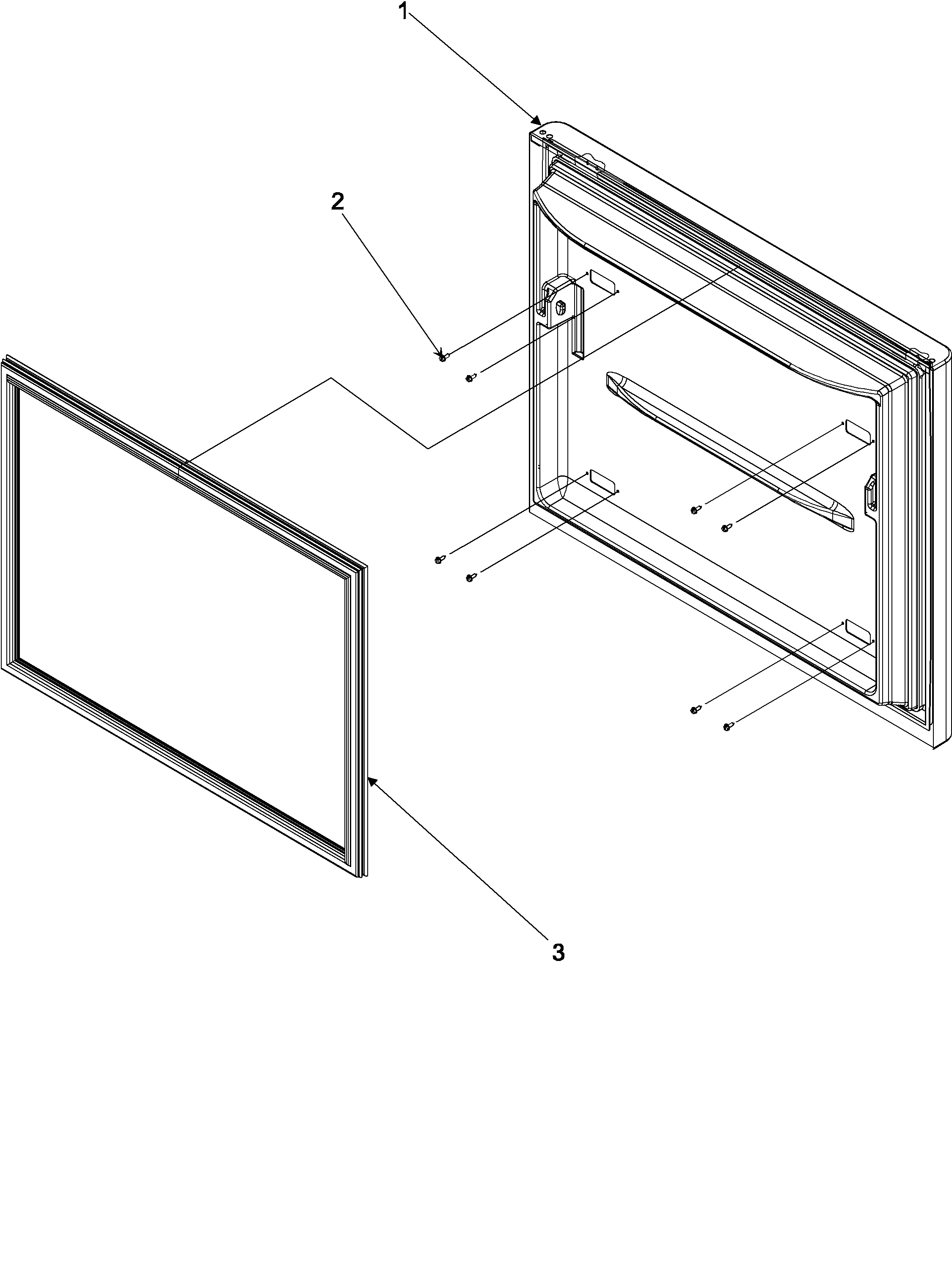

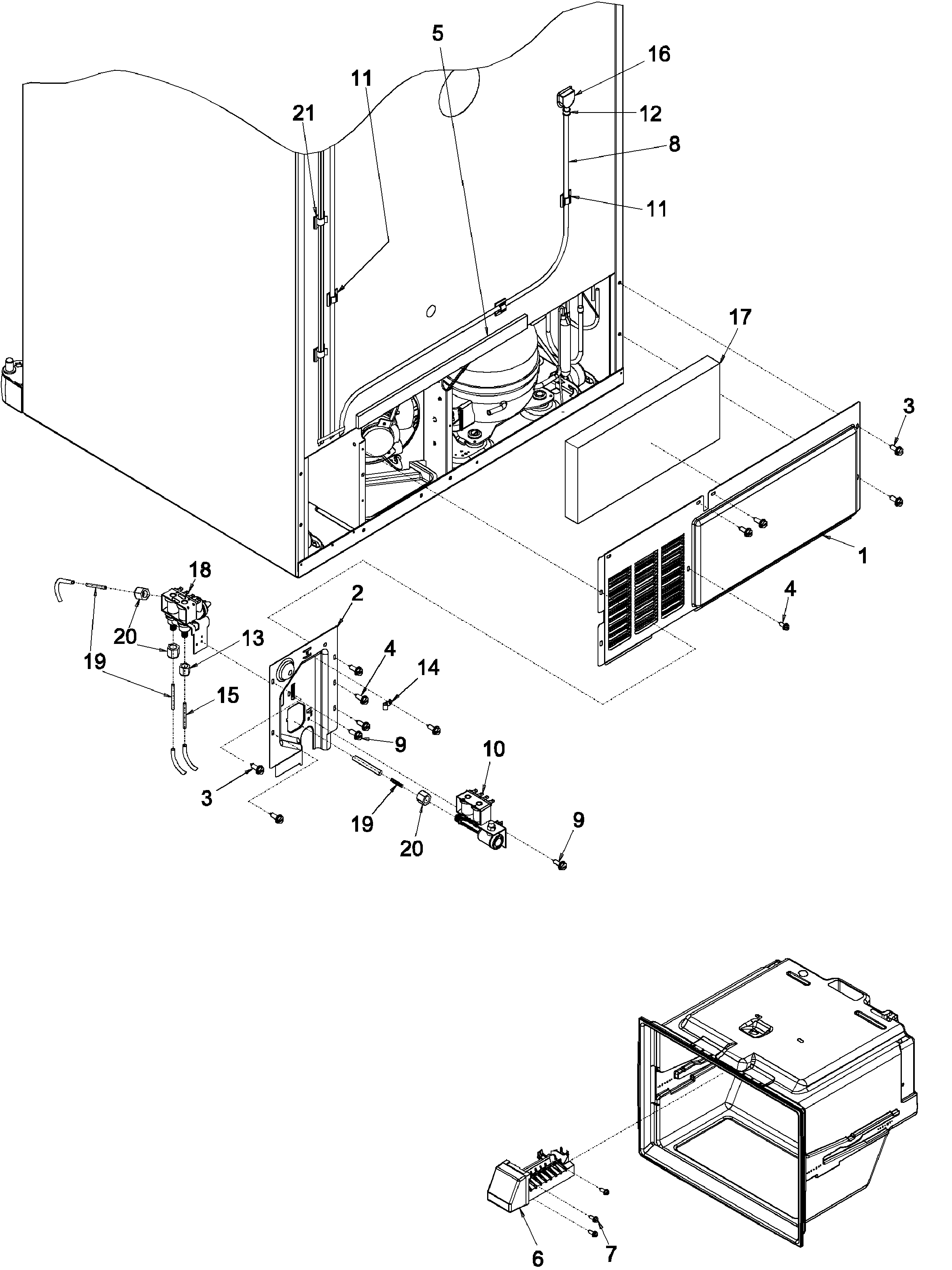

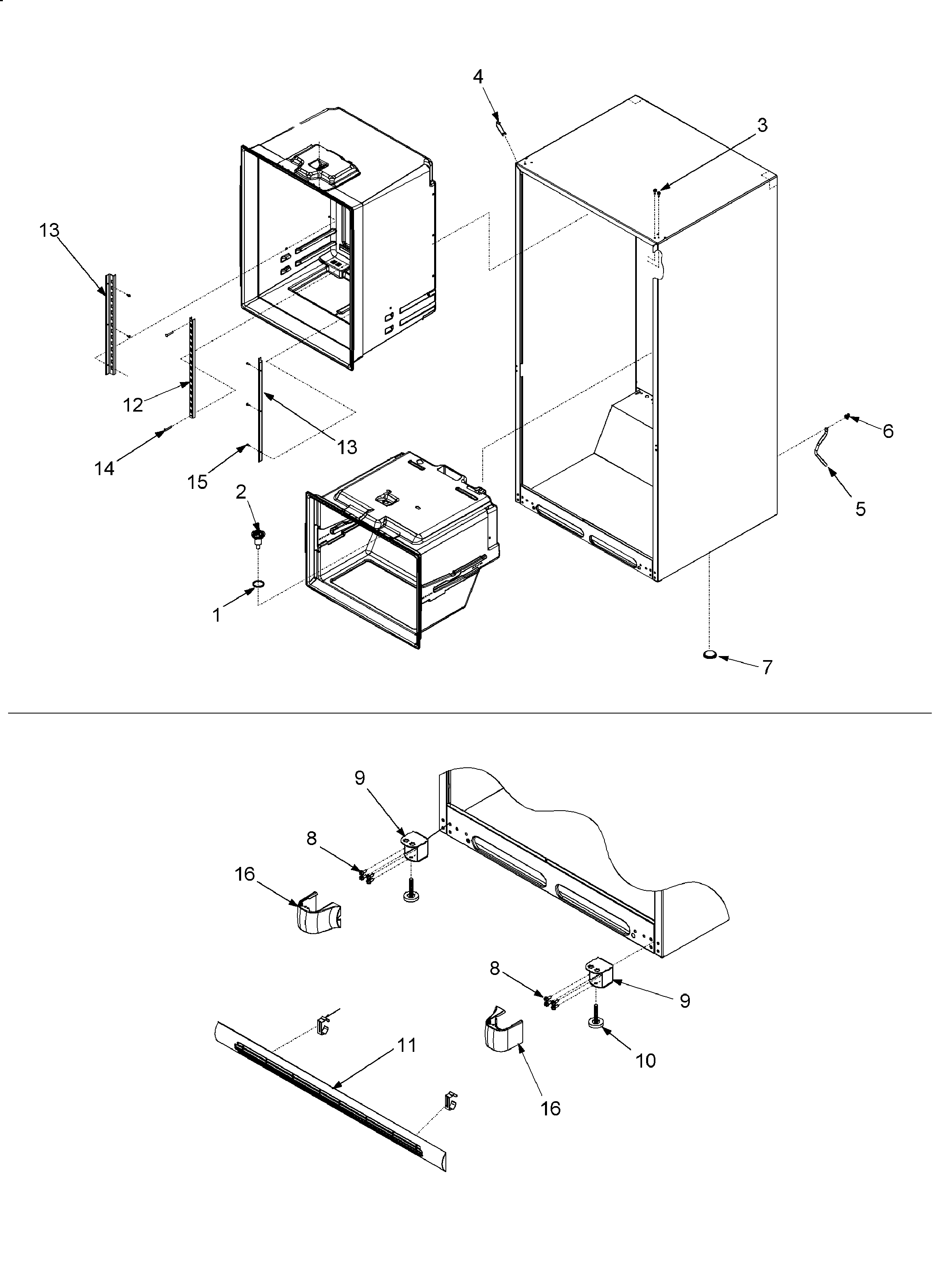

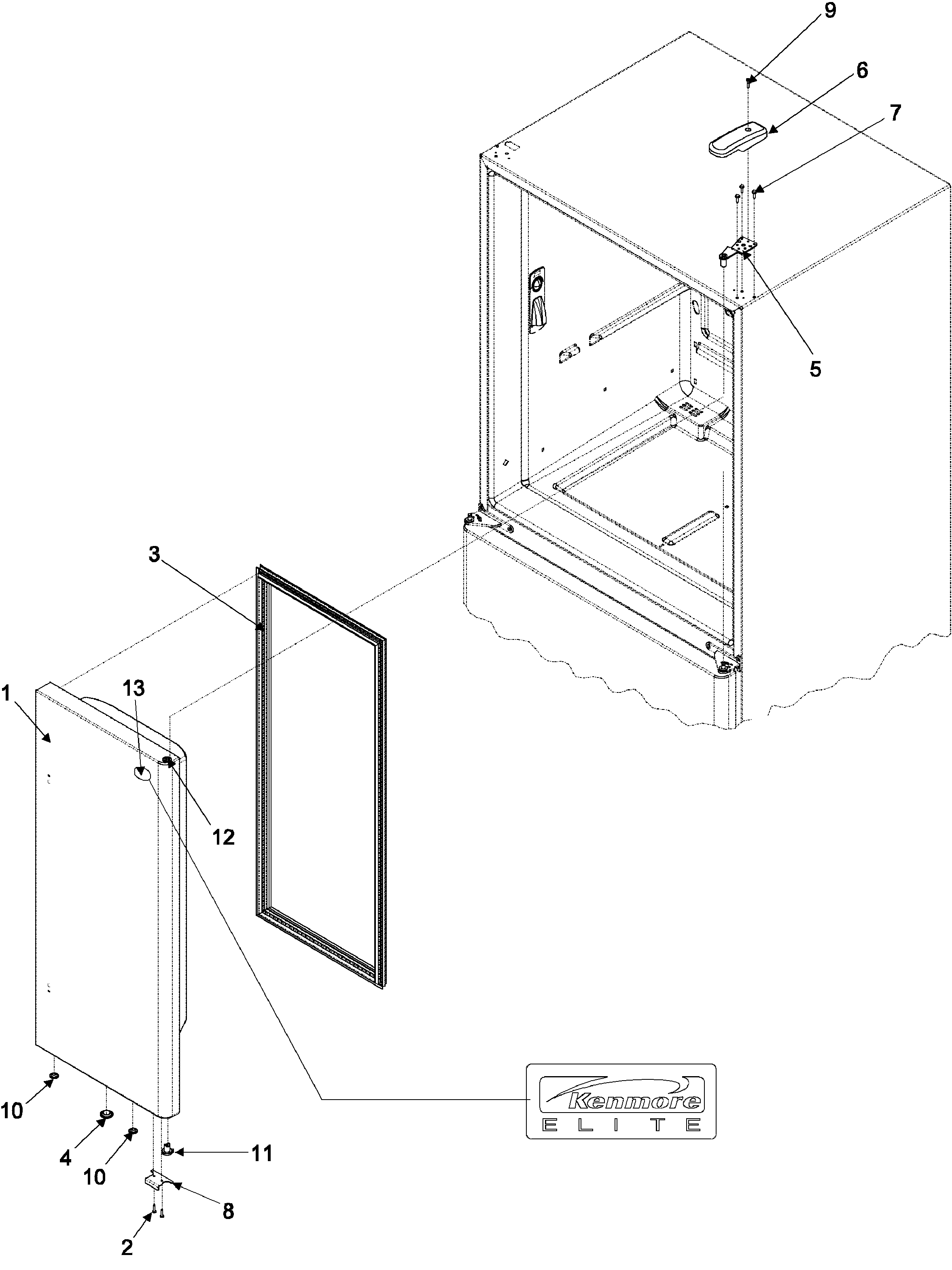

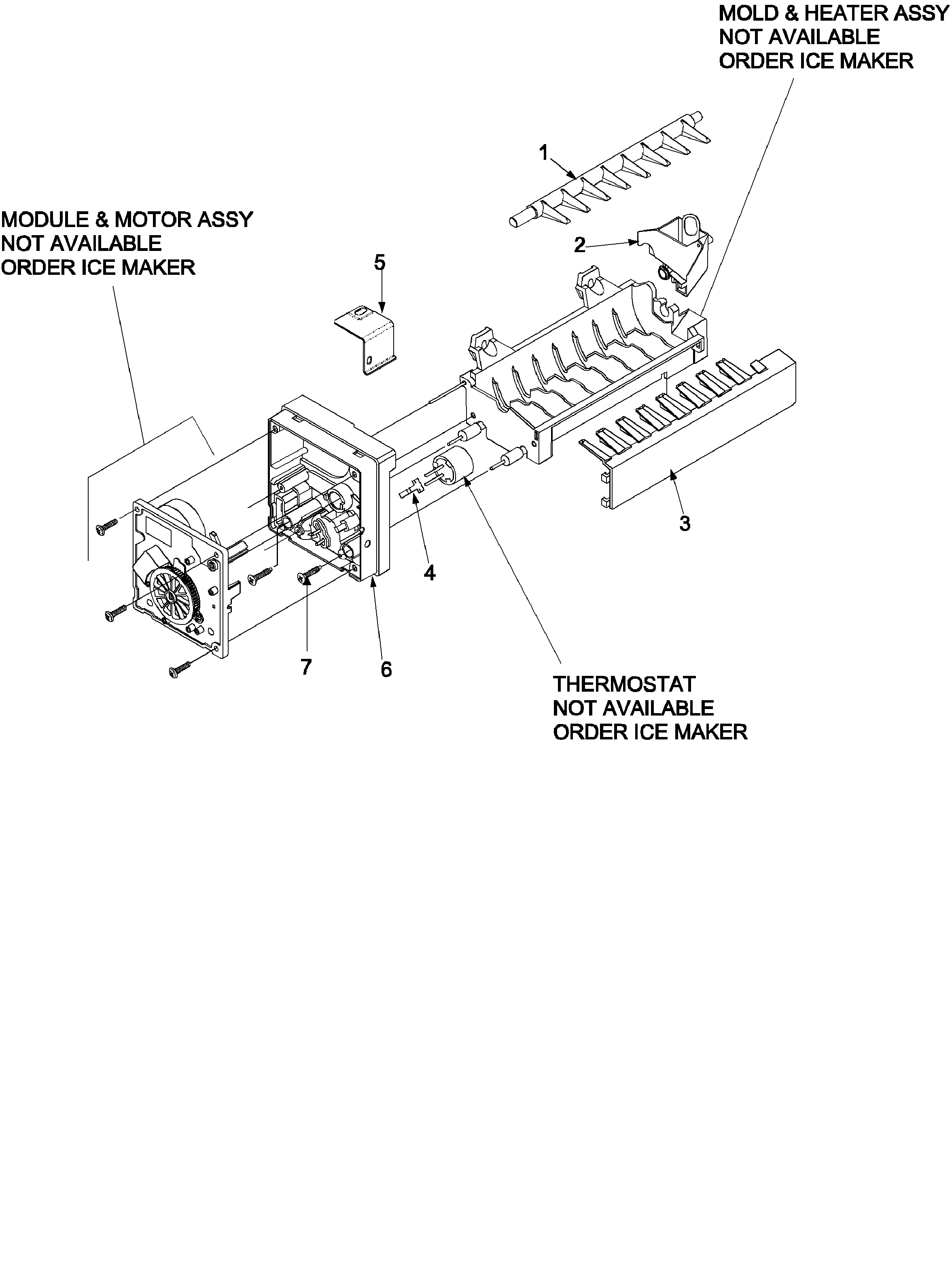

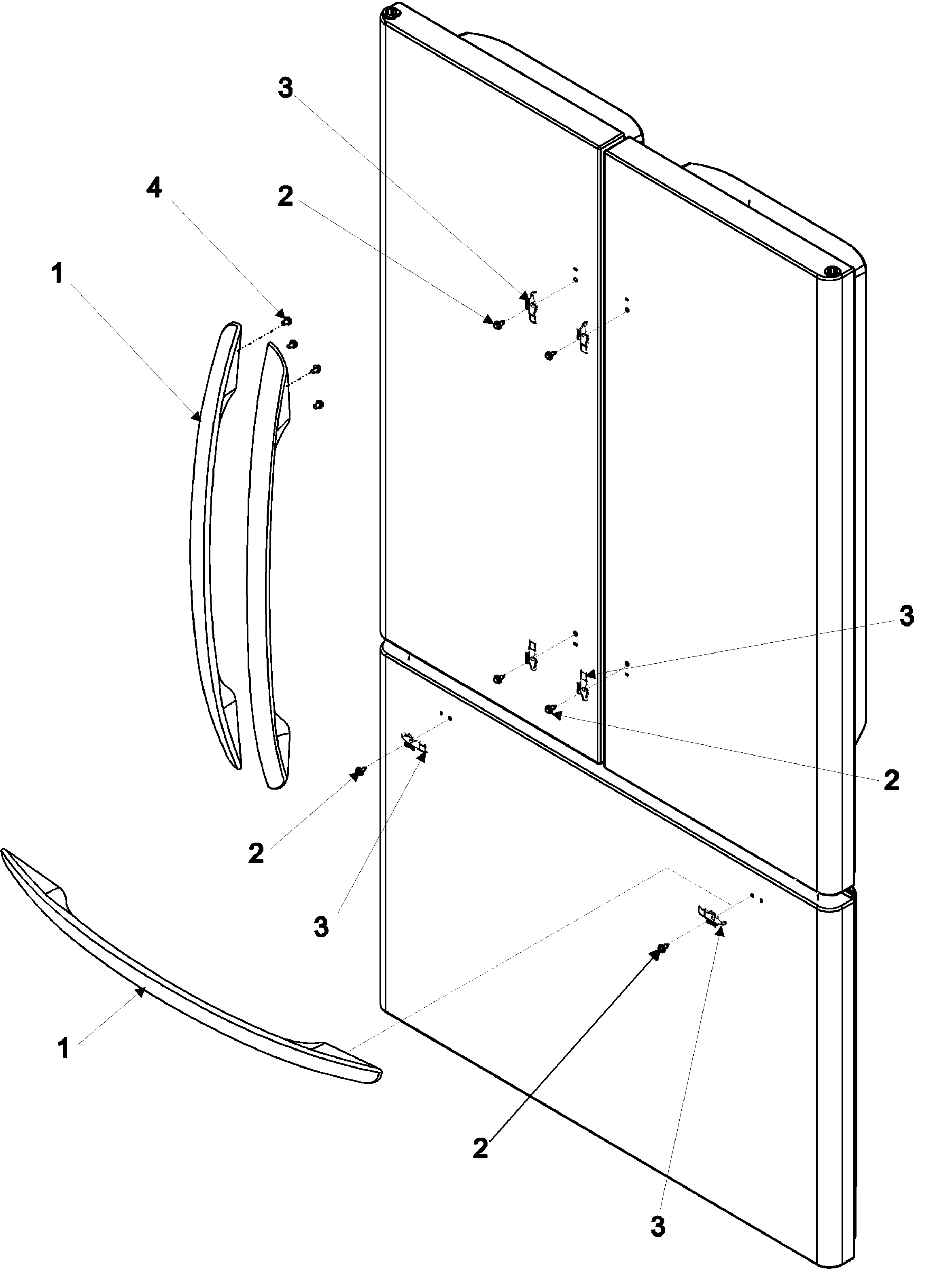

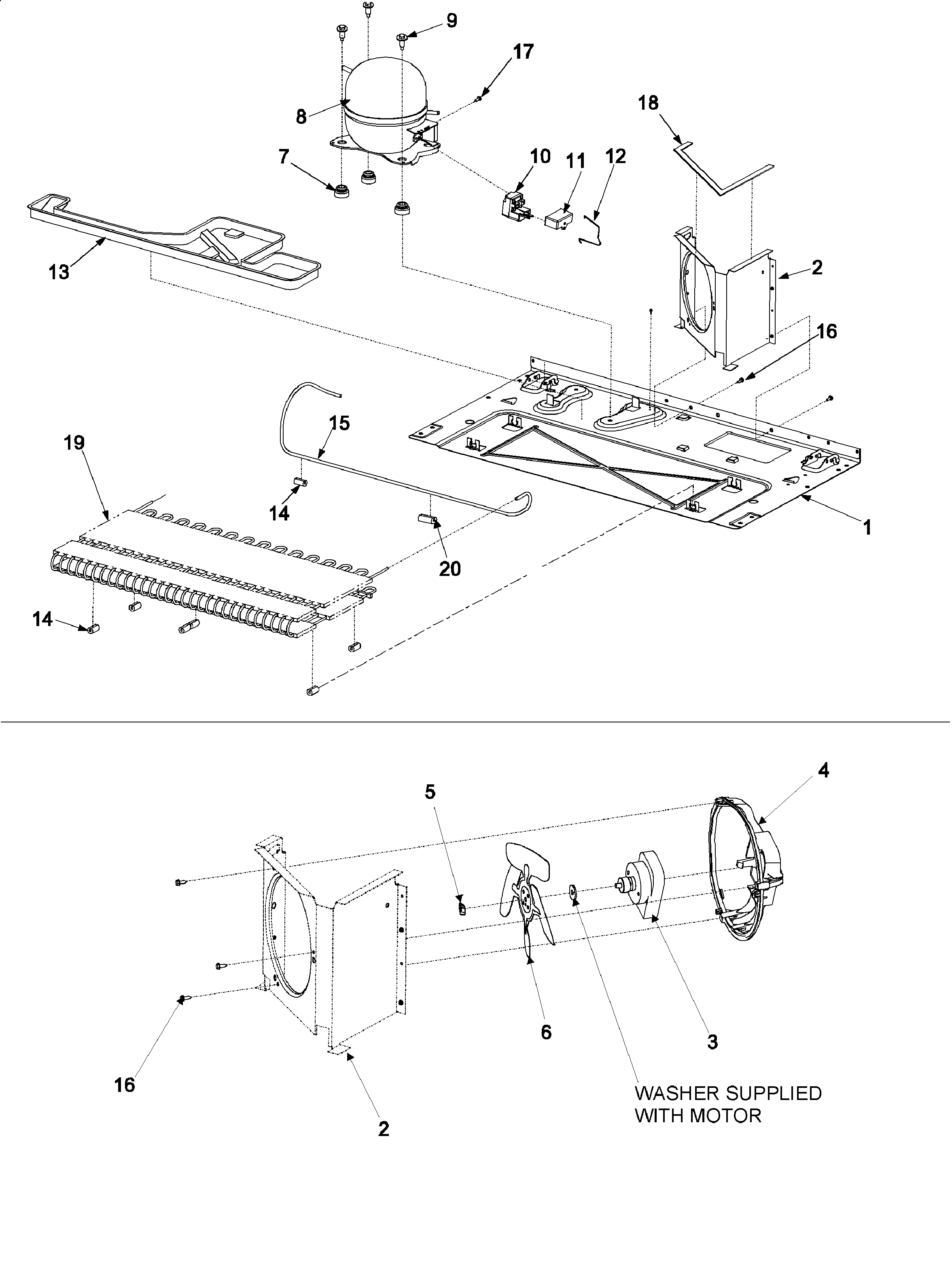

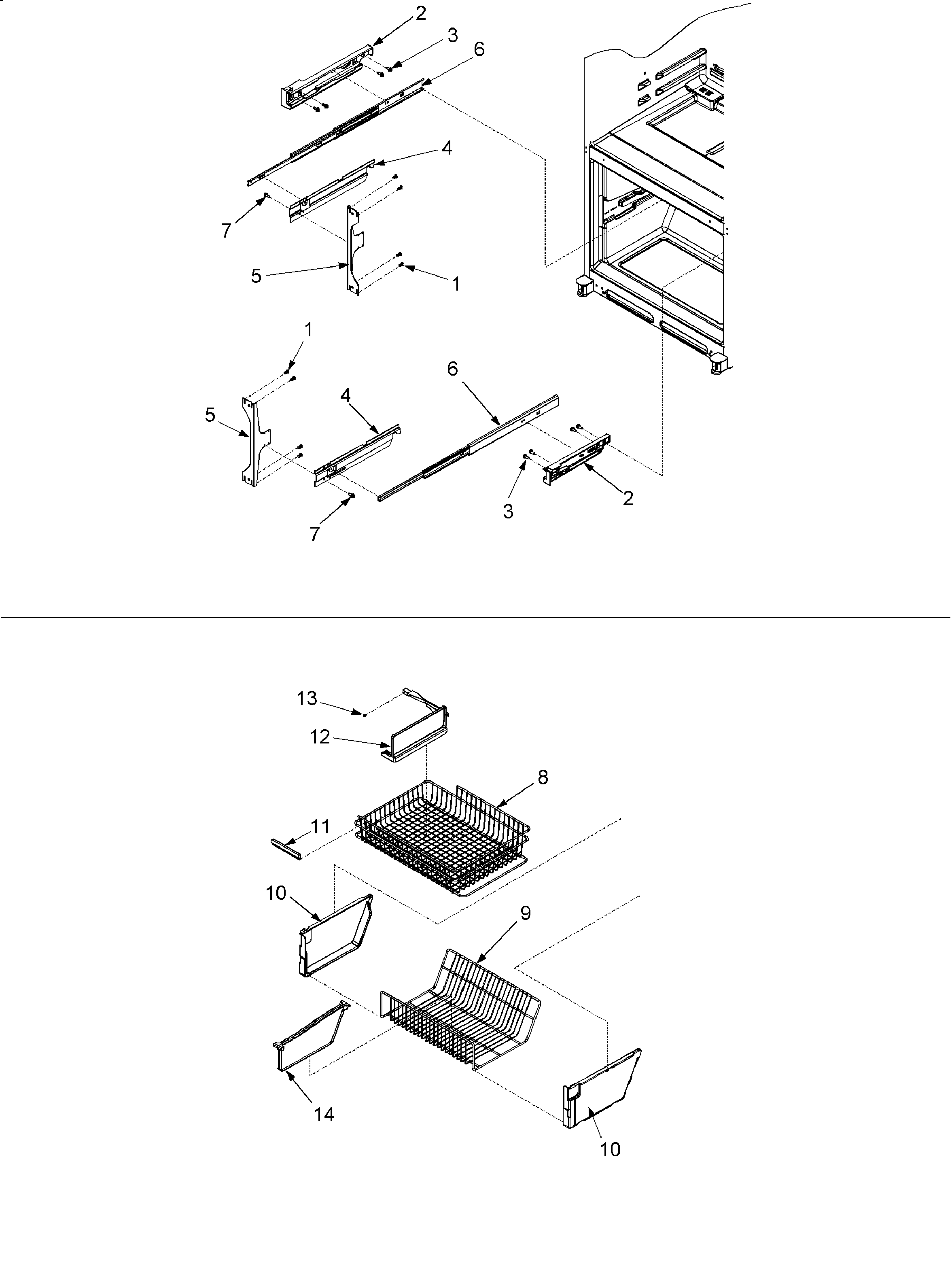

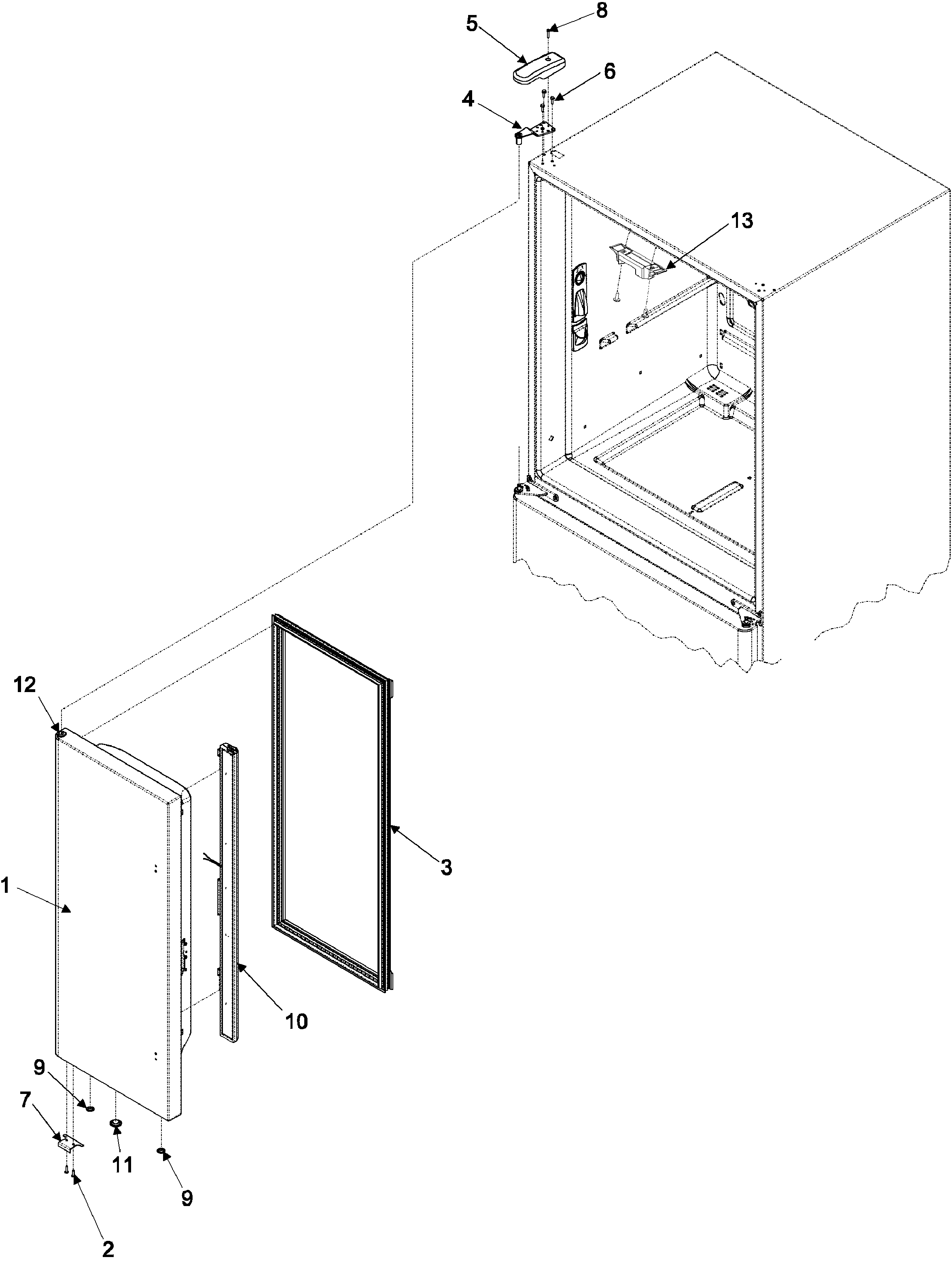

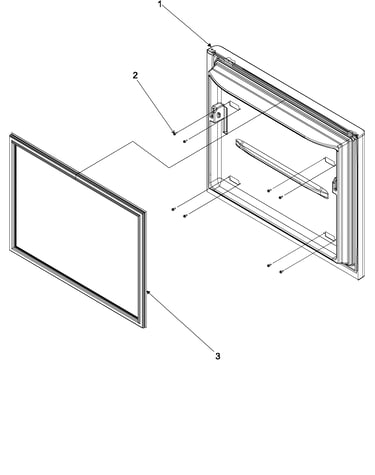

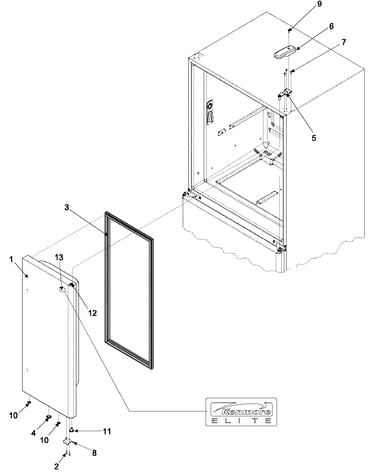

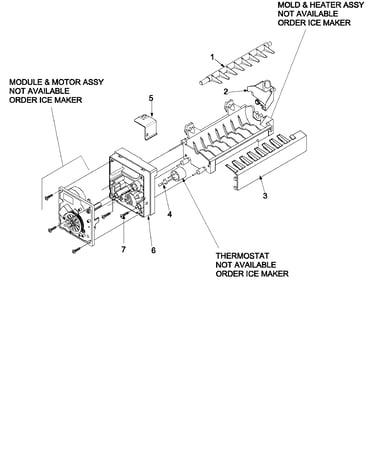

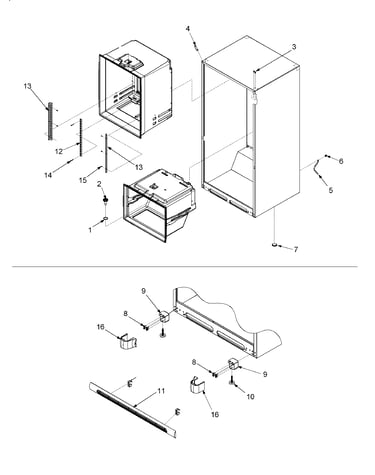

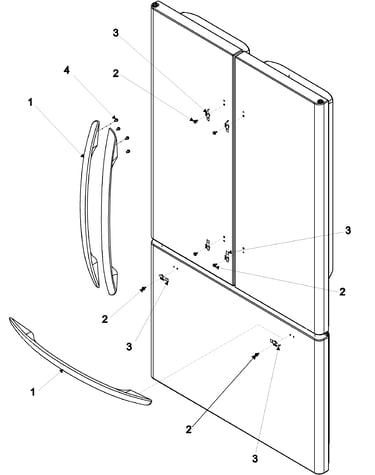

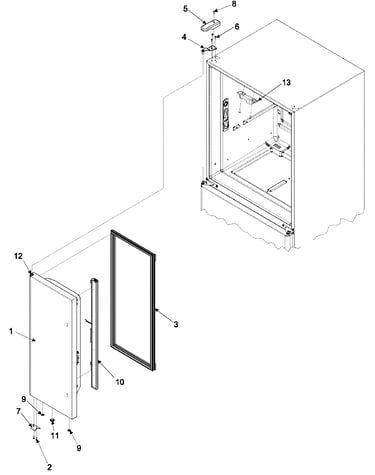

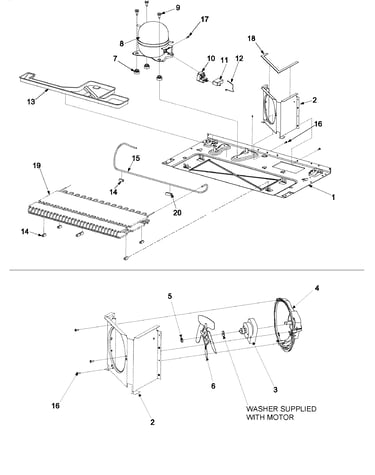

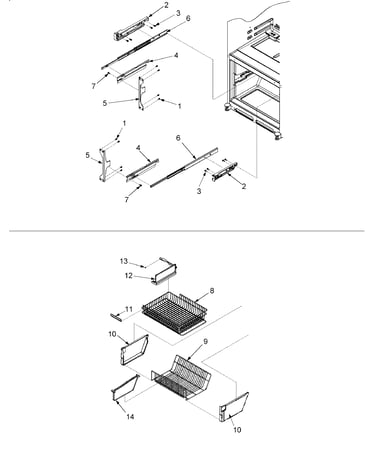

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 274 parts  |

Genuine Kenmore Refrigerator Water Filter (replaces 9006) 9084
Genuine kenmore refrigerator water filter (replaces 9006)

Part #9084

BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Refrigerator Water Filter 67002269
#3

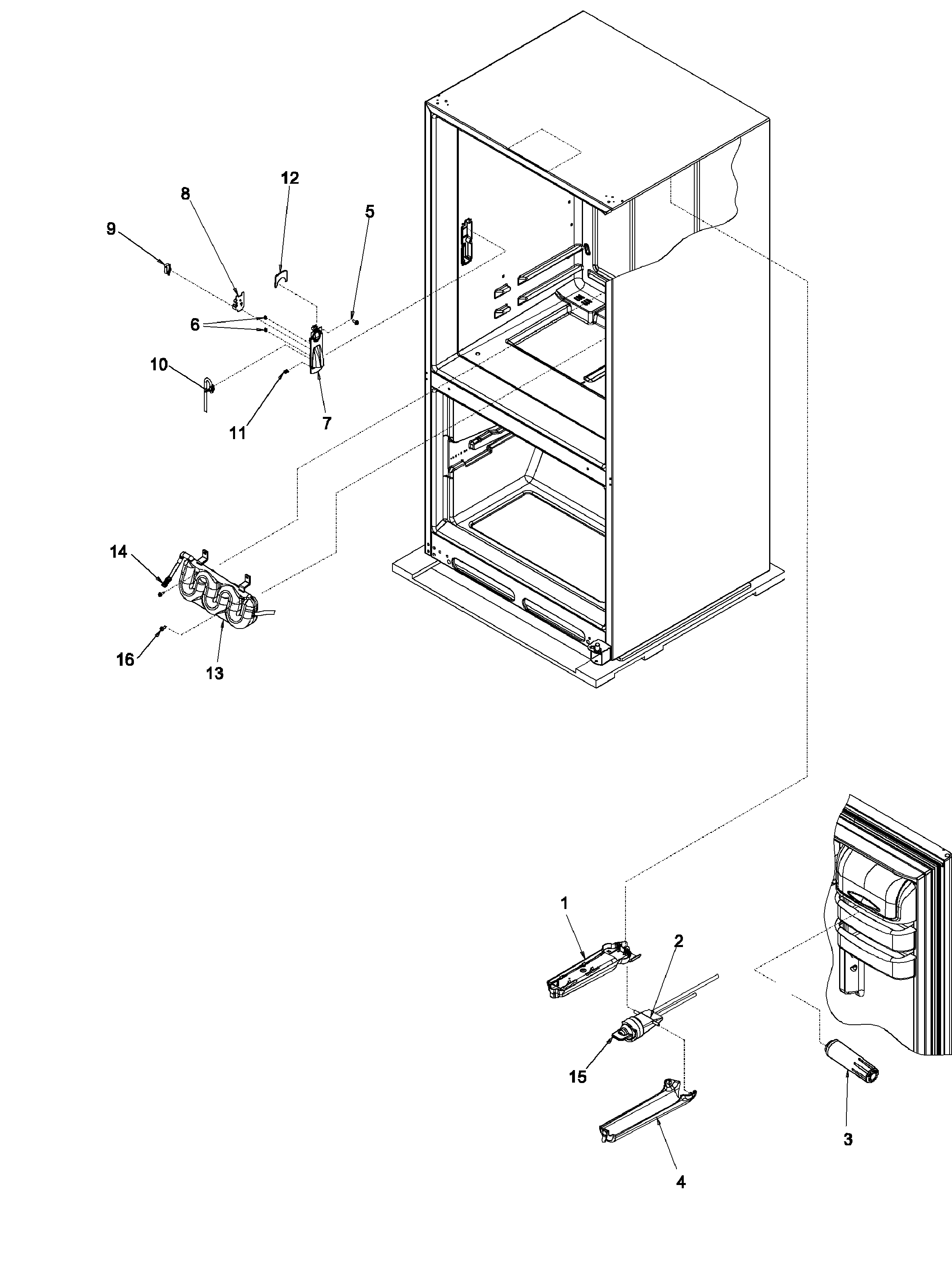

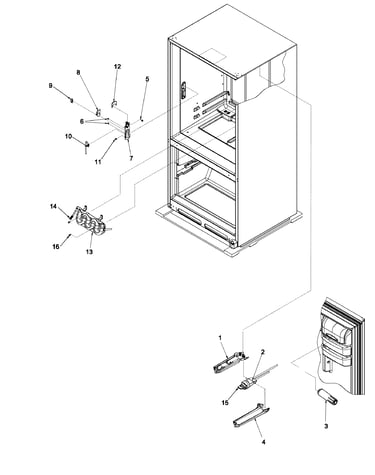

Water dispenser/filter diagram

Refrigerator water filter

Part #67002269

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator End Cap 67002758
#19

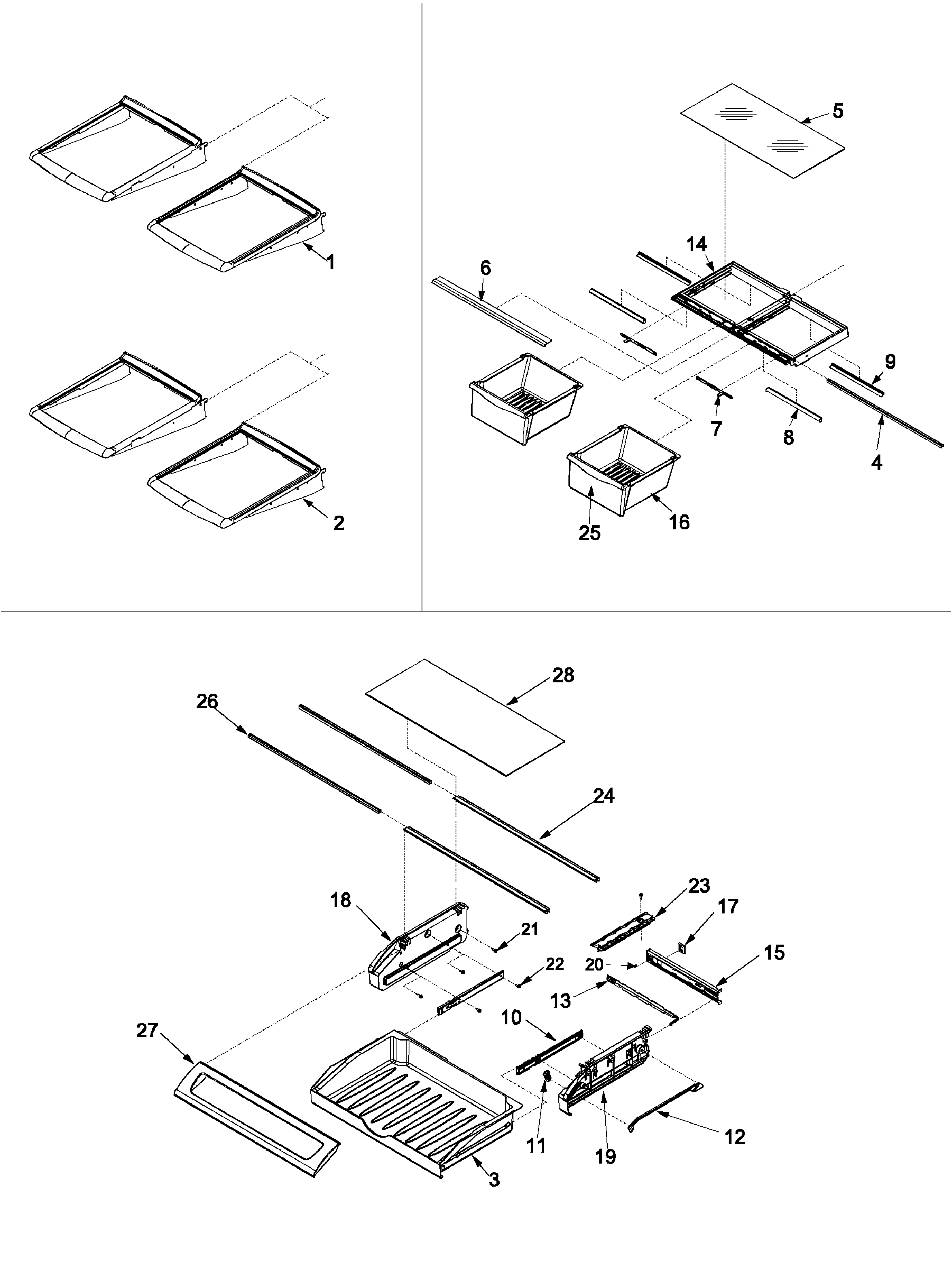

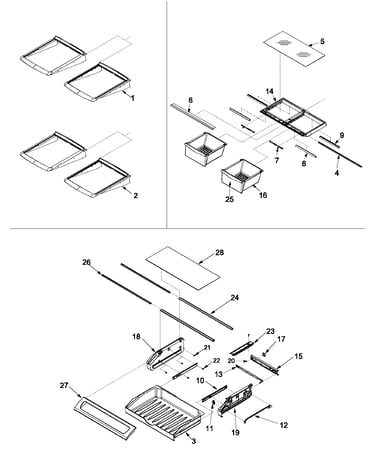

Refrigerator shelving diagram

Refrigerator end cap

Part #67002758

The manufacturer no longer makes this part, and there's no substitute part

End Cap, Lh 67002757
#18

Refrigerator shelving diagram

End cap, lh

Part #67002757

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Pantry Lid 67002319
#27

Refrigerator shelving diagram

Refrigerator pantry lid

Part #67002319

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bucket 67002733
#4

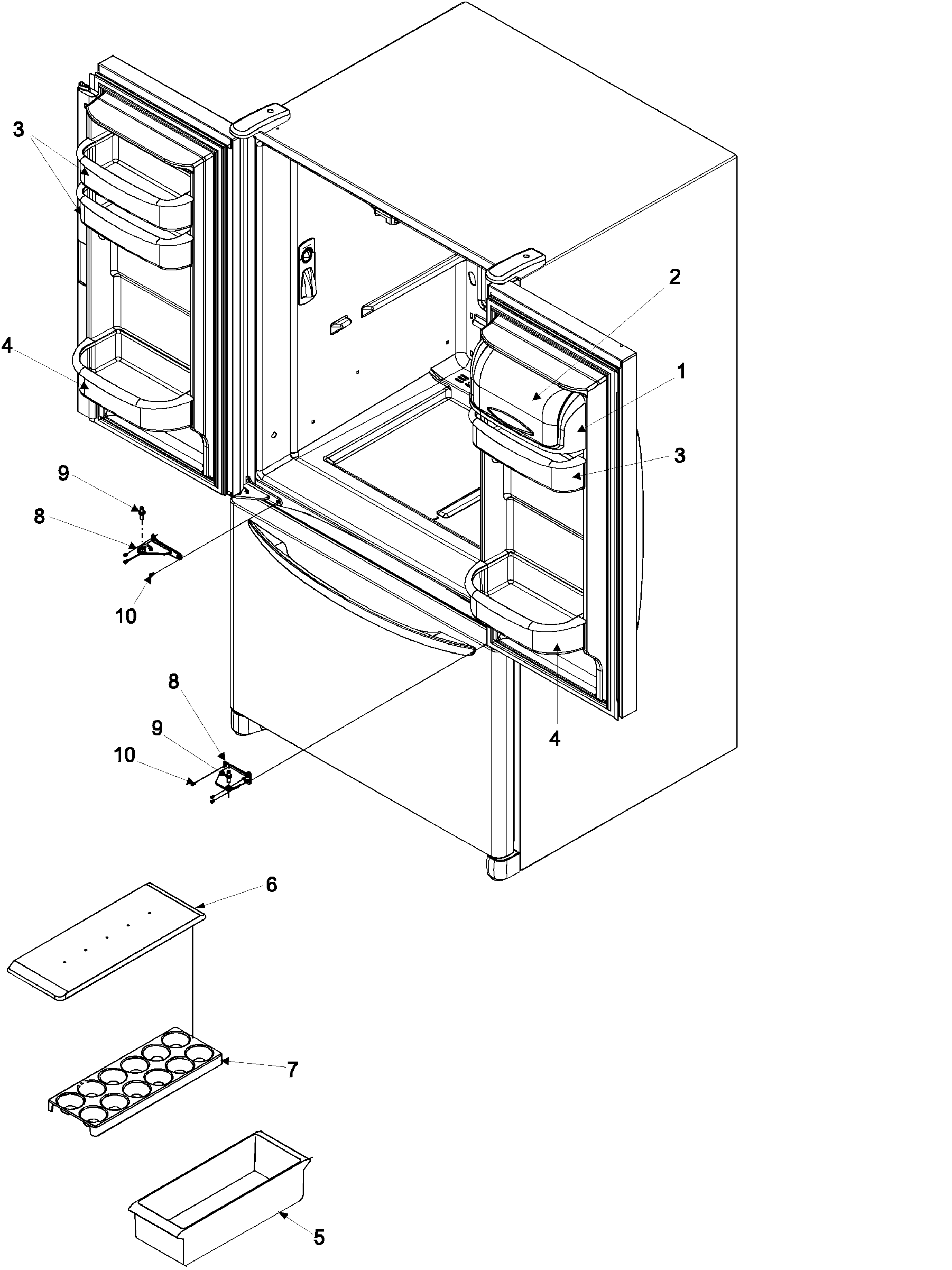

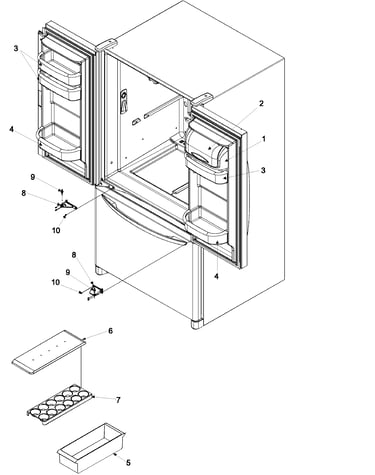

Ref dr storage & center hinges diagram

Refrigerator bucket

Part #67002733

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Tube B5705323
Refrigerator tube

Part #B5705323

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch 12466101
#29

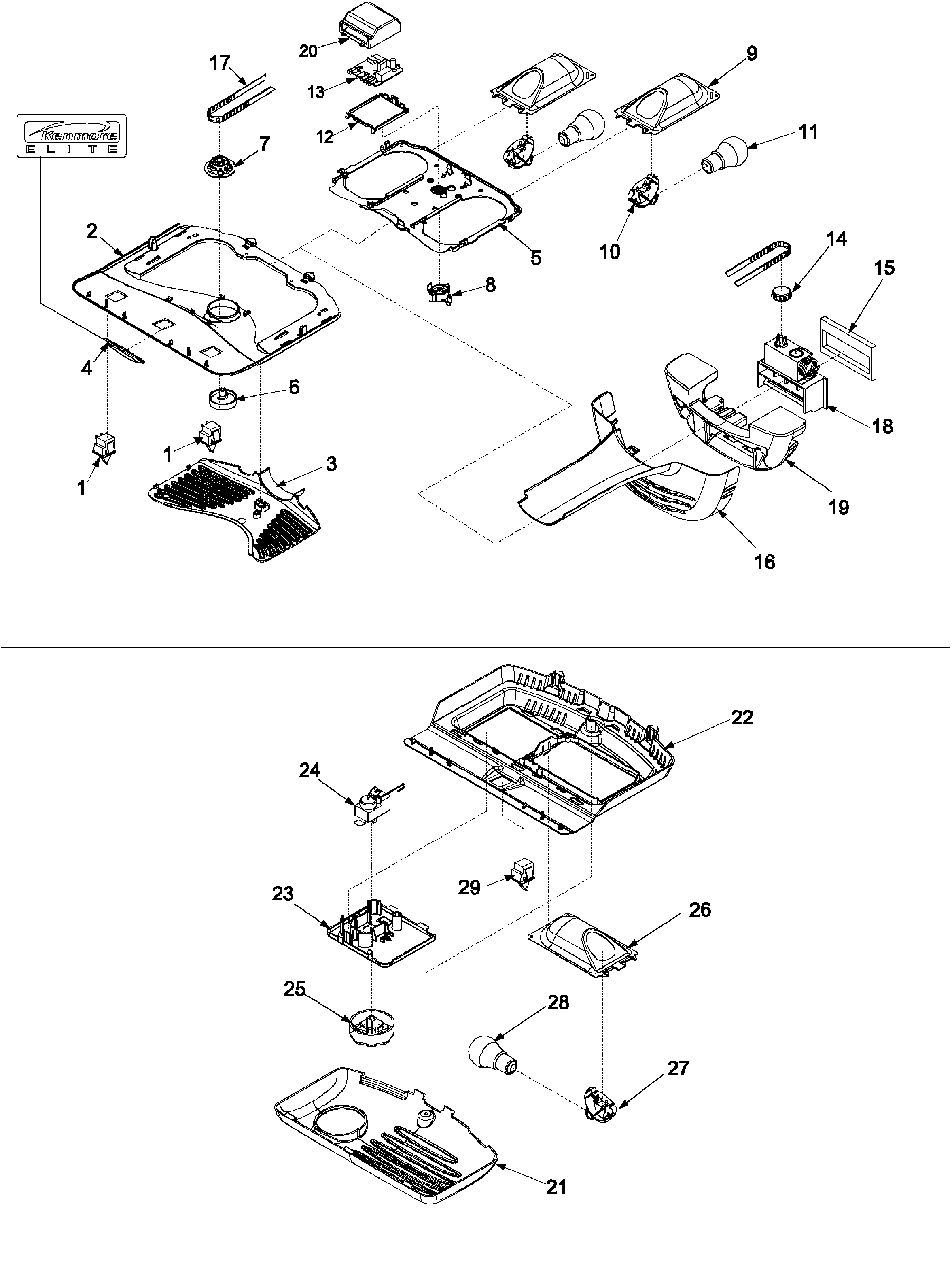

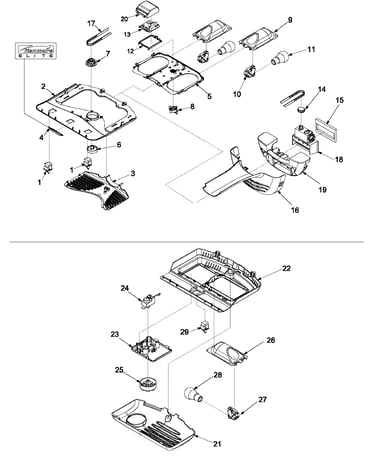

Controls diagram

Refrigerator switch

Part #12466101

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466101. Substitute parts can look different from the original.
BEST SELLER
$20.37
36% OFF MSRP : $32.00
In Stock
Refrigerator Blade 12217201
#21

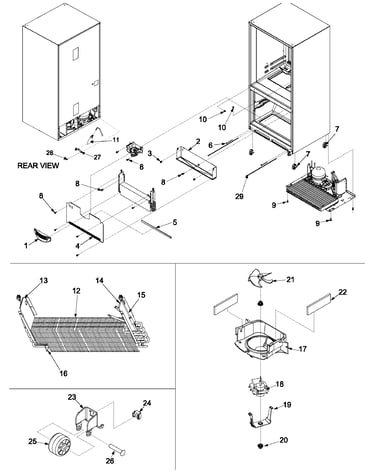

Evaporator area & rollers diagram

Refrigerator blade

Part #12217201

The manufacturer no longer makes this part, and there's no substitute part
