Model # 40753570310 Official Kenmore 70-pint rating label

Here are the diagrams and repair parts for Official Kenmore 40753570310 70-pint rating label, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 45 parts |

#30

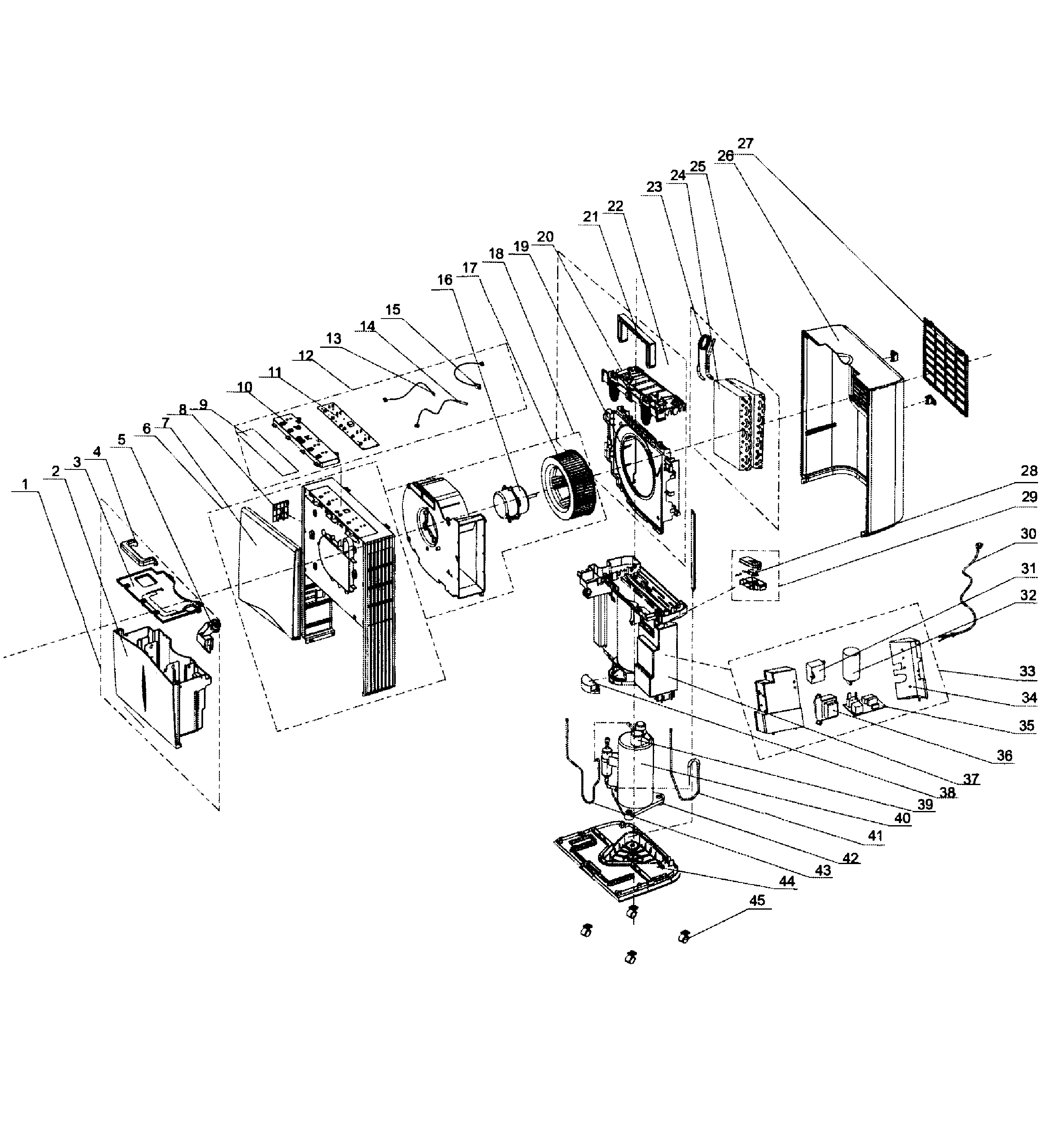

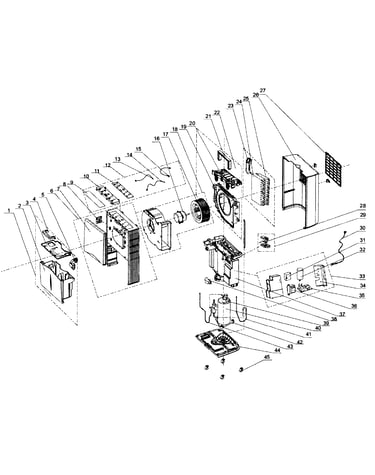

Cabinet parts diagram

Power cord

Part #4002039123

The manufacturer no longer makes this part, and there's no substitute part

#31

Cabinet parts diagram

Capacitor

Part #33010064

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Panel

Part #27230000395

The manufacturer no longer makes this part, and there's no substitute part

#21

Cabinet parts diagram

Handle

Part #2623601702

The manufacturer no longer makes this part, and there's no substitute part

#33

Cabinet parts diagram

Electronic box

Part #0140653001

The manufacturer no longer makes this part, and there's no substitute part

#19

Cabinet parts diagram

Div circle

Part #1037604104

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water-level Switch 45016014

#29

Cabinet parts diagram

Dehumidifier water-level switch

Part #45016014

The manufacturer no longer makes this part, and there's no substitute part

#17

Cabinet parts diagram

Fan

Part #10316064

The manufacturer no longer makes this part, and there's no substitute part

#26

Cabinet parts diagram

Case

Part #2220652508

The manufacturer no longer makes this part, and there's no substitute part

#25

Cabinet parts diagram

Dehumidifier evaporator

Part #01036099

The manufacturer no longer makes this part, and there's no substitute part
