GE GFE26GMKGES bottom-mount refrigerator Parts

On the GE GFE26GMKGES bottom-mount refrigerator, the bottom grille (base grille) typically comes off by releasing its retaining clips and pulling it forward; some versions also use a couple of screws. Unplug the refrigerator or switch off power before working near wiring and the condenser fan area.

• Pull the refrigerator slightly forward if you need more hand room.
• Look along the top edge of the grille for clip points.
• Firmly pull the grille straight out toward you to pop it free.
• If it will not release, check the left and right ends for Phillips or 1/4-inch hex-head screws.
• Remove any screws, then pull the grille forward and lift it off.
• Reinstall by lining it up and pressing it in until it snaps, then reinstall screws (if used).

• Hidden screws: Some base grilles are secured at the ends.
• Brittle plastic: Warm the room slightly; cold plastic cracks more easily.
• Leveling legs: If the grille is binding, raise the front slightly by adjusting the leveling legs, then try again.

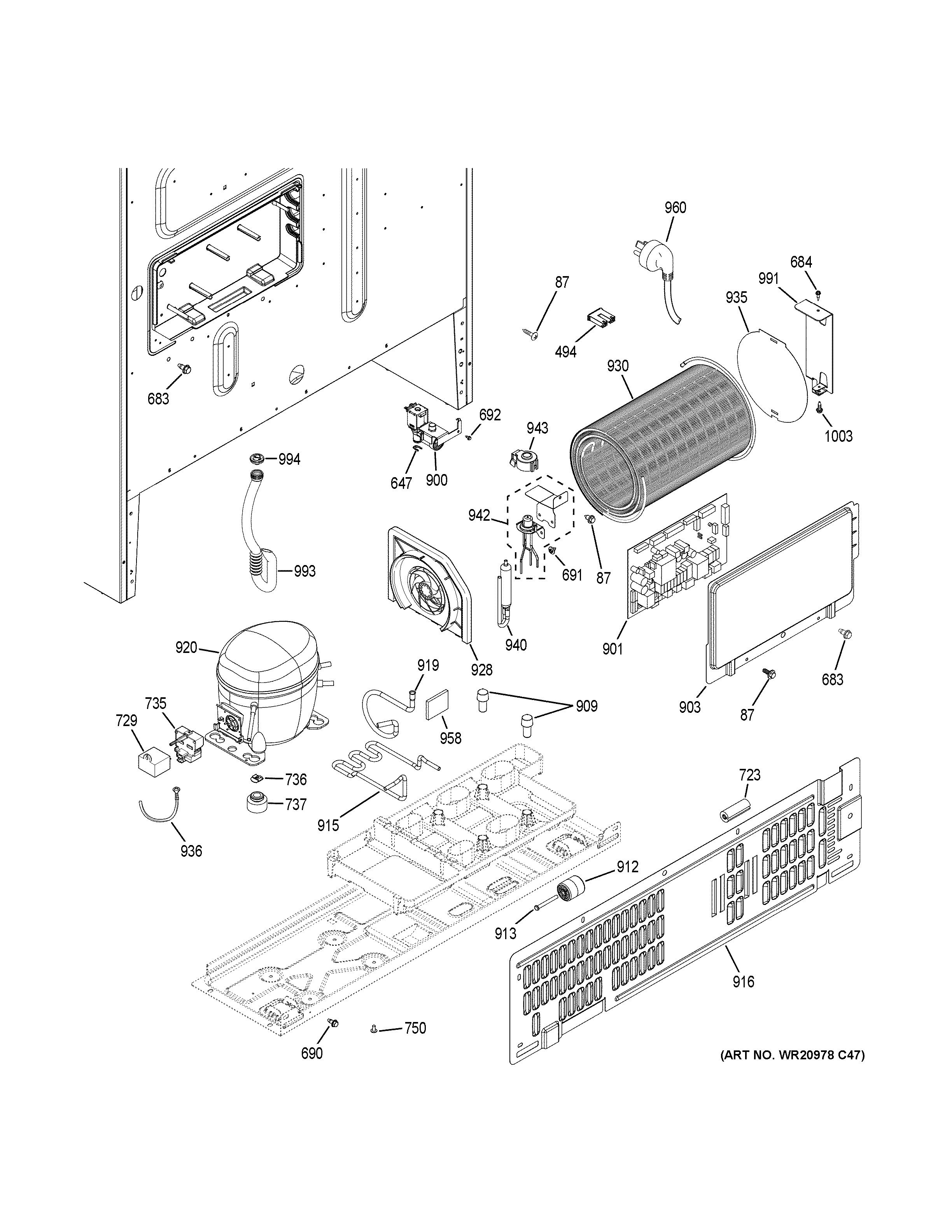

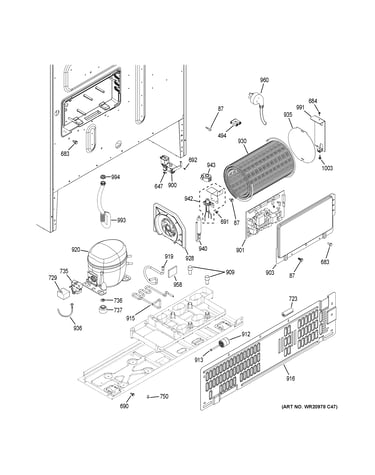

Removing the bottom grille gives you access for basic maintenance like cleaning dust from the condenser area, which helps cooling performance and can reduce compressor run time.

For model-specific diagrams and any fastener locations used on your exact configuration, follow the owner's manual.

Last updated: February 2026

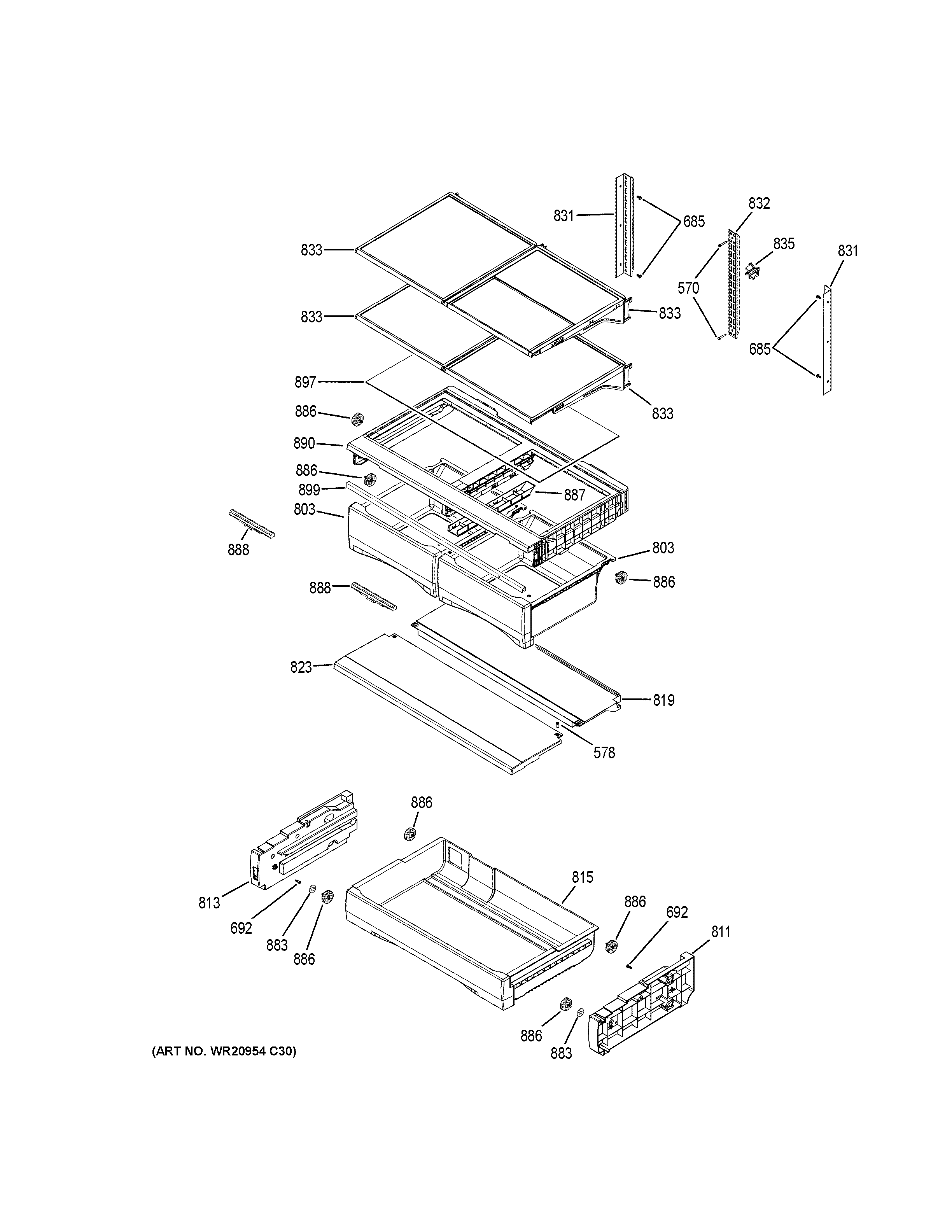

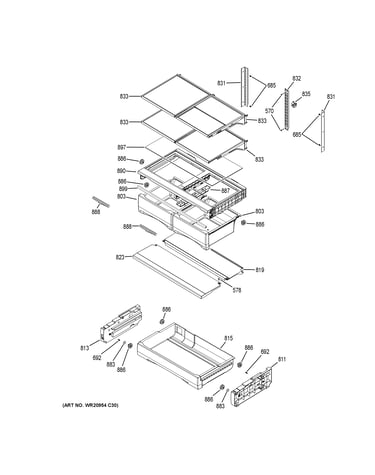

To remove the bottom shelf in your GE GFE26GMKGES refrigerator, take everything off the shelf, tilt the front edge up, then lift the back up and pull the shelf straight out. Follow the same steps in reverse to reinstall it; lower the front until it locks.

• Remove all food and bins sitting on the shelf.
• Support the glass with both hands (it can be slippery).
• Tilt the shelf up at the front.
• Lift the shelf up at the back to unhook it from the track.
• Pull the shelf out of the refrigerator.
• Set it down on a flat surface to avoid twisting the frame.

1. Tilt the shelf up and insert the top hook at the back into the correct slot on the track.
2. Lower the front of the shelf.
3. Press down gently until the bottom locks into place.

Glass shelves can break if they are shocked by temperature changes or impact.

• Let cold glass warm up before washing.
• Do not clean cold glass with warm or hot water.
• Avoid bumping the shelf on the door frame while removing it.
• Hand-wash plastic refrigerator parts (do not use a dishwasher).

Removing the shelf the right way prevents cracked tempered glass, broken shelf supports, and misaligned tracks that can make shelves sit unevenly and spill.

For diagrams of the shelf hooks and track positions, use the owner's manual.

Last updated: February 2026

For GE bottom-mount refrigerators like model GFE26GMKGES, the model number is a manufacturer code that identifies the product family and key configuration. In this case, the GFE prefix indicates a GE standard-depth refrigerator series, and the remaining characters help match the correct features and replacement parts.

From the documentation for GE and GE Profile bottom-freezer refrigerators:

• GFE: GE standard-depth model family (the manual groups models starting with DFE, GFE, GNE, PFH, PFE, PFD, and GFD as standard depth).
• 26: Commonly used by manufacturers to indicate an approximate capacity class (for example, around 26 cubic feet), and it also helps distinguish series within the family.
• GMKGES: A GE internal configuration code (feature package, finish, and revision identifiers) used to match the exact parts list for your refrigerator.

Even small differences in the suffix can change which parts fit (controls, doors, sensors, filters). When ordering parts, always match the full model number from the rating label.

• Look for the model/serial label inside the fresh food compartment.
• Use the full model number when selecting parts such as a water filter, control board, or door gasket.
• If you are troubleshooting, the model family also helps you use the correct control style and settings.

Using the correct GFE26GMKGES identifier prevents ordering the wrong GE refrigerator parts and helps ensure troubleshooting steps in the manual match your control layout and features.

For model-family details and where to find the model/serial label, use the owner's manual.

Last updated: February 2026

The most common issue we see with a GE refrigerator like model GFE26GMKGES is a cooling complaint (fresh food warm, freezer not holding temperature). In many cases, the root cause is airflow or temperature control related, such as a fan issue, a sensor problem, or frost buildup from a defrost failure; our owner's manual troubleshooting section helps you narrow it down quickly.

• Not cooling or uneven temps: evaporator fan not moving air, temperature sensor out of range, or heavy frost restricting airflow
• Strange noises: normal fan speed changes, refrigerant flow sounds, or ice chute motor operation (often normal per the manual)

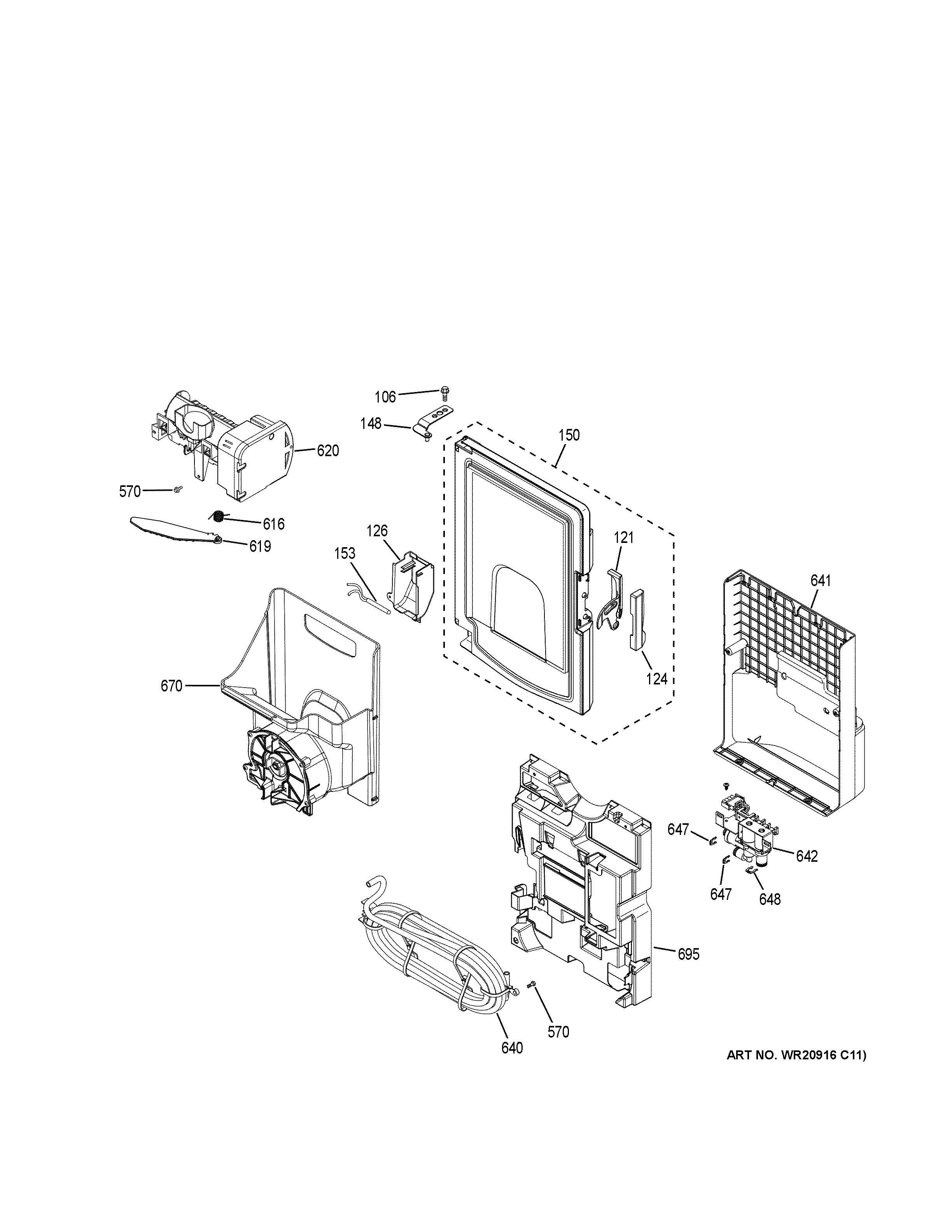

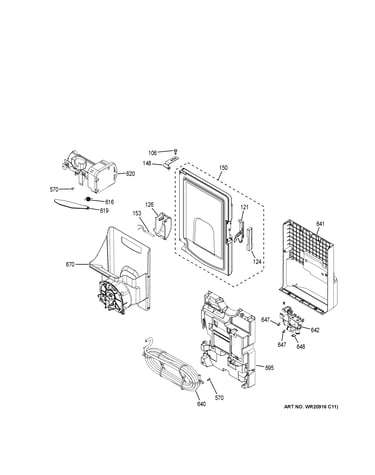

• Ice maker or dispenser issues: clogged filter, air in the water line, or a weak inlet valve
• Water leaking: filter not seated, drain issue, or water line connection problem

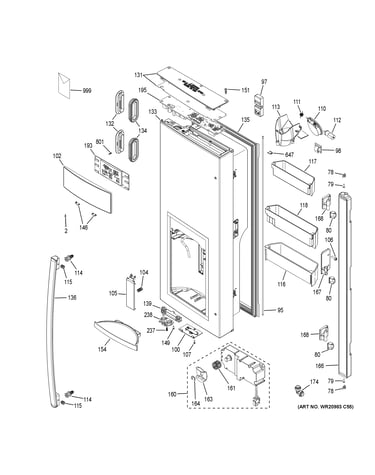

• Door not closing or alarm beeping: door left ajar, gasket not sealing, or door alignment

1. Confirm the controls are set to cooling (some “not cooling” calls are the cooling system being turned off).
2. Give a new install or a warm fridge 24 hours to stabilize temperatures.
3. Make sure vents inside the fresh food section are not blocked by food packages.
4. Listen for the evaporator fan; it may run faster after door openings or heavy loading.
5. Check door seal contact all the way around and verify doors are aligned.

Cooling problems can look like a “bad compressor,” but they are often caused by airflow, defrost, or water system restrictions. Doing the quick checks first helps prevent unnecessary part replacement and gets temperatures back to safe food-storage ranges faster.

Last updated: February 2026
