Model # ZISP480DXBSS Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE ZISP480DXBSS refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

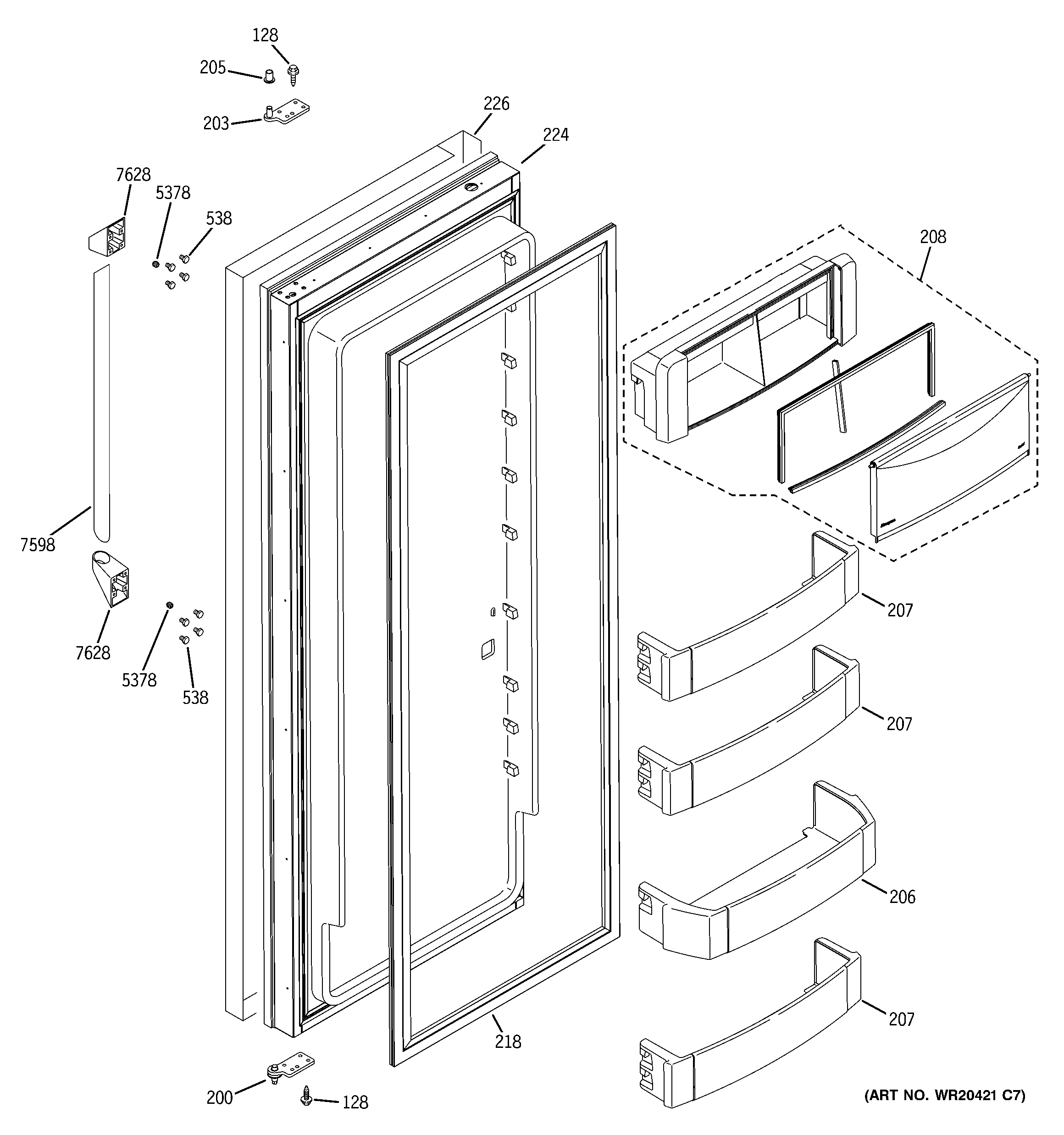

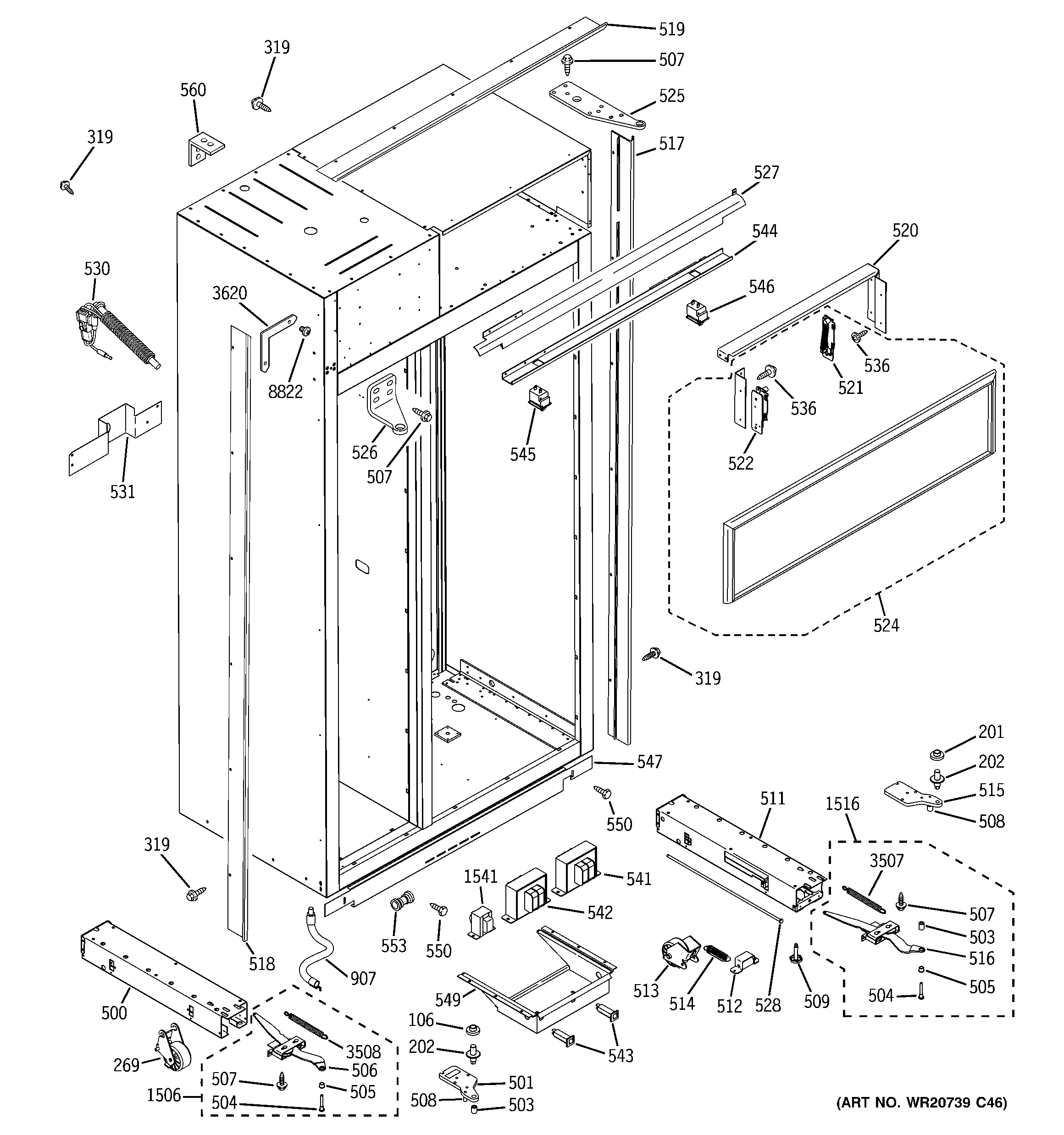

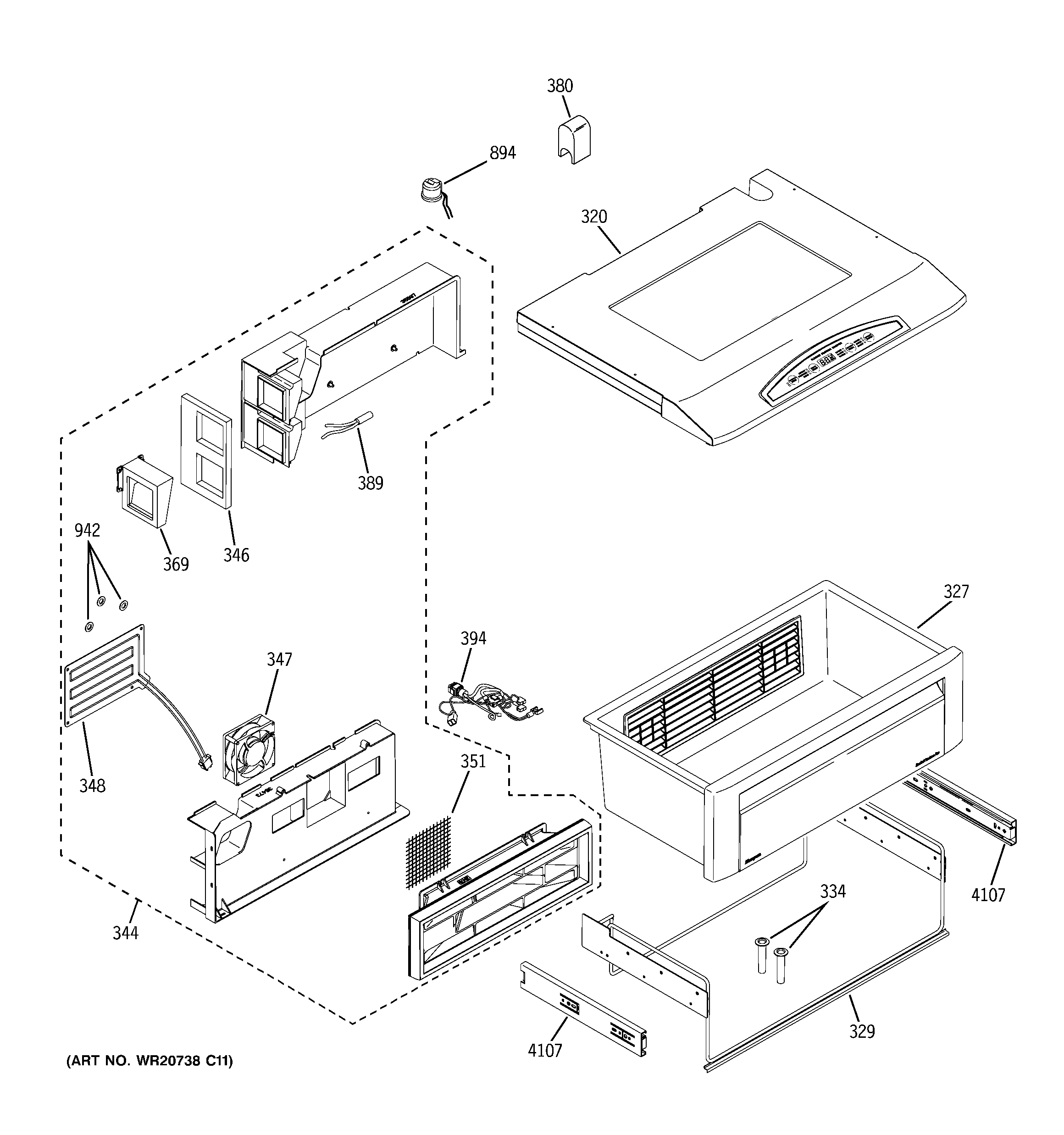

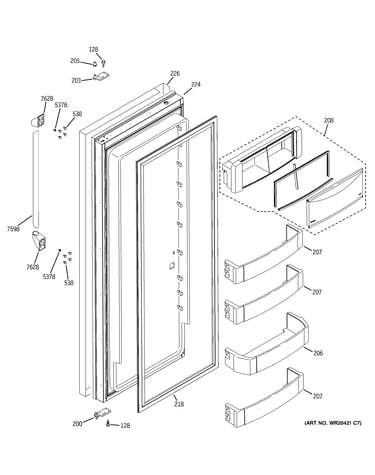

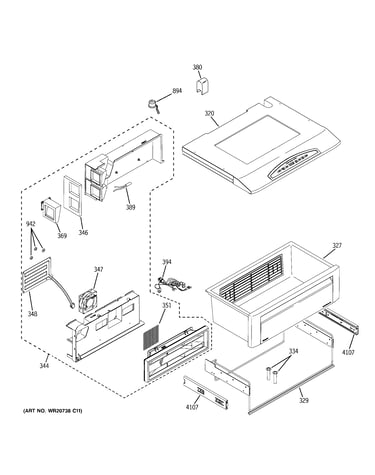

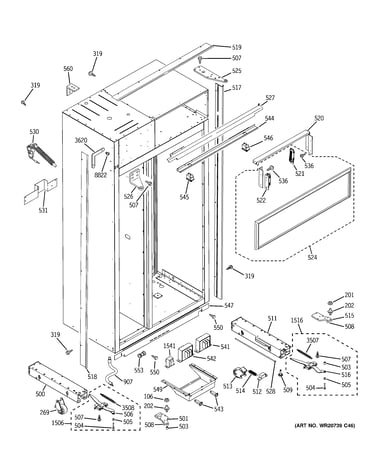

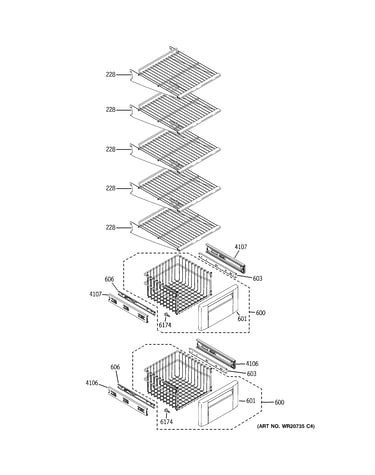

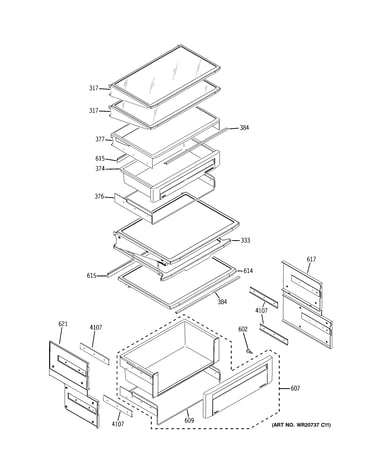

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#303

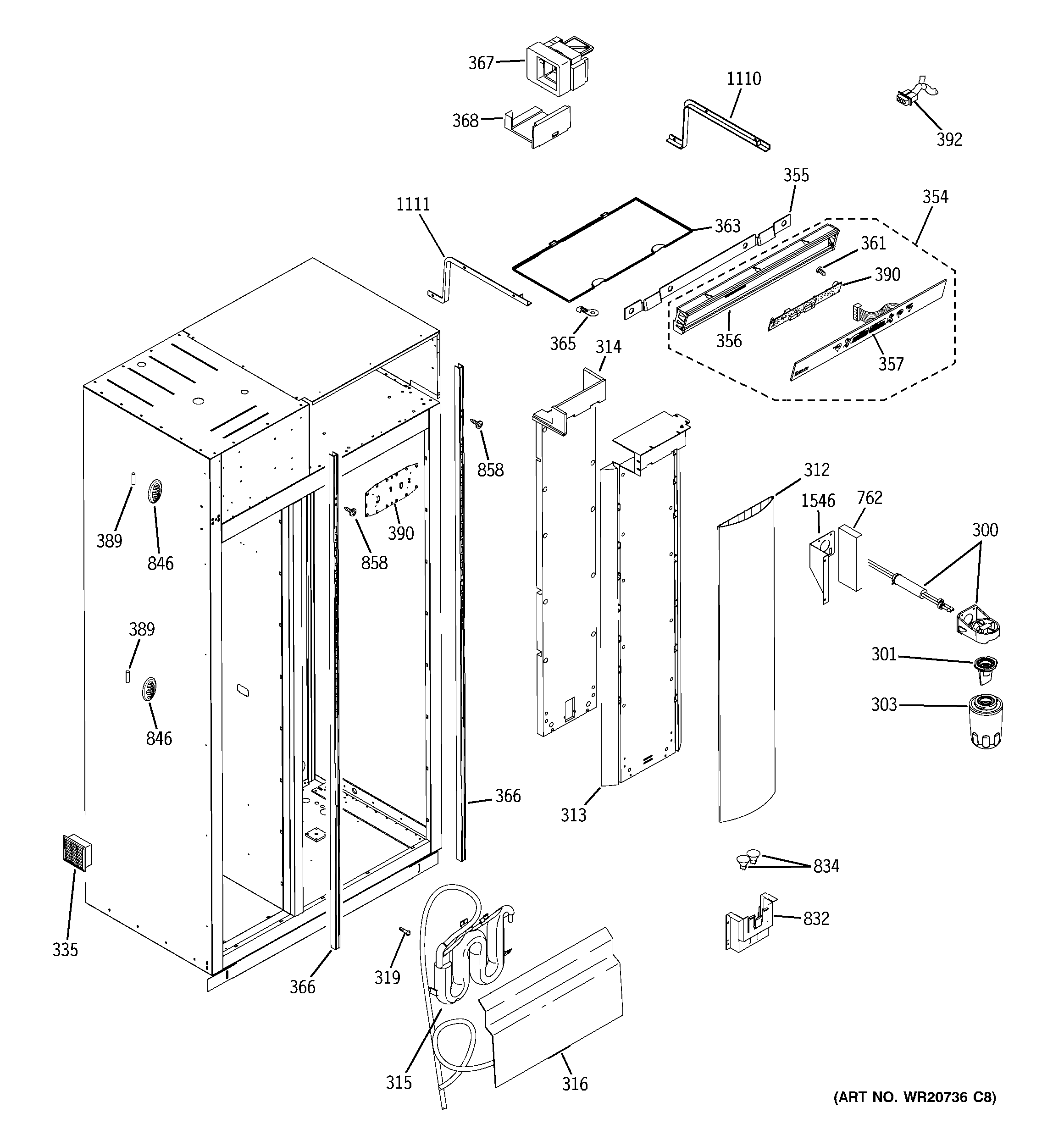

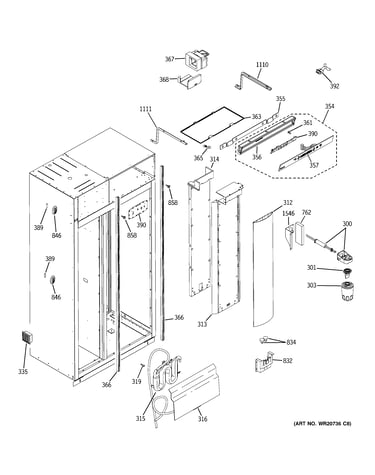

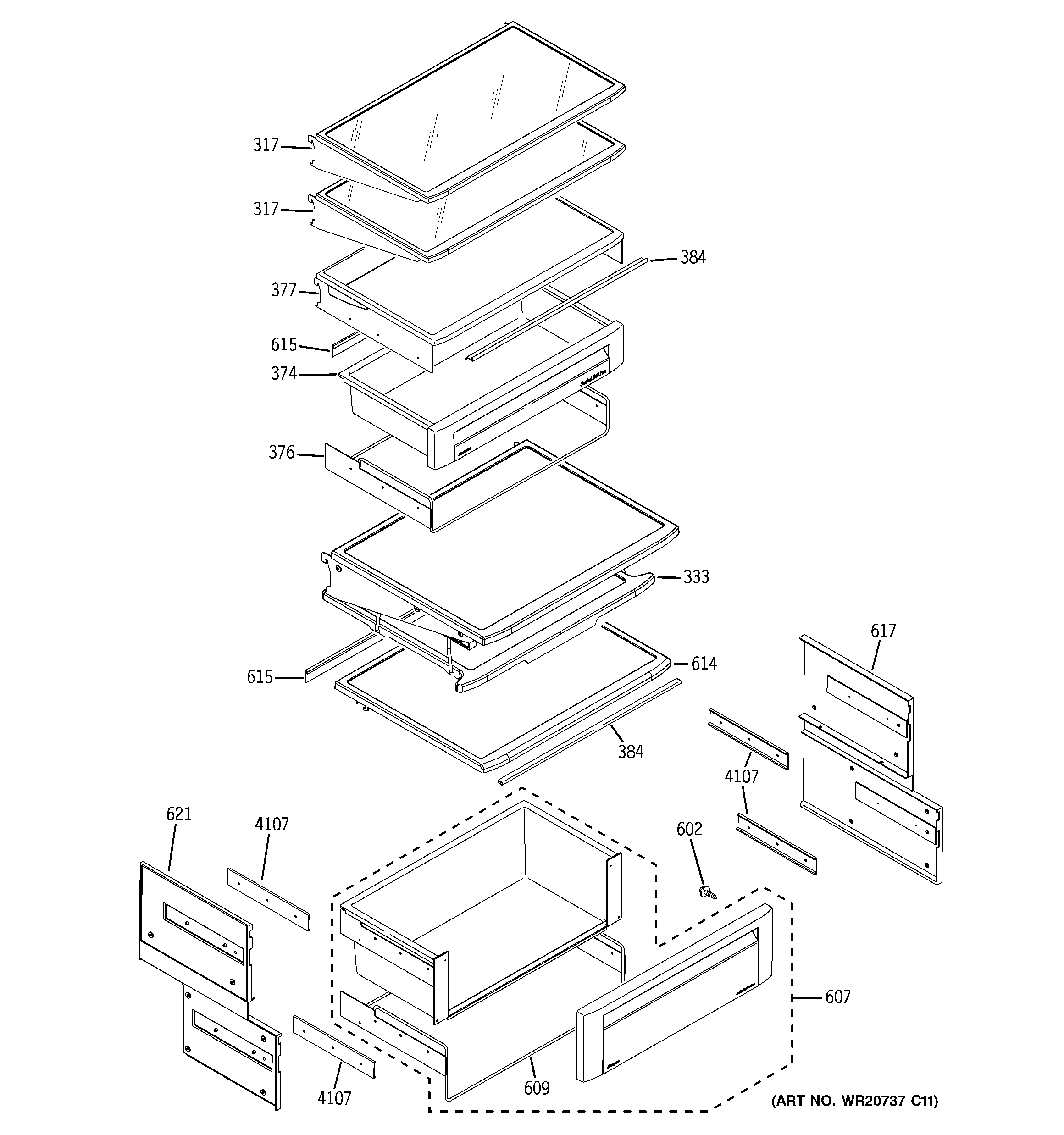

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Temperature Sensor WR55X10030
Temperature sensor

Part #WR55X10030

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10030. Substitute parts can look different from the original.
BEST SELLER
$21.10 |
19% OFF Phone Price : $26.10
In Stock
Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#810

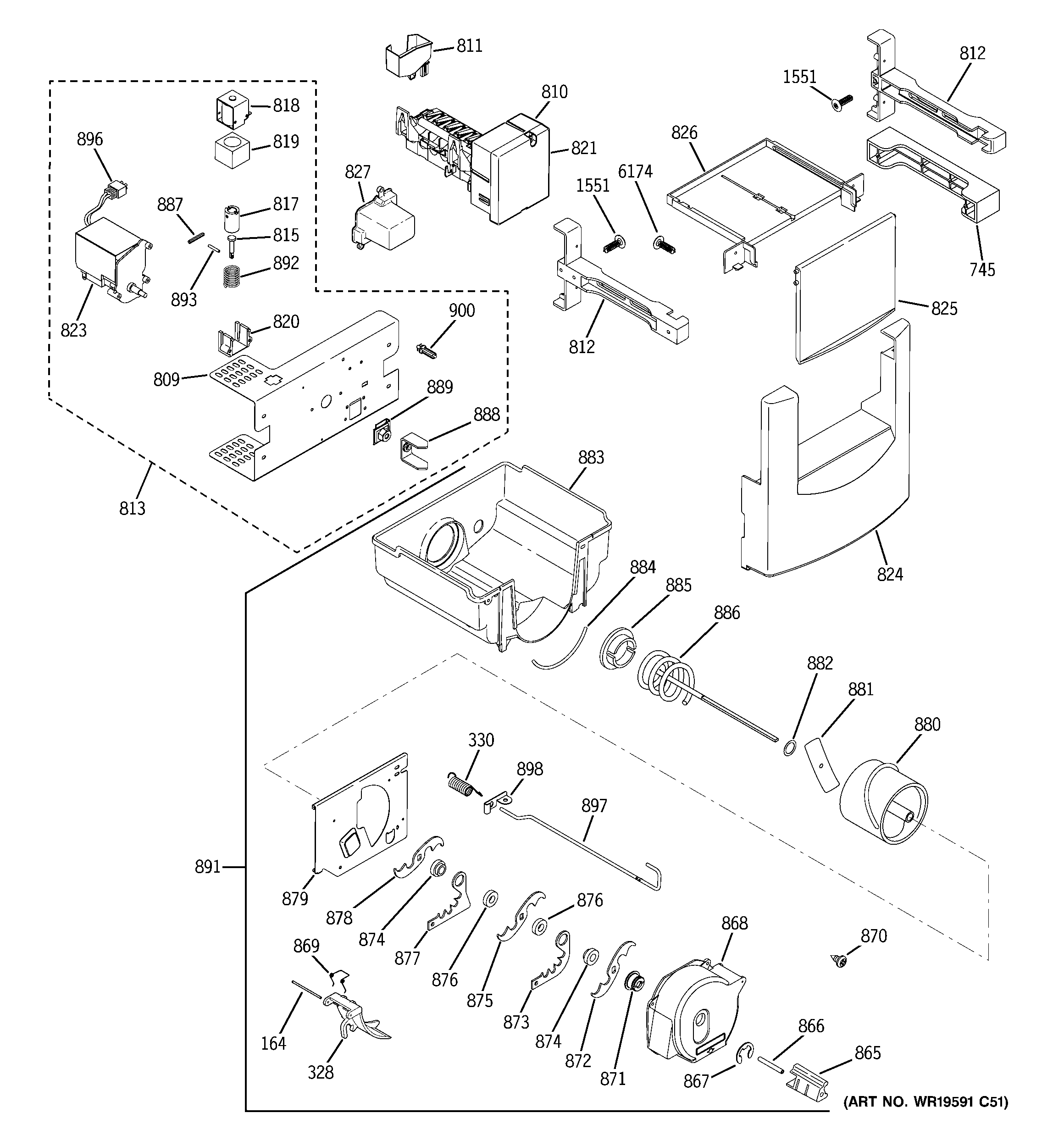

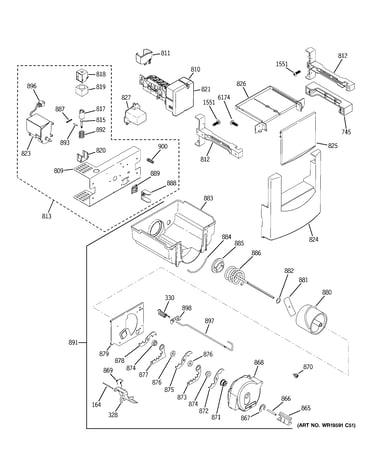

Ice maker & dispenser diagram

Refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$206.31 |
5% OFF Phone Price : $216.31
In Stock
Toe Kick WR74X10125
#706

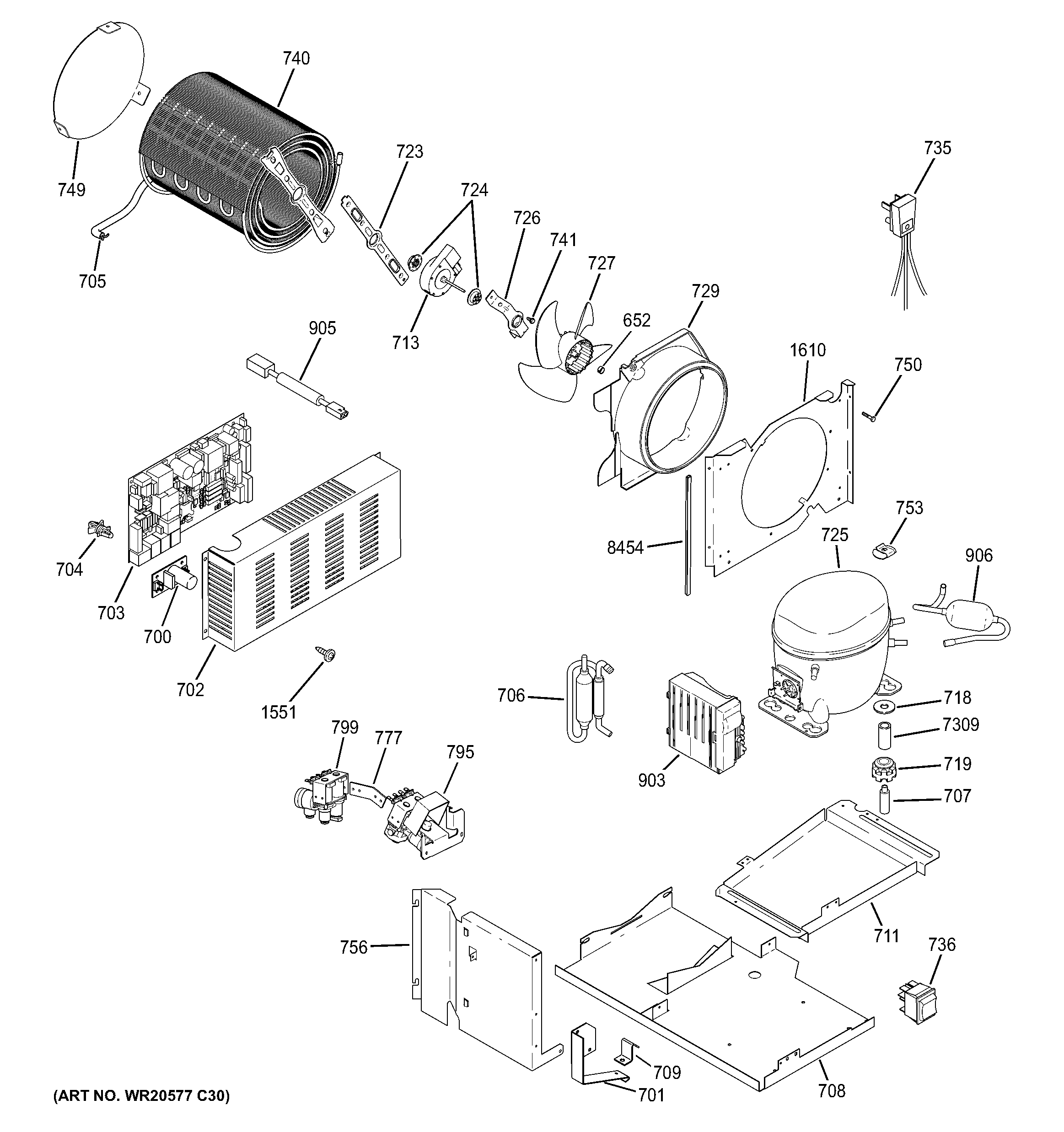

Machine compartment diagram

Toe kick

Part #WR74X10125

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR74X10125. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Refrigerator Evaporator Fan Motor (replaces Wr60x10059, Wr60x10154) WR60X10185
#860

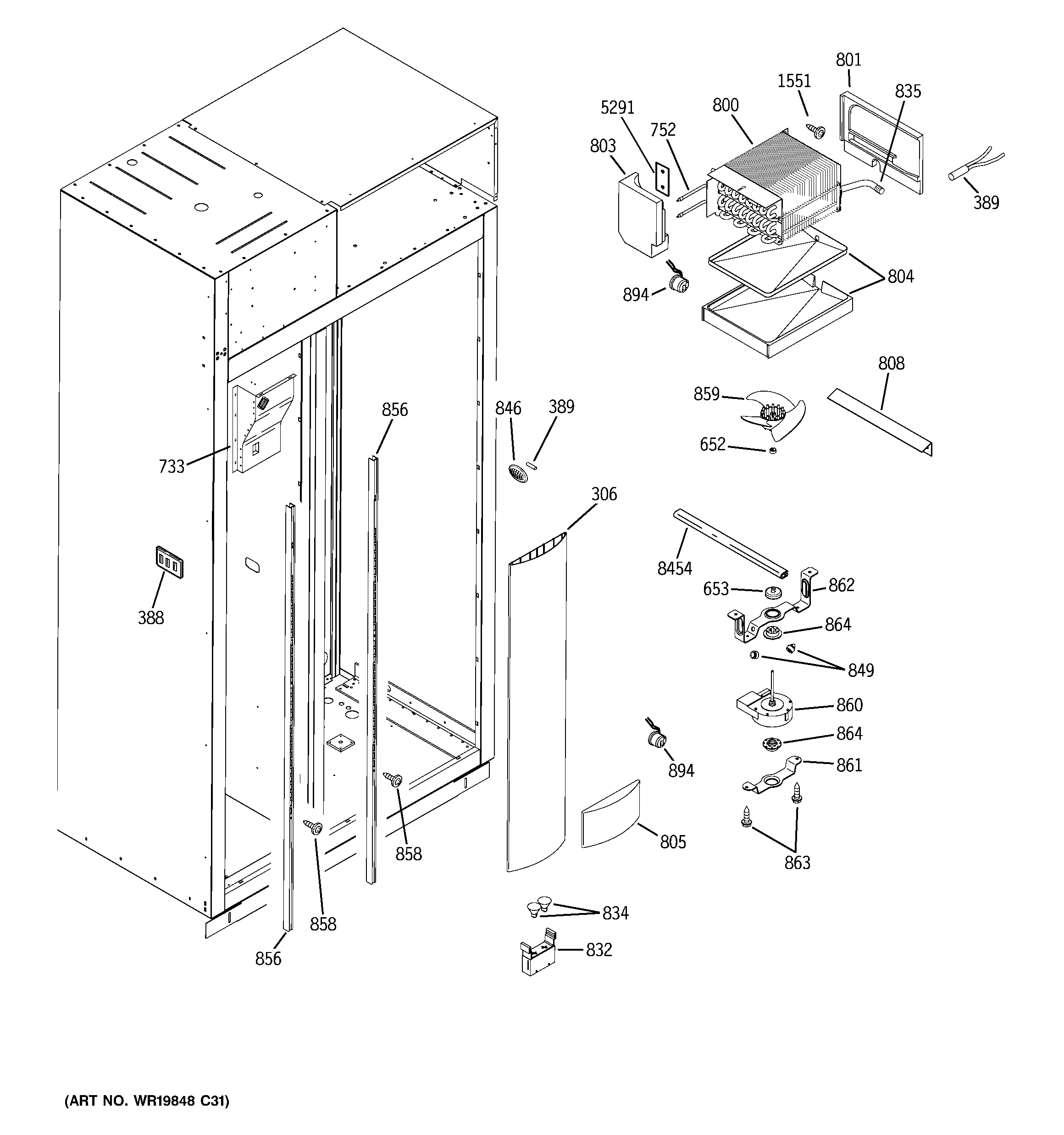

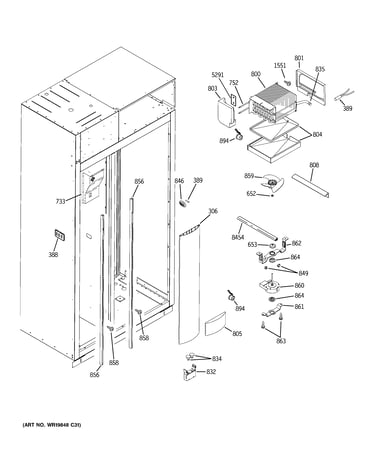

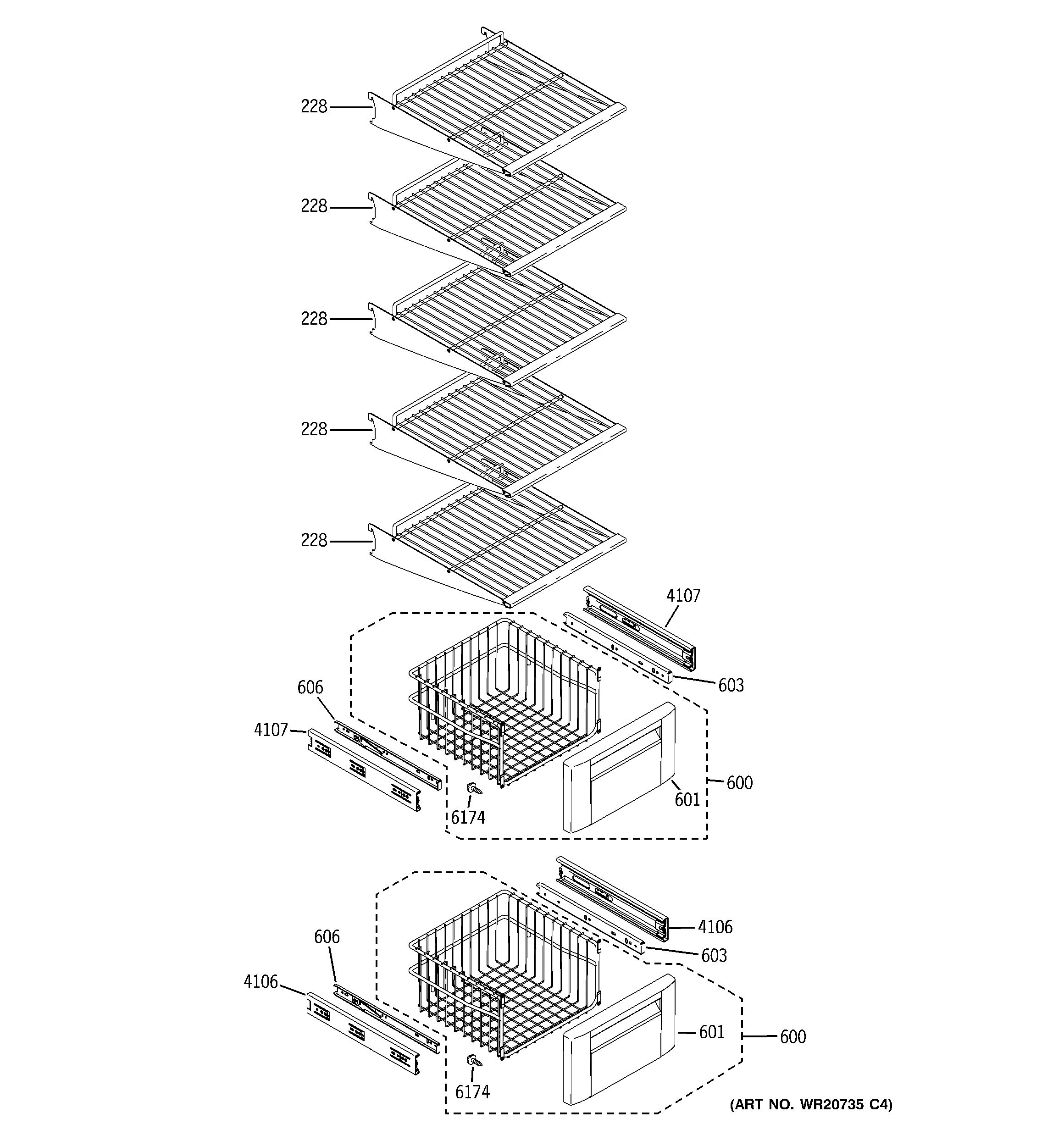

Freezer section diagram

Refrigerator evaporator fan motor (replaces wr60x10059, wr60x10154)

Part #WR60X10185

BEST SELLER
$97.69 |
9% OFF Phone Price : $107.69
In Stock
Inverter WR55X10685
#903

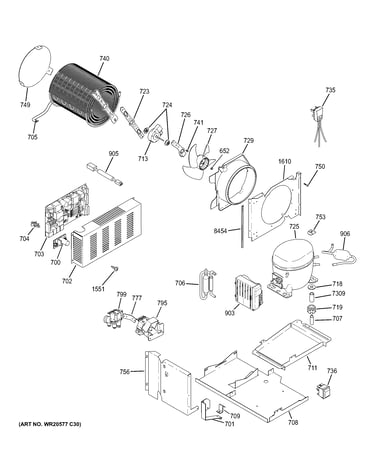

Machine compartment diagram

Inverter

Part #WR55X10685

Replaced by #WR49X10283

?
Manufacturer substitution
This part replaces WR55X10685. Substitute parts can look different from the original.
BEST SELLER
$245.94 |
$10.00 OFF Phone Price : $255.94
In Stock
Refrigerator Dispenser Ice Chute Door Solenoid (replaces Wr62x10020) WR62X10055
Refrigerator dispenser ice chute door solenoid (replaces wr62x10020)

Part #WR62X10055

BEST SELLER
$54.06 |
8% OFF Phone Price : $59.06
In Stock
Refrigerator Solenoid WR62X10020
#127

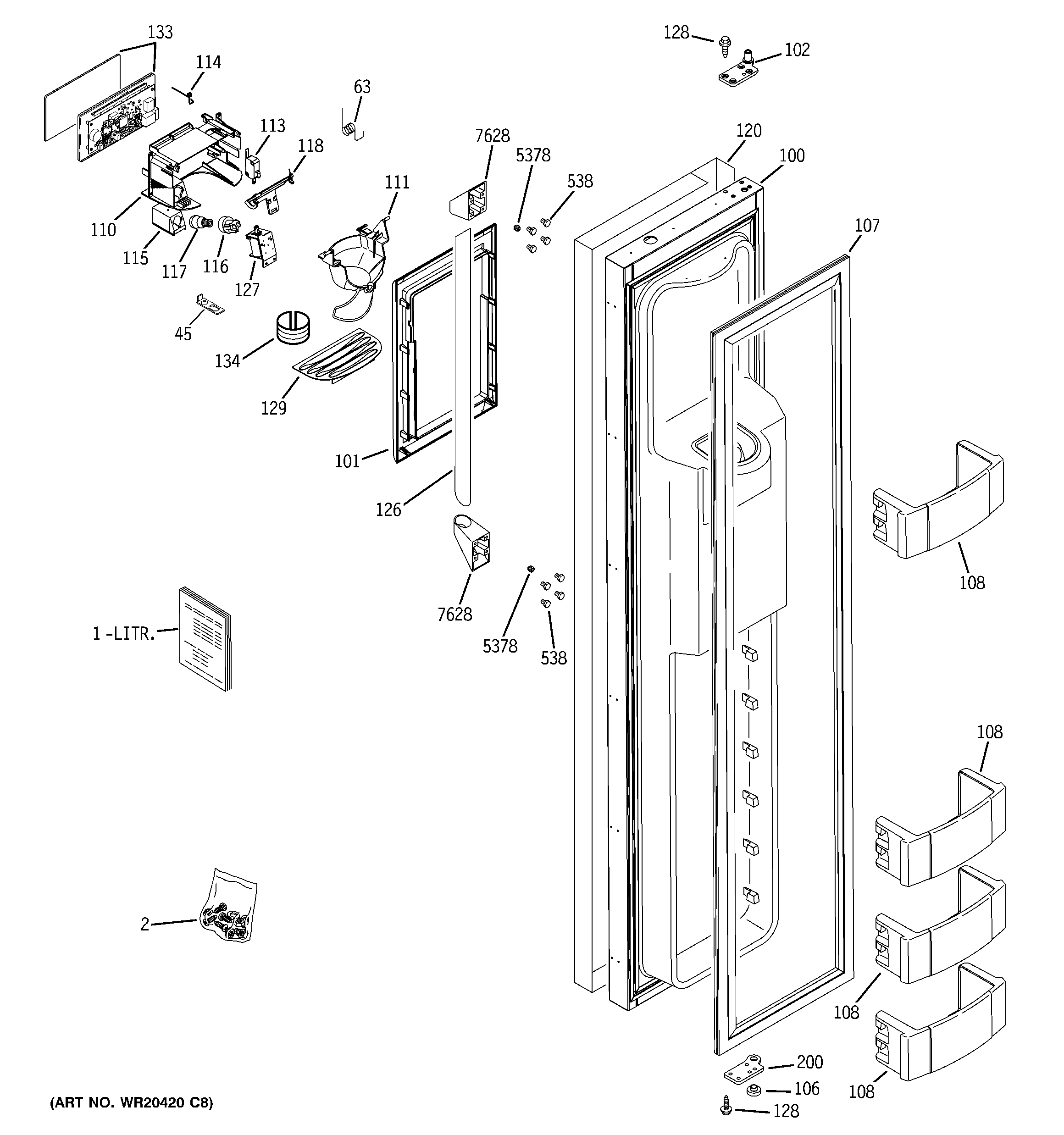

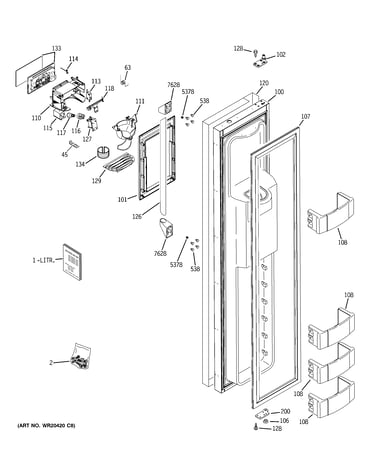

Freezer door diagram

Refrigerator solenoid

Part #WR62X10020

Replaced by #WR62X10055

?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
$54.06 |
8% OFF Phone Price : $59.06
In Stock
Refrigerator Solenoid Arm Assembly WR62X0058
#818

Ice maker & dispenser diagram

Refrigerator solenoid arm assembly

Part #WR62X0058

Replaced by #WR62X23154

?
Manufacturer substitution
This part replaces WR62X0058. Substitute parts can look different from the original.
BEST SELLER
$100.63 |
9% OFF Phone Price : $110.63
In Stock
Plunger Sole WR17X12354
#815

Ice maker & dispenser diagram

Plunger sole

Part #WR17X12354

Replaced by #WR62X23154

?
Manufacturer substitution
This part replaces WR17X12354. Substitute parts can look different from the original.
BEST SELLER
$100.63 |
9% OFF Phone Price : $110.63
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
