Whirlpool ET1CHMXKB05 top-mount refrigerator Parts

On the Whirlpool ET1CHMXKB05 top-mount refrigerator, the ice maker shutoff arm is the wire arm that turns ice production on and off. To reattach it, seat the arm in its pivot points on the ice maker head, then verify it moves freely; down is ON and up is OFF (you should hear a click).

Before you start (safety)

• Turn the refrigerator control to OFF.
• Unplug the refrigerator (or disconnect power).
• If the water line is not connected yet, keep the ice maker OFF.
• Use a plastic utensil only if you need to clear a jam.

Reattaching the wire shutoff arm

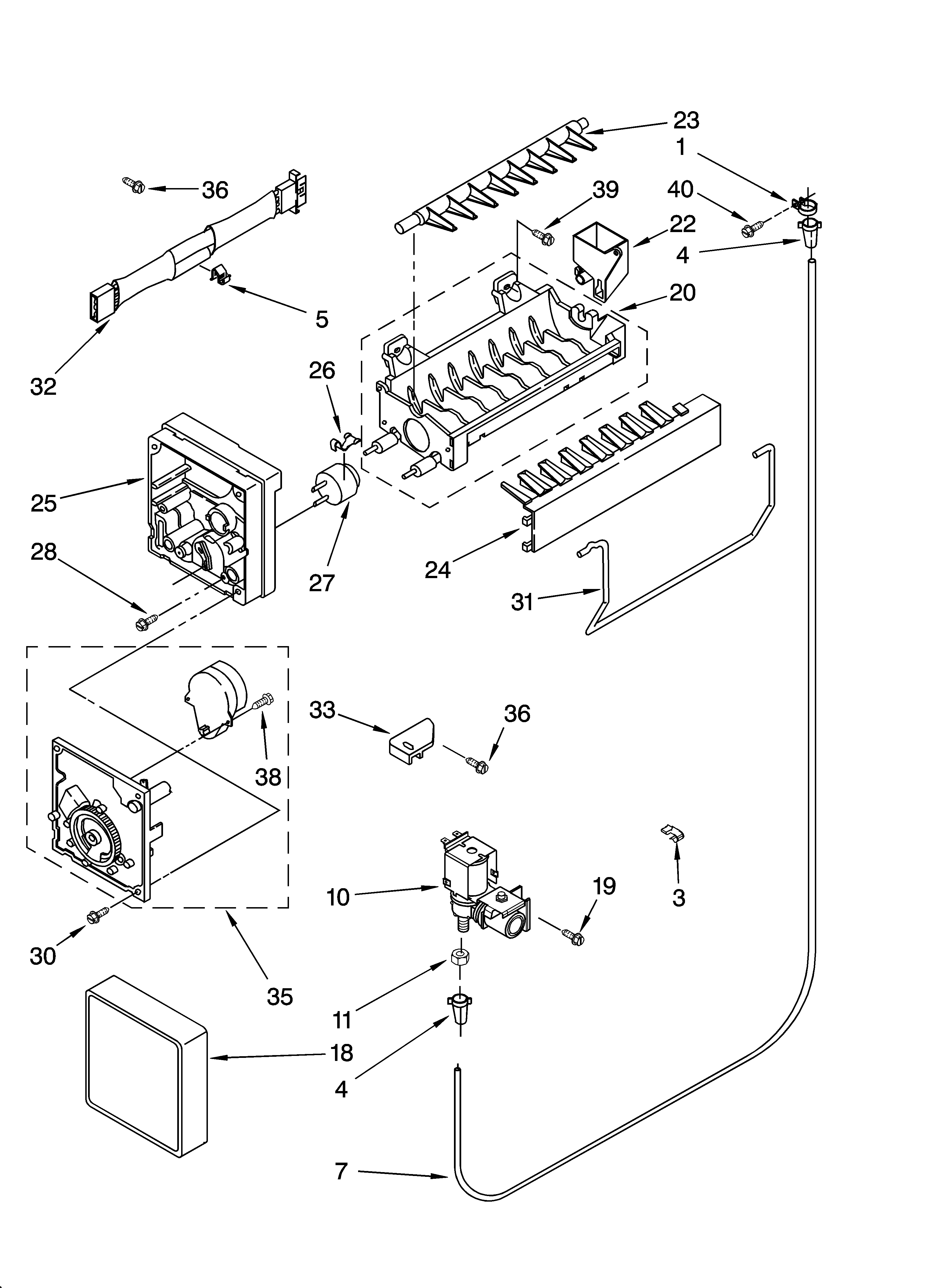

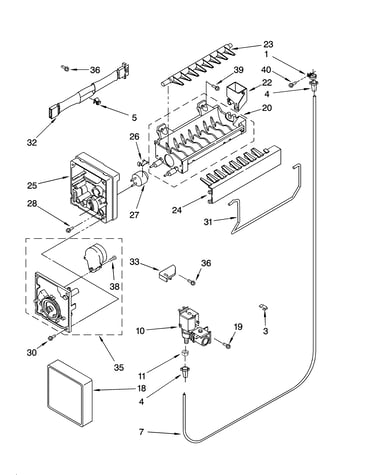

1. Open the freezer and locate the ice maker module (the “head” where the arm pivots).
2. Align the wire shutoff arm with the two pivot holes or slots on the module.
3. Insert one end of the wire into its pivot point, then flex the wire slightly to snap the other end into place.
4. Move the arm up and down to confirm it is not binding.
5. Set the arm position:
   • Arm down: ice maker ON
   • Arm up: ice maker OFF

Quick checks after reattaching

• Confirm the arm is not forced up or down; it should move smoothly.
• Make sure the ice bin is seated correctly so it can raise the arm when full.
• If ice is jammed in the ejector area, remove it with a plastic utensil.

What you see	What it usually means	What to do
Arm won’t stay in place	Arm not fully seated in pivots	Re-seat both ends until secure
Arm hits the ice bin	Bin misaligned or overfilled	Reinstall bin, remove excess ice
No ice after arm is down	Water supply, kinked line, or new install delay	Verify water is on; allow 24 hours

Why it matters

The shutoff arm is the ice maker’s on/off control and automatic “bin full” sensor. If it is loose or binding, the ice maker can stop making ice or overfill the bin.

For model-specific illustrations and the correct arm positions, use the ET1CHMXKB05 owner's manual.

Last updated: February 2026

Top-mount refrigerators like the Whirlpool ET1CHMXKB05 are reliable and space-efficient, but the main disadvantages are less convenient fresh-food access (you bend more), fewer built-in organization features than many bottom-freezer designs, and fewer dispenser options on many models. For model-specific features and setup details, check the ET1CHMXKB05 owner's manual.

Common disadvantages (what most owners notice)

• Fresh-food compartment is lower: you reach down more for everyday items.
• Freezer is at eye level: great for frozen foods, but it pushes fresh foods lower.
• Less flexible storage: fewer slide-out pantry drawers and door-bin configurations on many top-mount designs.
• More temperature variation: top shelves can run a bit warmer or colder depending on airflow and loading.
• Fewer “premium” options: external water and ice dispensers are less common on top-mount models.

What to do to minimize the downsides

• Keep everyday items on the upper refrigerator shelves to reduce bending.
• Avoid blocking air vents; good airflow helps reduce hot and cold spots.
• Leave recommended clearance for ventilation (the manual calls out about 1/2 inch on the sides and top, and extra space behind if you have an ice maker water line).
• Minimize door openings to reduce moisture and temperature swings.
• If you use an ice maker, confirm the shutoff arm or switch is in the ON position and allow time after installation for production to ramp up.

Top-mount vs. bottom-freezer: quick comparison

Feature	Top-mount (ET1CHMXKB05 style)	Bottom-freezer
Fresh-food access	Lower, more bending	Higher, easier access
Freezer access	Eye level	Lower, often drawer-style
Organization	Typically simpler	Often more flexible
Dispenser options	Less common	More common

Why it matters

Most “disadvantages” come down to ergonomics and storage layout. If your household uses fresh foods more than frozen foods, the lower refrigerator section can feel less convenient day to day.

Last updated: February 2026

On a Whirlpool top-mount refrigerator like model ET1CHMXKB05, the most common issues we see are cooling complaints caused by airflow or defrost-related problems (frost buildup, warm fridge, or the unit running too much). Many “problems” are also normal operation, such as longer run times and new sounds.

Most common symptoms and what they usually point to

• Fridge warm, freezer cold: restricted airflow (blocked vents, overpacked shelves) or evaporator fan issue
• Frost on freezer back wall: defrost system problem (ice buildup choking airflow)
• Motor runs a lot: warm room, frequent door openings, large food load, or doors not sealing
• Moisture inside: humid conditions or doors opened often
• No ice or low ice (if equipped): water supply shutoff closed, kinked water line, or ice maker not turned on

Quick checks we recommend first (no tools)

1. Confirm the controls are on and set for normal use (not “coldest”; it will not cool faster). See the owner's manual.
2. After a new install or major temperature change, allow 24 hours to cool completely.
3. Make sure doors close fully; reduce door openings and check for gaps in the gasket.
4. Look for blocked vents and avoid packing food tightly against air returns.
5. If the unit seems noisy, compare what you hear to normal sounds (buzzing at water fill, gurgling during defrost, popping during cool-down).

When it is likely a part issue

Symptom	Common cause	Example part on this model page
Ice maker not making ice	Water not entering ice maker	Refrigerator inlet valve WP2315576
No light when door opens	Door switch not closing circuit	Refrigerator light switch W11384469

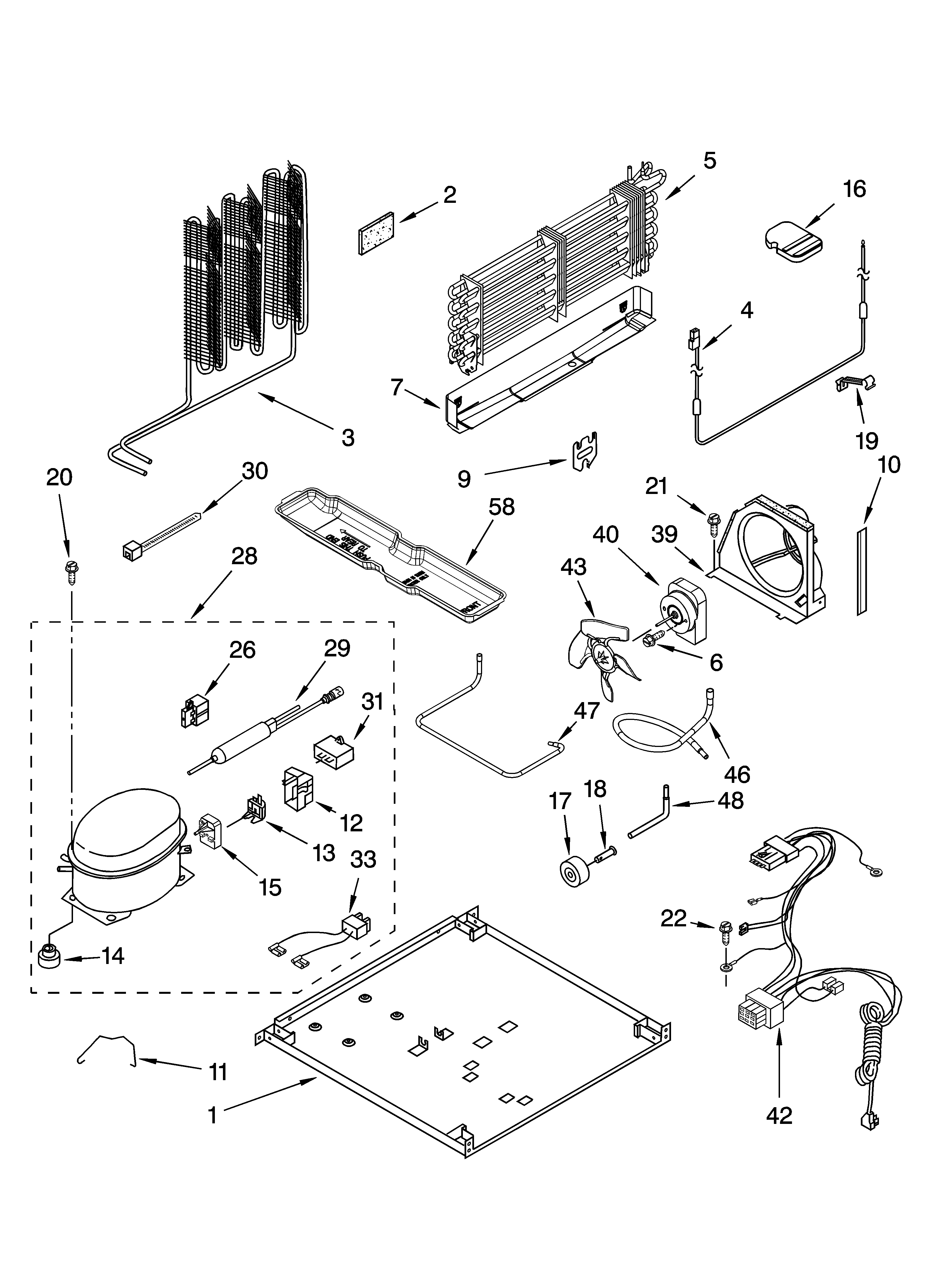

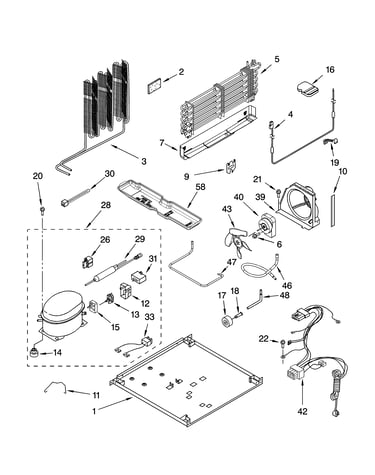

Poor cooling with fan noise changes	Evaporator fan not moving air	Evaporator motor WPW10189703

Why it matters

Cooling and defrost problems usually get worse over time; frost buildup and poor airflow can make the refrigerator run longer, warm up the fresh food section, and lead to moisture and odor issues.

Last updated: February 2026

A top-mount refrigerator like the Whirlpool ET1CHMXKB05 is typically the better choice for value and efficiency, while a bottom-mount is typically better for everyday convenience because fresh food sits at eye level. The “better” option depends on how you shop, cook, and use freezer space.

Quick comparison

Feature	Top-mount (freezer on top)	Bottom-mount (freezer on bottom)
Fresh-food access	You bend more	More at eye level
Freezer access	Easier	You bend more
Cost to buy/repair	Typically lower	Typically higher
Energy use	Typically lower	Typically higher
Storage style	Simpler shelves/bins	Often more drawers/organization

When a top-mount is the better fit

• You want a straightforward, budget-friendly refrigerator layout
• You use the freezer often (frozen meals, bulk meat, ice)
• You prefer simpler parts and fewer specialty drawers
• You have a tighter kitchen space and want a lighter door load
• You want easy access to an optional ice maker setup

For model-specific setup details (clearances, leveling, door swing), use the owner's manual.

When a bottom-mount is the better fit

• You cook daily and want fresh food at eye level
• You prefer wide refrigerator shelves for platters and meal prep
• You like freezer drawers that separate items (meat, veggies, ice)
• You open the refrigerator door far more than the freezer

Why it matters

Choosing the right mount style affects daily ergonomics (how often you bend), food organization, and long-term operating costs. For example, the ET1CHMXKB05 manual calls out installation clearances and ventilation needs; good airflow and proper leveling help any refrigerator cool efficiently and close/seal correctly.

Practical tip for either style

• Leave ventilation space around the cabinet (sides and top)
• Avoid installing near heat sources
• Level the refrigerator so doors close easily
• Keep door gaskets clean so the seal stays tight

Last updated: February 2026
