Whirlpool WRF555SDFZ07 refrigerator Parts

A bottom-mount refrigerator like the Whirlpool WRF555SDFZ07 keeps the fresh-food compartment at eye level, so you reach everyday items with less bending. The freezer stays below, which is convenient if you use frozen foods less often than refrigerated foods.

Key benefits in day-to-day use

• Fresh foods are easier to see and grab because shelves sit higher.
• Less bending for produce drawers, deli items, and beverages.
• Freezer drawer storage is typically deeper, which helps with bulky frozen items.
• Better organization for “most-used” items in the refrigerator section.
• Often a good fit for households that cook frequently with fresh ingredients.

What changes compared to other refrigerator styles

Style	Fresh-food access	Freezer access	Best for
Bottom-mount	Easiest (eye level)	Requires bending	Fresh-food heavy use
Top-freezer	Requires bending more	Easiest (upper)	Frozen-food heavy use
Side-by-side	Moderate	Moderate	Narrow door swing, balanced use

Why it matters

Most people open the refrigerator section far more than the freezer. With a bottom-mount design, we get the “most-opened” compartment positioned higher, which reduces strain and makes it faster to find what you need.

Installation and clearance tip

For best performance, we follow the spacing and location guidance in the owner's manual, including allowing airflow around the cabinet and avoiding hot locations (near ovens or radiators).

Last updated: February 2026

Bottom-freezer refrigerators like the Whirlpool WRF555SDFZ07 keep fresh food at eye level, but the tradeoffs are mostly about freezer access and maintenance: you bend more to reach frozen items, deep drawers can hide food, and drain or defrost issues can show up as leaks or ice buildup over time. See the owner's manual for your model’s door, drawer, and alarm features.

Common disadvantages (what owners notice most)

• More bending and lifting: you reach down for heavy frozen foods, ice, and bins.
• Deep drawer organization: items stack and get buried, so older food is easier to miss.
• Freezer access is slower: you pull out a drawer instead of opening a simple door shelf.
• Potential for water or ice issues: bottom-freezer designs can be more sensitive to drain clogs that lead to puddles or ice buildup.
• Door and drawer alignment matters: if doors are not aligned or sealing well, you can get temperature swings and frost.

Quick comparison: bottom freezer vs top freezer

Feature	Bottom freezer	Top freezer
Fresh food access	Easier (eye level)	Requires more bending
Freezer access	More bending, drawer pull-out	Easier, simple door access
Organization	Deep bins, can hide items	Shelving is often simpler
Common nuisance	Drawer frost, drain puddles	Less drawer-related frost

What to check on the WRF555SDFZ07 if you are seeing problems

• If the door ajar alarm sounds, close both doors fully; the alarm triggers after about 5 minutes with cooling on.
• If the freezer drawer feels “off,” review the drawer removal and reinstallation steps in the owner's manual.
• If you see water under the unit or inside the freezer, follow a drain and defrost troubleshooting path using how to get rid of refrigerator puddles.
• If you notice warm temps or inconsistent cooling, confirm settings and then use Whirlpool refrigerator error codes if your display shows a code.

Why it matters

Most bottom-freezer complaints trace back to convenience (bending, drawer organization) or airflow and moisture management (seals, alignment, defrost drainage). Keeping doors aligned and seals clean helps the refrigerator run efficiently and reduces frost and leaks.

Last updated: February 2026

On a Whirlpool WRF555SDFZ07 bottom-mount refrigerator, a leak at the bottom right front is typically defrost water that cannot flow down the drain; it overflows, runs under the freezer drawer, and exits at the front. Clearing the drain area and improving door sealing stops repeat puddles.

Most common causes

• Defrost drain clogged with food debris or ice
• Drain trough frozen over, redirecting meltwater forward
• Freezer drawer not closing evenly, causing heavy frost and extra defrost water
• Door gasket dirty, torn, or not sealing along the bottom edge
• Refrigerator not level, changing how water tracks toward the front

What to do first (safe, practical checks)

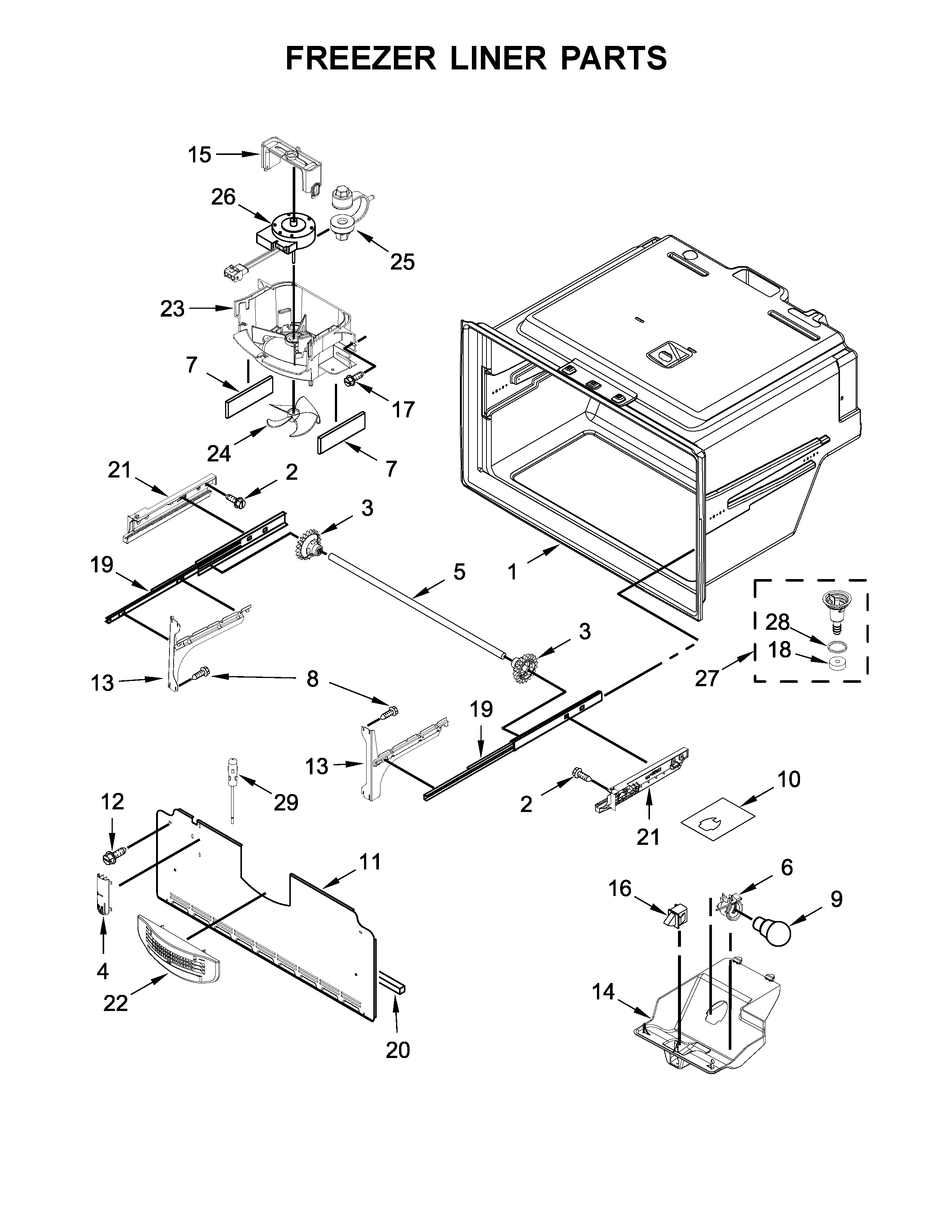

• Remove the freezer bin and look for a sheet of ice on the freezer floor.
• Melt the ice with a hair dryer on low; keep heat moving to protect plastic.
• Flush the drain area with warm water until it flows freely.
• Clean the gasket with warm soapy water; confirm the drawer closes squarely.
• If the refrigerator was recently moved or doors were removed, follow the water line reconnection and “check for leaks” steps in the WRF555SDFZ07 owner's manual.

Quick symptom guide

Symptom	Most likely cause	Best next step
Puddle appears every few days	Drain restriction	Clear ice, flush drain
Heavy frost on freezer back wall	Drawer/gasket leak	Clean gasket, align drawer
Leak after moving fridge	Water line not seated	Reseat line, check for leaks

When a part is involved

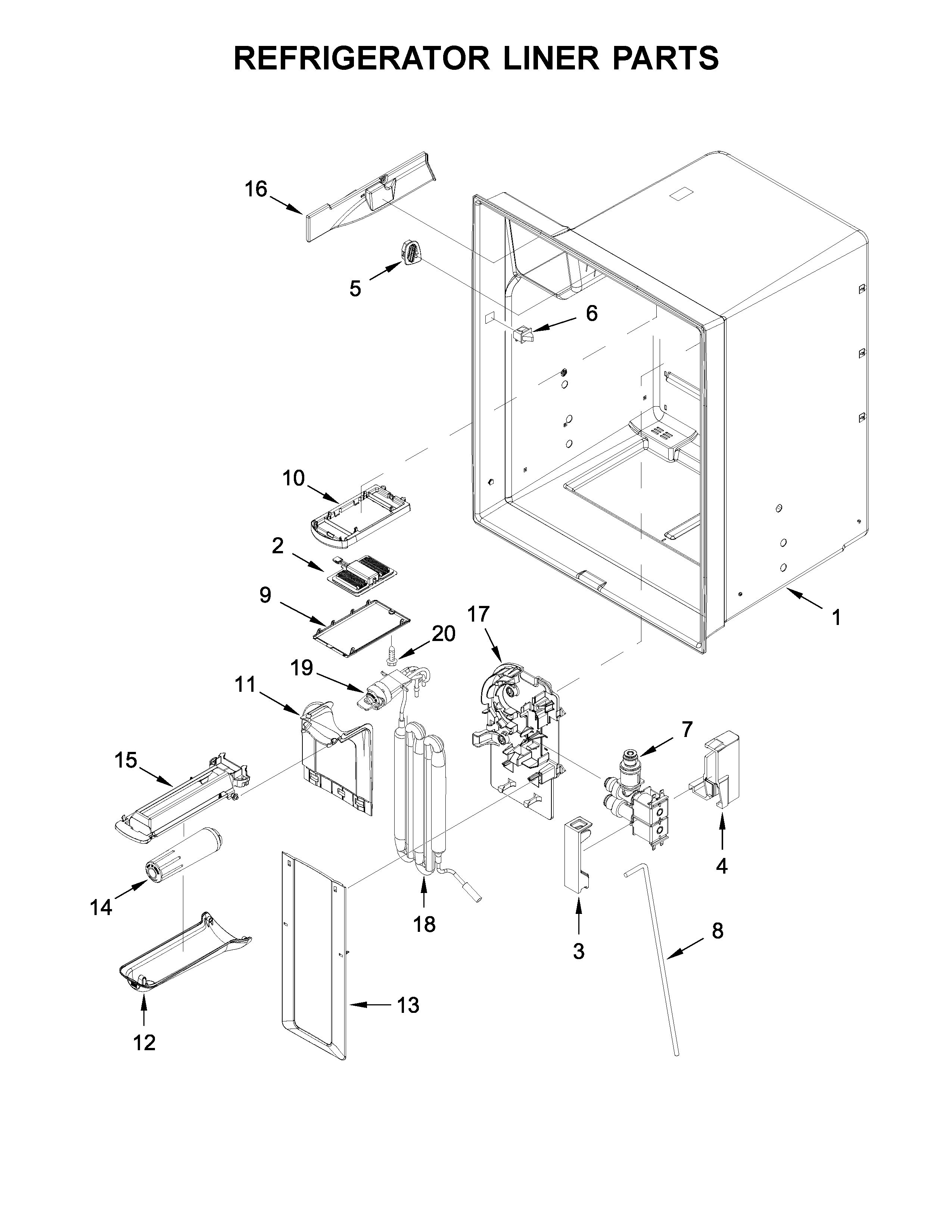

If you also see leaking at the back, slow dispensing, or ice maker fill issues, check the water system components; the valve-dual w W11043013 is the model-matched water inlet valve used for dispenser and ice maker supply.

Why it matters

A recurring leak refreezes into thicker ice, blocks airflow, and can warm freezer temperatures. Fixing the drain path and sealing prevents repeat icing and protects food.

Last updated: February 2026

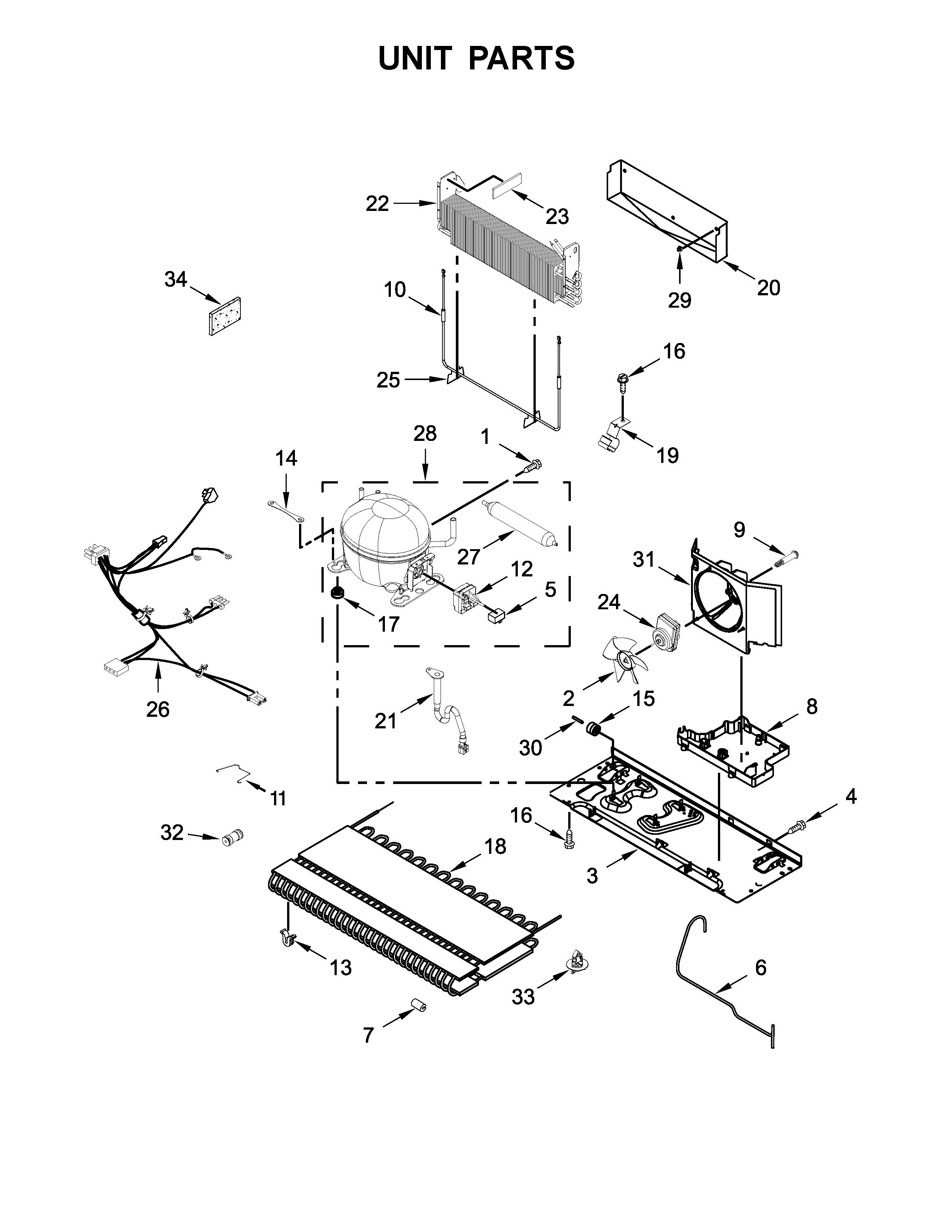

On a Whirlpool WRF555SDFZ07 bottom-mount refrigerator, the “bottom part” most people mean is the base area behind the base grille, where key cooling components (including the compressor) are located. The compressor is the main pump that circulates refrigerant through the sealed system.

What you may be referring to (common meanings)

Depending on what you are looking at, the “bottom part” can mean different things:

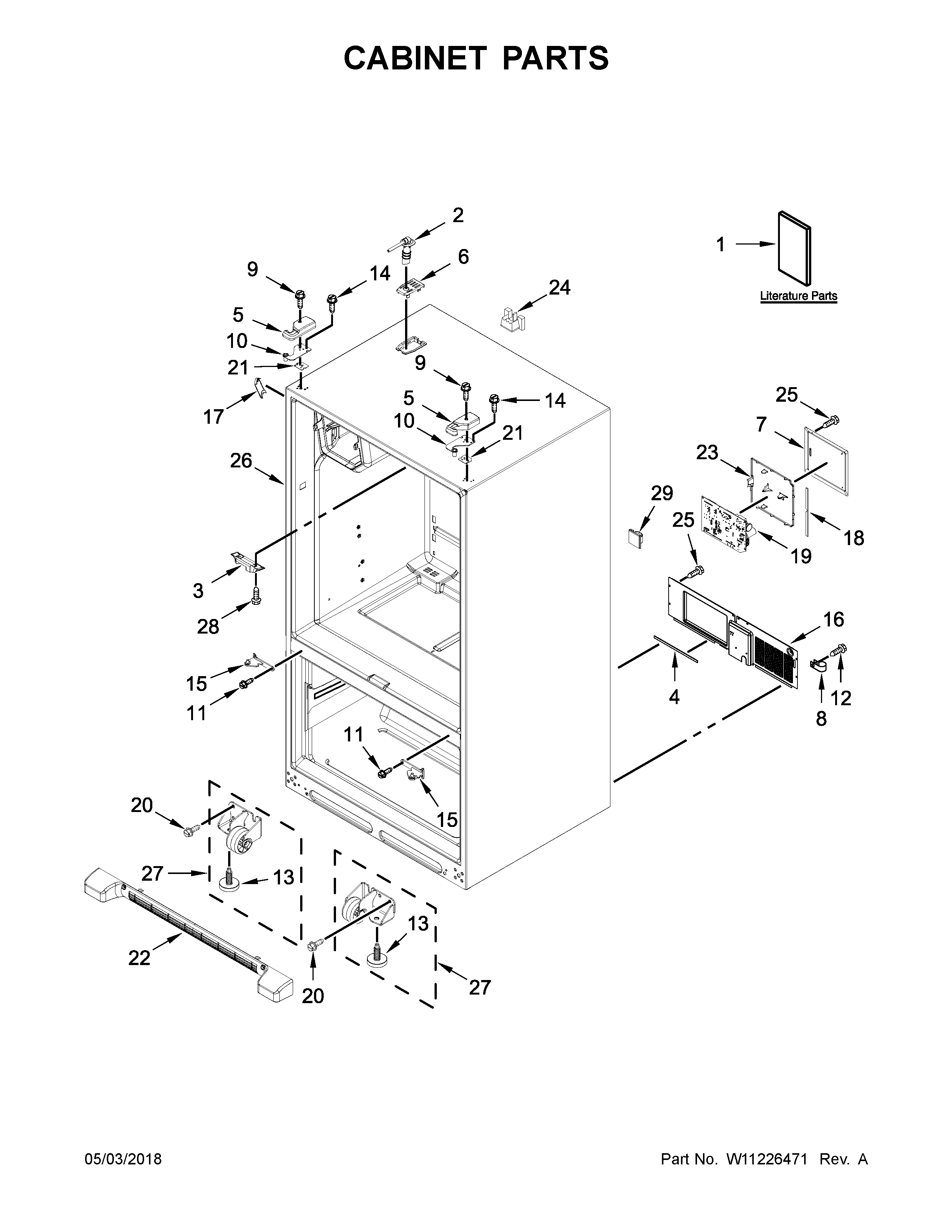

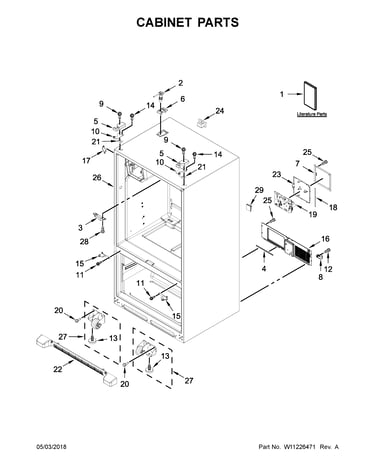

• Base grille (kick plate): the vented cover at the very bottom front
• Compressor compartment: the area behind the base grille where the compressor and other components sit

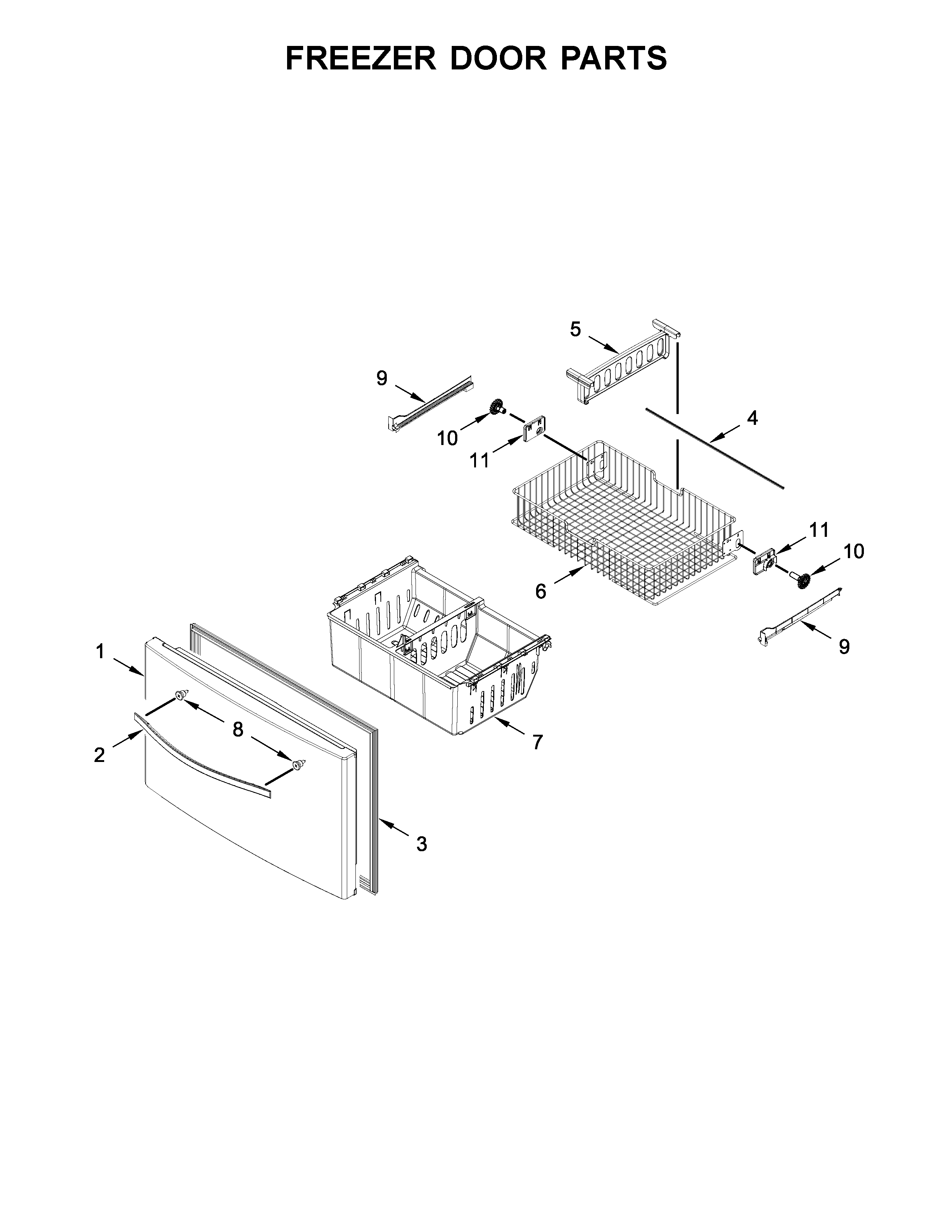

• Freezer drawer: the bottom storage section on a bottom-mount design
• Leveling legs and brackets: the adjustable feet and mounting points at the bottom of the cabinet

For diagrams and component locations specific to your refrigerator, use the WRF555SDFZ07 owner's manual.

Quick ID guide

What you see at the bottom	What it is usually called	What it does
Vented cover at the front	Base grille	Allows airflow and access for service
Large black “can” in back/bottom area	Compressor	Pumps refrigerant to create cooling
Pull-out bottom section	Freezer drawer	Frozen food storage
Adjustable feet under cabinet	Leveling legs	Helps doors seal and align properly

Why it matters

Knowing the correct name helps you pick the right troubleshooting steps and parts. For example, cooling problems point you toward the compressor area, while door closing and sealing issues often relate to leveling and alignment.

Related parts and issues (when the bottom area is involved)

If you are troubleshooting symptoms tied to the lower compartment or cooling system, these model-matched parts are commonly involved:

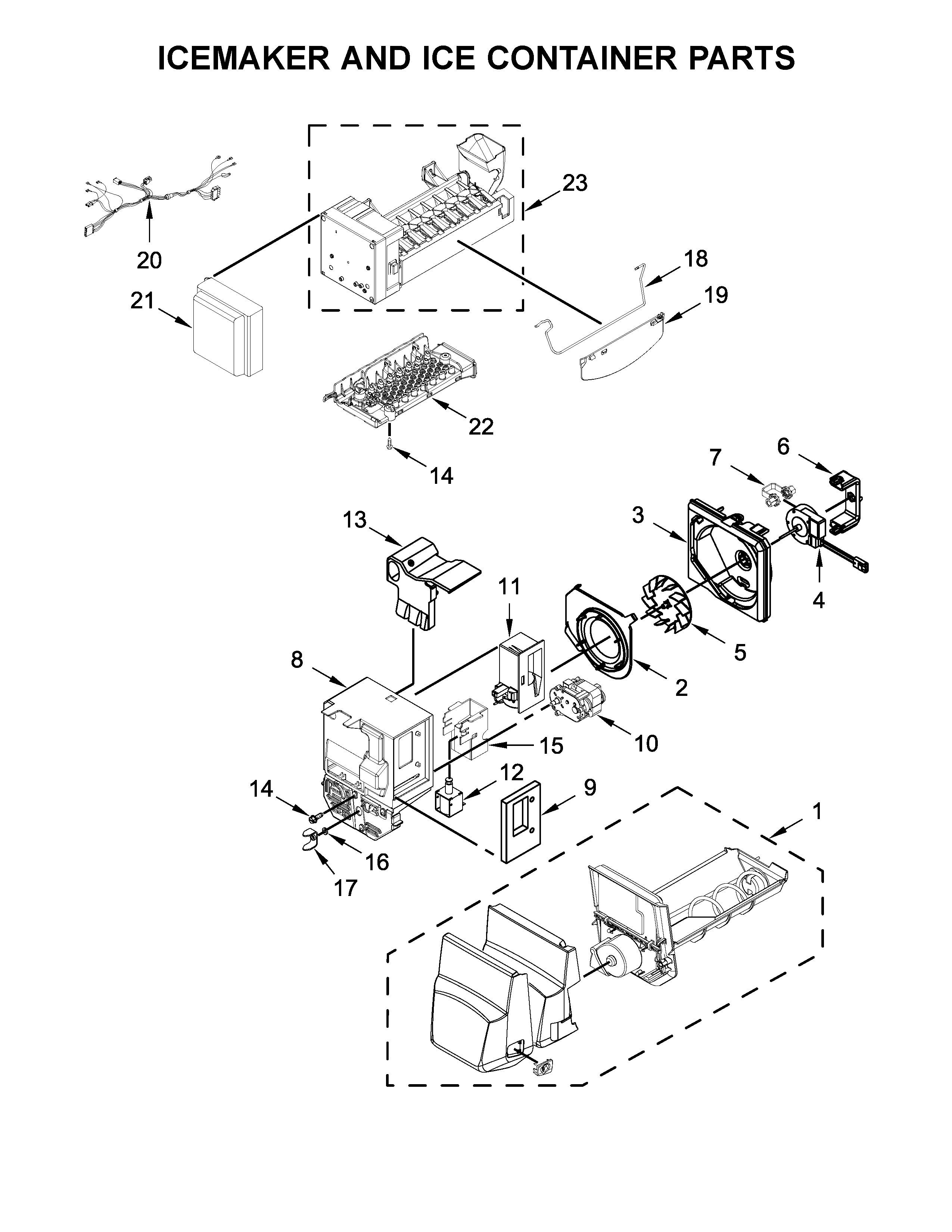

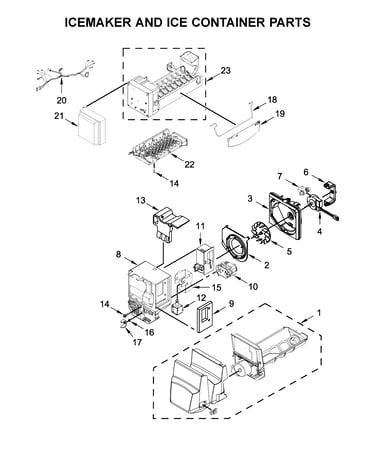

• Ice production issues: refrigerator ice maker assembly WPW10300024
• Water dispensing or filling problems: valve-dual w W11043013
• Temperature sensing concerns: refrigerator thermistor W10316760

Last updated: February 2026
