Model # LCG701AWW1 Official Frigidaire 27" gas laundry center - 5995242657

Here are the diagrams and repair parts for Official Frigidaire LCG701AWW1 27" gas laundry center - 5995242657, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

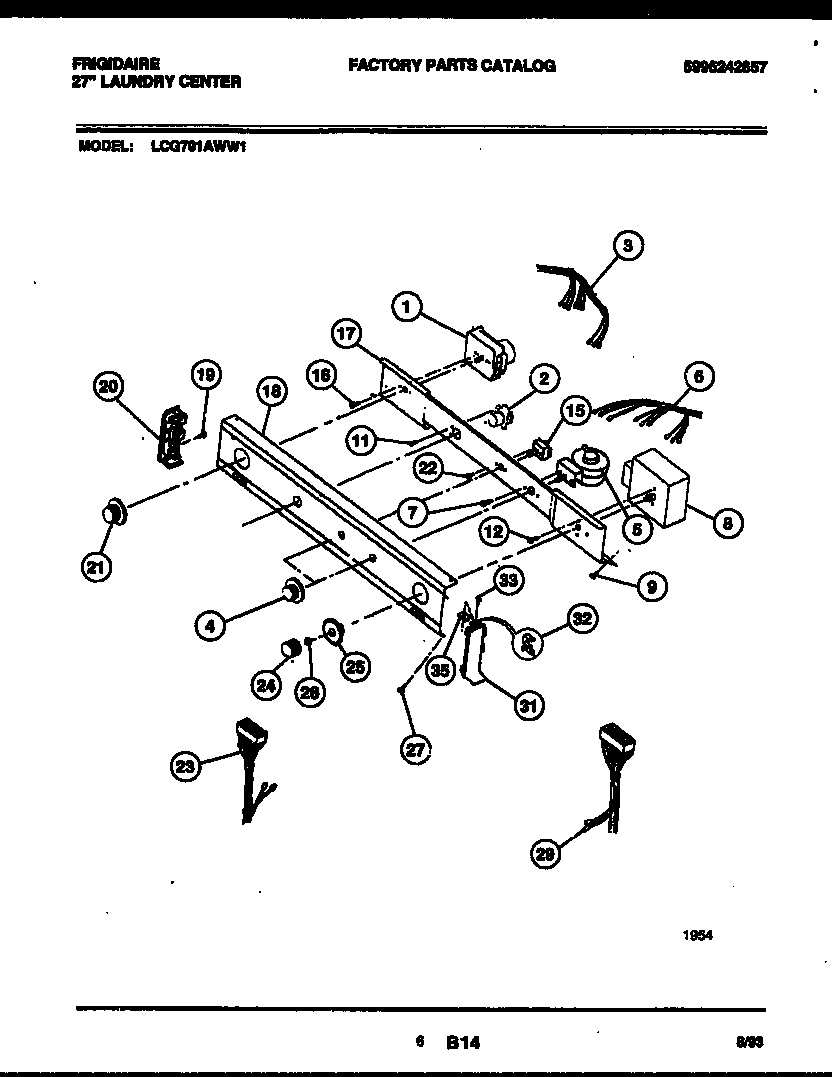

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 267 parts  |
Belt 5303283287
#25

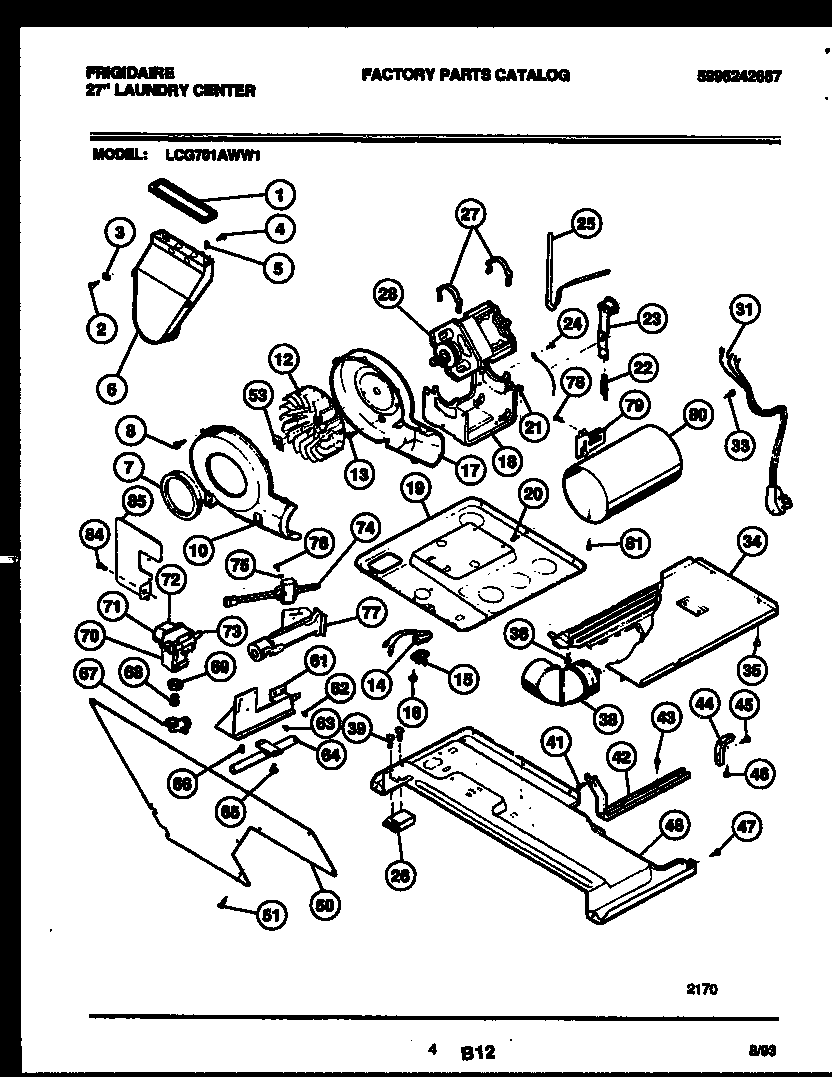

Motor, blower and cabinet parts diagram

Belt

Part #5303283287

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283287. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
26% OFF MSRP : $20.00
In Stock
Lint Trap 131152700
#27

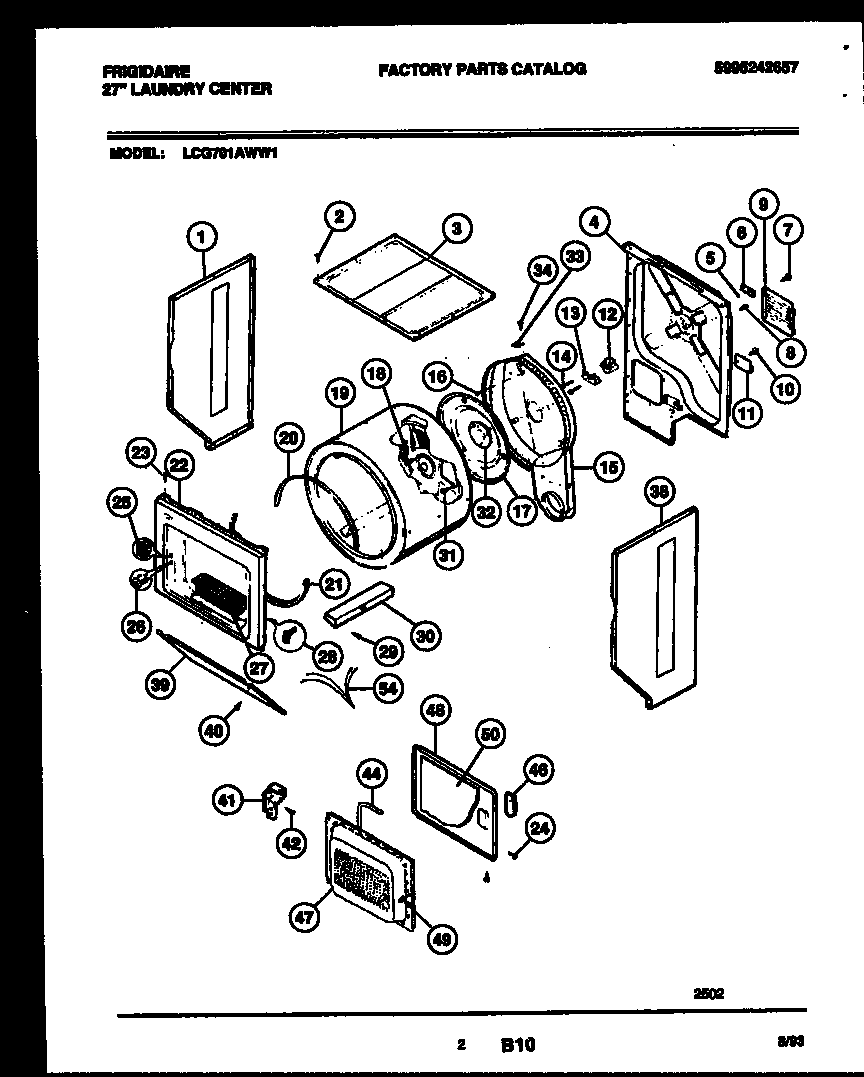

Cabinet and component parts diagram

Lint trap

Part #131152700

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131152700. Substitute parts can look different from the original.
BEST SELLER
$39.93 |
11% OFF Phone Price : $44.93
In Stock
Belt 3204418
#28

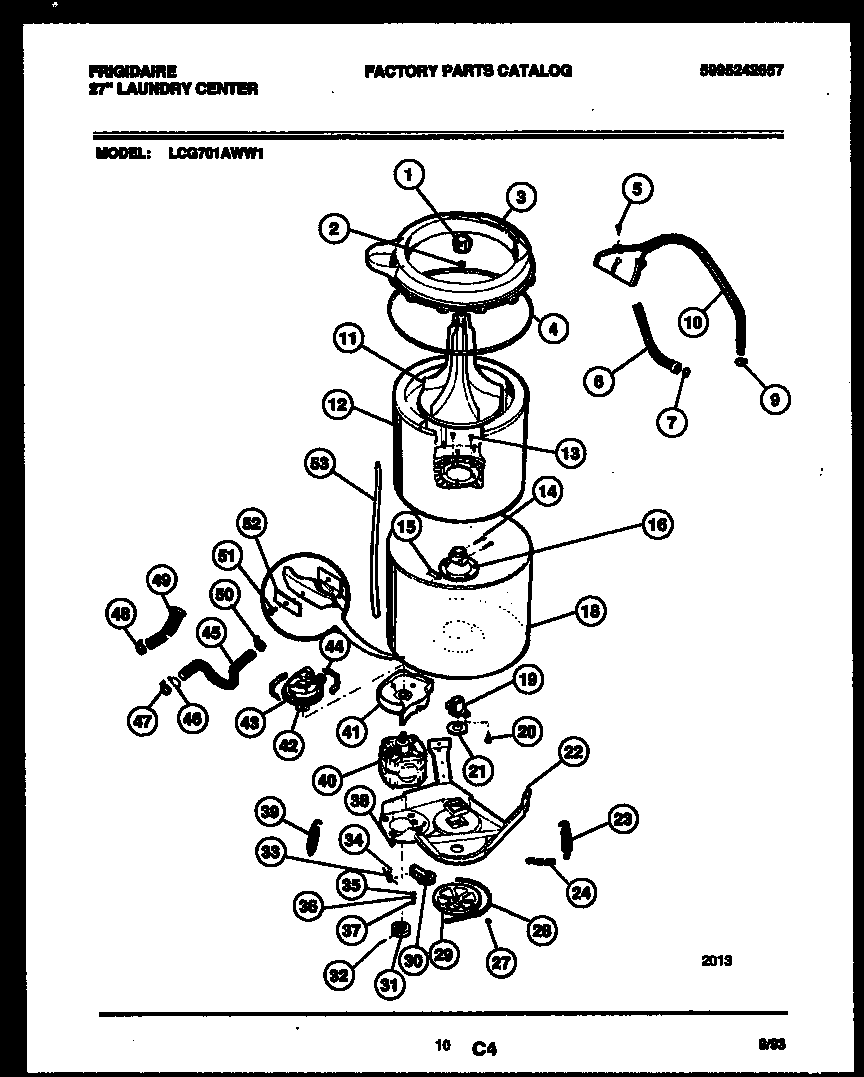

Tub detail diagram

Belt

Part #3204418

Replaced by #134511600

?
Manufacturer substitution
This part replaces 3204418. Substitute parts can look different from the original.
BEST SELLER
$20.33 |
27% OFF MSRP : $28.00
In Stock
Catch 5307521419
#25

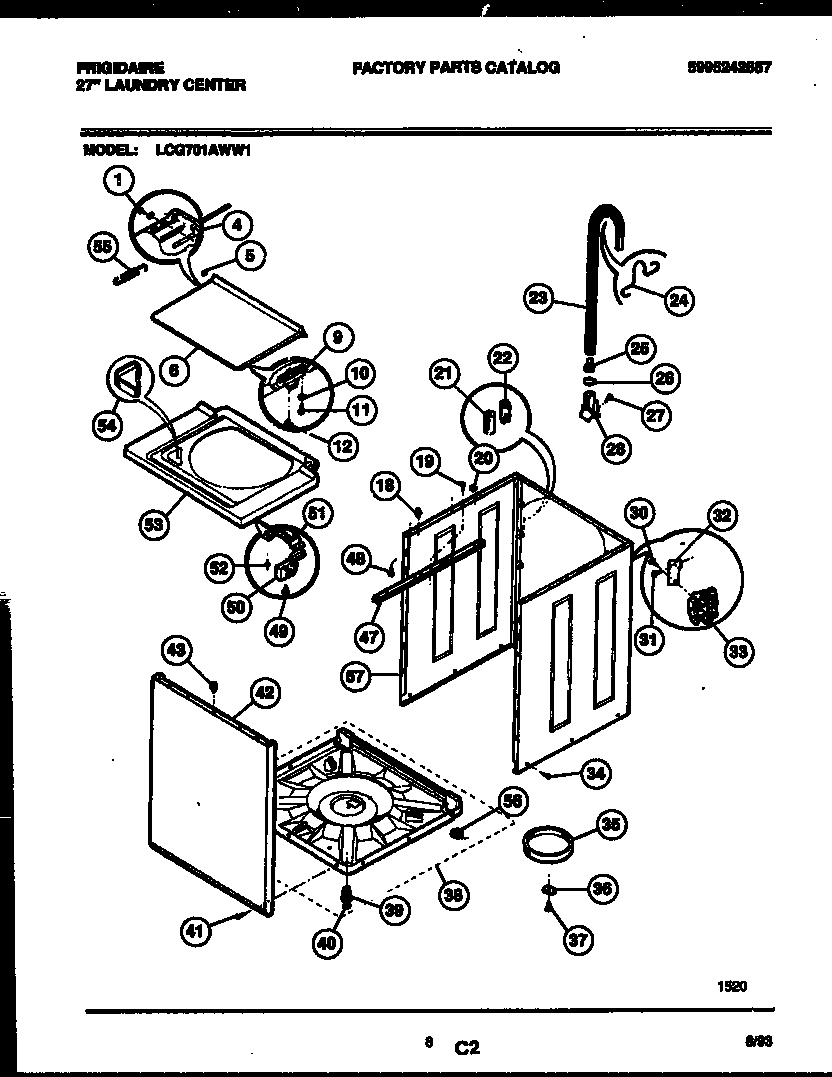

Cabinet and component parts diagram

Catch

Part #5307521419

Replaced by #131658800

?
Manufacturer substitution
This part replaces 5307521419. Substitute parts can look different from the original.
BEST SELLER
$60.65 |
8% OFF Phone Price : $65.65
In Stock
Glide 131154800
#20

Cabinet and component parts diagram

Glide

Part #131154800

Replaced by #5303937139

?
Manufacturer substitution
This part replaces 131154800. Substitute parts can look different from the original.
BEST SELLER
$42.36 |
11% OFF Phone Price : $47.36
In Stock
Wheel 5303212513
#12

Motor, blower and cabinet parts diagram

Wheel

Part #5303212513

Replaced by #131476300

?
Manufacturer substitution
This part replaces 5303212513. Substitute parts can look different from the original.
BEST SELLER
$59.31 |
8% OFF Phone Price : $64.31
In Stock
Bracket 5303281023
#13

Cabinet and component parts diagram

Bracket

Part #5303281023

Replaced by #131724301

?
Manufacturer substitution
This part replaces 5303281023. Substitute parts can look different from the original.
BEST SELLER
$13.29 |
13% OFF Phone Price : $15.29
In Stock
Washer Tub Seal Assembly 5303279394
#26

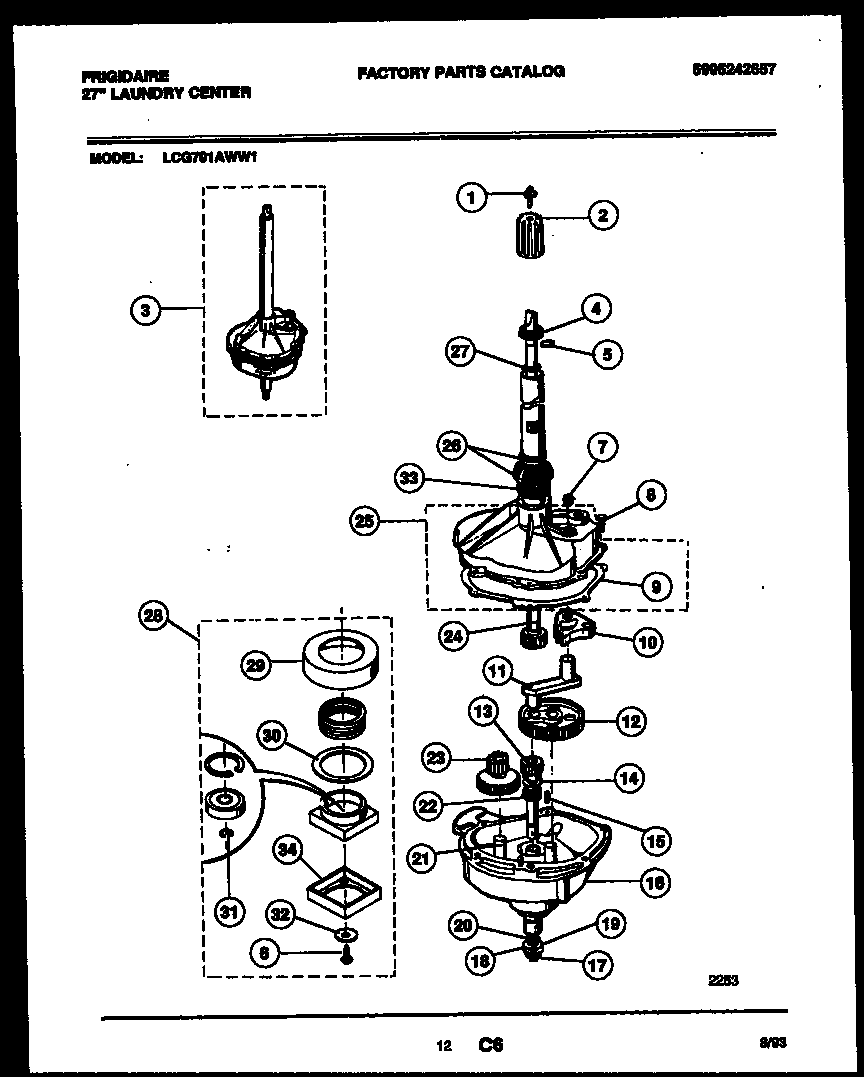

Transmission parts diagram

Washer tub seal assembly

Part #5303279394

The manufacturer no longer makes this part, and there's no substitute part

Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$9.78 |
42% OFF MSRP : $17.00
In Stock
Coil 5300622602
#71

Motor, blower and cabinet parts diagram

Coil

Part #5300622602

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5300622602. Substitute parts can look different from the original.
BEST SELLER
$37.09 |
12% OFF Phone Price : $42.09
In Stock
