Kenmore 7909611240C electric range Parts

For Kenmore ranges, the model number is printed on the appliance identification plate. On Kenmore model 7909611240C, the manual shows the ID plate is on the right side of the oven front frame, inside the storage or warmer drawer compartment; the model number appears after “Model No.”.

Where to look on Kenmore 7909611240C

Check these spots in this order:

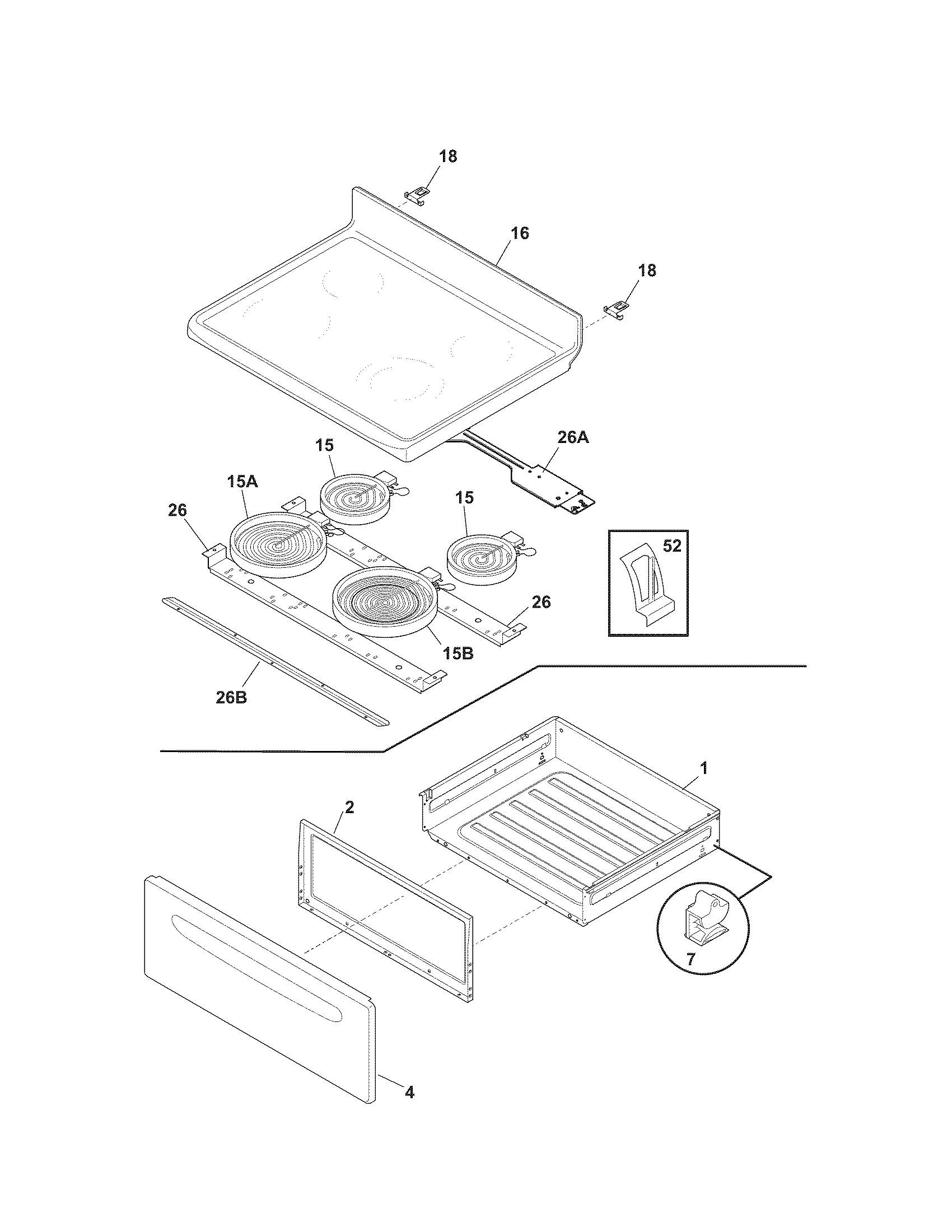

• Pull out the storage drawer (or warmer drawer, if equipped) and look on the right side of the oven front frame
• Look for a label that includes both Model No. and Serial No.
• Write the full model number exactly as shown (letters and numbers)
• Take a clear photo of the tag for future parts ordering
• Keep the model and serial number with your purchase records

What the model number looks like

On many Kenmore ranges, the model number line starts with 790. (a common Kenmore prefix). Your full model number will include additional digits and sometimes a suffix.

What you see on the tag	What it means	Why it matters
Model No.	The model identifier (example: 7909611240C)	Ensures diagrams and parts match your exact range
Serial No.	The unit’s unique serial number	Helps with service history and production details

Why it matters for parts and troubleshooting

We use the model number to match the correct Kenmore electric range parts list, wiring layout, and component variations (for example, the correct surface element switch or oven temperature sensor for your build).

Helpful tip from the documentation

The location and format of the identification plate for this range is shown in the 7909611240C owner’s manual.

Last updated: February 2026

The most common issues we see with the Kenmore 7909611240C electric range involve uneven oven heating, surface burners not heating or staying on high, and oven light or door problems. These symptoms usually trace back to a failed heating element, temperature sensor, burner control switch, or door seal.

Common problems and what they usually point to

• Oven not heating or bakes unevenly: failed bake element or a drifting temperature sensor
• Broil not working: failed broil element or a wiring/connection issue

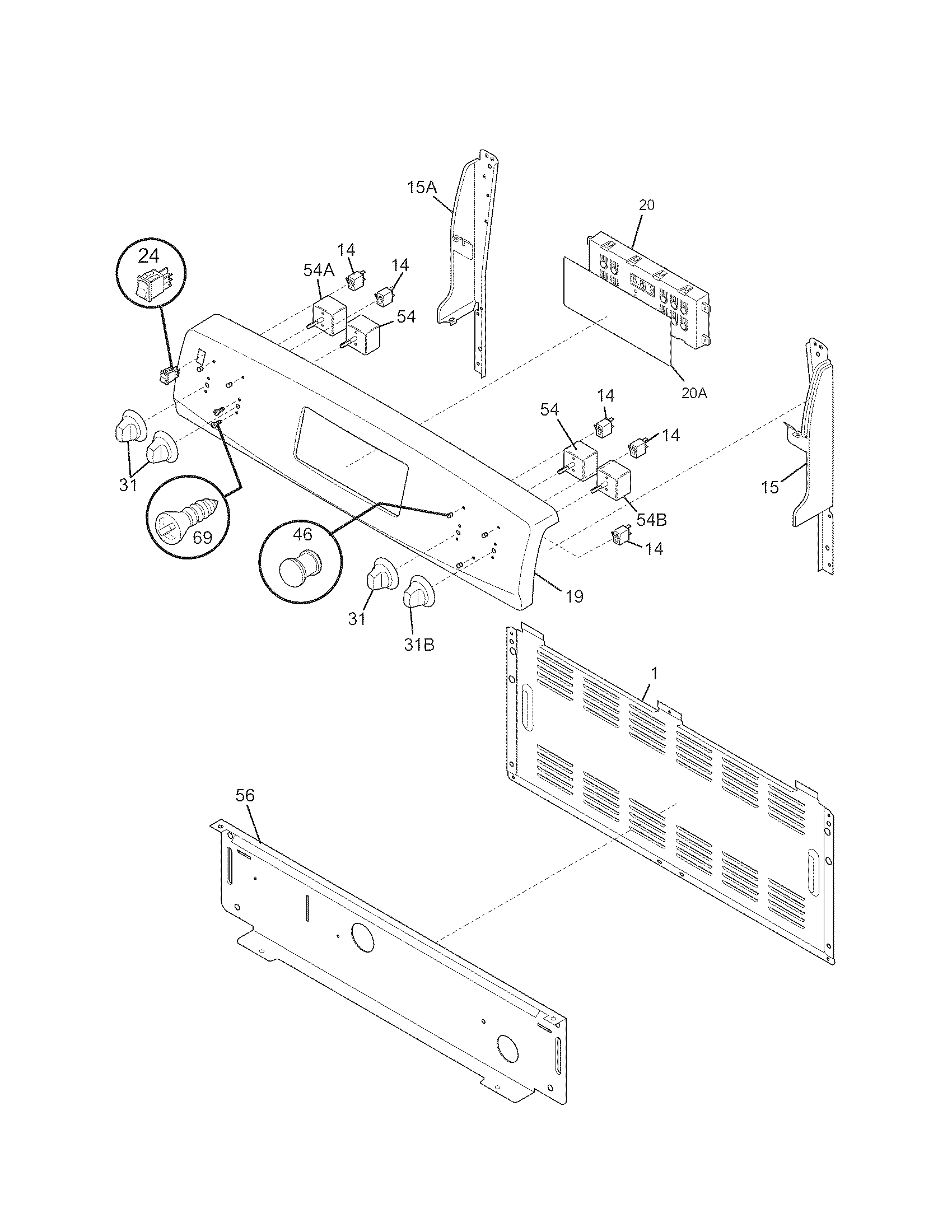

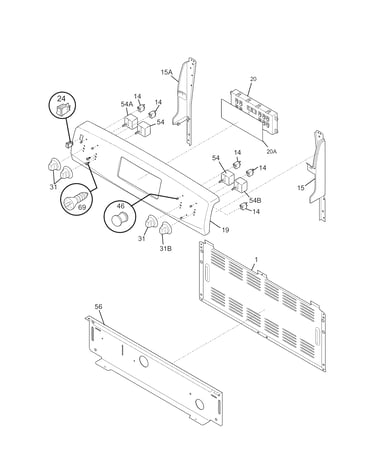

• Surface element won’t heat, cycles wrong, or stays too hot: worn surface element control switch
• Oven temperature seems inaccurate: oven temperature sensor out of range
• Oven light not working: burned-out bulb, bad socket, or broken lens
• Heat leaking around the door: worn or torn door seal

Quick checks you can do first

Before replacing parts, we recommend these basic checks (power off at the breaker for any internal inspection):

• Confirm the range has full power (a range typically needs 240V; a tripped breaker can leave you with partial power).
• Try a different surface element setting; a bad switch often shows up as “only high” or “won’t shut off.”
• Inspect the bake and broil elements for blisters, cracks, or burn spots.

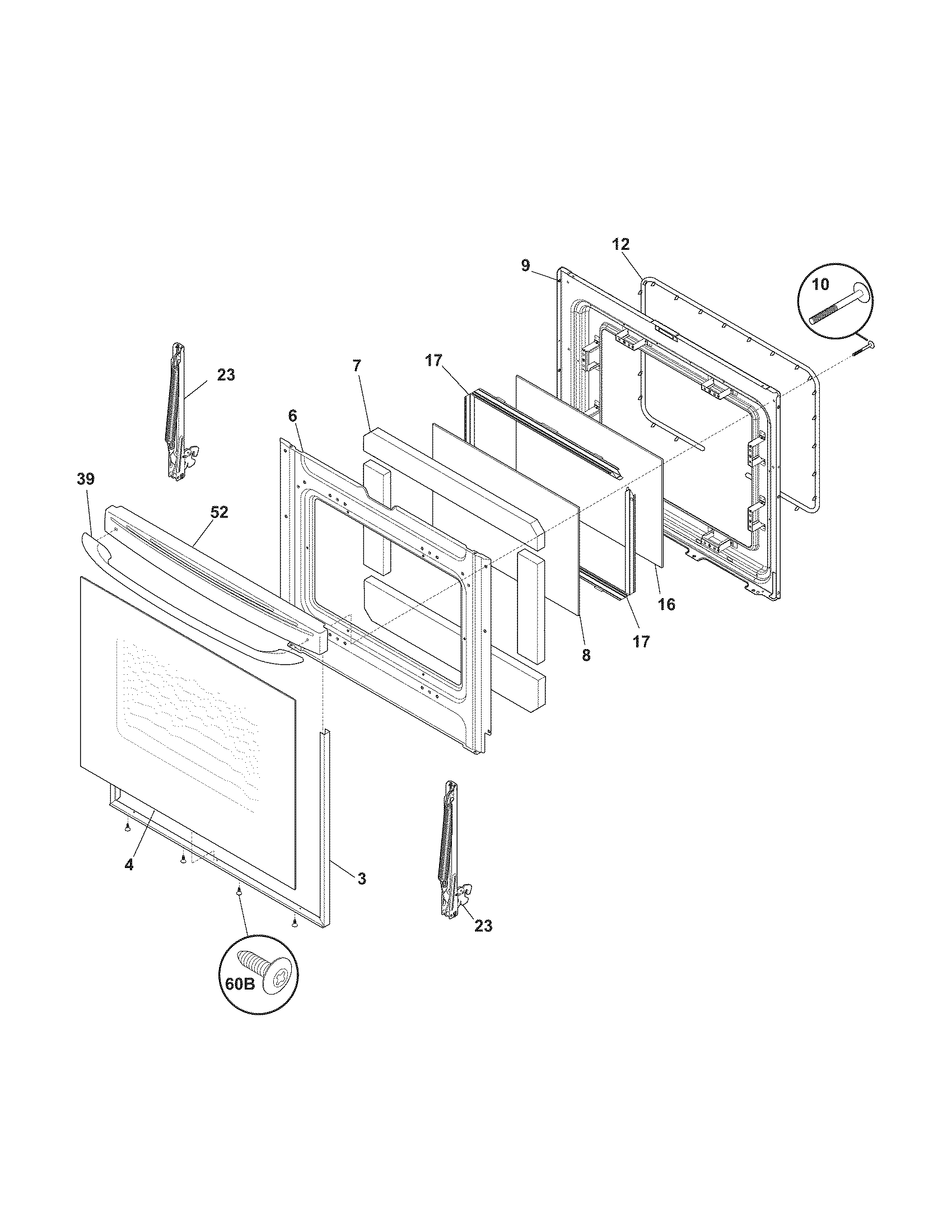

• Check the oven door for gaps and inspect the gasket for flattening or tears.
• If the oven light is out, try a known-good bulb first.

Parts commonly involved (examples for this model)

Symptom	Part to check	Example part on this model page
Oven won’t bake or heats unevenly	Bake element	Frigidaire range bake element 316407501
Oven temp inaccurate	Oven temperature sensor	Frigidaire range oven temperature sensor 316490000
Burner won’t regulate heat	Surface element control switch	Frigidaire range surface element control switch 316436001
Heat leaking at door	Oven door seal	Frigidaire range oven door seal 316405000

Why it matters

Heating and temperature-control problems can cause undercooked food, longer cook times, and overheating that stresses wiring and controls. Catching a weak element or bad sensor early helps restore normal performance and prevents repeat failures.

For model-specific diagnostics, wiring diagrams, and safe access steps, use the owner's manual and the installation guide.

Last updated: March 2026

If your Kenmore electric range model 7909611240C oven is not working, the most common causes are a power supply problem, a control that has detected an F-code fault, or a failed heating component such as the bake element, broil element, or oven temperature sensor. Use the checks below, then confirm model-specific steps in the 7909611240C owner's manual.

Quick checks (fastest fixes first)

• Verify the range is not in a power outage; check other kitchen lights/outlets.
• If power was interrupted, turn the range off, then when power returns reset the clock and oven function.
• If the control is beeping and showing an F code (example: F11), press STOP/CLEAR to stop the beeping and clear the display.
• Confirm you are using the correct oven mode (Bake vs Broil) and temperature setting.
• If the cooktop works but the oven does not heat, focus on oven-only parts (elements, sensor, wiring).

What to test next (common failed parts)

When the oven won’t heat, these parts are the usual suspects on electric ranges:

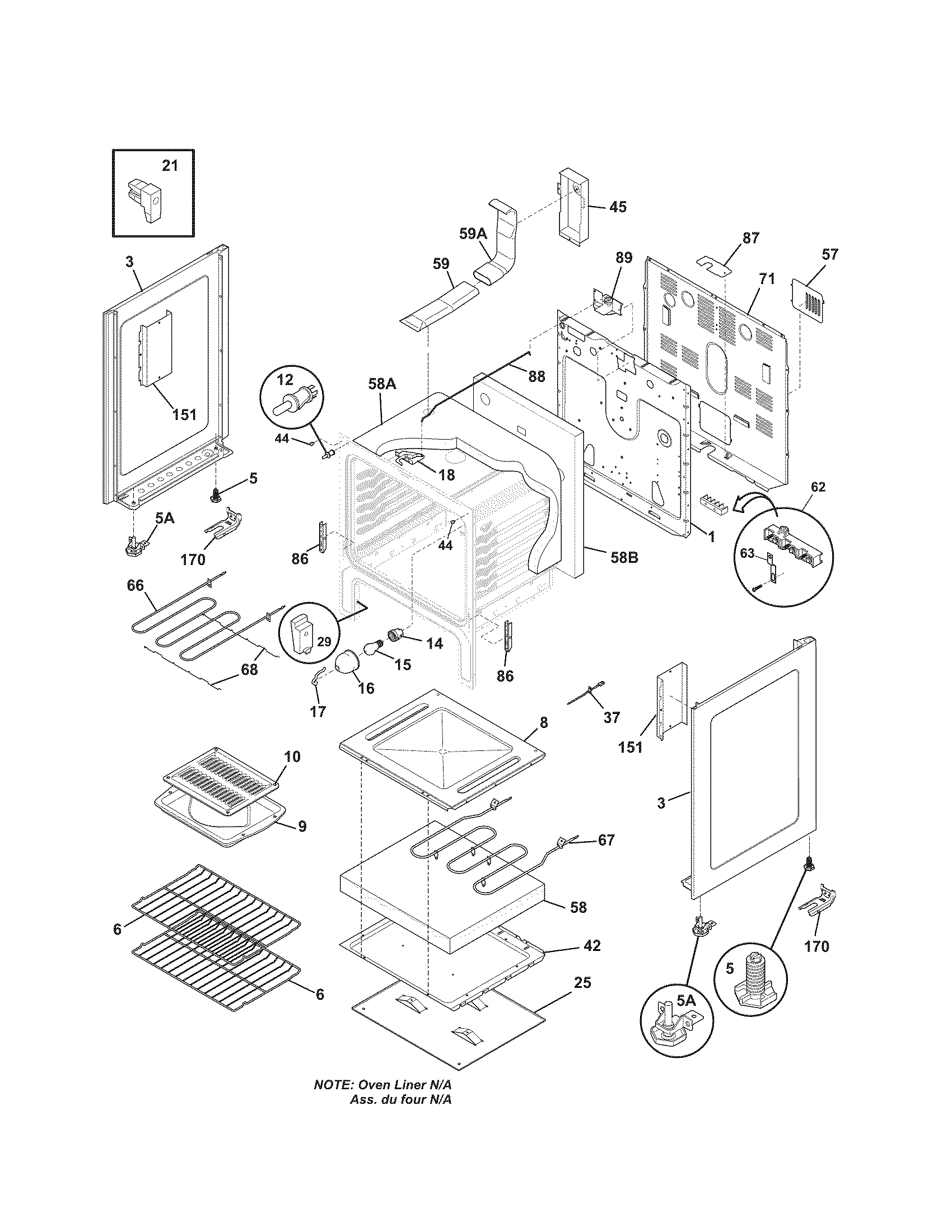

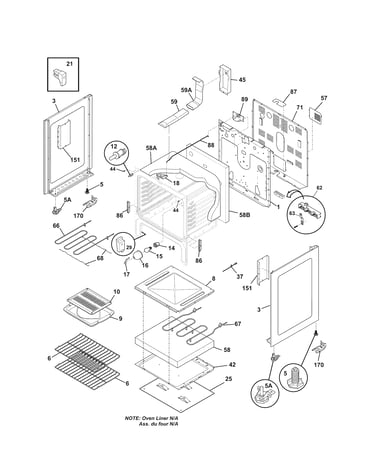

• Bake element (often fails first; look for blistering or breaks)
• Broil element (can affect preheat and overall heating)
• Oven temperature sensor (bad readings can prevent proper heating)
• Electronic oven control or wiring connections (especially if you see repeated F codes)

Parts that match this model

Symptom	Most likely part	Part anchor
Oven won’t heat on Bake	Bake element	Frigidaire range bake element 316407501
Oven temperature seems wrong or won’t regulate	Temperature sensor	Frigidaire range oven temperature sensor 316490000
Broil doesn’t work	Broil element	Frigidaire range broil element 316203301

Why it matters

An oven that “does nothing” can be as simple as a control state after a power failure, but a no-heat condition is often a failed element or sensor. Checking the easy items first prevents unnecessary parts replacement and gets your 7909611240C heating safely again.

Safety notes before troubleshooting

• Do not attempt to operate the range during a power failure; turn it off until power is restored.
• If you need to access wiring or test continuity, disconnect power at the breaker first.

Last updated: February 2026
