Amana
Side-By-Side Refrigerator

Model # AS2625PEKB Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana AS2625PEKB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

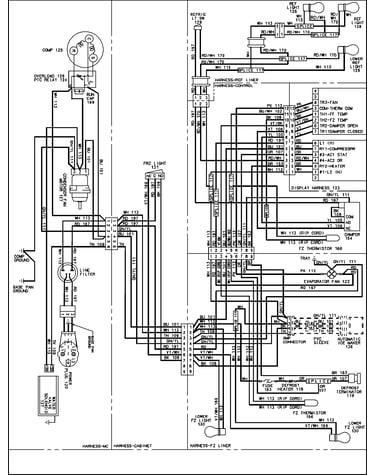

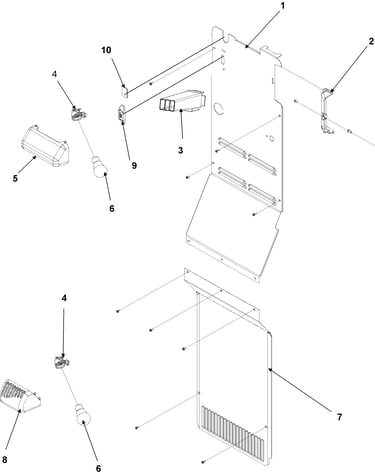

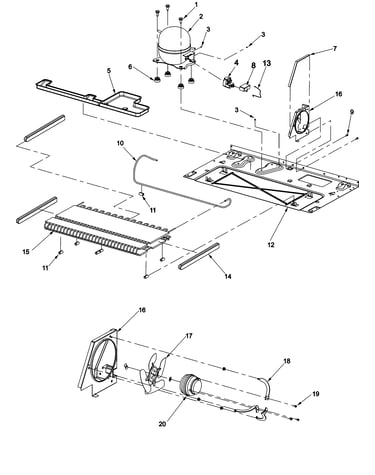

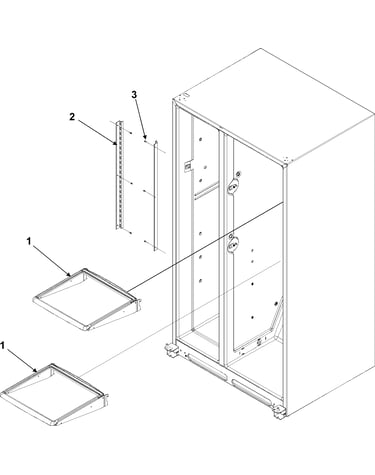

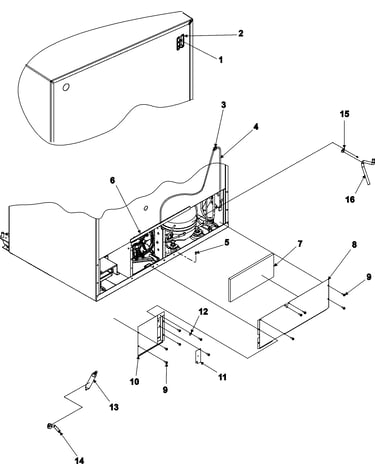

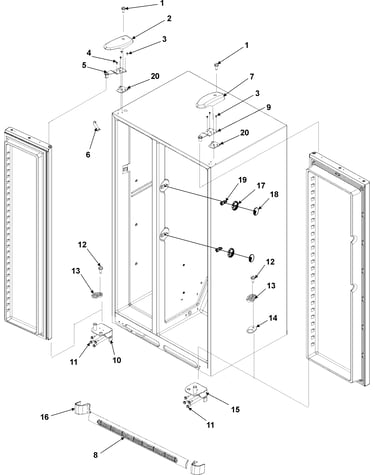

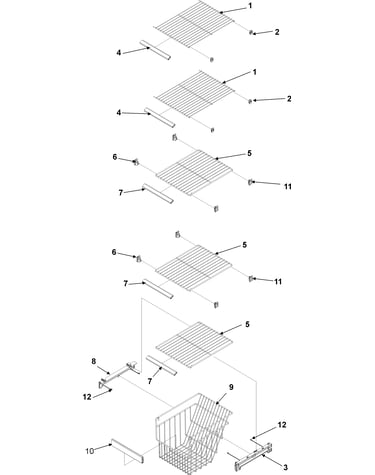

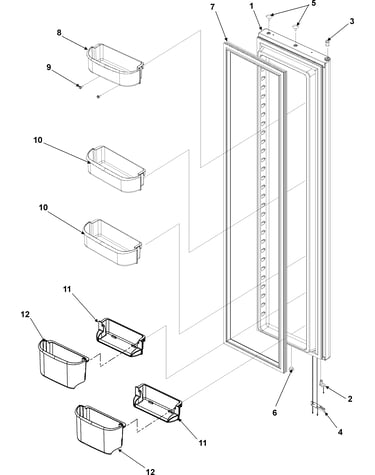

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Refrigerator Board Kit 12002509
#13

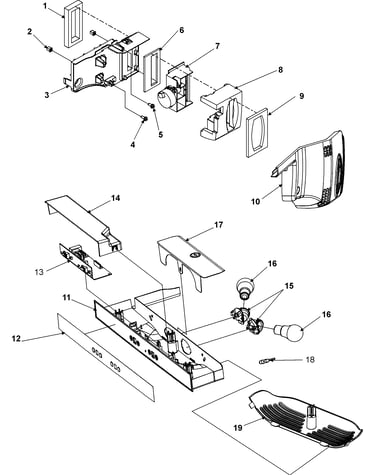

Controls diagram

Refrigerator board kit

Part #12002509

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 12002509. Substitute parts can look different from the original.
BEST SELLER
$161.89 |
6% OFF Phone Price : $171.89
In Stock
Refrigerator Evaporator Fan Blade 12217201
#6

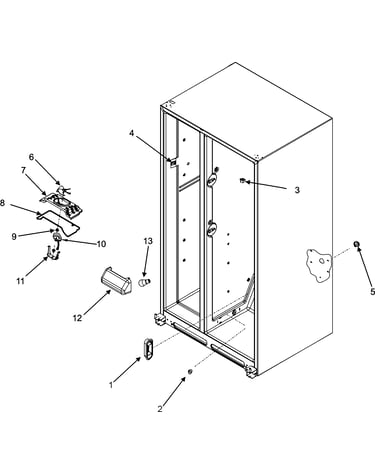

Evap fan assy & crisper light diagram

Refrigerator evaporator fan blade

Part #12217201

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 12217201. Substitute parts can look different from the original.
BEST SELLER
$37.23 |
12% OFF Phone Price : $42.23
In Stock
Refrigerator Tube B5705323
#9

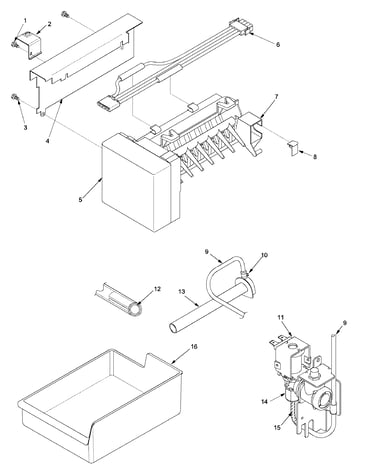

Ice maker diagram

Refrigerator tube

Part #B5705323

Replaced by #W10823511

?
Manufacturer substitution
This part replaces B5705323. Substitute parts can look different from the original.
BEST SELLER
$36.10 |
12% OFF Phone Price : $41.10
In Stock
Refrigerator Light Socket 67005016
Refrigerator light socket

Part #67005016

Replaced by #W11447232

?
Manufacturer substitution
This part replaces 67005016. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99 |
56% OFF MSRP : $18.00
In Stock
Refrigerator Crisper Support Post 12603701
#10

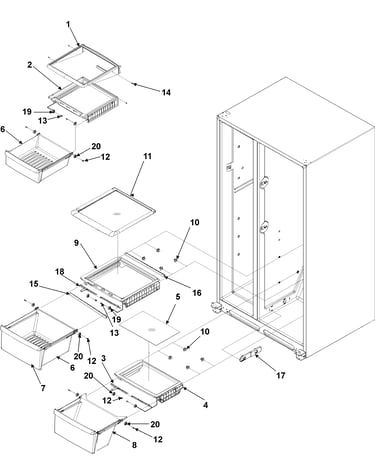

Crisper assembly diagram

Refrigerator crisper support post

Part #12603701

Replaced by #WP12603701

?
Manufacturer substitution
This part replaces 12603701. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.59 |
12% OFF Phone Price : $8.59
In Stock
Refrigerator Ice Tray 67001205
#15

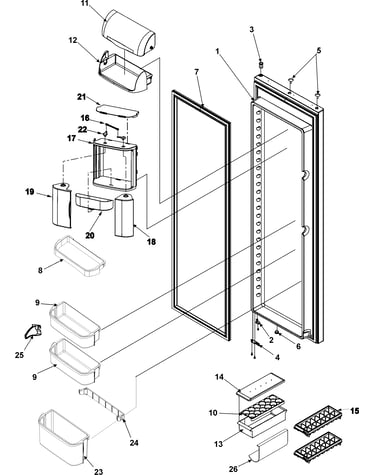

Refrigerator door diagram

Refrigerator ice tray

Part #67001205

Replaced by #WP841180A

?
Manufacturer substitution
This part replaces 67001205. Substitute parts can look different from the original.
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Cover, Ice M 10519807
#5

Ice maker diagram

Cover, ice m

Part #10519807

Replaced by #WPW10289690

?
Manufacturer substitution
This part replaces 10519807. Substitute parts can look different from the original.
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Refrigerator Roller 67005127
#18

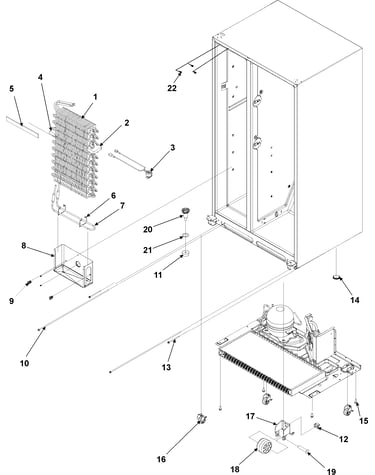

Evaporator assy and rollers diagram

Refrigerator roller

Part #67005127

Replaced by #WP10450603

?
Manufacturer substitution
This part replaces 67005127. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Refrigerator Screw M0238616
Refrigerator screw

Part #M0238616

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0238616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Shelf Bracket Mounting Screw M0238642
#3

Ice maker diagram

Refrigerator shelf bracket mounting screw

Part #M0238642

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0238642. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
