If your LG LFC20760SW refrigerator was laid down for transport, we let it sit unplugged upright for 24 hours before turning it on. That wait time lets compressor oil drain back where it belongs, which helps prevent hard starting, noisy operation, and cooling problems after you plug it in.

Recommended wait times (based on how it was moved)

• Laid fully on its side: wait 24 hours upright before plugging in
• Tilted briefly (not fully laid down): wait 4 to 6 hours upright
• Moved upright the whole time: you can plug it in once it is in place and leveled

What to do before you plug it back in

Follow the setup and first-run guidance in the LFC20760SW owner's manual.

• Put the refrigerator in its final location with proper clearance and ventilation
• Level it so the front is slightly higher than the rear (this helps the doors close)
• Clean the interior and reinstall shelves and drawers
• After you plug it in, let it run 2 to 3 hours before loading food
• Expect up to 24 hours for temperatures to fully stabilize

Quick timeline after restart

Time after plugging in	What to expect
0 to 3 hours	Air starts cooling; you can confirm airflow in the freezer
12 to 24 hours	Temperatures stabilize; ice maker (if equipped) may begin making ice
First day	Adjust controls only after the unit has had time to stabilize

Why this matters

When a refrigerator is laid down, compressor oil can migrate into the sealed system lines. Powering up too soon can make the compressor work under poor lubrication conditions, which can lead to noise, weak cooling, or premature compressor wear.

If the doors will not close after moving

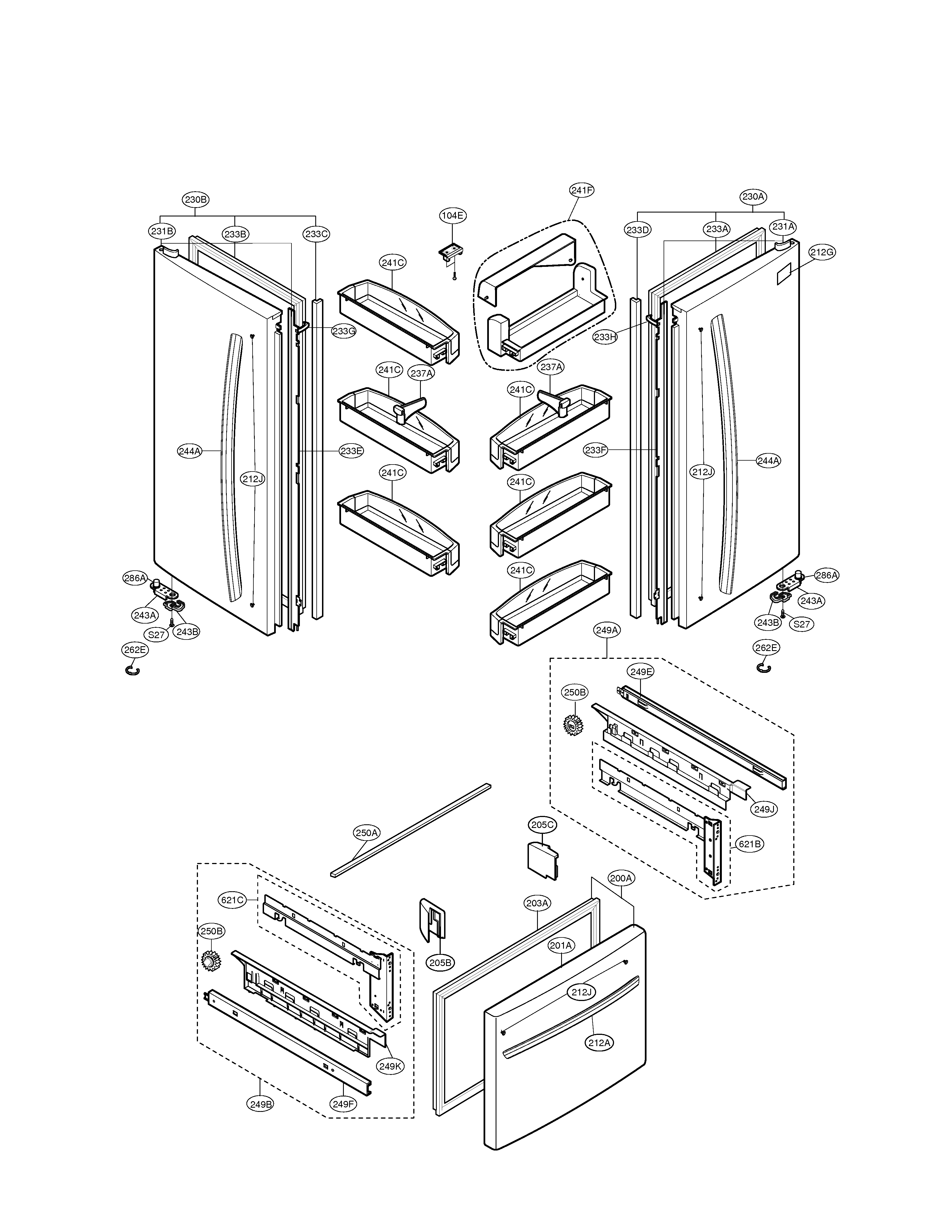

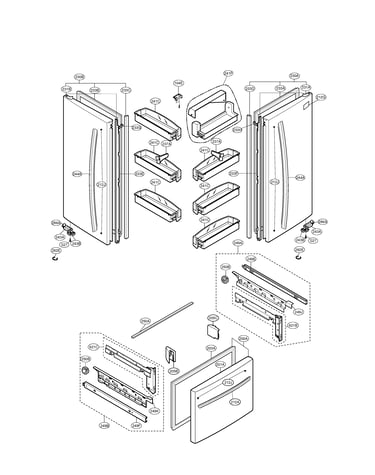

A refrigerator that is not level can have door-closing issues. If you notice the doors popping open or not sealing, correct leveling first; worn door hardware can also contribute. Common door-related parts for this model include the refrigerator door hinge bushing 4984JJ3003A and the refrigerator door stop 4620JJ2009A.

If you need replacement parts for LG LFC20760SW, we list model-matched parts on this page; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

The most common service issue we see with LG refrigerators is a cooling failure (refrigerator or freezer not staying cold). On the LG LFC20760SW, the most frequent root causes are airflow or temperature-sensing problems, plus occasional sealed-system or compressor-related failures that require advanced service; start with the basic cooling checks in the LFC20760SW owner's manual.

What to check first (fast, no-parts steps)

• Confirm the doors fully close and nothing is holding them open.
• Set temperatures to normal targets (about 37°F fresh food and 0°F freezer) and give it 24 hours to stabilize.
• Make sure air vents inside both compartments are not blocked by food packages.
• Clean dust from the condenser area (dirty coils commonly cause warm temps and long run times).
• Listen for fan operation; a failed fan can cause warm temps even when the compressor runs.

Common causes and the parts that often fix them

If your LFC20760SW is warm, these are the most common part categories involved.

Symptom	Most likely system	Example part on this model page
Warm fridge, freezer OK or temps swing	Temperature sensing / control	Refrigerator temperature sensor 6500JB2001B
Frost buildup, warming over time	Defrost system	Refrigerator defrost sensor assembly 6615JB2005C
Poor cooling plus hot cabinet sides, loud running	Condenser airflow	Refrigerator condenser fan motor EAU61644105
Not cooling, clicking/buzzing, runs but no cold	Sealed system / compressor	Refrigerator compressor TCA35931726

Why it matters

Cooling problems can quickly lead to food spoilage and ice maker issues. Catching an airflow, sensor, or defrost problem early often prevents heavier strain on the compressor and sealed system.

When to stop and schedule service

Some cooling failures involve sealed-system work (refrigerant handling) and should be handled by a qualified technician. If the compressor is running but both sections stay warm after basic checks, move to professional diagnosis.

Ordering parts

You can order replacement parts for LG LFC20760SW from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most 190 liter refrigerators last 12 to 15 years with normal use and basic maintenance. Your LG LFC20760SW bottom-mount refrigerator can reach the high end of that range when the doors seal well, airflow stays clear, and temperatures stay stable (see the LFC20760SW owner's manual).

Typical lifespan and what affects it

A refrigerator’s size (190 liters) matters less than how hard the sealed system and fans have to work.

• Room temperature: hot kitchens make the compressor run longer
• Door openings: frequent openings add run time and wear
• Condenser airflow: dust and blocked vents raise operating temperatures
• Door seal condition: leaks force longer run cycles
• Defrost and drainage: poor drainage can lead to icing and airflow problems

What “normal” operation looks like

The manual notes that modern, efficient refrigerators often run longer than older models, especially in warm conditions or after loading groceries.

What you notice	Usually normal	Often a problem when…
Compressor runs a lot	After adding food, warm room, frequent door openings	Temps are unstable or food spoils quickly
Clicking, gurgling, popping	Defrost cycle and refrigerant movement	Loud, constant, or paired with warming
Fan sound	Air circulation in fridge/freezer	Fan is grinding or stops intermittently

Maintenance that extends life (high impact)

These steps reduce compressor run time and help prevent early failures.

• Keep door gaskets clean and sealing; replace a torn gasket such as refrigerator door gasket ADX73410710 when it no longer seals
• Avoid overpacking; leave space for air to circulate
• Keep the unit level so doors close fully
• Clean dust from the condenser area and keep rear/bottom vents clear
• If you see water pooling, check the drain path; a clogged drain can be addressed with parts like the refrigerator drain 5251JA3003D

Why it matters

A refrigerator that has to run 80% to 100% of the time (warm room, poor airflow, leaky door seal) wears the compressor and control components faster. Keeping seals tight and airflow clear is the simplest way to hit the full 12 to 15 year lifespan.

For replacement parts for LG LFC20760SW, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A sheet of ice at the bottom of the freezer in your LG LFC20760SW is caused by a clogged defrost drain; defrost water cannot flow to the drain pan, so it refreezes on the freezer floor. Clearing the drain and fully defrosting the ice fixes the root cause. See the LFC20760SW owner's manual for safe access steps.

What to do first (safe, effective steps)

• Move food to a cooler and unplug the refrigerator.
• Open the freezer drawer and let the ice melt; use towels to catch water.
• Clear the drain opening and drain tube with hot water (a turkey baster works well).
• Flush until water runs freely to the drain pan underneath.
• Reassemble, restore power, and allow 24 hours for temperatures to stabilize.

Common causes of bottom-freezer ice buildup

Cause	What you typically notice	What fixes it
Drain tube blocked by ice or debris	Ice sheet on freezer floor, water under bottom basket	Defrost and flush the drain
Door not sealing consistently	Frost on packages, more frequent icing	Clean/reshape gasket, improve door closing
Airflow restricted	Warm spots, moisture, uneven temps	Clear vents and avoid overpacking

Parts that often help on this model

If the drain keeps freezing or backing up after you clear it, inspect the drain tube and door sealing parts.

• Refrigerator drain 5251JA3003D: Replaces a damaged or restricted drain tube that can slow drainage.
• Refrigerator door gasket ADX73410710: A leaking seal lets humid air in, increasing frost and drain icing.
• Refrigerator door cam latch, left 4430JJ2005B and refrigerator door cam latch, right 4430JJ2005A: Worn cams can prevent a consistent, tight door close.

You can order replacement parts for your LG LFC20760SW from the parts list for this model, or search by model number on Sears PartsDirect.

Why it matters

When the drain is blocked, meltwater refreezes and can eventually overflow into the freezer drawer area, create odors, and contribute to temperature swings. Keeping the drain clear and doors sealing tightly prevents repeat icing.
