Jenn-Air JMW9530DAB29 30" electric built-in oven combo Parts
Here are the diagrams and repair parts for Jenn-Air JMW9530DAB29 30" electric built-in oven combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

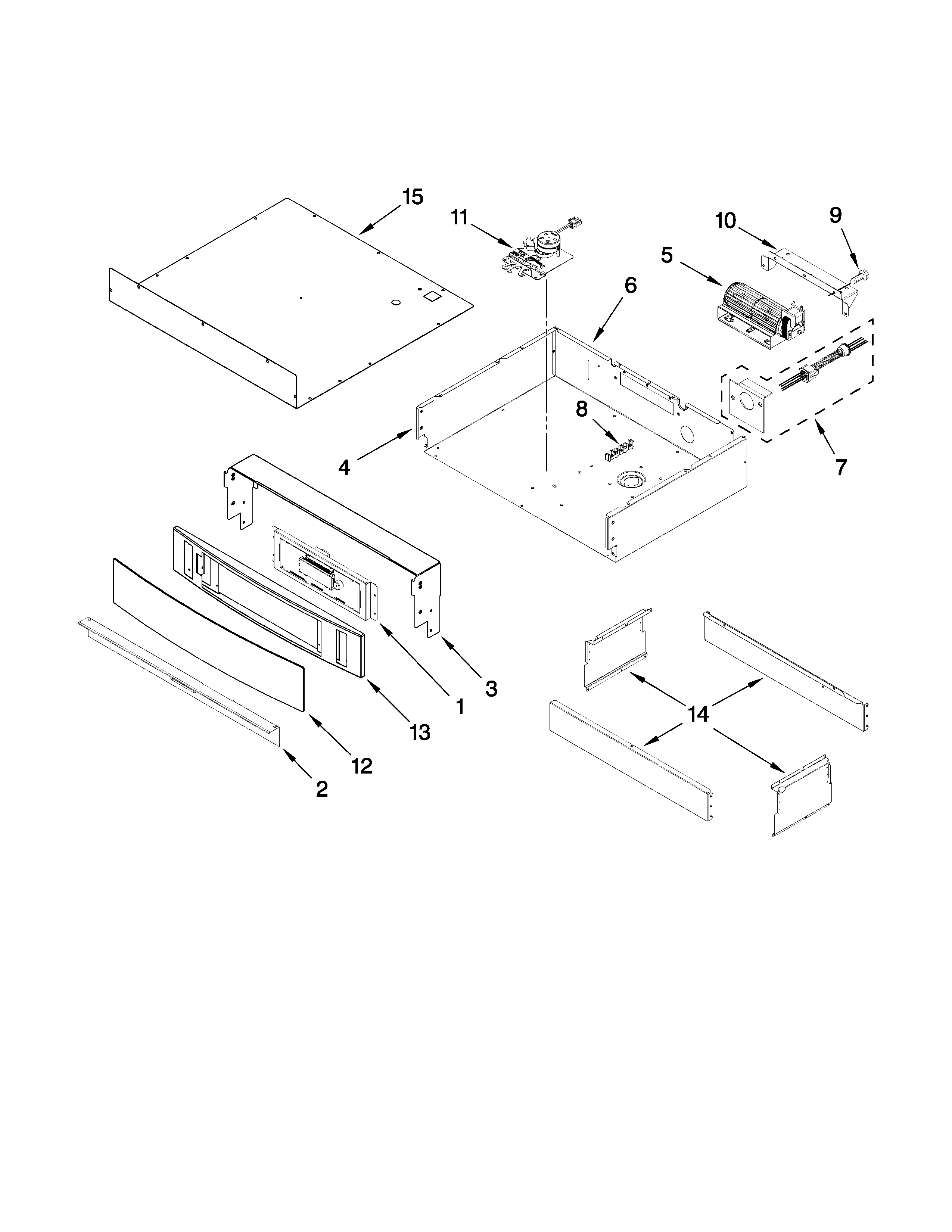

SELECT DIAGRAM
Browse Parts for JMW9530DAB29 Wall Ovens
Optional parts diagram
Spray W
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00
Qty

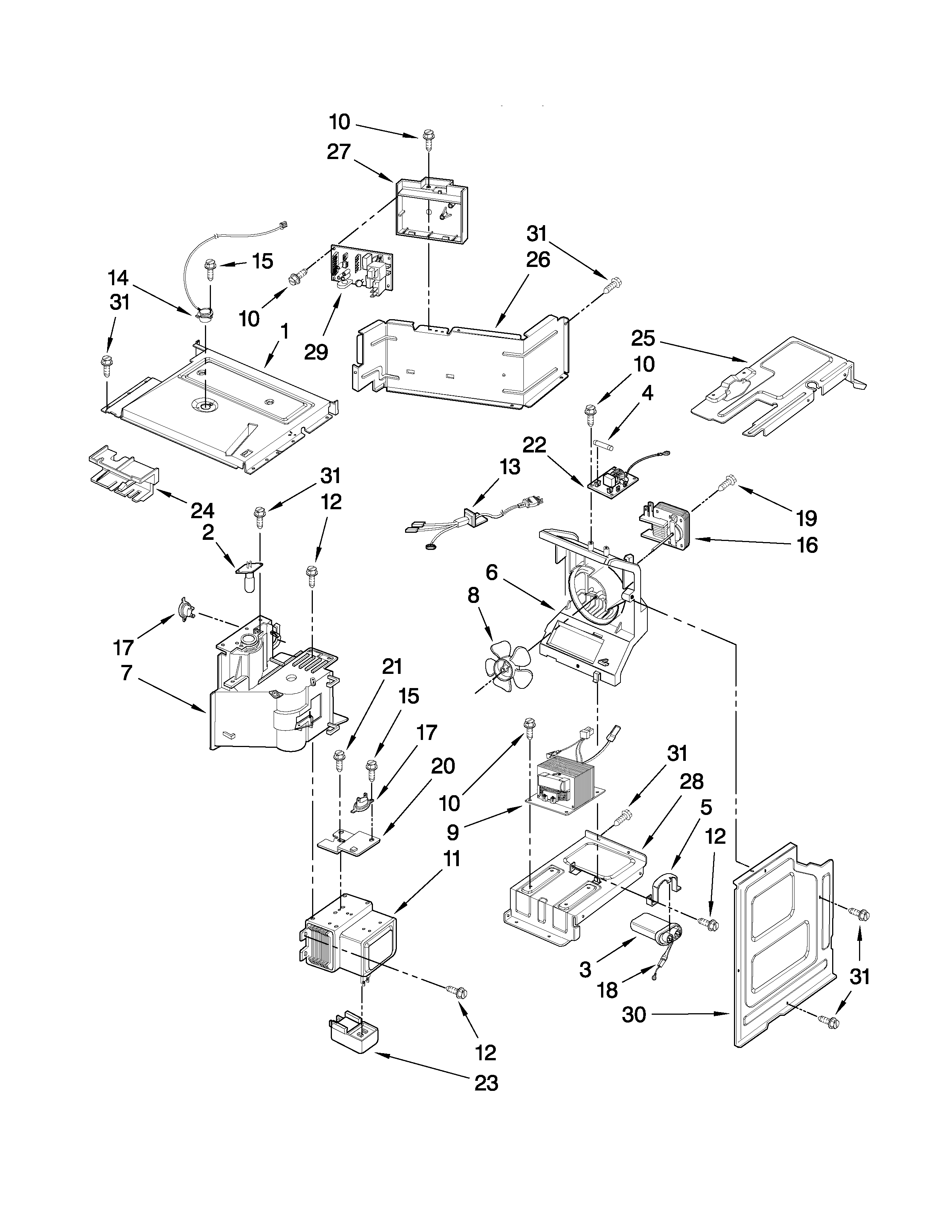

Oven interior parts diagram
Fuse
Part #M0805101Replaced by #WPM0805101
Manufacturer substitutionThis part replaces M0805101. Substitute parts can look different from the original.This item is not returnableIn Stock$7.1912% OFF Phone Price : $8.19QtyOven interior parts diagram
Magnetron
Part #R9900082
The manufacturer no longer makes this part, and there's no substitute part

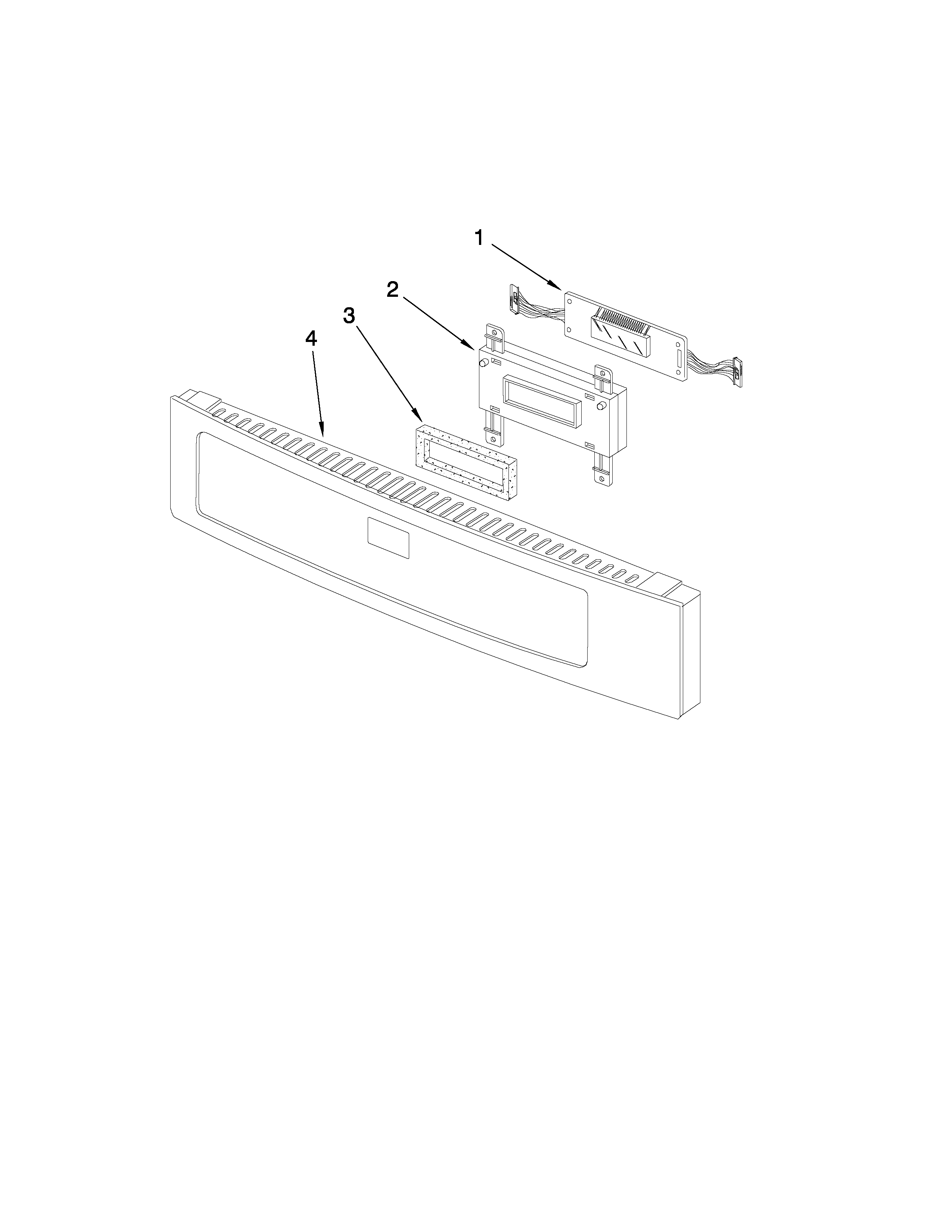

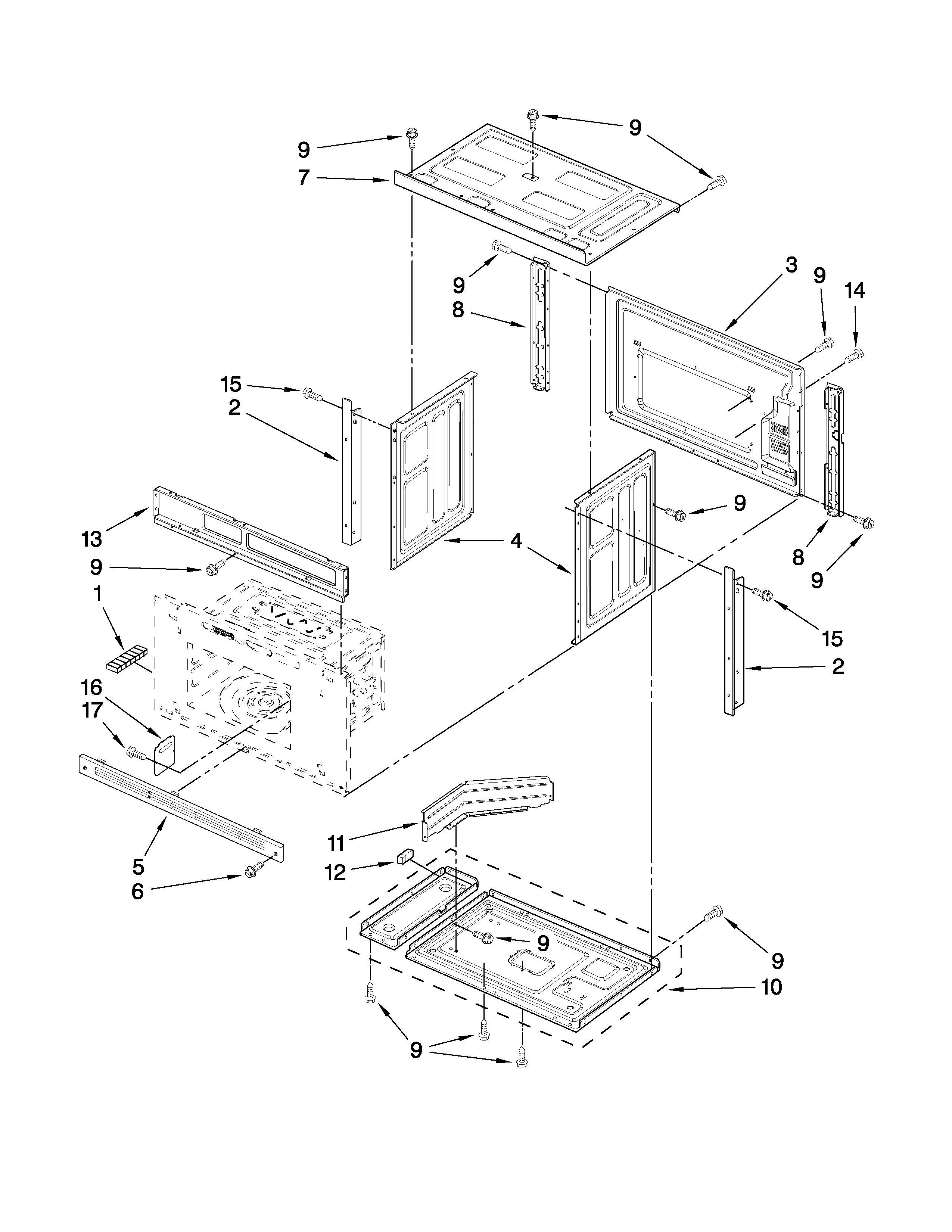

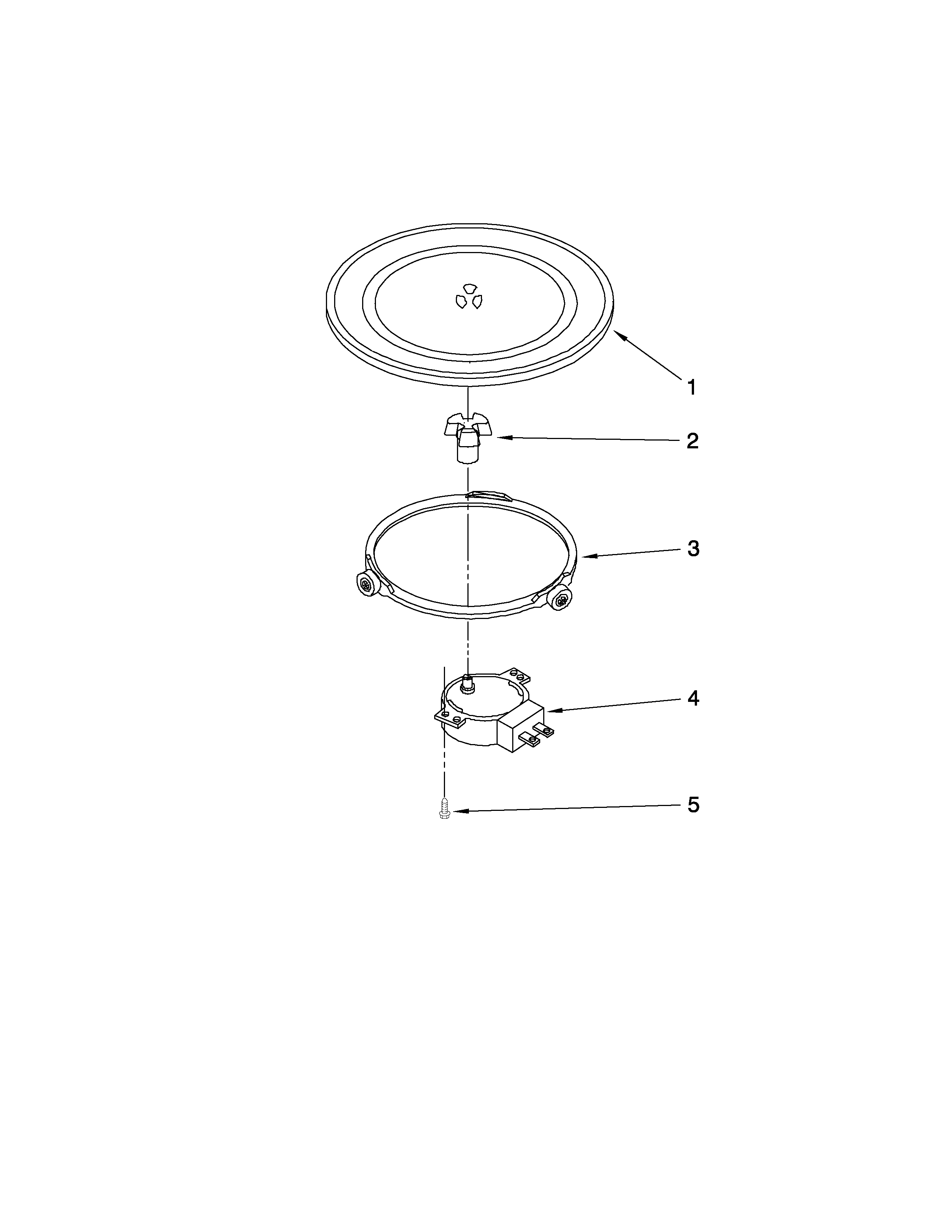

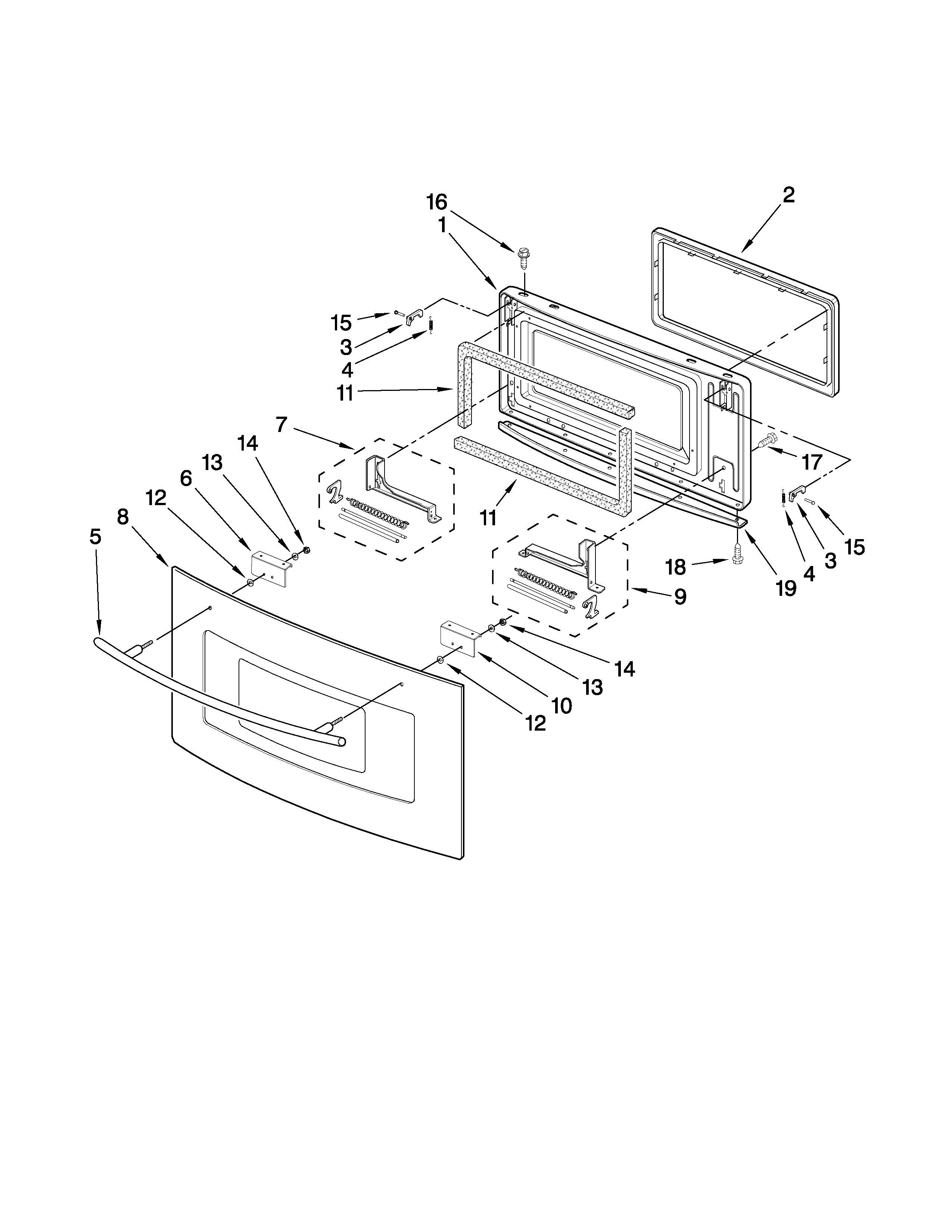

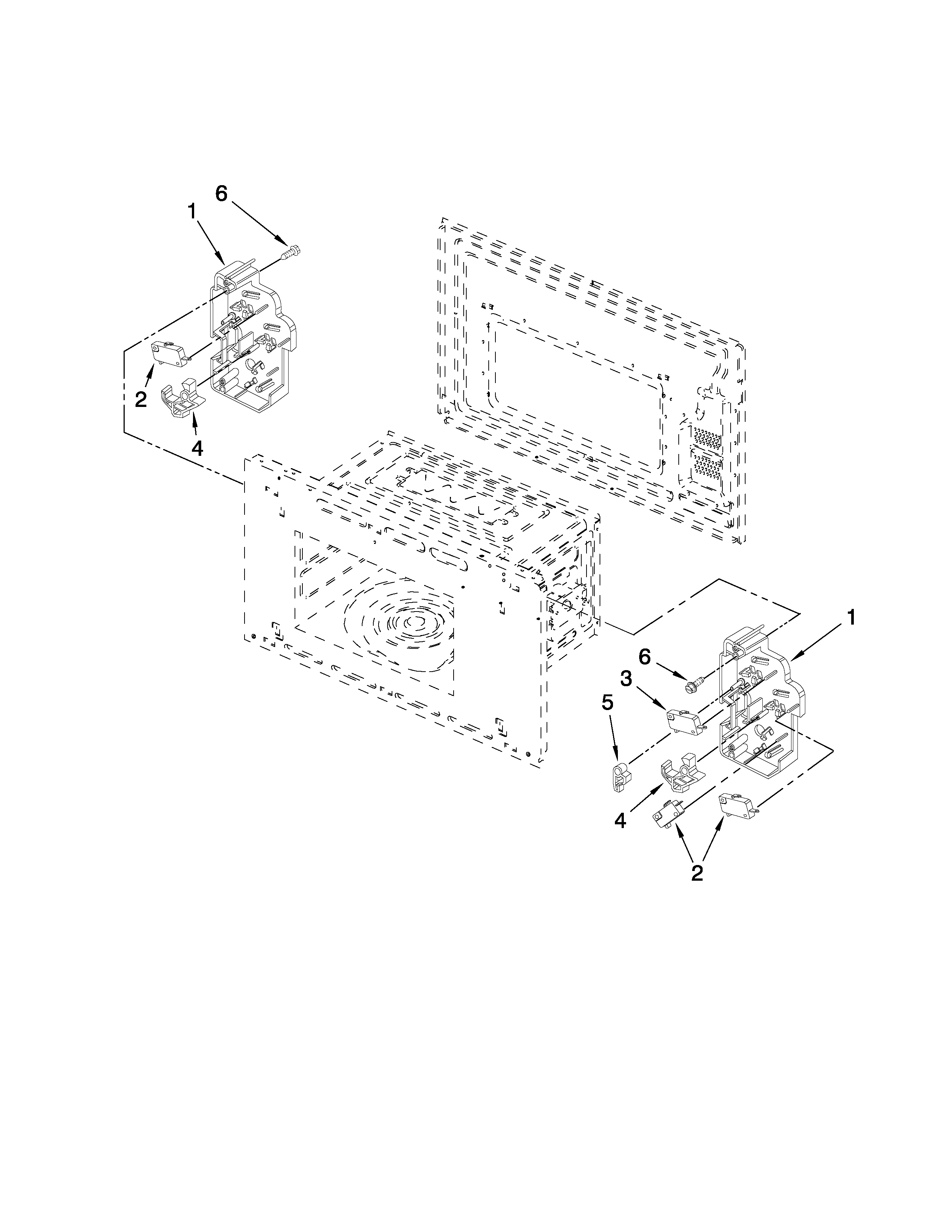

Microwave oven parts diagram
Screw
Part #R0654182Replaced by #WP3196557
Manufacturer substitutionThis part replaces R0654182. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyOptional parts diagram
Touch-up Paint (black)
Part #72032Replaced by #72032

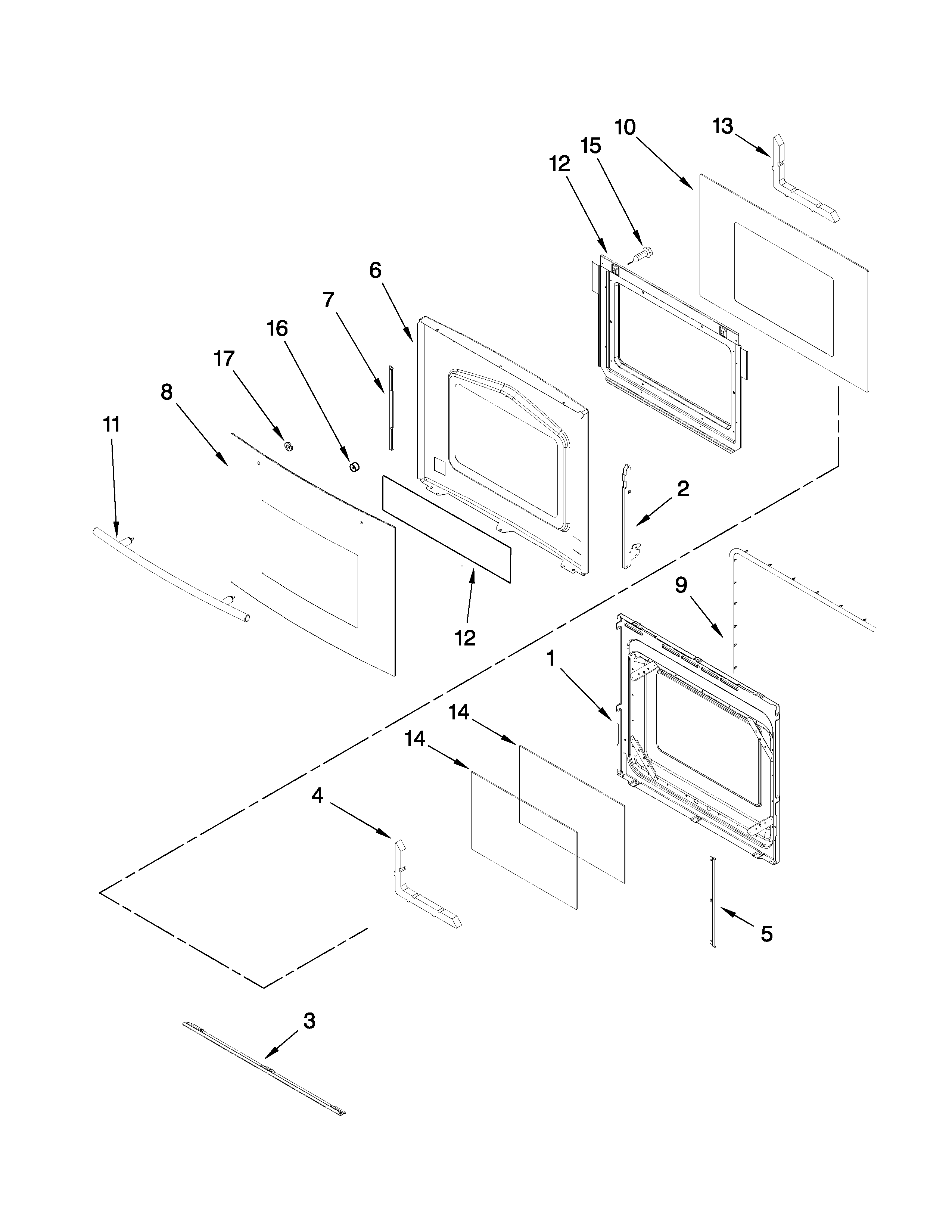

Manufacturer substitutionThis part replaces 72032. Substitute parts can look different from the original.This item is not returnableIn Stock$11.0815% OFF Phone Price : $13.08QtyOven door parts diagram
Door Glass
Part #7902P436-60Replaced by #74003645

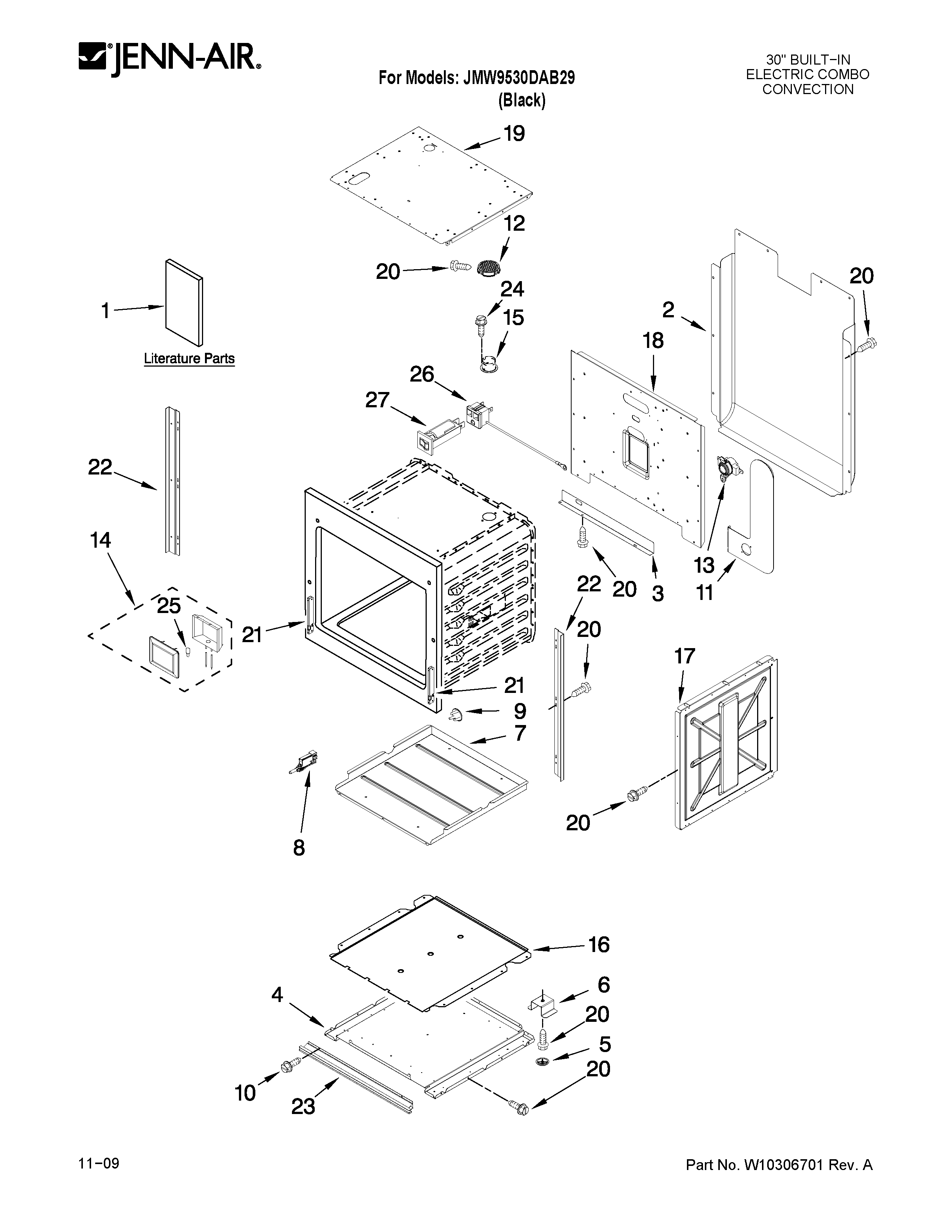

Manufacturer substitutionThis part replaces 7902P436-60. Substitute parts can look different from the original.In Stock$126.699% OFF Phone Price : $138.69QtyOven parts diagram
Breaker- C
Part #7429P006-60Replaced by #WP71002286
Manufacturer substitutionThis part replaces 7429P006-60. Substitute parts can look different from the original.In Stock$94.99QtyOptional parts diagram
Appliance Touch-up Paint
Part #72017This item is not returnableIn Stock$31.61QtyOven parts diagram
Screw
Part #7101P427-60Replaced by #WPY706189

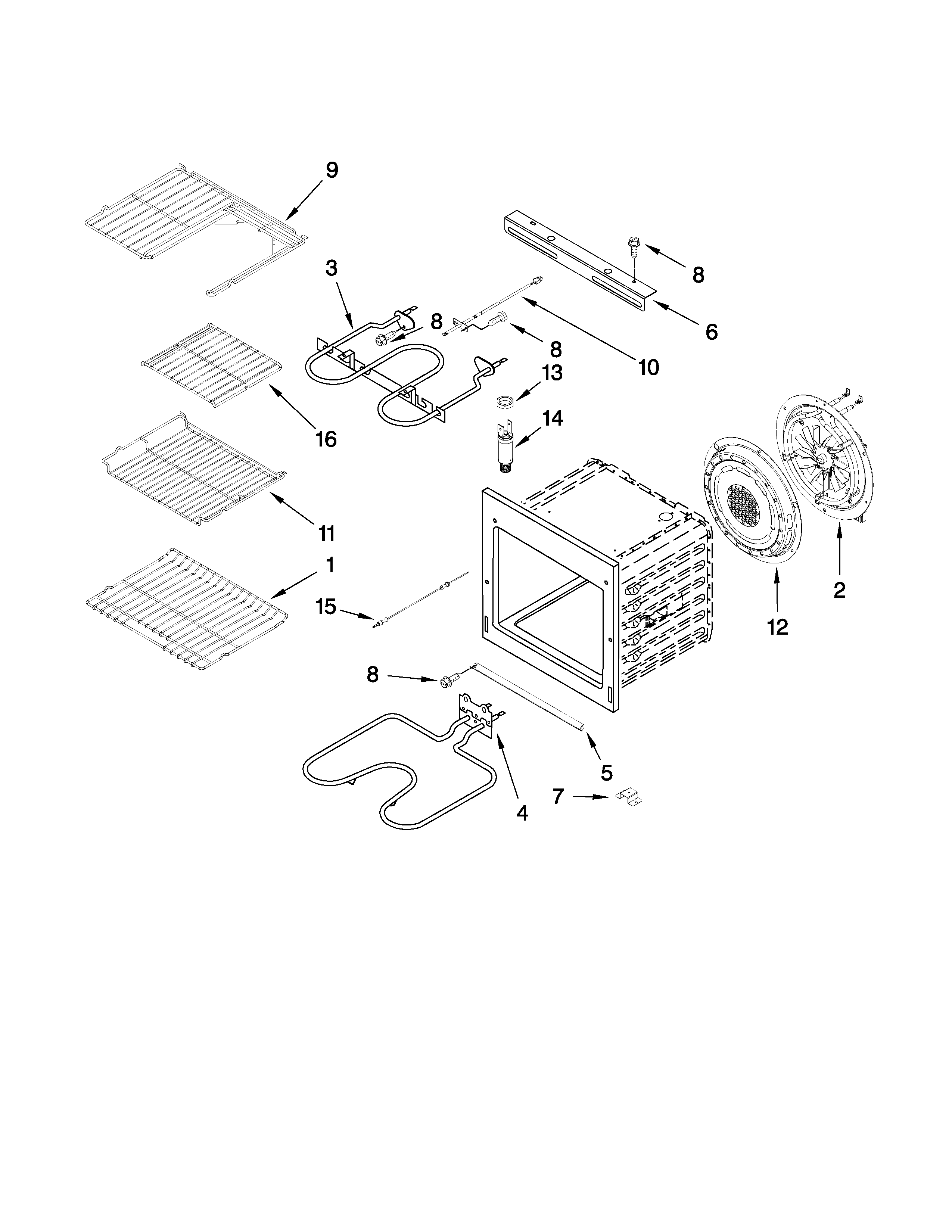

Manufacturer substitutionThis part replaces 7101P427-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyInternal oven parts diagram
Broiler Element
Part #W10184147Replaced by #WPW10184147
Manufacturer substitutionThis part replaces W10184147. Substitute parts can look different from the original.In Stock$114.1910% OFF Phone Price : $126.19Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Appliance Touch-up Paint
Part #72017
This item is not returnable
In Stock
$31.61
Qty
