Whirlpool ED5FHGXKT00 side-by-side refrigerator Parts

Yes. Manufacturers do make 30-inch-wide side-by-side refrigerators, but they are less common than 33-inch and 36-inch models. For fit and clearance details on your Whirlpool ED5FHGXKT00, use the measurements and installation requirements in the installation guide.

What “30-inch wide” really means

A “30-inch” refrigerator is typically designed to fit a 30-inch cabinet opening, but the actual case width can vary slightly and you still need room for doors, handles, and airflow.

• Measure the cabinet opening width, height, and depth
• Plan extra space for door swing and handle clearance
• Leave ventilation space (top, sides, and rear) per the guide
• Confirm the path for delivery (doorways and hallways)

Typical widths you will see (side-by-side)

Labeled size	Common actual width range	Availability
30-inch	About 29 1/2 to 30 inches	Less common
33-inch	About 32 3/4 to 33 inches	Common
36-inch	About 35 3/4 to 36 inches	Most common

Why it matters

Choosing the right width prevents installation headaches like doors that cannot open fully, poor airflow that hurts cooling performance, and water line routing issues for the ice maker and dispenser.

If you are replacing an existing unit

Use your current refrigerator’s measured width and the cabinet opening as your baseline. If your ED5FHGXKT00 uses a water dispenser or ice maker, also plan for the water supply connection and consider maintenance items like the refrigerator water filter EDR5RXD1 when setting up the new unit.

Last updated: February 2026

The Whirlpool side-by-side refrigerator model ED5FHGXKT00 has a total capacity of about 25.3 cubic feet, with the freezer around 9.9 cubic feet (the remaining capacity is the fresh food section). For the exact breakdown used for your unit, confirm in the installation guide.

Capacity details for ED5FHGXKT00

Here is the capacity breakdown most commonly associated with this model family:

Section	Approx. capacity
Freezer	9.9 cu. ft.
Total refrigerator	25.3 cu. ft.

Why the cubic feet number matters

Capacity affects how your refrigerator performs day to day:

• Helps you compare storage space when replacing shelves, bins, or drawers
• Impacts how quickly temperatures recover after door openings
• Guides how much food you can store without blocking air vents
• Helps when planning kitchen fit and airflow clearance

Tips to get the most usable space

Even with the same cubic feet rating, usable space changes based on how you load it:

• Keep items clear of the back wall vents so cold air can circulate
• Avoid overpacking the freezer; airflow is critical for even temperatures
• Use the crisper and meat pan for items that need steadier humidity and temperature
• Replace a clogged water filter on schedule so the dispenser and ice maker flow stays strong

Related parts customers often replace

If you are refreshing storage or fixing water and ice performance on ED5FHGXKT00, these model-matched parts are common:

• Refrigerator water filter EDR5RXD1 (water taste, flow, and ice quality)
• Refrigerator crisper pan WP2188656 (cracked or missing drawer)

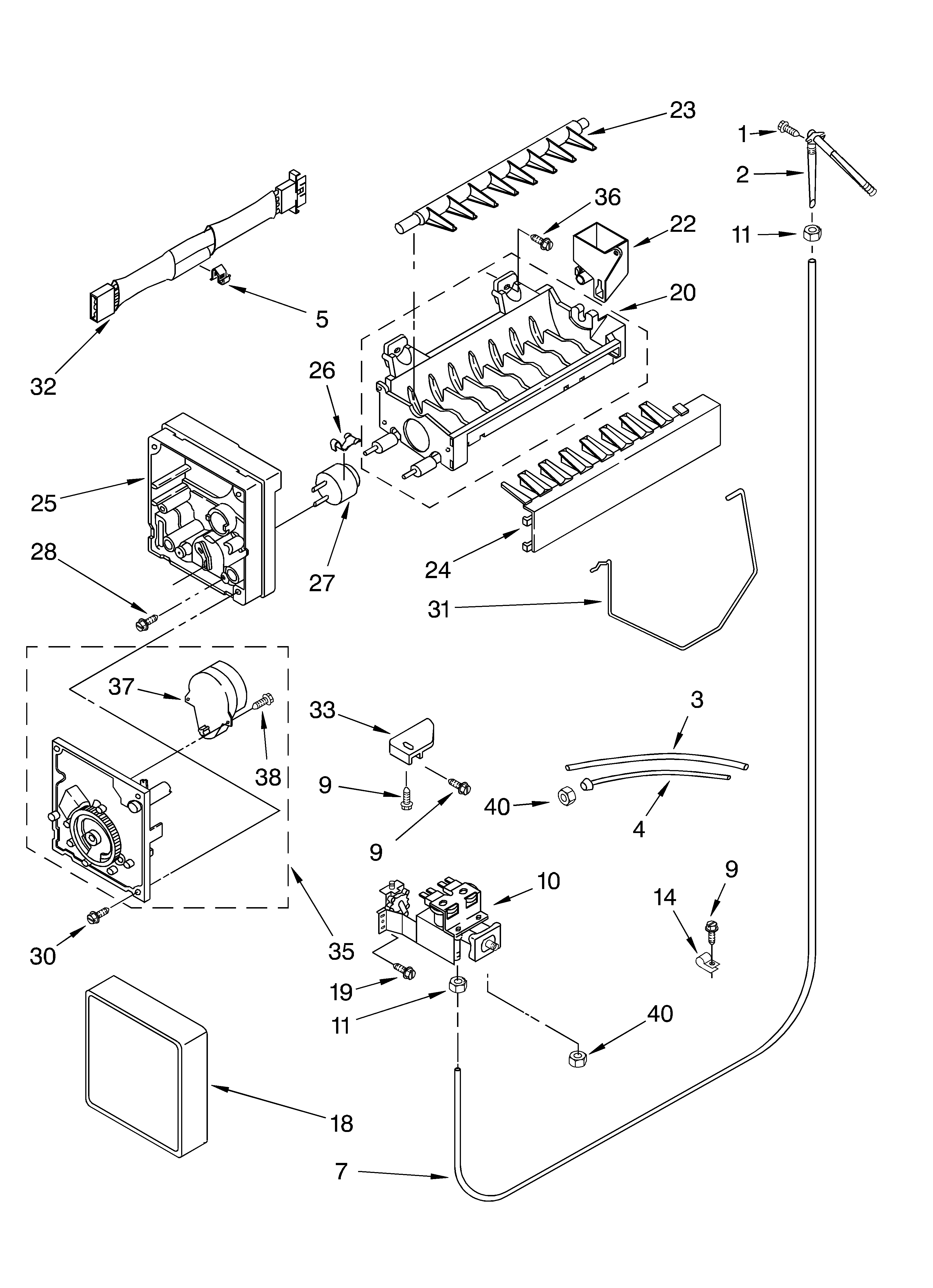

• Ice maker assembly 4317943 (no ice or intermittent ice production)

Last updated: February 2026

The most common Whirlpool refrigerator problem is poor cooling (fresh food too warm, freezer not holding temperature). On the Whirlpool ED5FHGXKT00 side-by-side, cooling complaints are most often tied to restricted airflow (dirty condenser coils or blocked vents), defrost system issues, or a weak fan or temperature control; ice maker and water leaks are also frequent.

Most common symptoms we see

• Refrigerator section warm but freezer seems OK
• Freezer warm and ice cream soft
• Frost buildup on the back wall of the freezer
• Ice maker not making ice or making small cubes
• Water under the crisper drawers or on the floor

Quick checks you can do first (no parts needed)

• Clean the condenser coils (dust buildup is a top cause of warm temps and long run times).
• Confirm vents are clear: do not pack food tightly against air returns in either compartment.
• Check door sealing: close a dollar bill in the gasket; it should resist being pulled out.
• Set temps correctly: aim for 37°F to 40°F in the refrigerator and 0°F in the freezer.
• Listen for fans: you should typically hear the evaporator fan when the compressor is running.

Common causes and the parts that often fix them

If your symptoms match, these are common repair paths for ED5FHGXKT00:

Symptom	Likely cause	Parts commonly involved (examples)
Warm temps, runs a lot	Dirty coils, weak condenser airflow	Condenser fan motor (if equipped)
Frosted freezer back panel	Defrost failure	Refrigerator defrost bi-metal WPW10225581, refrigerator heater WP2323198, defrost timer
No ice or slow ice	Water supply issue or ice maker failure	Refrigerator inlet valve W10408179, ice maker assembly 4317943
Water leaking inside	Clogged defrost drain, door not sealing	Door gasket inspection and drain clearing

Why it matters

Cooling problems usually get worse over time; the compressor runs longer, food safety can be affected, and ice production drops. Catching airflow and defrost issues early often prevents bigger repairs.

Helpful guides for this model type

• Use the installation guide for model-specific access steps and safety notes.
• If your unit shows a fault code, use Whirlpool refrigerator error codes.
• For water and ice reliability tips, see how to prevent water dispenser and ice maker problems.

Last updated: February 2026
