GE GDF530PGM4BB dishwasher Parts

Yes. On the GE GDF530PGM4BB dishwasher, a clogged drain path can trigger an FTD (drain-related) error because the unit cannot pump water out fast enough. The most common clogs are in the filter area, air gap (if installed), disposer connection, or drain hose. See the GDF530PGM4BB owner's manual for drain and filter cleaning steps.

• Cancel the cycle and let the dishwasher attempt to drain.
• Check for standing water in the tub after the drain step.

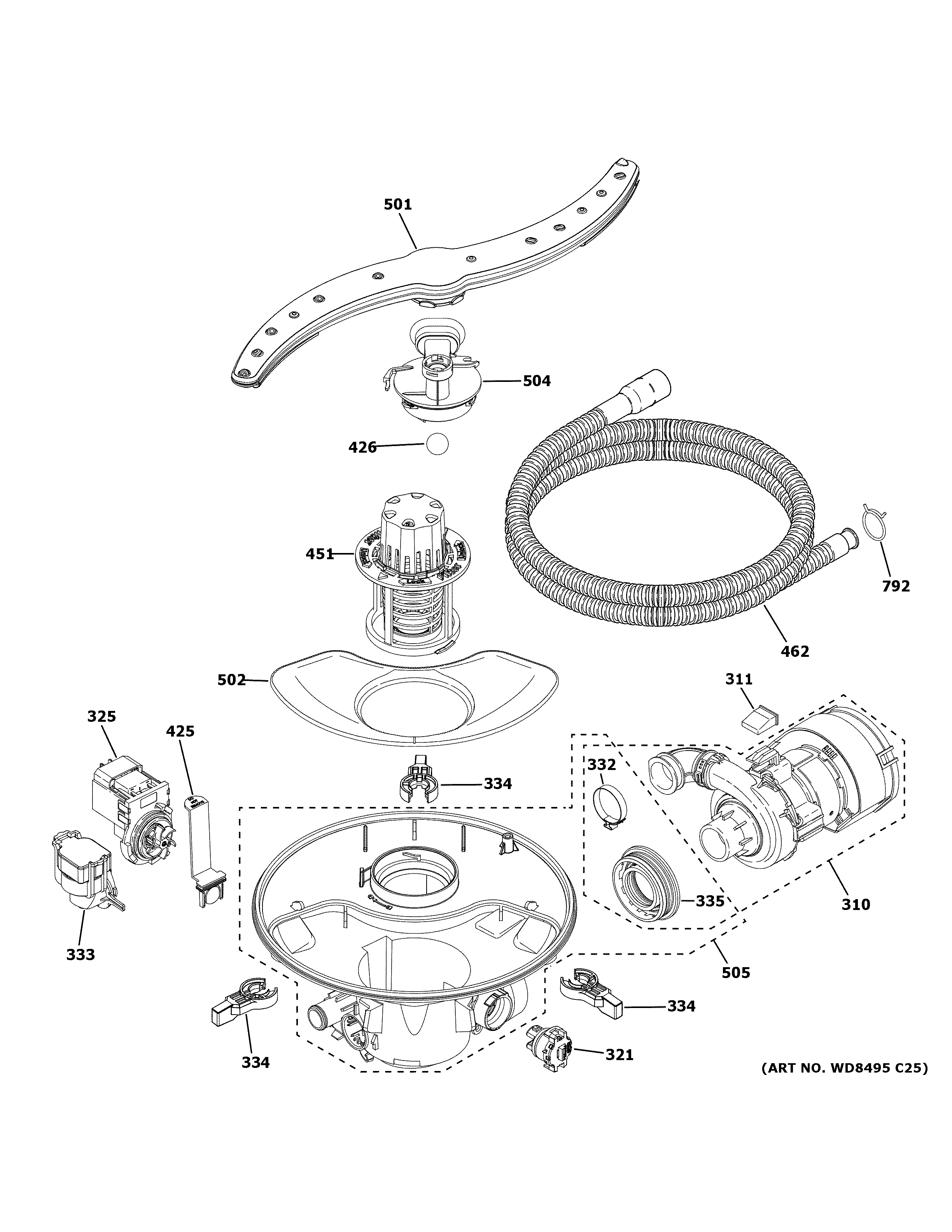

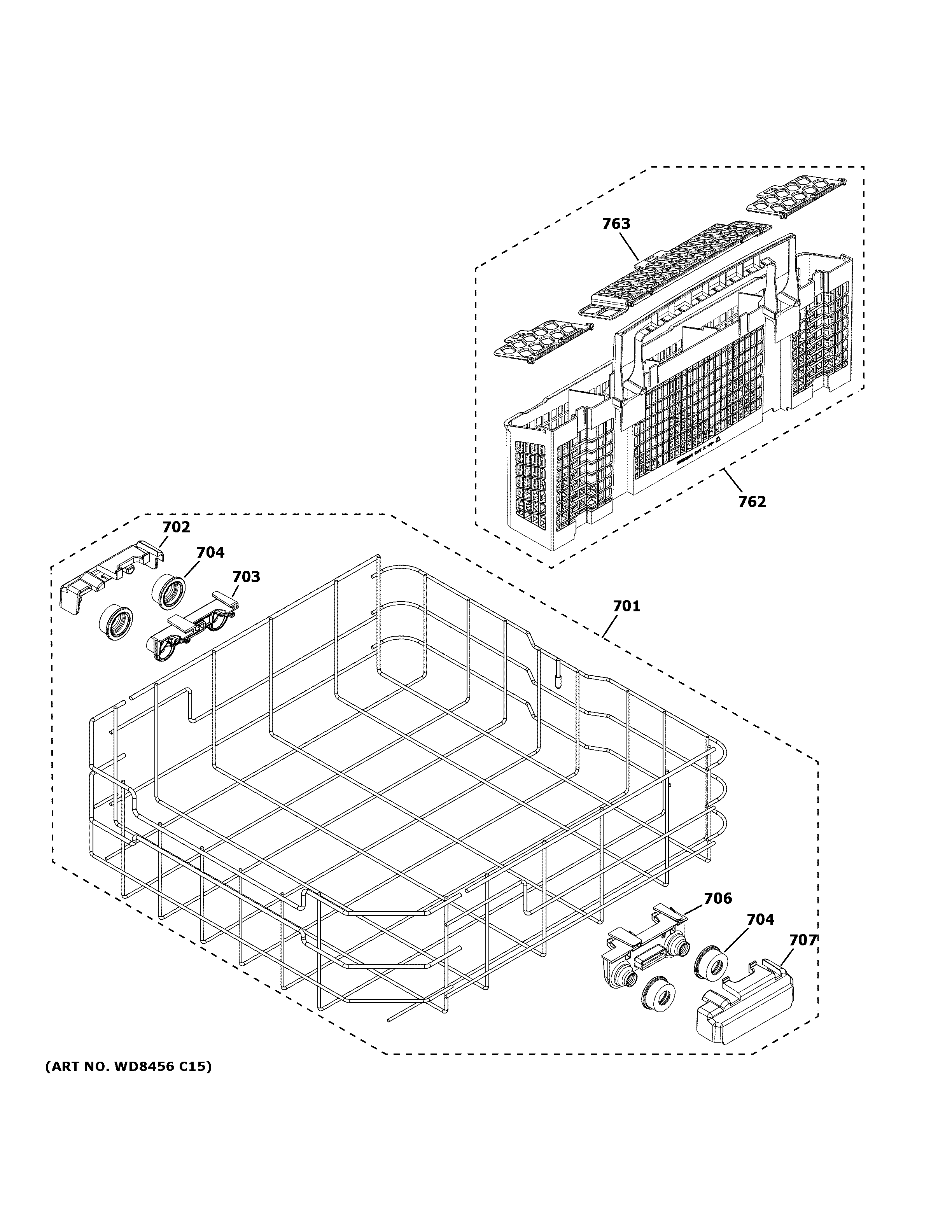

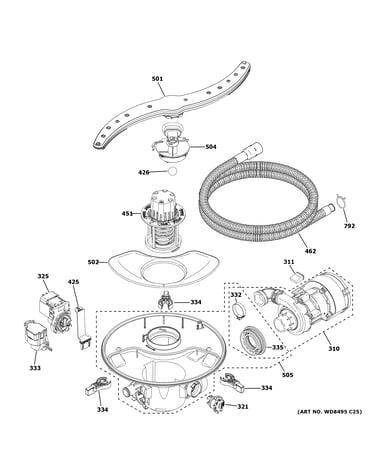

• Remove the bottom rack and clean the ultra-fine filter assembly.
• If you have an air gap, remove the cover and clean the cap and passage.
• If the drain connects to a garbage disposer, run the disposer to clear it.
• Confirm the kitchen sink drains normally (a slow sink often means a shared clog).

FTD is usually the dishwasher protecting itself. If water cannot drain, the next wash can recirculate dirty water, leave dishes wet, and strain the drain pump.

If the drain path is clear and the error returns, focus next on control diagnostics and drain-related fault codes using GE electronic dishwasher error codes.

Last updated: February 2026

On the GE GDF530PGM4BB dishwasher, most error conditions clear after you cancel the current cycle and reset the control; press and hold Start/Reset for 3 seconds to cancel, let the unit drain, then restart a new cycle. Use the GDF530PGM4BB owner’s manual for model-specific control behavior.

• Press and hold Start/Reset for 3 seconds.
• Close the door and wait while the dishwasher drains.
• Open the door and confirm the tub is empty of water.
• Press Start/Reset again and run a new cycle.
• If the code returns, check the drain path and door fit before running another cycle.

A drain-related error often comes back when water cannot leave the tub.

• Check the drain hose for kinks behind or under the dishwasher.
• If connected to a disposer, confirm the disposer inlet plug was removed.
• If you have an air gap, check it for a clog.
• Inspect for leaks around the door; cabinet interference can cause rubbing and leaks.

Use an error code list to match the displayed code to the likely failure area.

For code definitions and next steps, use GE electronic dishwasher error codes.

Clearing the code by canceling and draining resets the control and removes standing water; that prevents repeat faults caused by a blocked drain hose, a plugged air gap, or a door that is not sealing correctly.

Last updated: February 2026

On the GE GDF530PGM4BB dishwasher, a “wash arm fix” usually means clearing a clog, reseating the arm so it spins freely, or replacing a cracked/warped spray arm. Start by checking for obstructions and confirming the arm turns smoothly by hand; then follow the model’s removal and installation steps in the GDF530PGM4BB owner’s manual.

• Turn off power at the breaker before reaching into the tub.

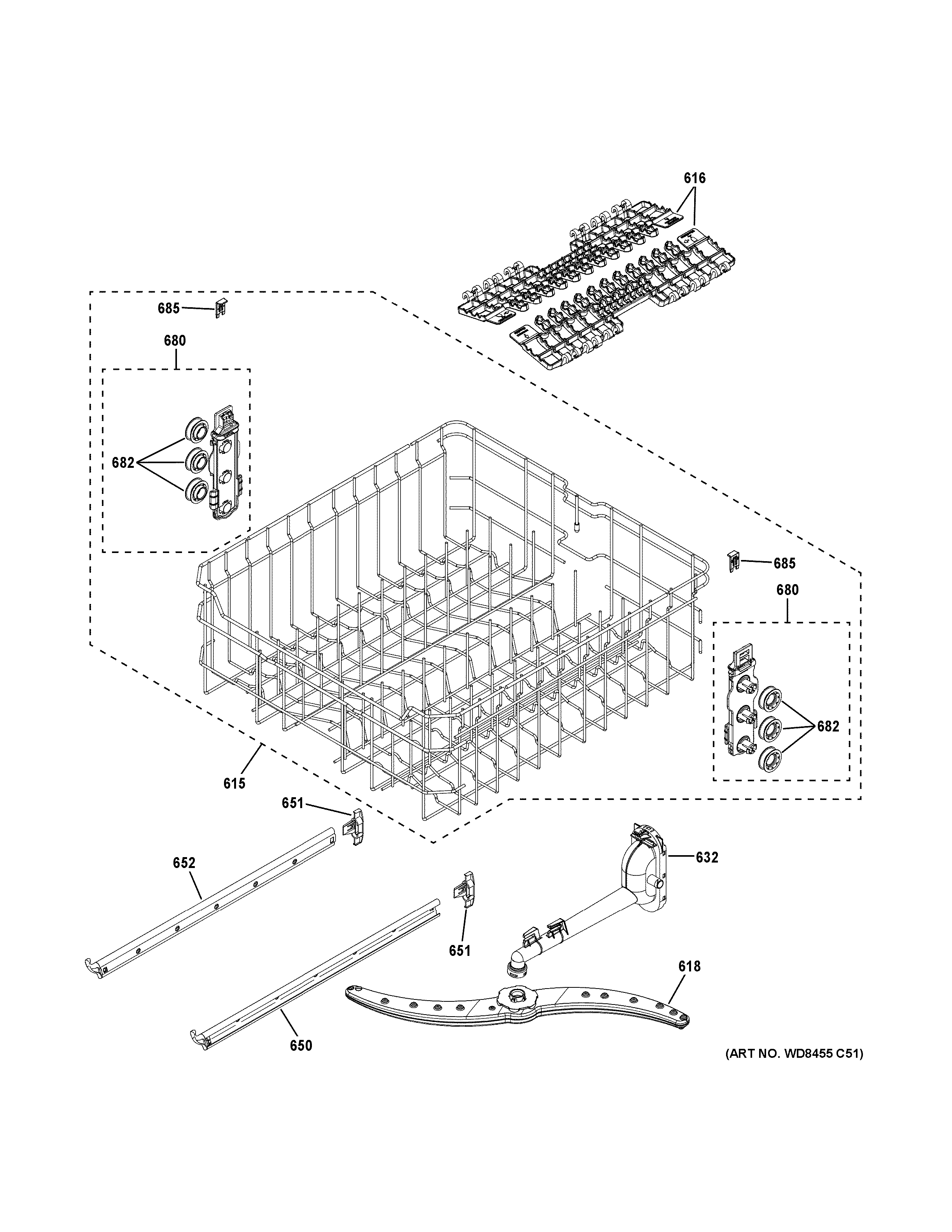

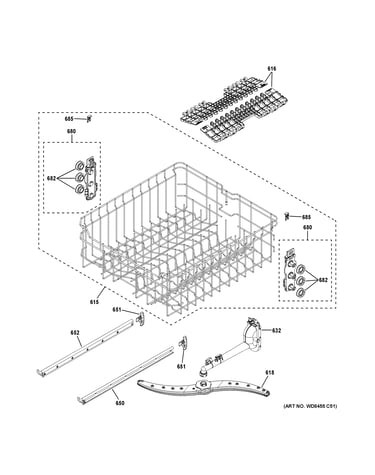

• Spin the spray arm(s) by hand; they should rotate without scraping the rack or hitting tall items.
• Look for clogged spray holes (seeds, labels, glass) and rinse them out under a faucet.
• Confirm the rack is fully on its tracks and not sitting crooked.
• Make sure large pans are not blocking the arm’s rotation or the detergent dispenser.

1. Clean the spray arm holes: Remove the arm (if your design allows tool-free removal), flush with warm water, and clear holes with a toothpick (do not enlarge holes).
2. Reseat and tighten correctly: Reinstall the arm so it sits flat on its hub or feed tube and locks in place. If your model uses a threaded fastener, start it by hand to avoid cross-threading.
3. Inspect for damage: Replace the arm if it is split, melted, badly warped, or the hub is stripped.

If the spray arm cannot rotate or spray evenly, water pressure never reaches key areas of the tub. That leads to stuck-on soil, detergent left in the dispenser, and longer cycles with worse results.

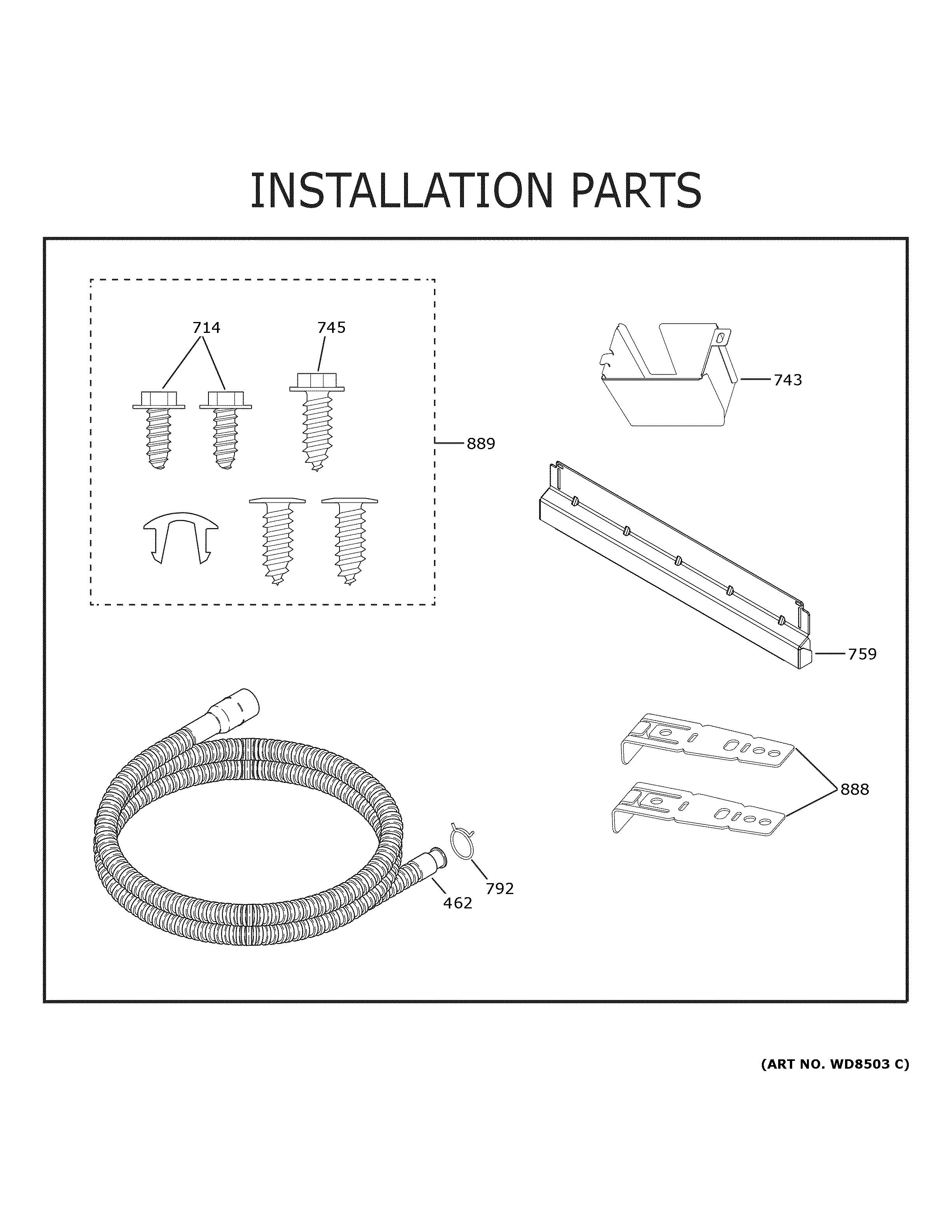

For installation-related alignment issues (leveling, mounting, hose routing that can affect performance), use the GDF530PGM4BB installation guide.

Last updated: February 2026

For your GE GDF530PGM4BB dishwasher, we recommend ordering parts using your complete model number and serial number so you get the correct match. You can order online any time through our parts listings, or contact Sears PartsDirect support for help with part lookup and availability.

• Online ordering: Use the parts list for model GDF530PGM4BB to choose the exact replacement.
• Have this ready: Model number GDF530PGM4BB and your dishwasher’s serial number.
• Match by symptom: Use your symptom (not draining, not cleaning, leaking) to narrow the likely part.
• Use diagrams: Confirm placement and compatibility before ordering.
• If you service it yourself: Shut off power at the breaker and water supply before any repair.

Having the right details up front prevents wrong-part returns and delays.

If your dishwasher is showing an error code, use the code to narrow the problem before buying parts. Start with the troubleshooting section in the GDF530PGM4BB owner's manual, then cross-check the code meaning in GE electronic dishwasher error codes.

Dishwashers often have multiple versions of similar parts (controls, pumps, valves, racks). Using the exact model number GDF530PGM4BB and serial number helps ensure the replacement part matches your specific GE dishwasher configuration.

Last updated: March 2026

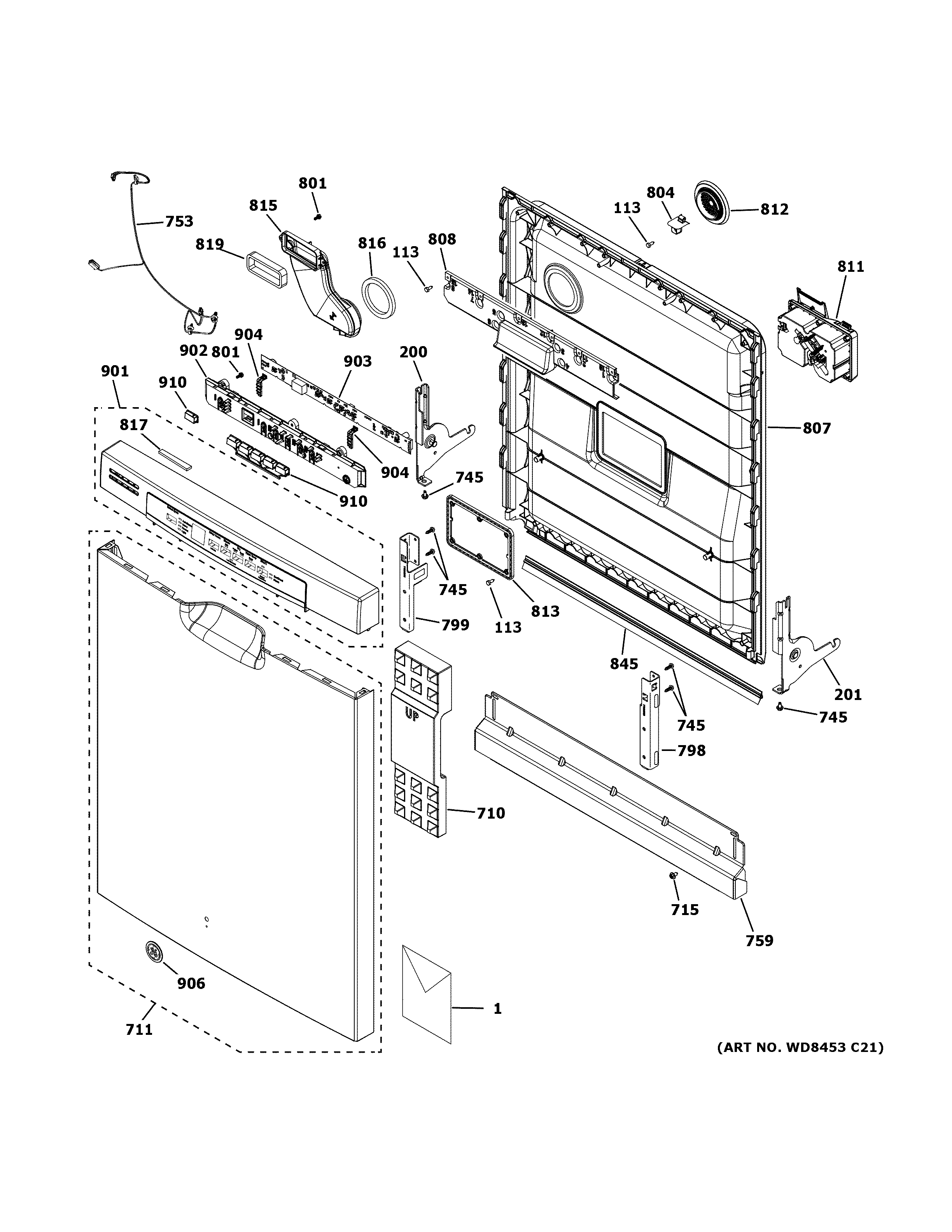

To remove the control panel on a GE dishwasher like model GDF530PGM4BB, we shut off power first, then remove the screws along the inner door liner to separate the inner panel from the outer door enough to access the console. Follow the screw locations and console handling notes in the GDF530PGM4BB installation guide.

• Turn off the dishwasher circuit breaker (many units are hardwired)
• Use a towel to protect the door finish and catch screws
• Use the correct driver (commonly Phillips; some GE models use Torx)
• Keep screws grouped by where they came from
• Support the door while you work so it does not flex

1. Disconnect power at the breaker.
2. Open the door and look around the perimeter of the inner door liner for the mounting screws.
3. Remove the inner door liner screws that secure the liner to the outer door.
4. Separate the inner liner from the outer door just enough to reach the control area at the top edge.
5. Release the console/control assembly by gently disengaging the retaining clips or tabs (use a small flat screwdriver or pick with light pressure).
6. Lift the control panel/console away and disconnect wire connectors only after labeling or photographing their positions.

GE’s installation guidance stresses preventing door panel and control panel damage; keeping the dishwasher centered and avoiding cabinet or countertop contact helps prevent scratches and binding after reassembly. Use the GDF530PGM4BB owner’s manual for model-specific care notes and control panel handling.

Last updated: February 2026

Yes, repairing a GE dishwasher like model GDF530PGM4BB is worth it when the unit is under 10 years old, the problem is isolated (drain, fill, heat, or latch), and the total repair cost stays under about half the price of a comparable new dishwasher.

• Repair if it’s a first-time failure and the tub, racks, and door seal are in good shape.
• Repair if the issue is a common service item (clogged filters, drain restriction, door latch, inlet valve, circulation/drain pump).
• Replace if you’ve had multiple major repairs in the last 12 to 24 months.
• Replace if there’s persistent leaking from the tub area or recurring electrical/control problems.
• Repair if you can confirm the dishwasher can be removed for service (GE notes it must be installed to allow future removal). See the GDF530PGM4BB installation guide.

A dishwasher is only a good investment if it stays reliable. If you are already seeing reduced wash performance, gritty dishes, or odor, start with maintenance first because GE recommends inspecting and cleaning the filters periodically (often every other month, depending on use). Details are in the GDF530PGM4BB owner’s manual.

• Won’t start or won’t run: check for a tripped breaker, wall switch power, and control lock; then use dishwasher wont start video.
• Not draining: clear the filter area and drain path; use dishwasher not draining video.
• Not cleaning well: clean filters and spray paths; use dishwasher not cleaning dishes video.
• Error codes showing: use GE electronic dishwasher error codes to narrow the failure to a specific system.

Last updated: February 2026

The most common problems we see on GE dishwashers like model GDF530PGM4BB are: the dishwasher will not start, it will not drain, it does not clean well, it leaks, or it has control beeps and cycle interruptions. Many of these start with simple checks in the GDF530PGM4BB owner’s manual.

• Won’t start or won’t run: tripped breaker, wall switch off (often near the disposer switch), door not fully latched, control lock enabled
• Not draining: clogged filter area, blocked drain hose, disposer knockout not removed (new installs), drain pump issue
• Not cleaning: spray arms blocked, filter/soil trap dirty, wrong detergent type, dishes loaded in a way that blocks wash action
• Leaking: door gasket issues, loose hose connections, over-sudsing from wrong detergent, installation leveling problems
• Suds or foam in the tub: using hand dish soap or low quality detergent, rinse aid spill

1. Confirm power: reset the breaker and verify any wall switch feeding the dishwasher is ON.
2. Make sure the door closes firmly and the latch engages.
3. Use only automatic dishwasher detergent (never hand dish soap) and wipe up any rinse aid spills.
4. Check loading: do not block the detergent dispenser with tall items.
5. If the unit beeps or stops mid-cycle, look up the displayed code using GE electronic dishwasher error codes.

Catching the simple causes first (power, loading, detergent, and basic drainage) prevents repeat failures like over-sudsing, poor wash performance, and unnecessary part replacement. Installation details also matter because improper setup can lead to leaks and service access issues.

Last updated: February 2026

Most GE dishwashers, including the GE GDF530PGM4BB, typically last 10 to 12 years. With consistent care (cleaning, correct detergent use, and addressing drain or fill issues early), it’s common to see service life stretch closer to the upper end of the normal range.

Dishwasher life depends most on how often it runs, water quality, and maintenance.

• Typical average: 10 to 12 years
• Common overall range: 8 to 15 years
• Heavy daily use: tends to shorten lifespan
• Hard water and mineral buildup: increases wear on the pump, heater, and valves
• Good maintenance: reduces leaks, clogs, and wash performance problems

We recommend these habits for the GDF530PGM4BB:

• Clean the interior and door seals regularly; buildup can cause odors and leaks.
• Use the right amount of detergent for your water hardness; too much can cause etching and residue.
• Use a quality rinse aid to reduce mineral deposits and improve drying.
• Keep spray arms clear of debris so wash pressure stays strong.
• Address slow draining or standing water quickly to protect the drain pump.

For model-specific care steps and cleaning guidance, follow the GDF530PGM4BB owner’s manual.

These symptoms usually mean key components are wearing out:

• Repeated leaking from the door area or underneath
• Poor cleaning even after cleaning spray arms and using fresh detergent
• Frequent draining problems or loud grinding noises
• Control issues (won’t start, stops mid-cycle)

If you’re seeing error indicators, use the GE electronic dishwasher error codes guide to narrow down the likely failure.

Knowing the expected lifespan helps you decide whether to repair (common wear parts and clogs) or plan for replacement when major items like the circulation pump, heater, or control board start failing.

Last updated: February 2026
