Model #FWX233RES3 Frigidaire washer - p5995311791

Here are the diagrams and repair parts for Frigidaire FWX233RES3 washer - p5995311791, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 132 parts

    Washer Belt#28

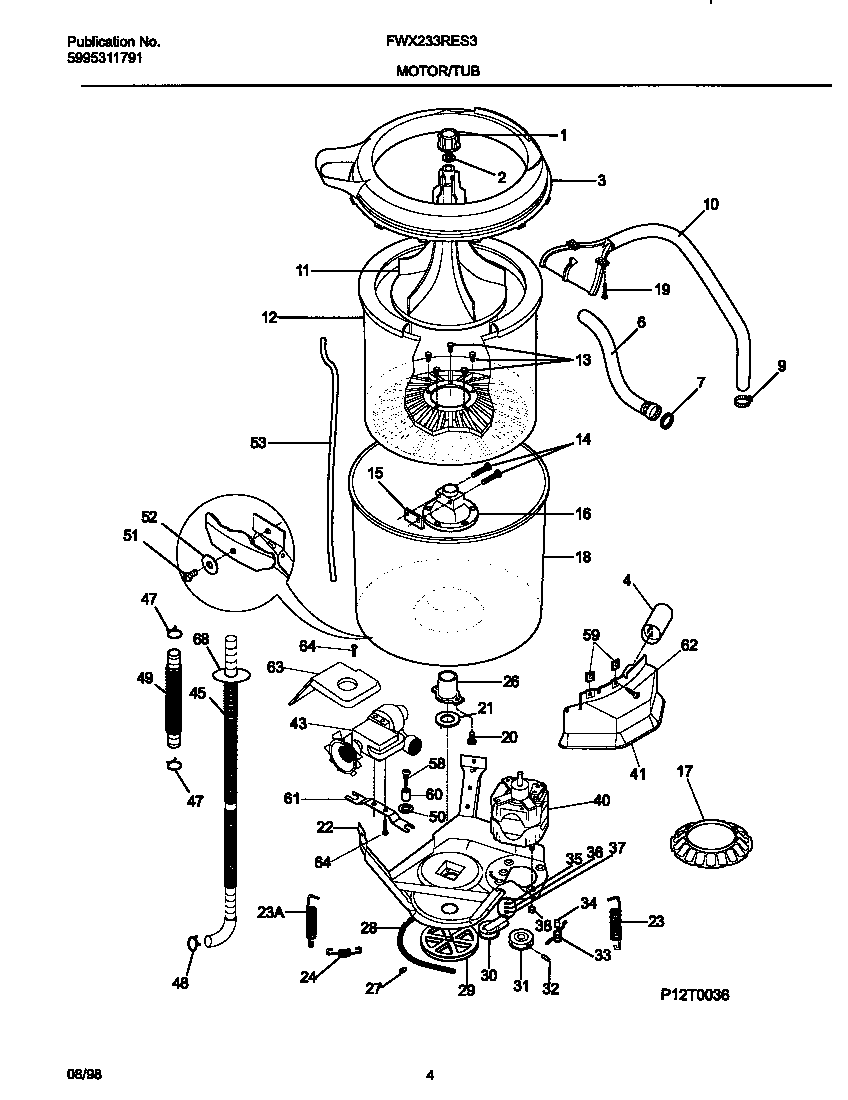

    Wshr mtr,hose Diagram

    Washer belt

    Part #131686100

    The manufacturer no longer makes this part, and there's no substitute part

    Washer Water Inlet Valve#33

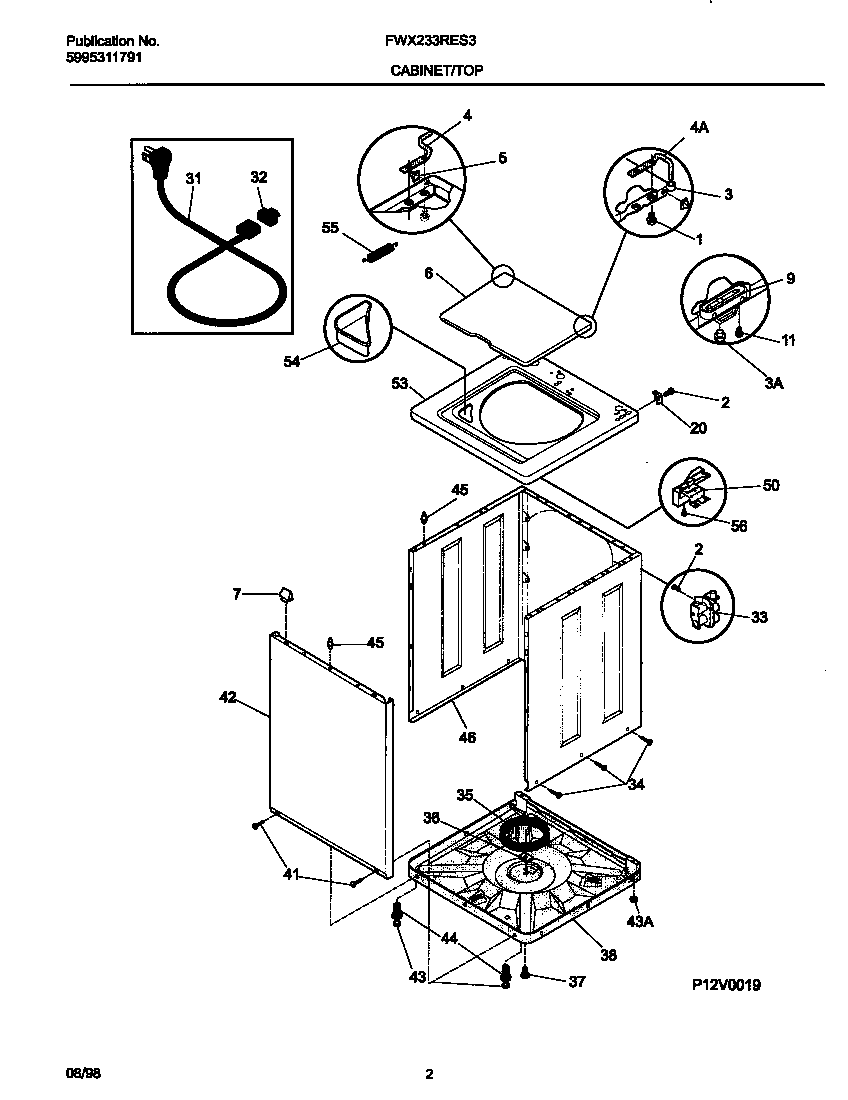

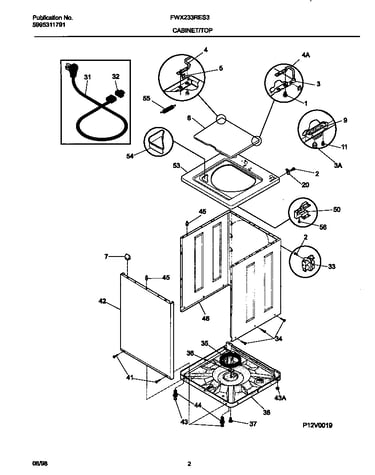

    Wshr cab,top Diagram

    Water valve

    Part #131389300
    Replaced by #134190200
    ?
    Manufacturer substitution
    This part replaces 131389300. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $37.59
    Laundry Appliance Screw, #8-18 x 31/100-in

    See All Related Diagrams

    In Stock
    $13.09
    Laundry Center Control Knob#4

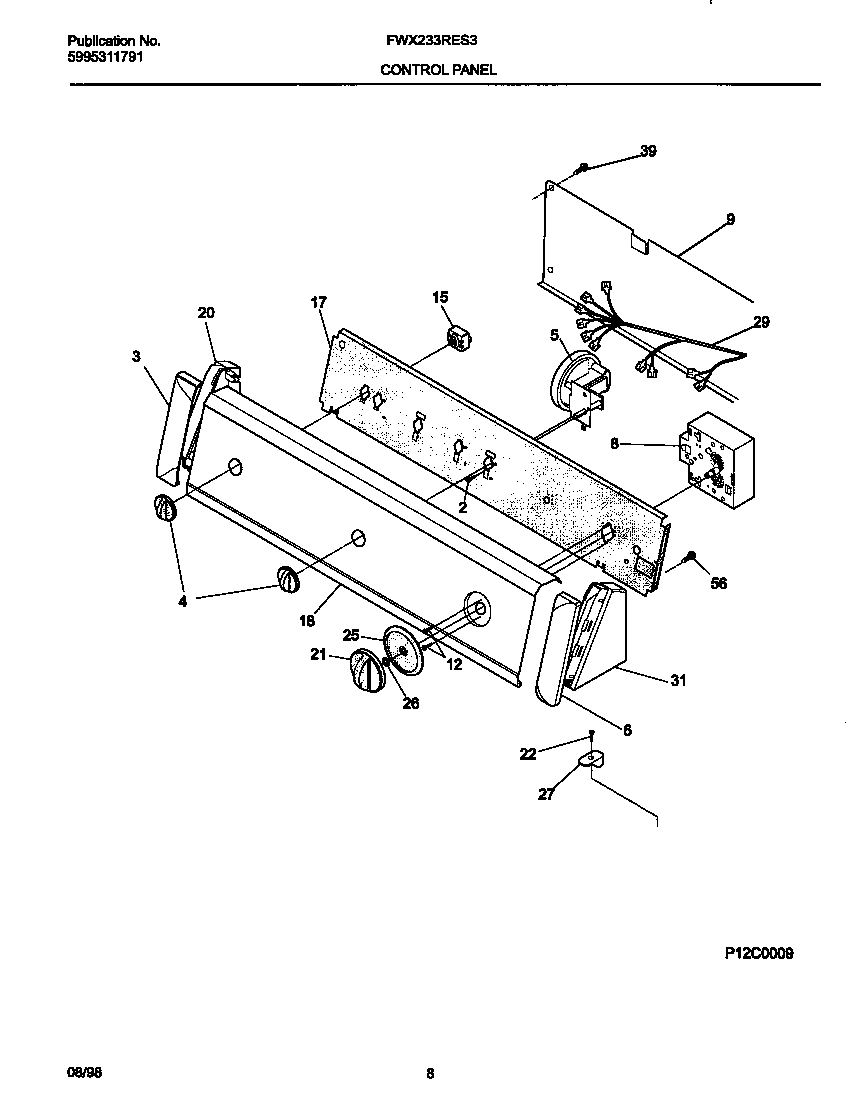

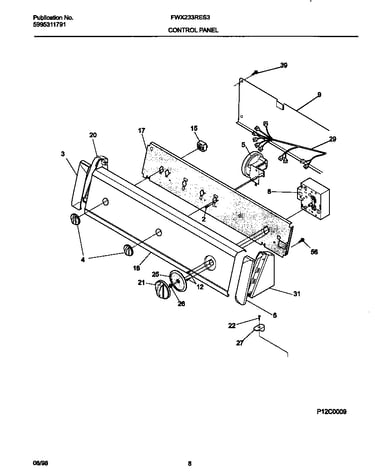

    Control panel Diagram

    Rotary knob

    Part #131141101
    Replaced by #131858004
    ?
    Manufacturer substitution
    This part replaces 131141101. Substitute parts can look different from the original.
    In Stock
    $45.73
    Laundry Center Clamp#9

    Wshr mtr,hose Diagram

    Laundry center clamp

    Part #5303304824
    Replaced by #5304488479
    ?
    Manufacturer substitution
    This part replaces 5303304824. Substitute parts can look different from the original.
    In Stock
    $19.57
    Washer Leveling Leg#44

    Wshr cab,top Diagram

    Washer leveling leg

    Part #5303309673
    Replaced by #134548800
    ?
    Manufacturer substitution
    This part replaces 5303309673. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.97
    Laundry Center Washer Agitator Cap#1

    Wshr mtr,hose Diagram

    In Stock
    $48.42
    Laundry Center Washer Lid Strike#9

    Wshr cab,top Diagram

    In Stock
    $39.82 |
    7% OFF
    MSRP: $43.00
    Laundry Center Washer Timer#8

    Control panel Diagram

    In Stock
    $249.00
    Washer Water-Level Pressure Switch Hose#53

    Wshr mtr,hose Diagram

    Tube

    Part #5300771996
    Replaced by #5304401845
    ?
    Manufacturer substitution
    This part replaces 5300771996. Substitute parts can look different from the original.
    In Stock
    $37.18

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
