Kenmore 79578304802 refrigerator Parts

On Kenmore refrigerator model 79578304802, you lower the front by turning the front leveling screws counterclockwise. The screws do not come out; they simply raise or lower the front so the refrigerator sits level and the doors close properly. See the 79578304802 owner's manual.

How to lower the front (leveling screw steps)

• Plug the refrigerator into a grounded outlet and slide it into its final position.
• Locate the two front leveling screws (one left, one right) near the front base.
• Turn the leveling screw counterclockwise to lower that side.
• Turn the leveling screw clockwise to raise that side.
• Make small adjustments; it can take several turns to see a change.
• Have someone gently push back on the top of the refrigerator while you turn the screws; this takes weight off the screws and makes adjustment easier.
• Recheck door closing; if doors do not close easily, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise the same amount.

Quick direction guide

What you want to do	Which way to turn the leveling screw	Result
Lower the front on that side	Counterclockwise	Front drops
Raise the front on that side	Clockwise	Front lifts
Improve door closing	Clockwise on both screws (equal turns)	Slight rear tilt

What to check after adjusting

• Doors should close smoothly without needing a hard push.
• The refrigerator should feel steady (no rocking).
• The gap between the two fresh food doors should look even.
• If the door gap is uneven, follow the door alignment steps in the 79578304802 owner's manual (it uses snap rings at the middle hinge).

Why it matters

Proper leveling helps the door gaskets seal, prevents warm air leaks, and reduces frost and moisture problems in a bottom-mount refrigerator.

Last updated: January 2026

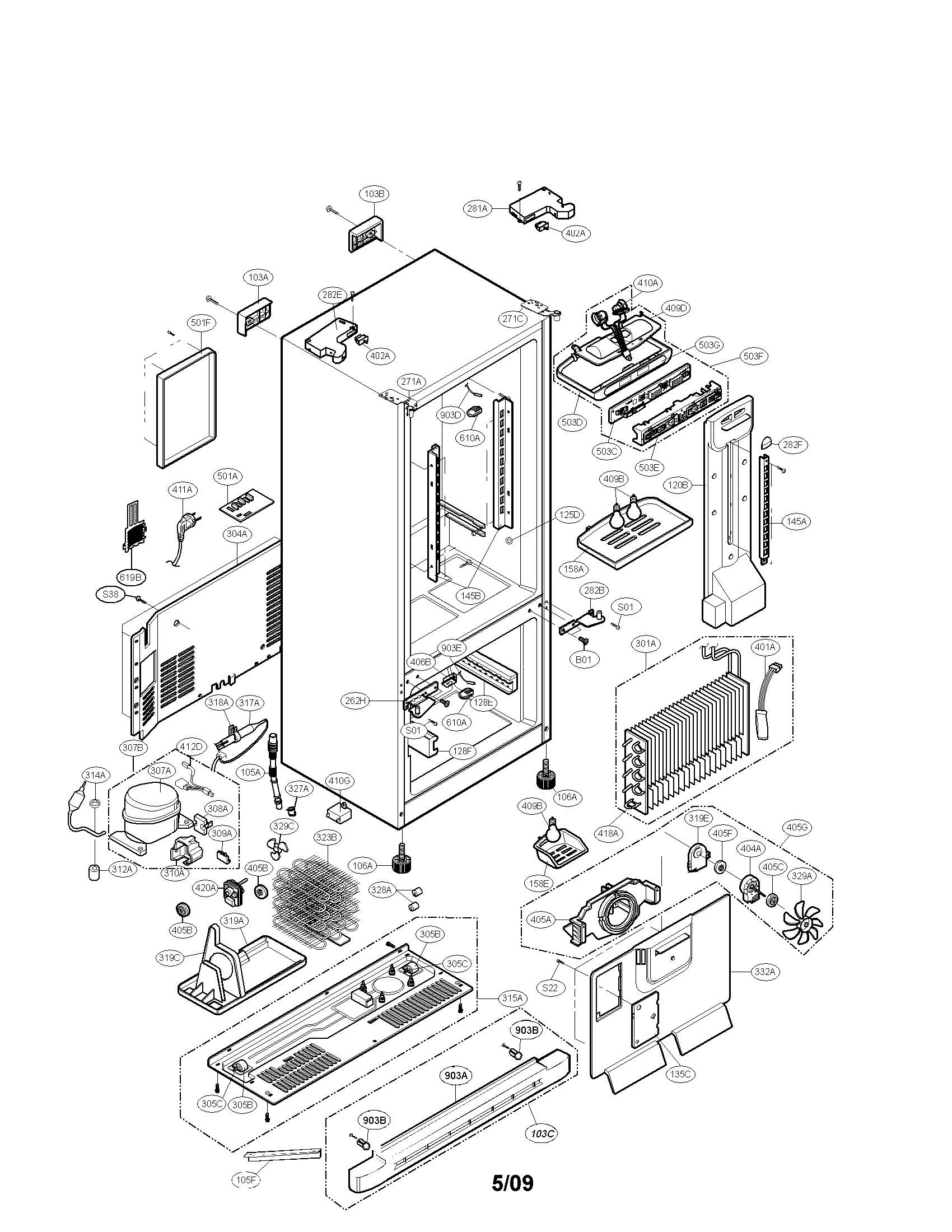

On Kenmore bottom-mount refrigerators like model 79578304802, the “bottom part” is most often the base grille (the front kick plate) and the machine compartment behind it, where major cooling components sit. The manual specifically calls out the base grille and how to remove it. See the 79578304802 owner's manual.

Common names you may hear

Depending on what you are pointing to, the bottom area can be called different things:

• Base grille: the removable front grille at the bottom
• Machine compartment: the space behind the base grille where cooling parts are located
• Compressor compartment: another common name for the machine compartment
• Drain pan area: the area underneath where defrost water can evaporate

What’s typically located in the bottom area

Most bottom-freezer refrigerators keep heat-producing and serviceable components low for airflow and access.

• Compressor (pumps refrigerant)
• Condenser coils (release heat)
• Condenser fan (moves air across coils)
• Drain pan (collects defrost water)
• Wiring and service connections

What you see	Common name	What it does
Front “kick plate” at the bottom	Base grille	Covers and protects the lower compartment while allowing airflow
Space behind the grille	Machine compartment	Houses cooling system components
Plastic/metal pan underneath	Drain pan	Collects and evaporates defrost water

How to identify what you mean (quick check)

Use these quick cues to match the name to the part:

• If it snaps on/off at the very bottom front, it’s the base grille.
• If you mean the space behind that grille, it’s the machine compartment.
• If you mean the panel you remove to service parts, it’s often an access cover (varies by design).

Why it matters

Using the right name helps you find the correct instructions and parts faster. For example, the manual includes specific safety guidance about working near the base grille and the bottom of the refrigerator.

Last updated: January 2026

For Kenmore model 79578304802 bottom-mount refrigerators, the most common issues we see are weak cooling, frost buildup, water leaks, and unusual noises. Many problems trace back to airflow restrictions, dirty condenser coils, door sealing issues, or a failing defrost or water system; start with the checks in the 79578304802 owner's manual.

Common symptoms and what usually causes them

• Not cooling well: dirty condenser coils, blocked air vents, or a temperature control setting issue
• Frost or ice buildup: door not sealing, frequent door openings, or a defrost system problem
• Water under the refrigerator: clogged/iced defrost drain or a water line/valve issue
• Ice tastes bad or smells: old ice, unwrapped food odors, or water quality issues
• Clicking, buzzing, or rattling: normal operating sounds, fan noise, or compressor/start components

Quick checks you can do first (no parts swapping)

1. Confirm temperatures and settings: adjust the refrigerator control first, then wait 24 hours before adjusting again.
2. Check door closing and sealing: make sure bins and food packages are not preventing a full close.
3. Clean condenser coils: dirty coils reduce heat transfer and can make the compressor run longer.
4. Look for airflow blockages: keep items from blocking vents inside the fresh food and freezer sections.
5. Inspect for water supply issues (if you have an icemaker/dispenser): verify the shutoff valve is open and the supply line is not kinked.

Parts that commonly relate to these problems

If your troubleshooting points to a specific failure, these model-matched parts are often involved:

Symptom	Common part involved	What it affects
Interior light stays off or fan behavior changes when door moves	Refrigerator door push-button switch 6600JB1010A	Door sensing for light and some control logic
No ice, no water, or weak fill	Refrigerator water valve AJU55759303	Water flow to icemaker/dispenser
Frost issues or temperature swings	Refrigerator defrost sensor assembly 6615JB2005C	Defrost temperature feedback
Door not sealing, moisture, frost near edges	Refrigerator gasket assembly ADX73350925	Air leak prevention

Error codes (when the display shows a code)

If your Kenmore Elite refrigerator is showing an error code, use the model-family guide to narrow it down quickly: Kenmore 795 model bottom freezer refrigerator error codes.

Why it matters

Cooling and frost problems usually get worse over time. A small air leak (gasket or door alignment) or dirty condenser coils can lead to longer run times, warmer food temperatures, and heavier frost that restricts airflow.

Last updated: January 2026
