Most KitchenAid dishwashers, including model KUDC10FXWH5, typically last 10 to 14 years. Consistent cleaning, correct installation, and avoiding chronic drain or heating problems are the biggest factors that help a dishwasher reach the high end of that range.

What affects dishwasher lifespan the most

A dishwasher usually fails early because of heat, water, and drainage issues that stress the motor, seals, and controls.

• Water quality: hard water speeds up mineral buildup on the heater and inside the sump
• Drain performance: slow draining leaves dirty water and can overwork the drain pump
• Drying heat: heavy buildup or poor airflow can strain the heating circuit
• Loading habits: overloading blocks spray arms and forces longer, hotter cycles
• Installation quality: leveling and centering prevent door rubbing and leaks (see KUDC10FXWH5 installation guide)

Maintenance that helps you get 10 to 14 years

These are the highest-impact habits for an undercounter dishwasher like KUDC10FXWH5.

• Clean the filter area and sump regularly (remove debris, labels, glass)
• Use rinse aid to improve drying and reduce hard-water deposits
• Run hot water at the sink before starting a cycle when water is slow to heat
• Check the spray arm holes for clogs and clear them as needed
• Keep the door sealing surfaces clean and inspect for tears or gaps

Quick maintenance schedule

Task	How often	Why it matters
Clean filter/sump area	Monthly	Prevents poor wash and drain strain
Check spray arms for clogs	Monthly	Maintains water pressure and coverage
Use rinse aid	Every fill	Improves drying and reduces deposits
Inspect door seals	Every 3 to 6 months	Helps prevent leaks and cabinet damage

When a “worn out” dishwasher is really a fixable part

If the dishwasher is otherwise in good shape, these common repairs often restore performance and extend life.

• Not draining well: check the dishwasher drain pump WPW10348269 and drain hose routing
• Poor drying or cool water: inspect the heating circuit and consider the dishwasher heater W10703867
• Weak wash action or noisy wash motor: the circulation system may need service

Why it matters

Knowing the typical 10 to 14 year lifespan helps you decide whether to repair or replace. If your KUDC10FXWH5 is within that window, fixing a drain, heating, or rack issue is often the most cost-effective way to keep reliable cleaning performance.

Last updated: January 2026

For the KitchenAid KUDC10FXWH5 undercounter dishwasher, the most common problems we see are poor cleaning (often from restricted water flow through spray arms or the wash system) and drain issues (water left in the tub). Many “won’t start” complaints also trace back to basic checks like power, water supply, and the door latch.

Quick symptoms and the most likely causes

• Dishes still dirty: clogged spray arm holes, blocked filter area, low water temperature, weak wash circulation
• Water won’t drain: drain hose kink or blockage, drain pump problem, sink/disposer connection blocked
• Won’t start: tripped breaker, door not fully latched, cycle not set to start, water supply turned off
• Leaks: door seal wear, loose hose connections, tub gasket issues
• Unusual noise: debris in pump/sump area, worn pump motor, spray arm striking dishes

What to check first (fast, no parts)

We recommend starting with the same basics called out in the installation and operation checks:

• Confirm the circuit breaker is on and the dishwasher has power.
• Make sure the door closes tightly and latches.
• Verify the cycle is selected correctly and the unit is actually started.
• Confirm the water supply is turned on.
• Run a short cycle and after about 2 minutes, open the door and confirm there is water in the bottom of the tub (this helps separate “no fill” from “no wash”).

For model-specific operating and checks, use the KUDC10FXWH5 installation guide.

Common parts involved on this model

If the basic checks point to a drain or wash-system failure, these are frequent repair parts for KUDC10FXWH5:

Symptom	Part to suspect	Example part for this model

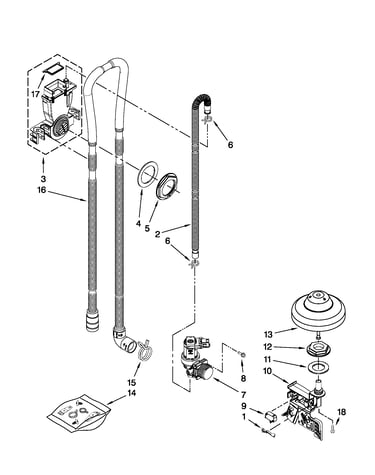

Standing water after cycle	Drain pump or drain hose restriction	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A

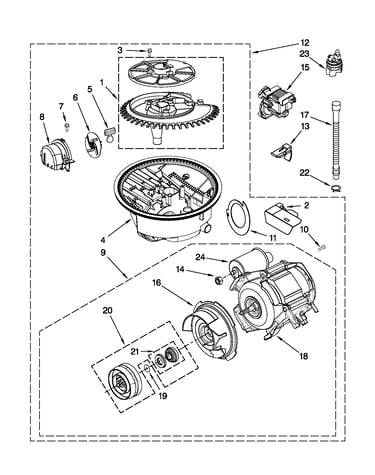

Poor wash pressure, noisy wash	Sump and motor assembly	Dishwasher sump and motor assembly WPW10780877
Not heating, poor drying	Heater	Dishwasher heater W10703867
Leaking at bottom of door	Lower door seal	Seal WPW10497235

Why it matters

Most “KitchenAid dishwasher problems” are really water movement problems: the dishwasher must fill, circulate, heat, and drain correctly. A quick fill check plus a drain check usually narrows the issue to the inlet valve, wash system (sump/motor), or drain path.

Last updated: January 2026

On the KitchenAid KUDC10FXWH5 dishwasher, an “E1” display is most often a generic fault indicator from the control, not a single universal code with one fixed meaning. We treat it as a symptom: confirm the exact code format in the KUDC10FXWH5 owner’s manual, then troubleshoot the most common causes (fill, drain, or heating).

What to check first (fast, no parts)

• Reset power: turn the breaker off for 5 minutes, then restore power.
• Cancel the cycle and restart a normal wash.
• Verify the door closes and latches fully.
• Check for standing water in the tub after canceling (drain issue clue).
• Confirm the water shutoff valve under the sink is fully open.

Most common causes behind an “E1” style fault

These are the failures we see most often on KitchenAid undercounter dishwashers when the control reports a generic error:

• Not filling correctly (restricted supply or inlet valve problem)
• Not draining (blocked hose, drain pump issue, or disposer inlet plug not removed)
• Heating problem (heater circuit, wiring, or control)

Quick symptom guide

What you notice	Most likely system	Part that commonly applies on KUDC10FXWH5
Tub stays mostly dry, weak wash	Fill	Dishwasher water inlet valve WPW10327249
Water remains in bottom after cancel/drain	Drain	Dishwasher drain pump WPW10348269
Cycle stops and dishes are cold/wet	Heating	Dishwasher heater W10703867

Why it matters

When the dishwasher cannot fill, drain, or heat correctly, the control stops the cycle to prevent poor cleaning and to protect components like the pump and heater from running under the wrong conditions.

Where to confirm the exact code for your model

Use the diagnostic and troubleshooting steps in the KUDC10FXWH5 owner’s manual. If you recently installed the dishwasher or changed plumbing, also review the KUDC10FXWH5 installation guide for water supply and drain setup checks.
