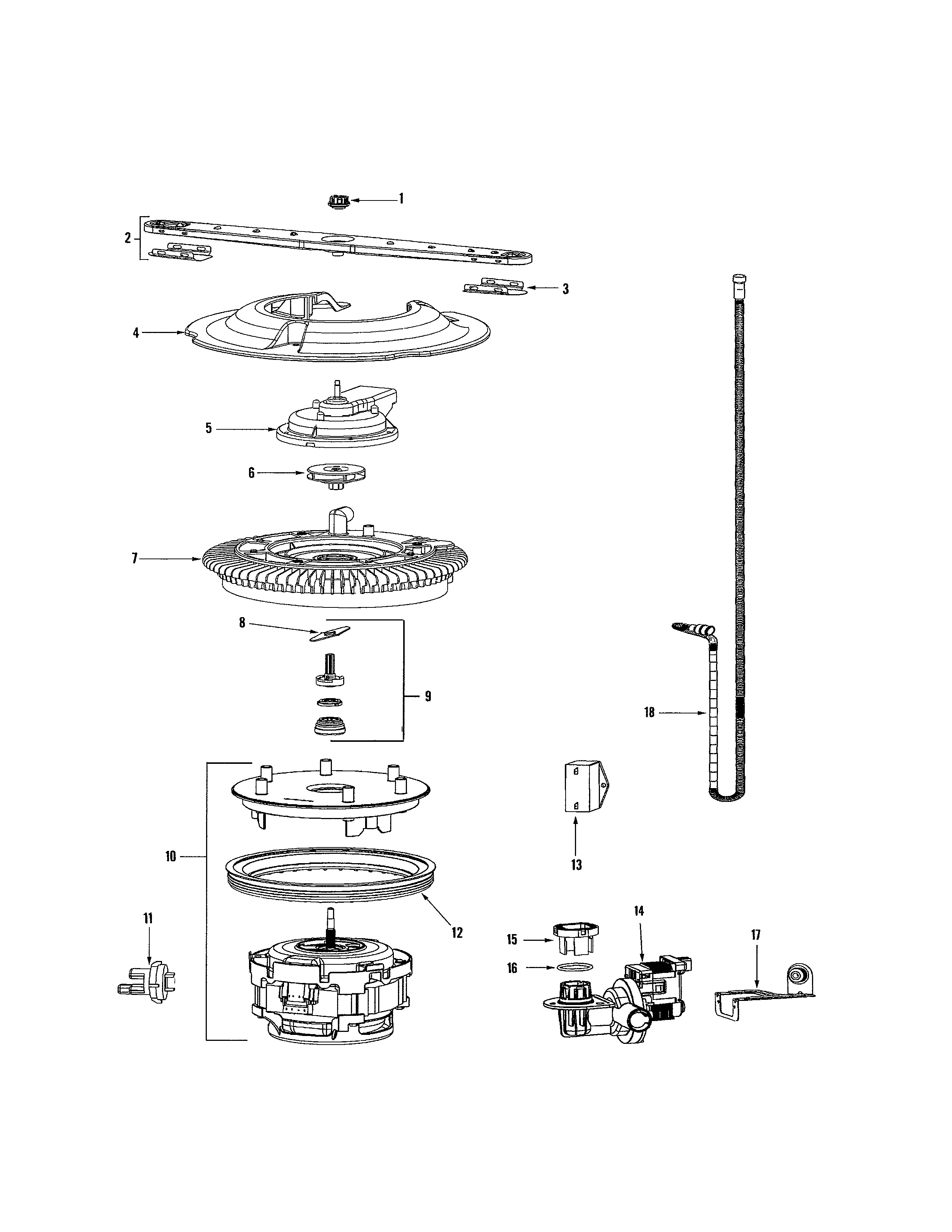

On the Maytag MDBH965AWB dishwasher, the filter is located at the bottom of the tub, under the lower rack, around the sump area. You typically remove the lower rack, then unlock the upper filter assembly with a short counterclockwise turn and lift out the lower filter.

How to access and remove the filter

• Turn off the dishwasher and let it cool if it just ran (the heater area can be hot).
• Pull out the lower rack to expose the bottom of the tub.
• Locate the filter assembly near the center bottom (around the circular sump opening).
• Rotate the upper filter assembly about a quarter turn counterclockwise to unlock.
• Lift out the upper filter, then lift the lower filter straight up and out.

Cleaning tips (what works best)

• Rinse the filter under warm running water.
• Use a soft brush (old toothbrush) to remove grease and debris from the mesh.
• Avoid harsh abrasives that can damage the filter screen.
• Reinstall the filter fully seated, then turn clockwise to lock.

Quick reference

Task	What you do	What to watch for
Find the filter	Remove lower rack; look at tub bottom center	Debris can hide the mesh
Remove filter	Quarter turn counterclockwise; lift out	Do not force if it feels cross-locked
Reinstall	Seat flat; turn clockwise to lock	A loose filter can reduce cleaning and cause noise

Why it matters

A clean filter helps maintain strong wash pressure, reduces food redeposit on dishes, and supports better drying performance. If the filter is clogged, you can see poor cleaning, gritty residue, or longer cycle performance issues.

For diagrams and model-specific care steps, follow the filter cleaning instructions in the MDBH965AWB owner’s manual.

Last updated: January 2026

On the Maytag MDBH965AWB dishwasher, the most common problems customers report are poor cleaning, not draining, and leaks. In many cases, the cause is basic: blocked wash arms from loading issues, water that is not hot enough (120°F), or suds from using the wrong detergent. See the MDBH965AWB owner's manual for model-specific troubleshooting steps.

Most common issues and what usually causes them

• Not cleaning well: spray arms blocked by dishes, heavy soil left on items, or poor loading
• Cycle takes too long: options that extend the cycle to heat water; incoming water below 120°F (49°C)
• Odor: standing water from a drain issue, or dishes sitting too long between runs
• Leaks/overflow: unit not level, rinse aid cap not secured, or excess suds from incorrect detergent
• Not draining: drain path restriction (filter area, hose routing, or disposal connection)

Quick checks we recommend first (MDBH965AWB)

• Confirm hot water supply is at 120°F (49°C) at the sink before starting a cycle.
• Load so items do not block the wash arms; avoid overcrowding.
• Use only dishwasher detergent; hand soap causes suds and can lead to overflow.
• If you see rinse aid around the dispenser, make sure the cap is fully seated; consider replacing the dishwasher rinse-aid dispenser cap WP99002614 if it will not seal.
• If the door will not latch consistently, inspect the latch area and consider the dishwasher door latch WPW10275768 if the latch is worn.

Symptom-to-likely-cause guide

Symptom	Most likely cause	Best first action
Dishes still dirty	Loading blocks spray, heavy soil left on dishes	Reload, scrape/wipe starchy soils, verify spray clearance
Long cycle times	Water not hot enough; heated options selected	Verify 120°F supply; try a normal cycle
Musty odor	Drain issue or dishes sitting	Run a rinse cycle; clean and maintain
Water on floor	Not level; suds; rinse aid cap leak	Level unit; correct detergent; reseat/replace cap

Why it matters

Most “common” Maytag dishwasher problems are performance issues caused by water temperature, loading, and detergent choice. Fixing those basics first prevents unnecessary part replacement and helps the MDBH965AWB wash, drain, and dry as designed.

Related help: Maytag microclean he dishwasher error codes

Last updated: January 2026

A Maytag dishwasher like model MDBH965AWB typically lasts 10 to 12 years. With consistent care (cleaning, correct loading, and fixing small issues early), it’s common to reach the upper end of that range and sometimes longer; use the MDBH965AWB owner’s manual for model-specific care and cleaning steps.

What affects dishwasher lifespan most

• Filter and sump cleanliness: keeping food debris out of the wash system reduces strain on the pump.
• Water quality: hard water can leave mineral buildup on spray arms and heating surfaces.
• Loading habits: overloading blocks spray and forces longer, hotter cycles.
• Heat and drying performance: weak heating can leave moisture behind and increase cycle time.
• Door sealing and latching: a door that doesn’t close firmly can cause leaks or no-start issues.

Maintenance checklist (simple, high impact)

• Clean the filter area regularly and remove visible debris.
• Rinse and clear spray arm holes if you see poor wash coverage.
• Run a dishwasher cleaner periodically to reduce odor and buildup.
• Use rinse aid to improve drying and reduce spotting.
• Address door-closing problems early; a worn latch can prevent proper operation.

Common “wear items” and what they do

Part	What it impacts	Typical symptom when failing
Heater element W10283681	Water heating and drying	Poor drying, cooler wash, longer cycles
Dishwasher door latch WPW10275768	Door closure and safety interlock	Won’t start, stops mid-cycle, door won’t stay shut
Dishwasher water inlet valve W11082871	Filling	Slow fill, not filling, weak wash

Why it matters

Knowing the typical lifespan helps you decide when maintenance and targeted repairs make sense. On an older dishwasher, restoring heating, filling, or door-latch reliability often brings performance back without replacing the entire unit.

Last updated: January 2026

On the Maytag MDBH965AWB dishwasher, the Control Lock is turned off by pressing and holding Heated Dry for 3 seconds until the lock indicator light goes out. This unlocks the touchpads so you can select a cycle and press START/Cancel to run the dishwasher (the door still opens normally).

How to turn Control Lock on or off (MDBH965AWB)

Use these steps from the MDBH965AWB owner's manual:

• Press and hold Heated Dry for 3 seconds to lock the controls.
• Press and hold Heated Dry for 3 seconds again to unlock the controls.
• Watch the lock indicator light; on means locked, off means unlocked.
• If you press other pads while locked, the lock light can flash (some versions also show an “L” on the display).

If the dishwasher still will not start after unlocking

Control Lock only disables the control touchpads; it does not fix power, door-latch, or cycle-start issues. Check these common causes:

• Make sure you press START/Cancel within about 30 seconds of choosing a cycle, or the dishwasher can turn off.
• Close the door firmly until it latches.
• Cancel a stuck cycle: press START/Cancel once to drain and shut off (or twice to shut off without draining).
• If the door will not latch consistently, inspect the latch area for damage or looseness.

Symptom	What it usually means	What to do next
Lock light is on	Controls are locked	Hold Heated Dry 3 seconds
Pads do nothing, no lights	Power issue	Check breaker, outlet, and wiring
Lights work but cycle will not start	Door not latching or start sequence issue	Latch door, then press START/Cancel

Parts that can affect starting (when the door will not latch)

If the door feels loose or will not stay latched, a worn latch component is a common fix.

• Dishwasher door latch WPW10275768: the latch assembly that helps keep the door closed so the control can start the cycle.

Why it matters

When Control Lock is on, the dishwasher cannot be operated until it is unlocked. Unlocking prevents unnecessary part replacement and gets your Maytag MDBH965AWB running again quickly.
