A 12-year-old Jenn-Air dishwasher like model JDB9200CWS2 is usually worth fixing only when the repair is minor and the total cost stays well under half the price of a comparable new dishwasher. For major leaks, motor issues, or repeated failures, replacement is typically the better value.

Quick decision checklist

• Choose repair when the problem is isolated (one part, one symptom) and the unit has been reliable.
• Choose replace when you have multiple symptoms (leaking plus poor cleaning plus draining issues).
• Choose repair when the fix is a common wear item (latch, drain hose, inlet valve, heating element).
• Choose replace when the repair involves the tub, major electronics, or repeated pump failures.
• Choose replace if you need a service call plus a high-cost part and the dishwasher is already near end-of-life.

Common repairs on this model that are often worth it

These are typical “single-failure” repairs that can restore normal operation on JDB9200CWS2:

Symptom	Likely area	Example part from this model

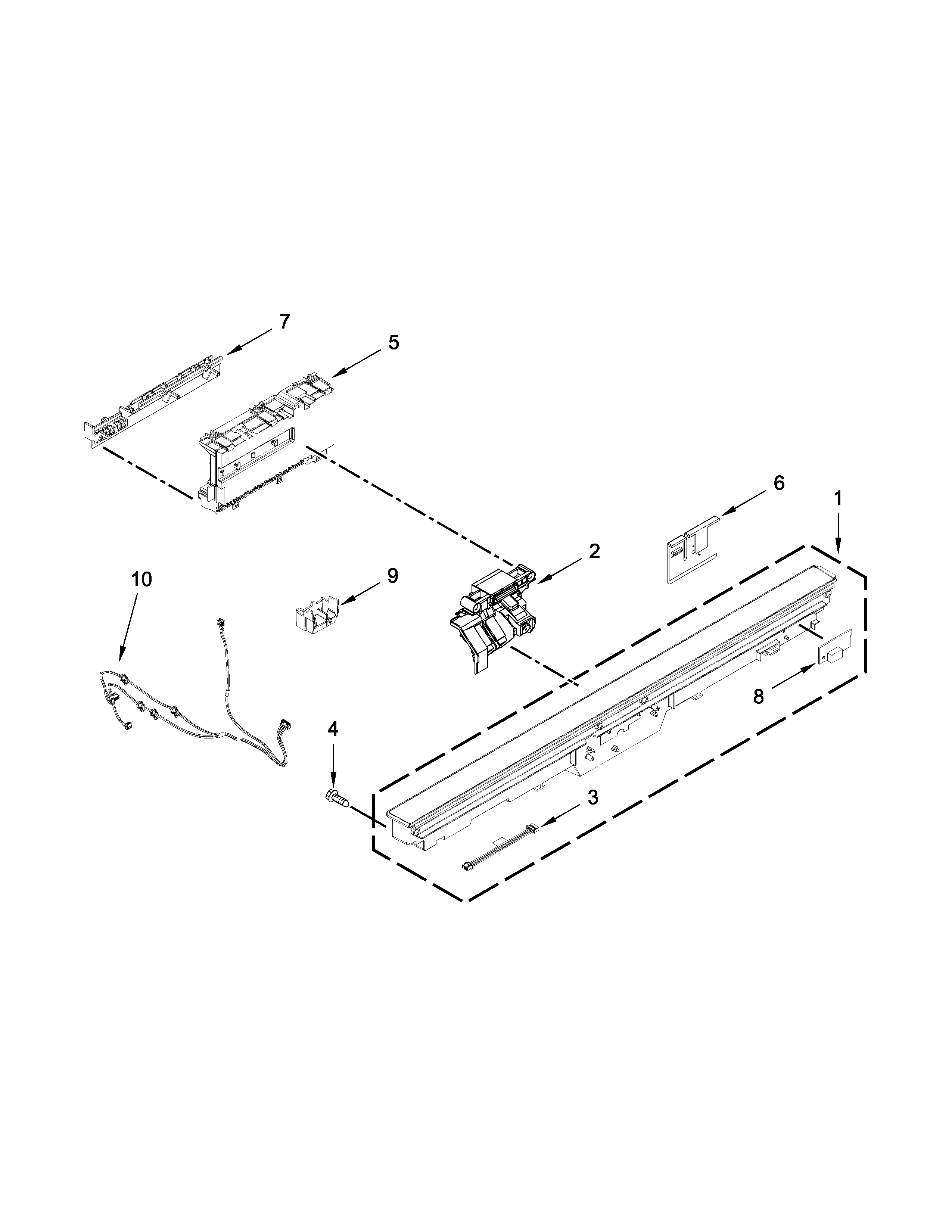

Won’t start or won’t stay closed	Door latch/door switch area	Dishwasher door latch WPW10653840

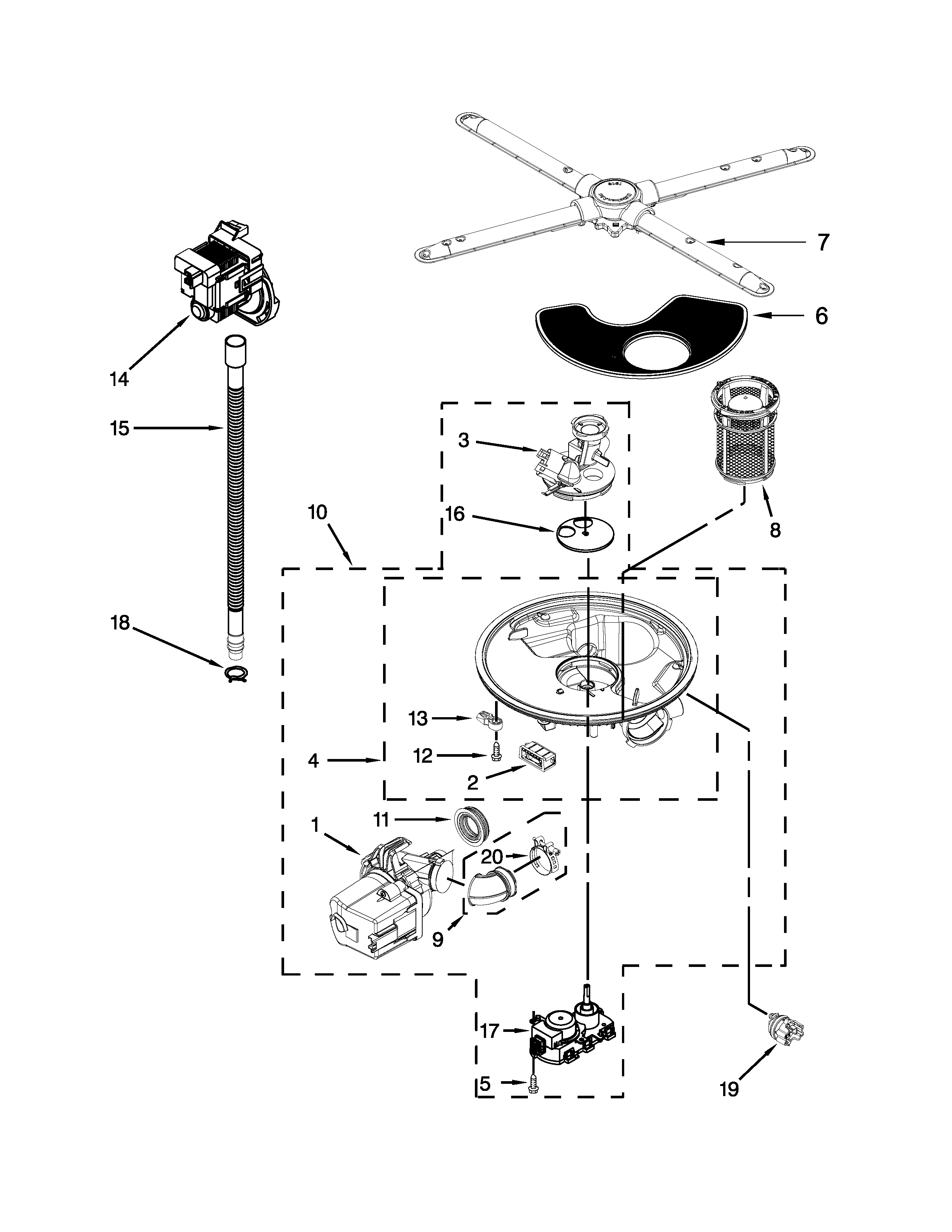

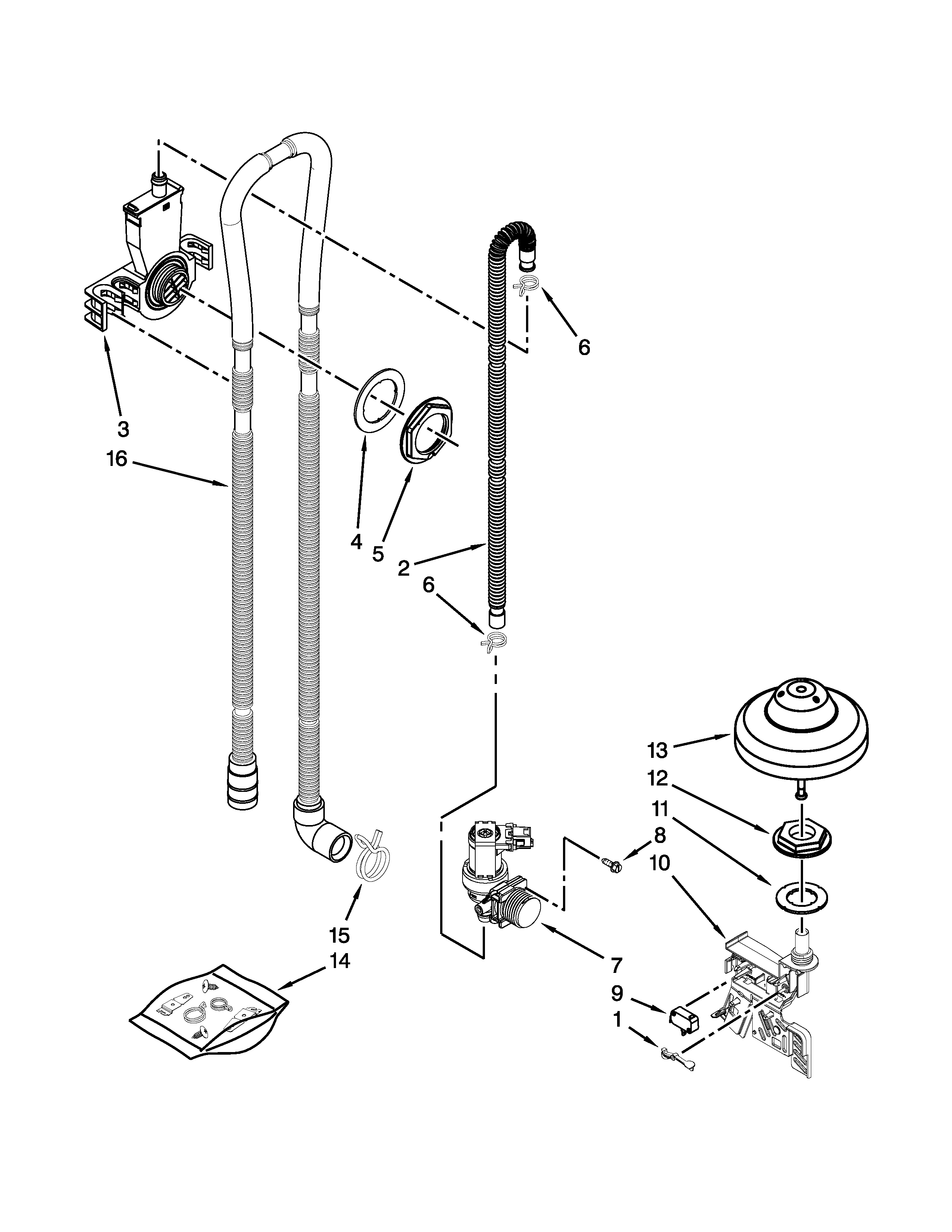

Not draining, standing water	Drain path/pump/hose	Dishwasher drain pump WPW10531320
Not filling or fills slowly	Water supply valve	Dishwasher water inlet valve WPW10327249
Dishes not drying well	Heating circuit	Element assembly W10703867

Cost and risk guide (what we use)

Repair type	Typical value call
Low-cost part, no leak risk	Repair is usually a good bet
Leak-related repair (hose, seal, valve)	Repair is good if caught early and damage is minimal
Motor, sump, or control-related repair	Replace is often the better value at 12 years

Why it matters

Dishwashers typically last 10 to 15 years, so at 12 years you are in the “decision zone.” A smart repair can buy a few more years, but a major repair can stack costs quickly and still leave you with an older pump, heater, and electronics.

If you decide to repair

Use the JDB9200CWS2 installation guide to confirm key installation items that prevent repeat problems, such as proper drain hose routing and keeping the drain connection high under the counter (or using an air gap when required).

Last updated: January 2026

The most common dishwasher failure is a drain problem: the unit finishes a cycle with water left in the bottom because the filter area, drain hose, or drain pump is restricted. On the JENN-AIR JDB9200CWS2, start by checking the drain path and installation basics in the JDB9200CWS2 installation guide.

Most common failures (and what they look like)

• Won’t drain: standing water, gurgling, or a cycle that ends early
• Poor cleaning: gritty dishes, food left behind, weak spray action
• Leaks: water at the front corners or under the unit
• Won’t dry: dishes come out wet or cool at the end of the cycle
• Door issues: door won’t latch, or it drops too fast

Quick checks we recommend first

1. Confirm the drain setup is correct (high loop/air gap as required and no kinks). Drain routing problems are a top cause of “won’t drain.”
2. Check for a restriction in the sump area and drain path (debris, labels, broken glass).
3. Listen during drain: a humming sound with little water movement points to a restriction or a weak drain pump.
4. Inspect the door seal and latch area for gaps, damage, or misalignment.

Parts commonly involved (when symptoms match)

Symptom	Likely area	Example part for this model

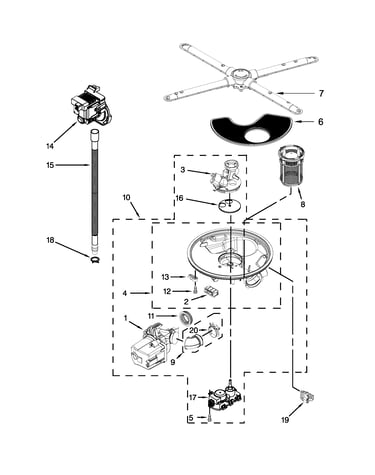

Standing water after cycle	Drain system	Dishwasher drain pump WPW10531320
Slow drain or backflow	Drain hose routing or blockage	Dishwasher drain hose 8269144A
Wet dishes, poor drying	Heating circuit	Element assembly W10703867

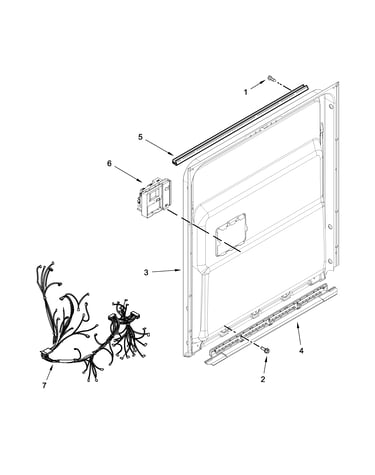

Leaks at the bottom/front	Door sealing surface	Dishwasher door seal, lower W10909089

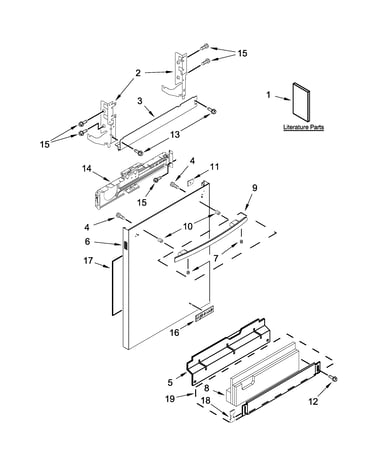

Door won’t stay closed	Latch mechanism	Dishwasher door latch WPW10653840

Why it matters

Drain and leak issues can lead to odors, poor wash results, and water damage under the dishwasher. Catching a restriction early often prevents a drain pump or motor assembly from being overworked.

Last updated: January 2026

For a Jenn-Air dishwasher like model JDB9200CWS2, the model number is printed on the appliance’s rating label, typically located on the tub frame around the door opening. Open the door fully and look along the inner edge of the frame for a sticker or metal tag.

Where to look on the dishwasher

Check these common label locations first:

• Along the left or right side of the tub opening (door frame)
• On the top edge of the tub opening, just under the countertop
• On the inside edge of the door itself (near the latch area)
• Behind the toe panel or lower access panel (less common)

What the label looks like

The rating label usually includes several identifiers. Use the model number for parts lookup.

Label item	What it’s used for	Example format
Model number	Finds the correct parts diagrams and manuals	JDB9200CWS2
Serial number	Identifies production run and date	Letters and numbers
Electrical ratings	Confirms voltage/amps for installation	120V, Hz, A

Tips to make sure you have the right number

Model numbers can be misread, especially with similar characters.

• Copy it exactly, including any ending digits (like the “2” in JDB9200CWS2)
• Watch for look-alikes such as 0 and O, 1 and I
• If the label is worn, take a photo and zoom in
• Match the model number to the parts list before ordering items like a drain pump or door latch

Why it matters

Using the exact model number ensures parts fit and connect correctly, especially for installation-related items like the drain hose routing and electrical hookup details in the JDB9200CWS2 installation guide.

Last updated: March 2026
