Frigidaire FED355ABC electric range Parts
Here are the diagrams and repair parts for Frigidaire FED355ABC electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for FED355ABC Ranges

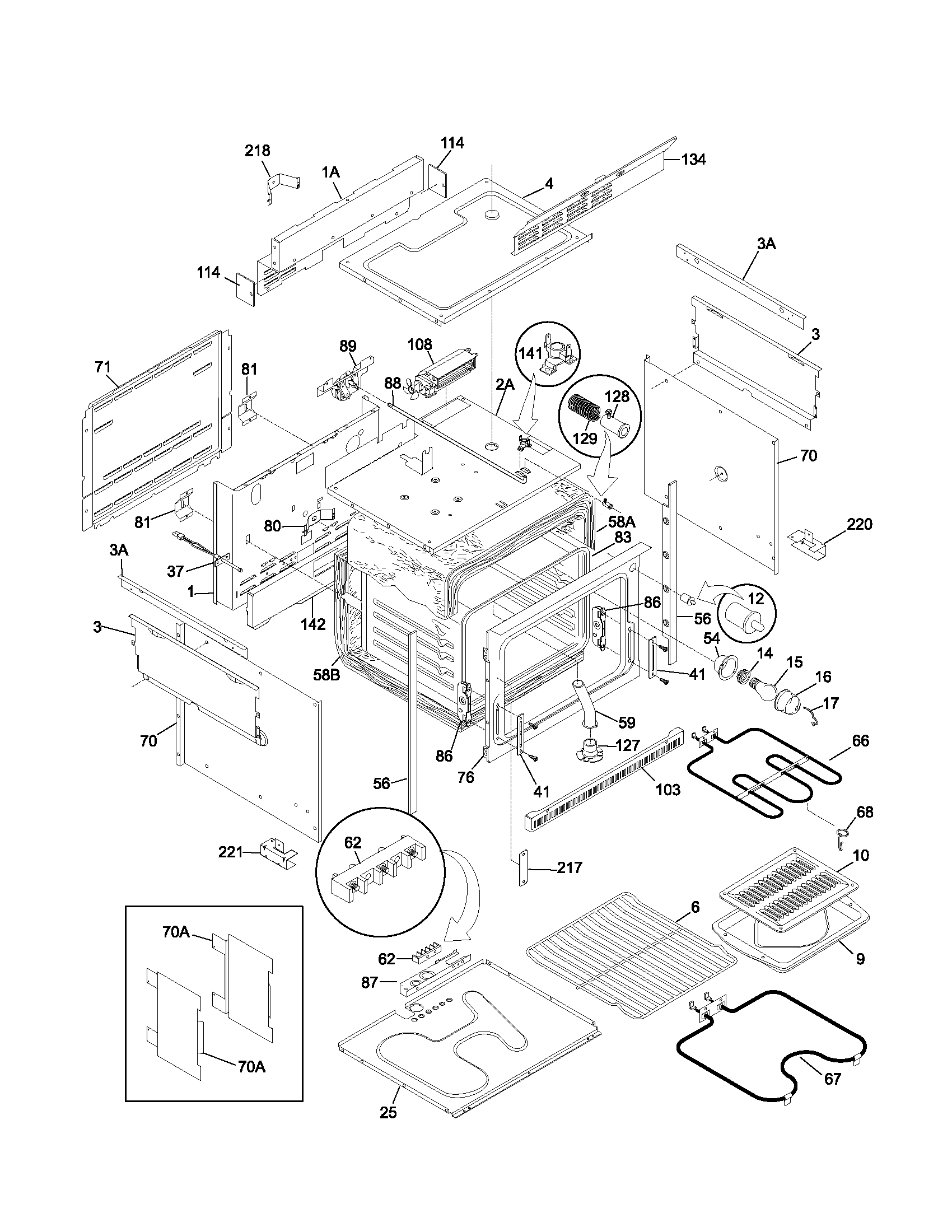

Body diagram
Probe
Part #318198500Replaced by #316217002
Manufacturer substitutionThis part replaces 318198500. Substitute parts can look different from the original.In Stock$56.8910% OFF Phone Price : $62.89
Qty

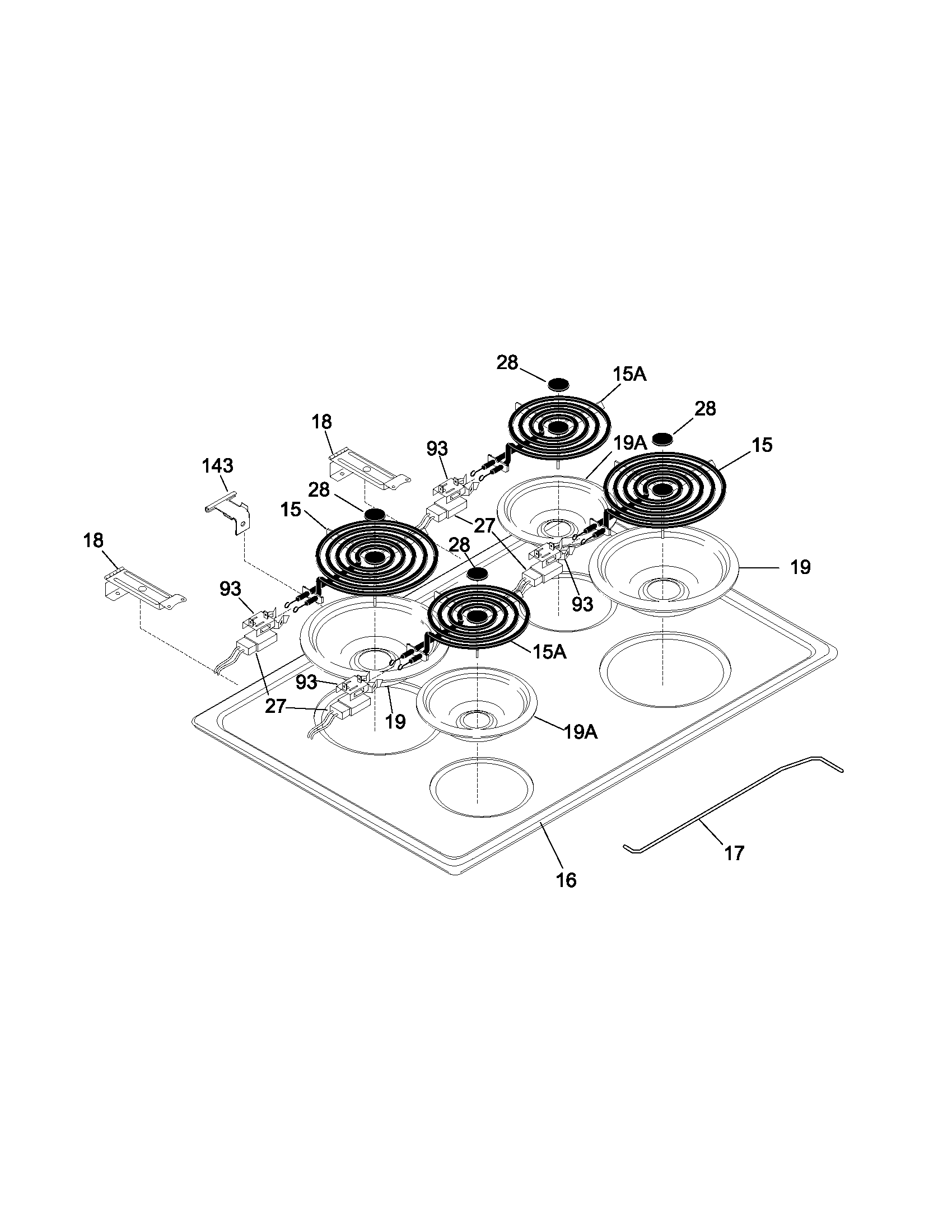

Main top diagram
8 Element
Part #5303309001Replaced by #316442301
Manufacturer substitutionThis part replaces 5303309001. Substitute parts can look different from the original.In Stock$70.068% OFF Phone Price : $76.06QtyBody diagram
Oven Bake Element
Part #5303310512Replaced by #318255006
Manufacturer substitutionThis part replaces 5303310512. Substitute parts can look different from the original.In Stock$169.177% OFF Phone Price : $181.17QtyMain top diagram
Pan Element
Part #318067046Replaced by #316048414
Manufacturer substitutionThis part replaces 318067046. Substitute parts can look different from the original.In Stock$10.7416% OFF Phone Price : $12.74QtyBody diagram
Receptacle
Part #5308011085Replaced by #316116400

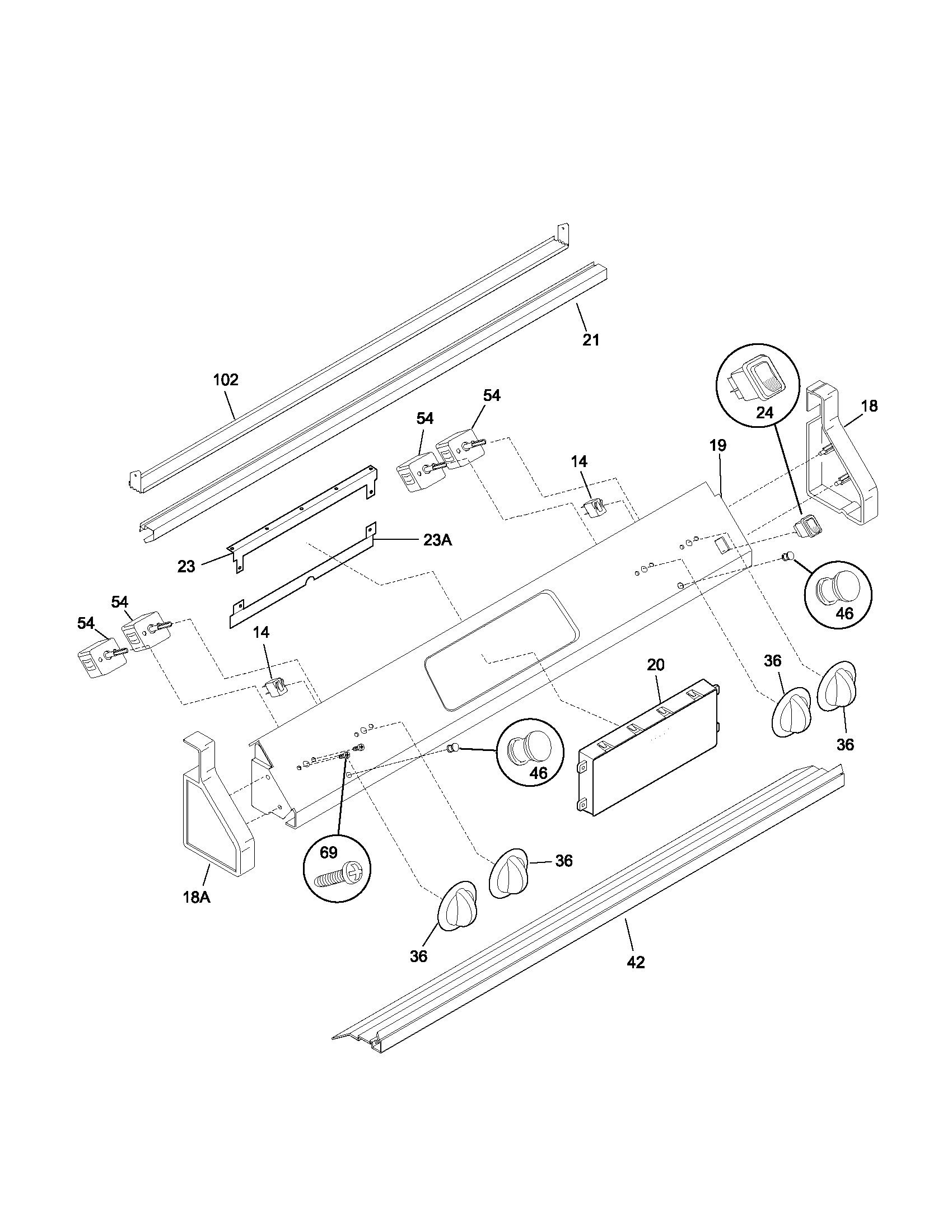

Manufacturer substitutionThis part replaces 5308011085. Substitute parts can look different from the original.In Stock$49.6011% OFF Phone Price : $55.60QtyBackguard diagram
Lens
Part #5303297274Replaced by #318228310
Manufacturer substitutionThis part replaces 5303297274. Substitute parts can look different from the original.In Stock$10.9016% OFF Phone Price : $12.90QtyBody diagram
Cover
Part #3201911Replaced by #5304524341
Manufacturer substitutionThis part replaces 3201911. Substitute parts can look different from the original.In Stock$17.1110% OFF Phone Price : $19.11QtyBackguard diagram
Light Switch
Part #316005602Replaced by #5304527841

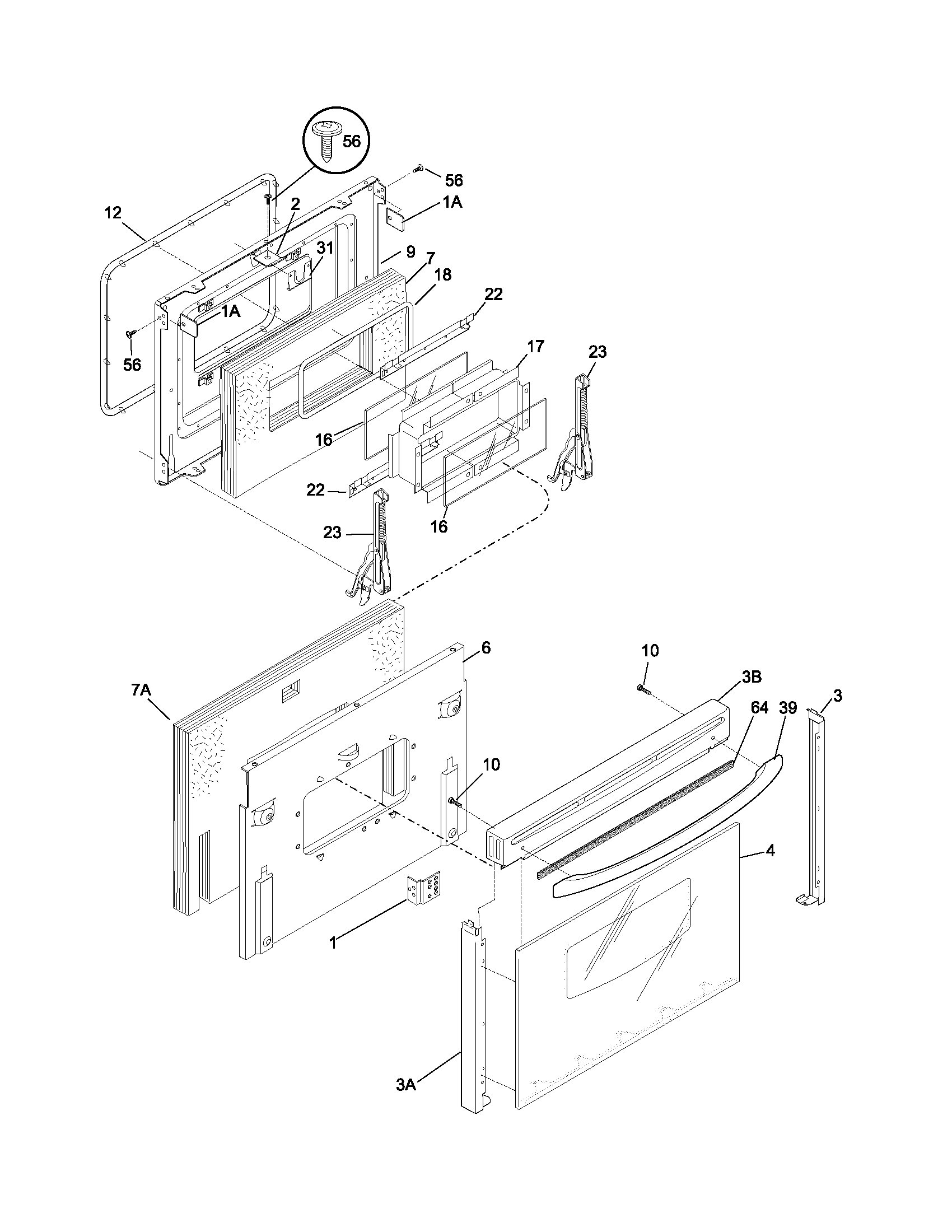

Manufacturer substitutionThis part replaces 316005602. Substitute parts can look different from the original.This item is not returnableIn Stock$12.0214% OFF Phone Price : $14.02QtyDoor diagram
Screw
Part #5303317175Replaced by #316021109
Manufacturer substitutionThis part replaces 5303317175. Substitute parts can look different from the original.In Stock$16.2711% OFF Phone Price : $18.27QtyBody diagram
Oven Light Switch
Part #318089910Replaced by #318394803
Manufacturer substitutionThis part replaces 318089910. Substitute parts can look different from the original.In Stock$42.6012% OFF Phone Price : $48.60Qty
