Maytag
Top-Mount Refrigerator

Model #MTB1894ARW Official Maytag refrigerator

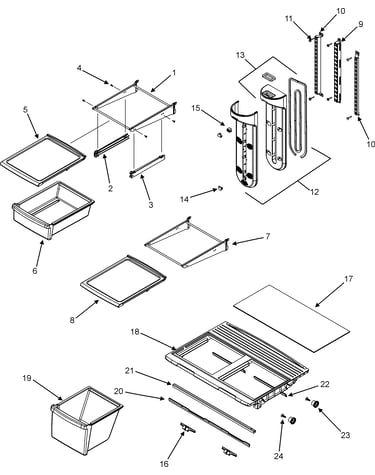

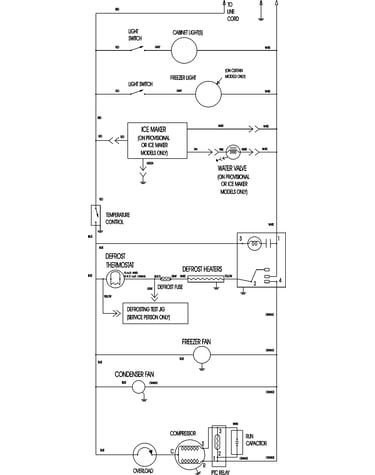

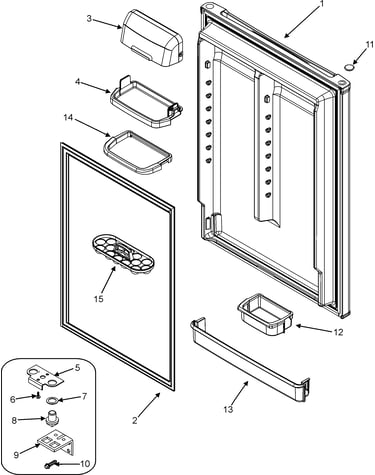

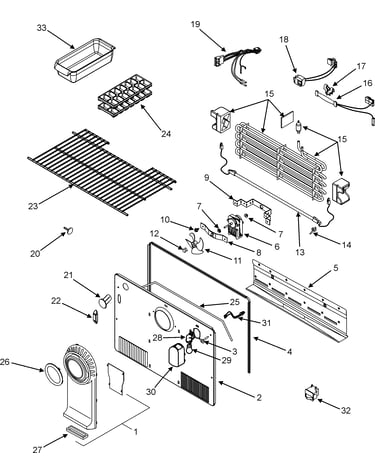

Here are the diagrams and repair parts for Maytag MTB1894ARW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 196 parts

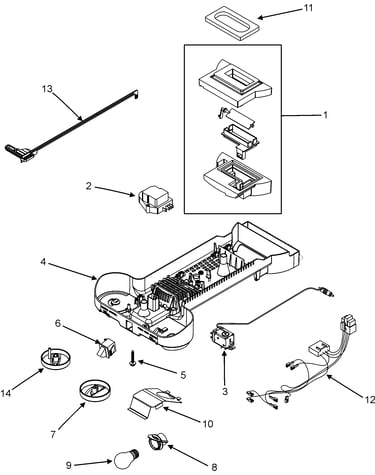

    Appliance Light Bulb, 40-watt

    See All Related Diagrams

    Refrigerator bulb

    Part #63001035
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces 63001035. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $8.35 |
    11% OFF
    Phone Price: $9.35
    Refrigerator Ice Maker#1

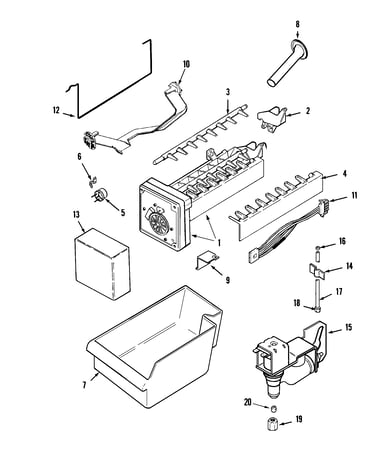

    Optional ice maker kit-uki1500axx Diagram

    Refrigerator ice maker

    Part #61005508
    Replaced by #D7824706Q
    ?
    Manufacturer substitution
    This part replaces 61005508. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $125.66 |
    7% OFF
    Phone Price: $135.66
    Refrigerator Door Switch

    See All Related Diagrams

    Refrigerator light switch

    Part #63001030
    Replaced by #W11291138
    ?
    Manufacturer substitution
    This part replaces 63001030. Substitute parts can look different from the original.
    In Stock
    $24.79 |
    17% OFF
    Phone Price: $29.79
    Refrigerator Water Tube Fitting#18

    Optional ice maker kit-uki1500axx Diagram

    Refrigerator water tube fitting

    Part #69583-1
    Replaced by #WP627018
    ?
    Manufacturer substitution
    This part replaces 69583-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.09 |
    11% OFF
    Phone Price: $9.09
    Refrigerator UV Filter Dryer#9

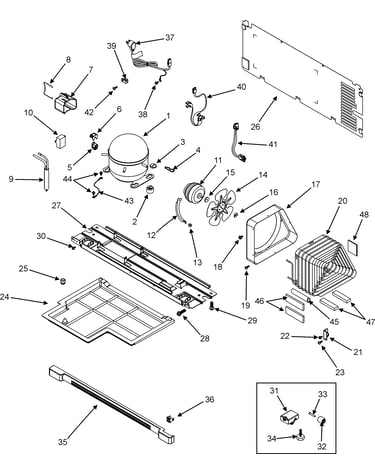

    Compressor Diagram

    Refrigerator uv dye dryer

    Part #13900-1
    Replaced by #WPW10143759
    ?
    Manufacturer substitution
    This part replaces 13900-1. Substitute parts can look different from the original.
    In Stock
    $23.19 |
    18% OFF
    Phone Price: $28.19
    Refrigerator Water Tubing#17

    Optional ice maker kit-uki1500axx Diagram

    Refrigerator tubing

    Part #61003021
    Replaced by #WPB5705307
    ?
    Manufacturer substitution
    This part replaces 61003021. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.59 |
    9% OFF
    Phone Price: $10.59
    Refrigerator Ice Maker Fill Cup#2

    Optional ice maker kit-uki1500axx Diagram

    Refrigerator ice maker fill cup

    Part #95100-1
    Replaced by #WP628356
    ?
    Manufacturer substitution
    This part replaces 95100-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $30.86 |
    14% OFF
    Phone Price: $35.86
    Refrigerator Screw#9A

    Optional ice maker kit-uki1500axx Diagram

    Refrigerator screw

    Part #95108-1
    Replaced by #WP489128
    ?
    Manufacturer substitution
    This part replaces 95108-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.99 |
    11% OFF
    Phone Price: $8.99
    Refrigerator Door Hinge, Center#10A

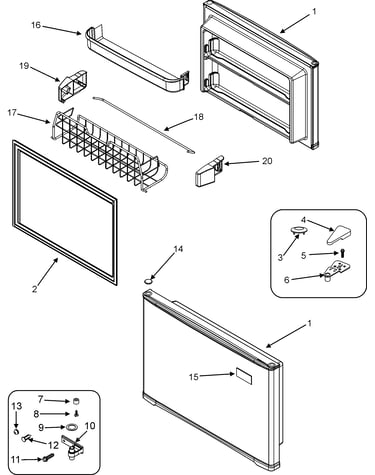

    Freezer door Diagram

    Center hinge

    Part #63001457
    Replaced by #W10851465
    ?
    Manufacturer substitution
    This part replaces 63001457. Substitute parts can look different from the original.
    In Stock
    $32.89 |
    13% OFF
    Phone Price: $37.89
    Refrigerator Door Hinge, Center#10

    Freezer door Diagram

    Refrigerator hinge, center

    Part #63001411
    Replaced by #W10851465
    ?
    Manufacturer substitution
    This part replaces 63001411. Substitute parts can look different from the original.
    In Stock
    $32.89 |
    13% OFF
    Phone Price: $37.89
