Whirlpool LSQ9665JQ4 washer Parts

On a Whirlpool LSQ9665JQ4 washer, an F21 code points to a long-drain condition. We fix it by clearing drain restrictions (hose, standpipe, pump) and confirming the drain pump runs and moves water; a failing pump often needs replacement.

Quick checks (start here)

• Unplug the washer for safety.
• Make sure the drain hose is not kinked, crushed, or pushed too far down the standpipe.
• Check the standpipe or laundry tub for a clog (a slow household drain can trigger long-drain symptoms).
• If the tub is full of water, bail out water first so you can inspect the pump area without a mess.
• Look for small items (coins, socks, lint) that can jam the pump impeller.

Parts that commonly solve long-drain problems

If the hose and household drain are clear, the next most common fix is the drain pump.

Symptom you see	Most likely cause	What to do next
Hums but won’t drain	Pump jammed or failing	Inspect pump for debris; replace if noisy or weak
Drains slowly	Partial blockage in hose/pump	Clear restriction; verify strong flow
Won’t drain at all	Failed pump or wiring issue	Test pump operation; replace pump if not running

For this model, the correct replacement pump is the washer drain pump WP3363394.

Why it matters

A long-drain condition can stop the cycle before spin, leaving clothes soaking wet and putting extra strain on the drive system. Restoring normal drain flow helps the washer complete the cycle and prevents repeat shutdowns.

If it still won’t drain or spin

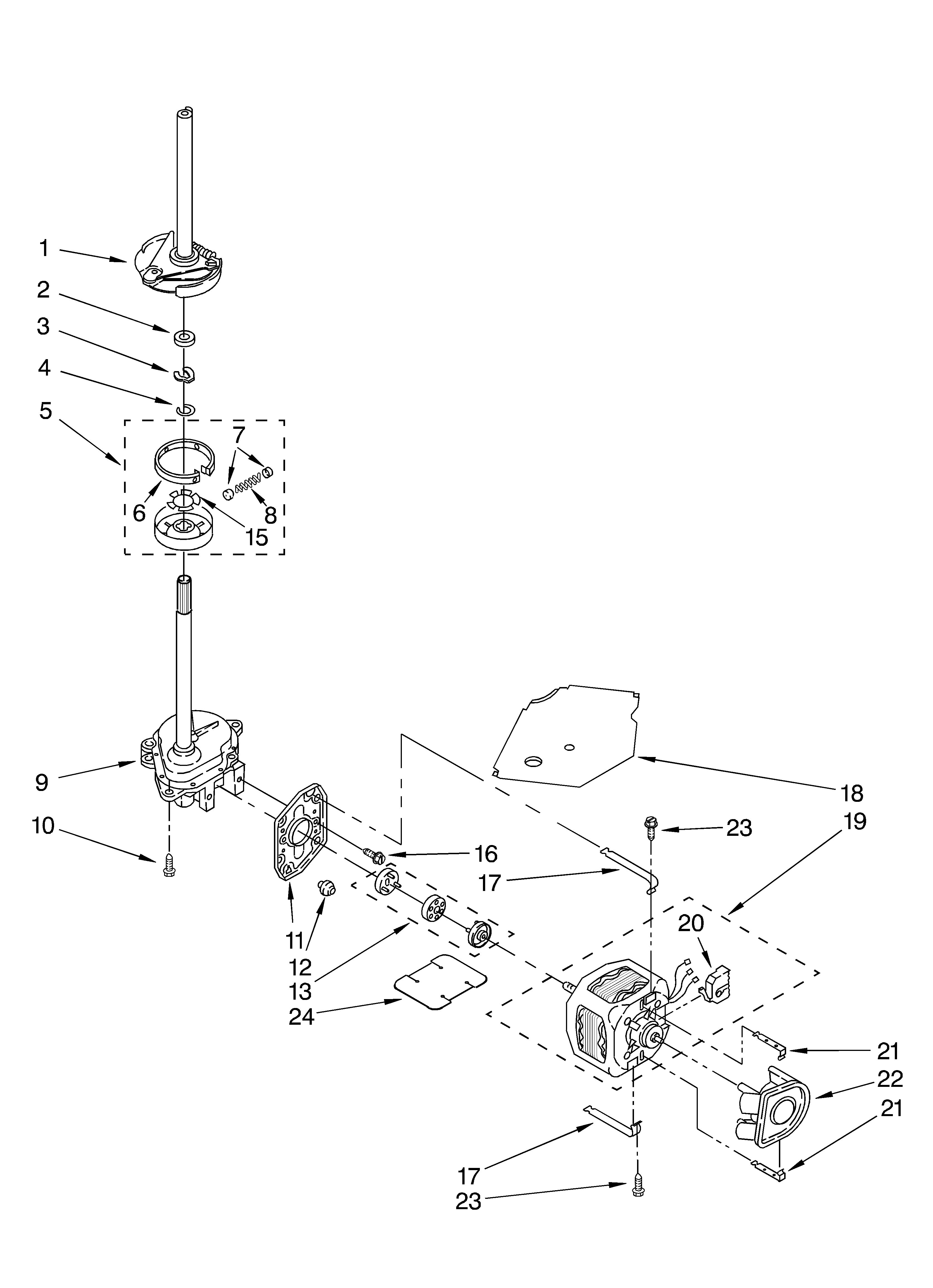

If draining improves but the washer still will not spin, the issue can shift to the drive system. On direct-drive Whirlpool top-load designs, a worn coupling is a common next check: washer motor coupling 285753A.

Last updated: January 2026

The most common Whirlpool washer problems are not draining/spinning, not agitating, and water leaks. On the Whirlpool LSQ9665JQ4, these symptoms are often tied to a worn drive system, a failing drain pump, or a fill valve issue, depending on when the problem happens in the cycle.

Quick checks we recommend first

• Make sure the load is balanced and not overloaded (heavy items can stop spin).
• Confirm the washer is level and all feet are firmly on the floor.
• Check the drain hose for kinks, clogs, or an airtight standpipe (can slow draining).
• Verify hot and cold water supply valves are fully open.
• Listen for the motor running but the tub not moving (common clue for a coupling issue).

Most common symptom-to-part matches (LSQ9665JQ4)

Symptom	Most likely area	Common part to inspect on this model
Won’t drain or drains slowly	Drain system	Washer drain pump WP3363394
Won’t spin or agitates weakly	Drive system	Washer motor coupling 285753A
Won’t fill or fills slowly	Water inlet	Washer inlet valve 285805
Agitator moves one direction or “slips”	Agitator dogs	Agitator dog 80040

Why these problems happen

Direct-drive top-load Whirlpool washers like the LSQ9665JQ4 commonly fail in a few predictable places:

• The motor coupling can crack or strip, so the motor runs but the tub and agitator do not.
• The drain pump can jam with debris or wear out, causing no-drain and no-spin symptoms.
• The inlet valve screens can clog with sediment, leading to slow fill or no fill.
• The agitator dogs wear down over time, causing poor agitation.

When to troubleshoot vs. replace a part

• Troubleshoot first if the issue is intermittent, load-related, or started after moving the washer.
• Replace a part when the symptom is repeatable every cycle and you can match it to the table above.

For step-by-step symptom diagnosis, use troubleshooting a top load washer that wont drain or spin video.

Last updated: January 2026

On a Whirlpool LSQ9665JQ4 washer, we reset a lid lock issue by removing power for about 5 minutes, then restarting a normal cycle. If the washer still will not start or spin, the problem is usually the lid switch circuit or a mechanical failure, not a “reset” setting.

Quick reset steps (most common fix)

• Turn the cycle knob to Off.
• Unplug the washer (or switch the breaker off).
• Wait 5 minutes to clear the control’s stored state.
• Restore power.
• Close the lid firmly and start a regular wash cycle.

If it still acts like the lid is not closed

These checks solve most “won’t spin” or “won’t run” complaints on direct-drive top-load washers.

• Press down on the lid near the hinge area; listen for a distinct click.
• Check that the lid strike area is not bent or blocked by a laundry item.
• If the washer fills but will not agitate or spin, inspect the drive system (a failed coupling is common): washer motor coupling 285753A.
• If the washer will not drain and therefore will not spin, check for a clog or a failing pump: washer drain pump WP3363394.
• If the tub is full of water, bail out water before tipping the washer to avoid spills.

What “reset” can and cannot fix

Symptom	Reset helps?	More likely cause
Intermittent no-start after a power flicker	Yes	Control state glitch
Won’t spin every time	Sometimes	Lid switch, coupling, clutch
Won’t drain, standing water	No	Drain pump or blockage
Loud grinding during spin	No	Clutch, gear case, drive block

Why it matters

The washer will not spin with an open-lid signal because spinning is a safety function. Restoring power can clear a temporary control issue, but repeated failures point to a switch, drain, or drive-train problem that needs repair.

Last updated: January 2026

Your Whirlpool LSQ9665JQ4 washer is not a Whirlpool Duet model, and its tub capacity (cubic feet) is not listed in the model data we have here. Most Whirlpool top-load, direct-drive washers of this style are typically about 3.2 to 3.6 cu. ft..

How to estimate capacity for LSQ9665JQ4

If you need a practical estimate for load sizing, we use these guidelines:

• Comforters/blankets: usually 1 queen comforter (not overstuffed)
• Towels: about 10 to 14 bath towels per load
• Jeans: about 6 to 8 pairs per load
• Mixed loads: fill loosely to the top row of holes, not packed down

Quick capacity guide (what the numbers mean)

Capacity is the approximate volume of the wash basket. It helps you choose load size, detergent amount, and whether “bulky” items will wash and spin correctly.

Capacity range (cu. ft.)	Typical washer type	What it’s best for
2.5 to 3.1	compact top load	small households, light loads
3.2 to 3.6	full-size top load (common for LSQ-style)	everyday mixed loads
4.0+	large-capacity top load or front load	bulky items, larger families

Why it matters

Overloading a top-load washer can cause poor cleaning, out-of-balance spinning, and extra wear on drive components like the clutch and motor coupling.

Related parts that affect load handling

If the washer struggles to agitate or spin with normal loads, these model-matched parts are common suspects:

• Washer motor coupling 285753A (drive connection between motor and transmission)
• Clutch 285785 (helps the basket reach full spin speed)
• Washer suspension spring WP63907 (helps control tub movement and balance)

Last updated: January 2026
