Craftsman 917251650 garden tractor Parts
Here are the diagrams and repair parts for Craftsman 917251650 garden tractor, as well as links to manuals and error code tables, if available.

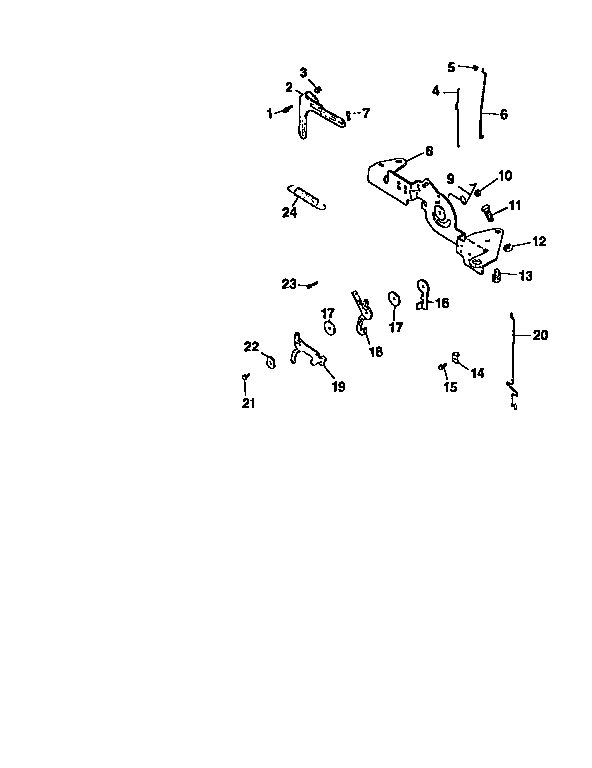

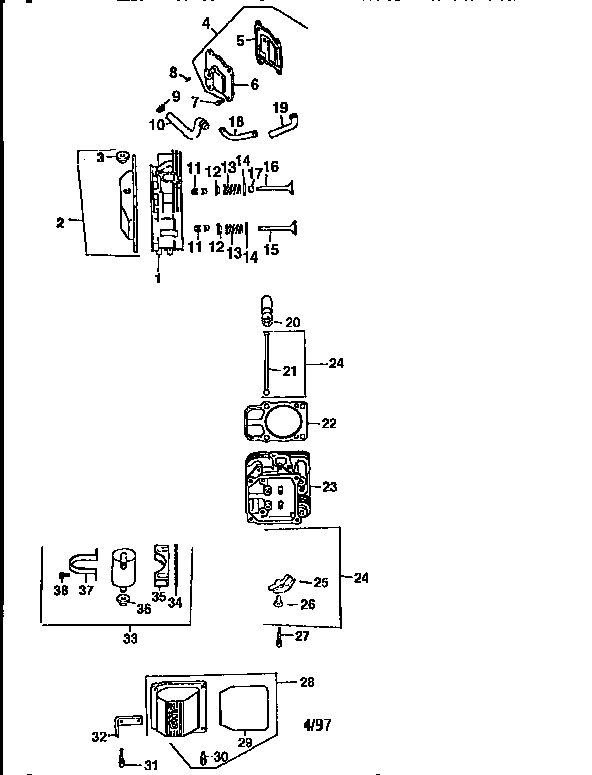

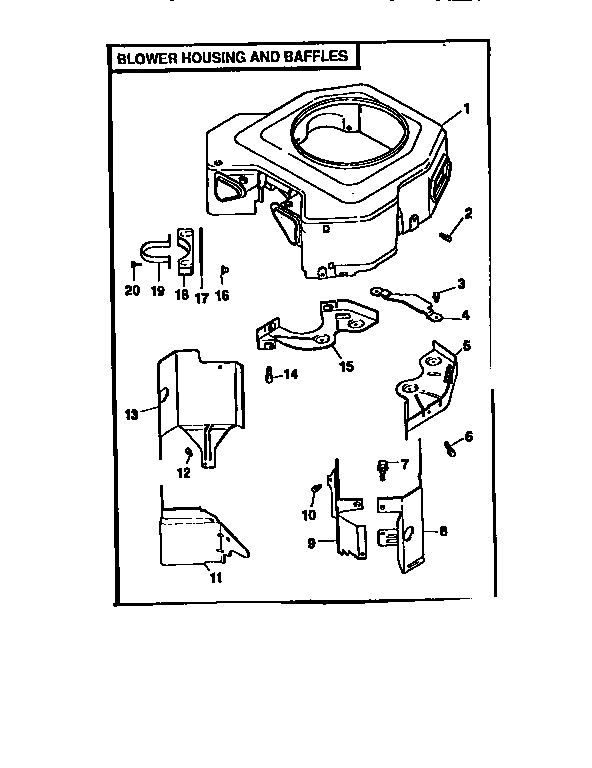

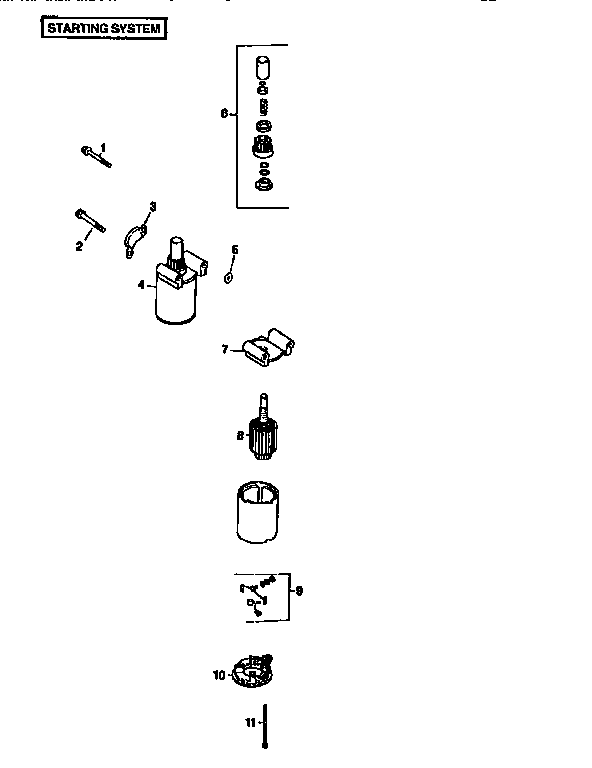

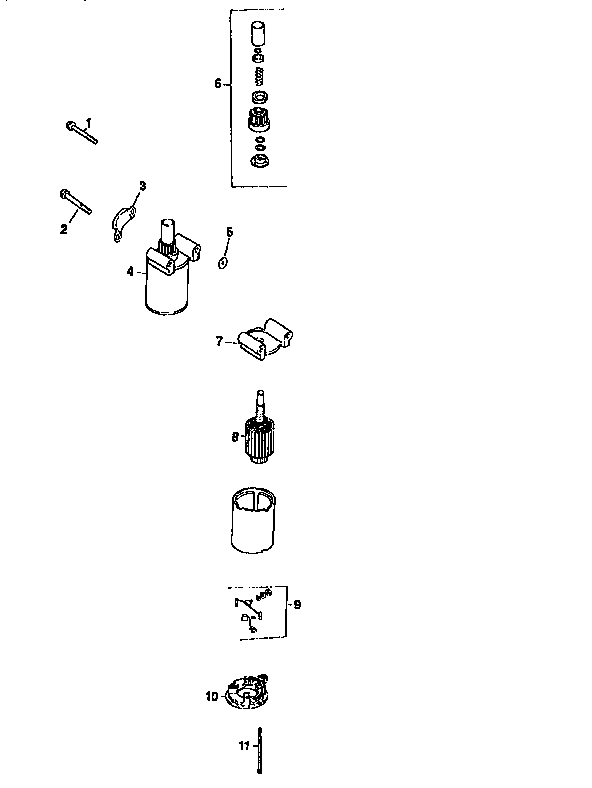

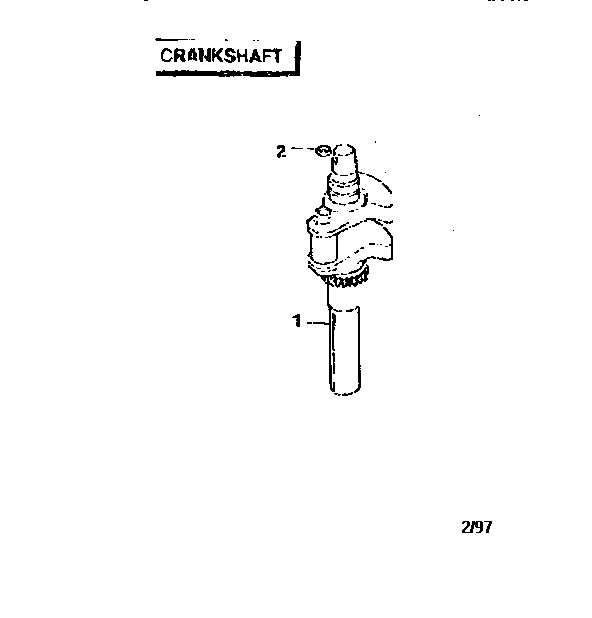

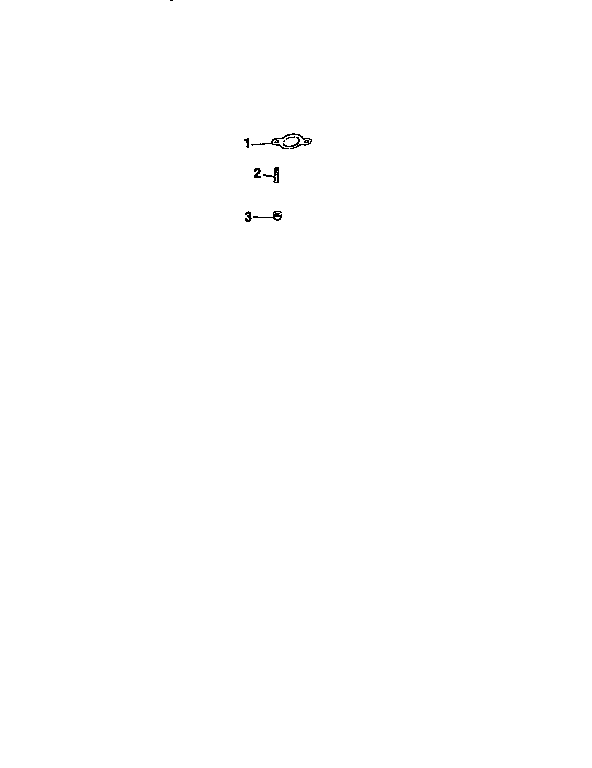

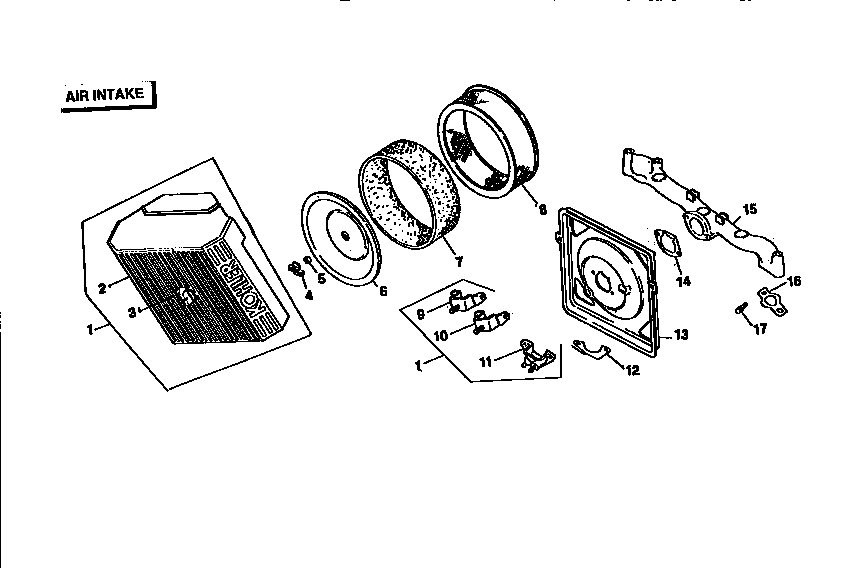

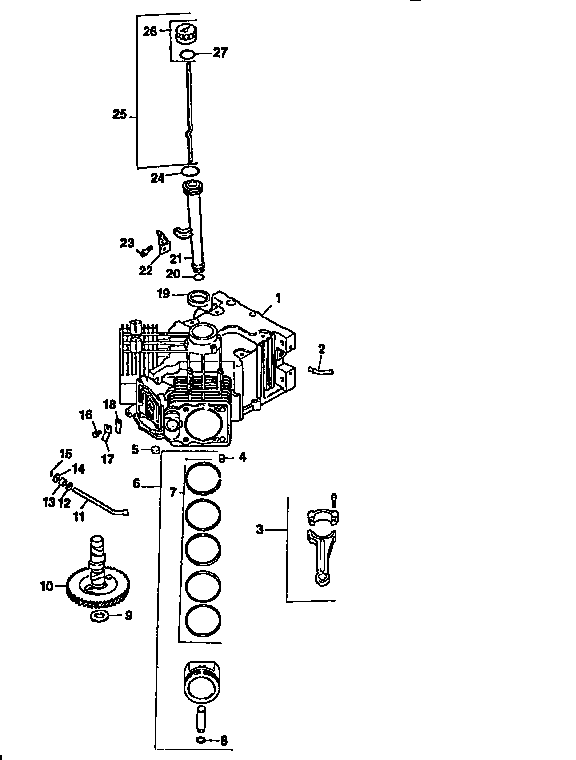

View engine
By Schematic
By Part
SELECT DIAGRAM

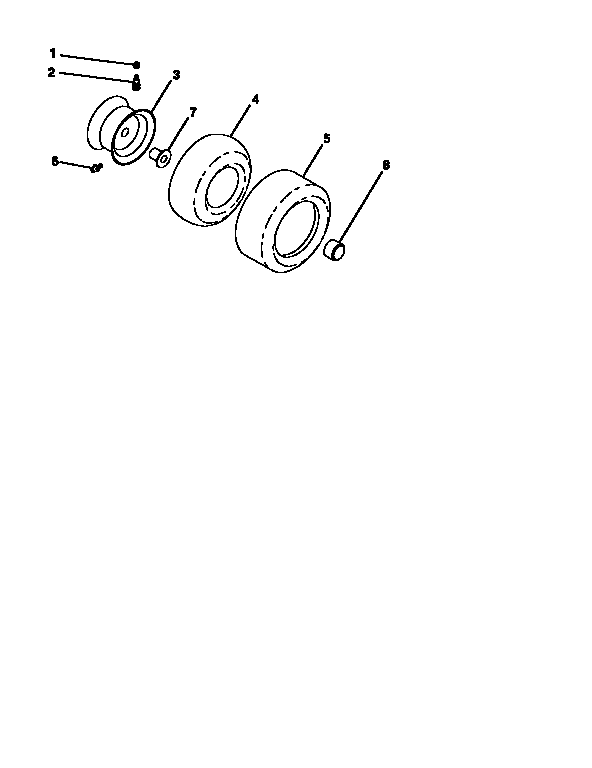

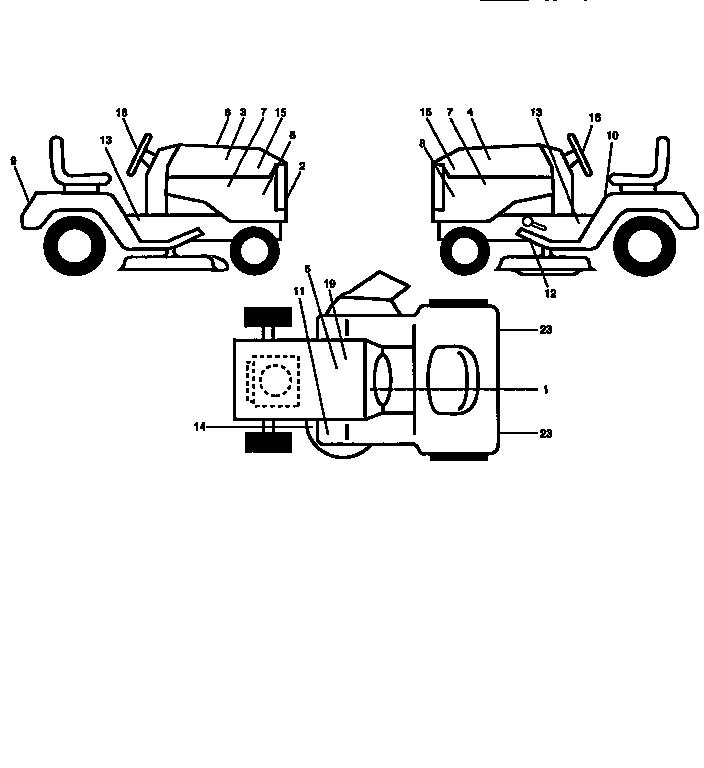

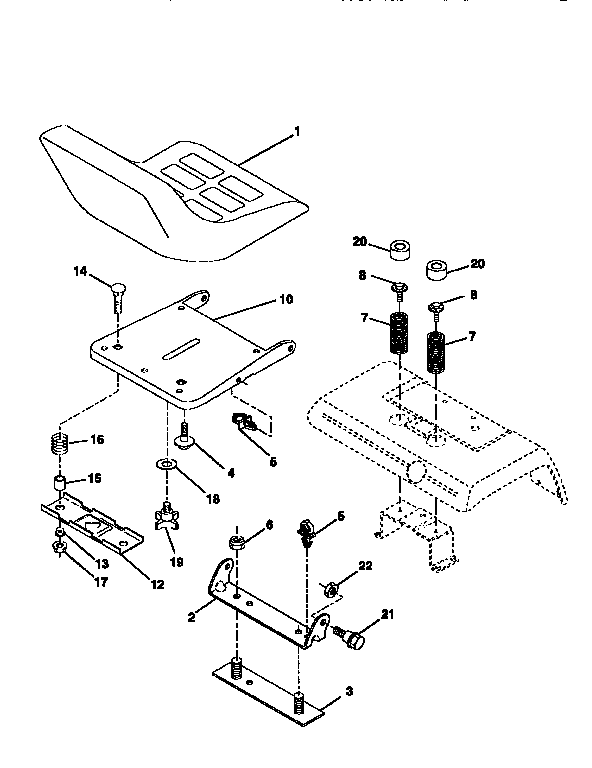

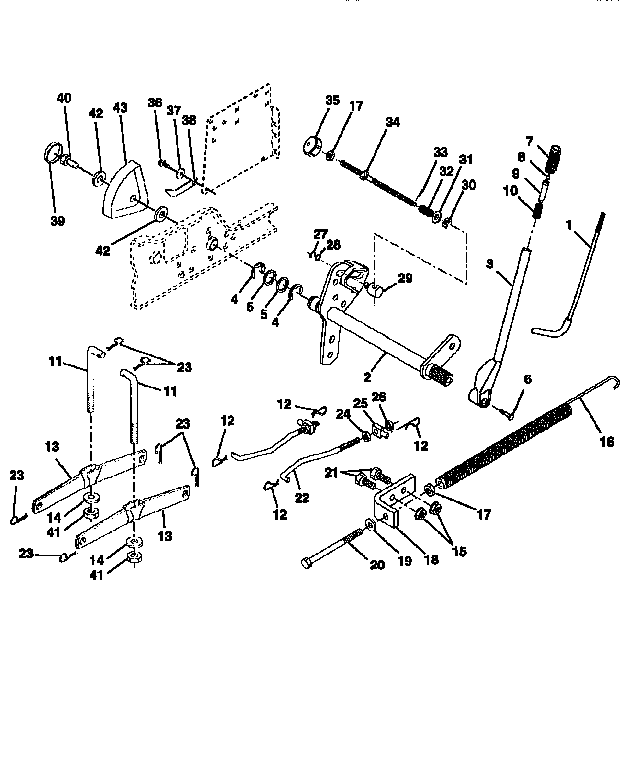

Browse Parts for 917251650 Riding Mowers & Tractors

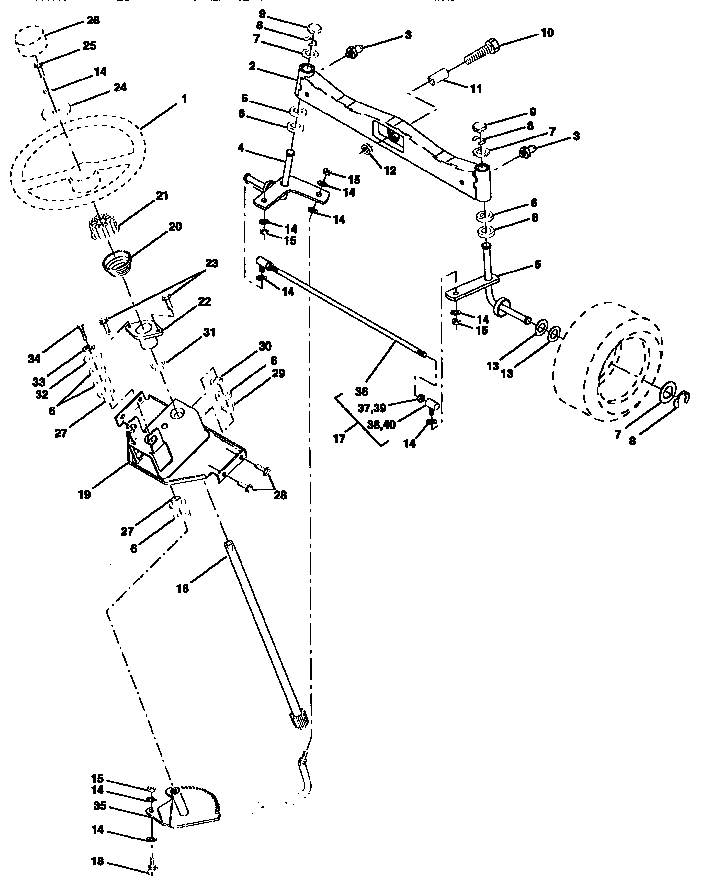

Steering assembly diagram
Lawn Tractor Steering Wheel Shaft Flange Bearing
Part #104239XReplaced by #532104239
Manufacturer substitutionThis part replaces 104239X. Substitute parts can look different from the original.In Stock$20.8122% OFF Phone Price : $26.81
Qty

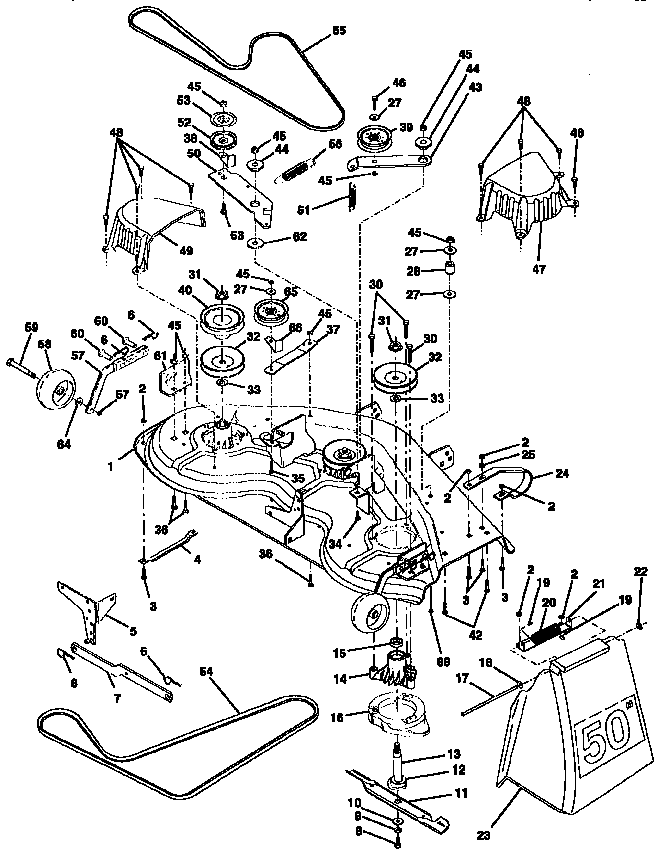

Mower deck diagram
Husqvarna Lawn Mower Blade, 17-3/8 In
Part #137380Get free shipping with Automatic ReorderReplaced by #532137380

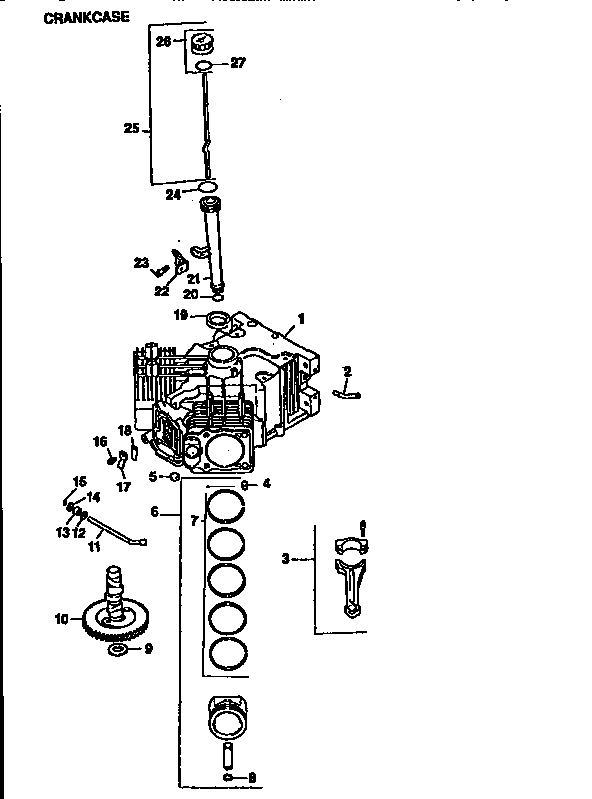

Manufacturer substitutionThis part replaces 137380. Substitute parts can look different from the original.In Stock$33.69QtyEngine diagram
Nipple
Part #13090336Replaced by #532428287
Manufacturer substitutionThis part replaces 13090336. Substitute parts can look different from the original.In Stock$30.0317% OFF Phone Price : $36.03QtySteering assembly diagram
Lawn Tractor Sector Gear
Part #138059Replaced by #531165701

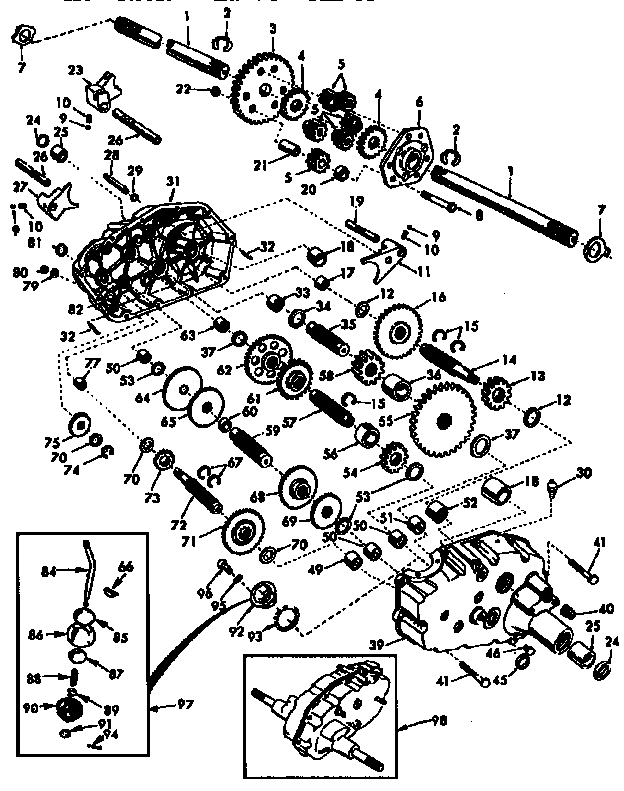

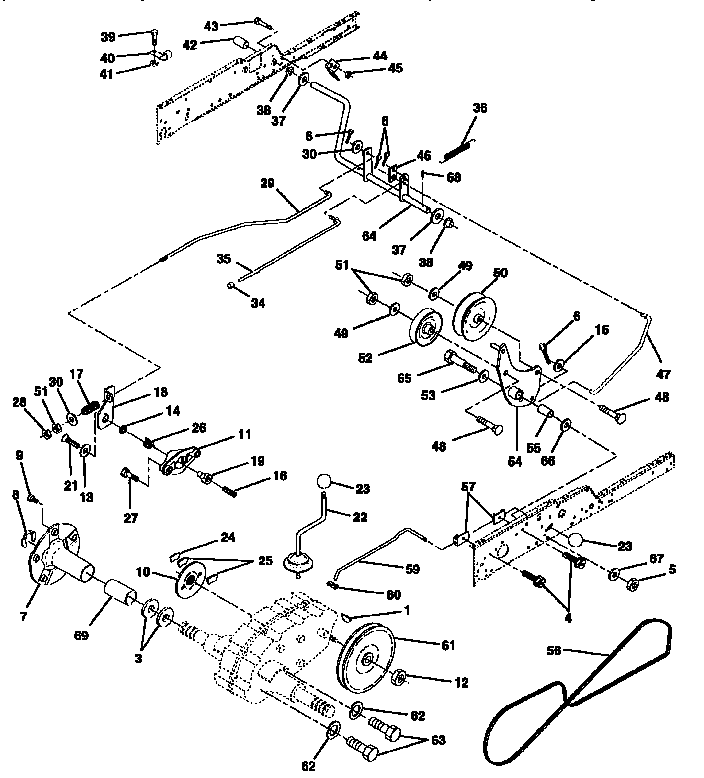

Manufacturer substitutionThis part replaces 138059. Substitute parts can look different from the original.In Stock$83.957% OFF Phone Price : $89.95QtyTransaxle diagram
Thrust Bearing
Part #1370HReplaced by #532001370
Manufacturer substitutionThis part replaces 1370H. Substitute parts can look different from the original.In Stock$7.9211% OFF Phone Price : $8.92QtyTransaxle diagram
Needle Brg
Part #4895HReplaced by #532004895
Manufacturer substitutionThis part replaces 4895H. Substitute parts can look different from the original.This item is not returnableIn Stock$20.2023% OFF Phone Price : $26.20QtyMower deck diagram
Lawn Tractor Mandrel Shaft
Part #137553Replaced by #532137553
Manufacturer substitutionThis part replaces 137553. Substitute parts can look different from the original.In Stock$46.6311% OFF Phone Price : $52.63QtyHusqvarna Lawn & Garden Equipment Hardened Washer
Part #140296Replaced by #532140296

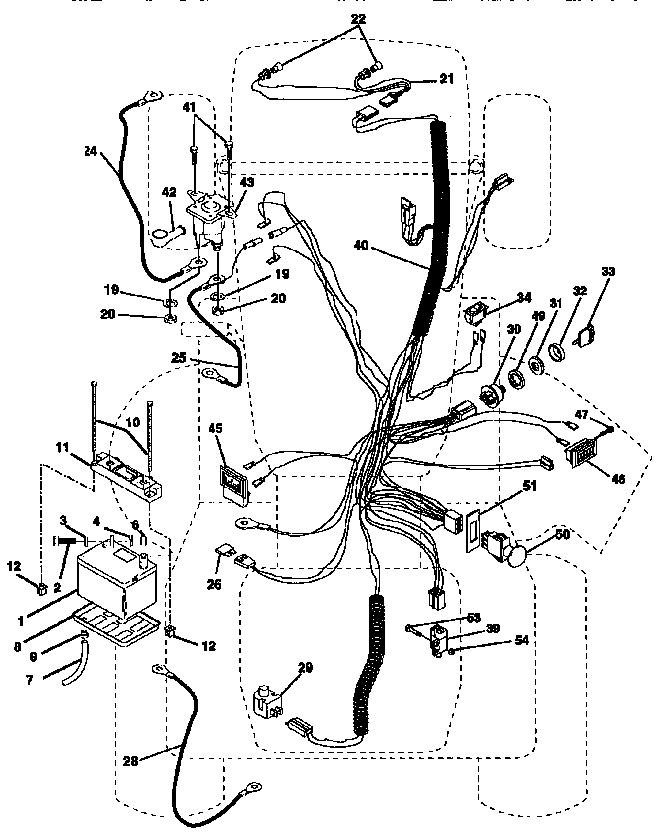

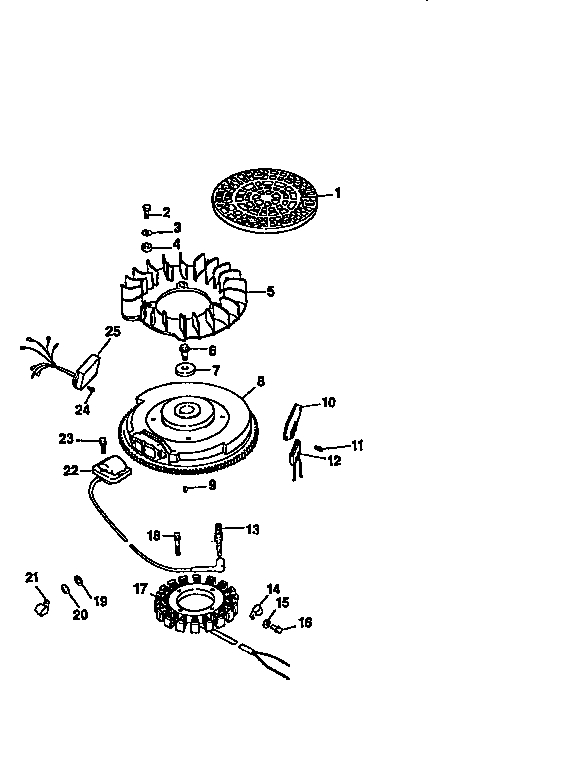

Manufacturer substitutionThis part replaces 140296. Substitute parts can look different from the original.In Stock$12.9613% OFF Phone Price : $14.96QtyElectrical diagram
Lawn Tractor Seat Switch
Part #121305XReplaced by #532421062
Manufacturer substitutionThis part replaces 121305X. Substitute parts can look different from the original.This item is not returnableIn Stock$40.4813% OFF Phone Price : $46.48QtyEngine diagram
Tower Lawn Tractor Bolt
Part #150280Replaced by #501606501
Manufacturer substitutionThis part replaces 150280. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0317% OFF Phone Price : $6.03Qty
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
