Kenmore
Bottom-Mount Refrigerator

Model #79570329311 Kenmore refrigerator

Here are the diagrams and repair parts for Kenmore 79570329311 refrigerator, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 192 parts

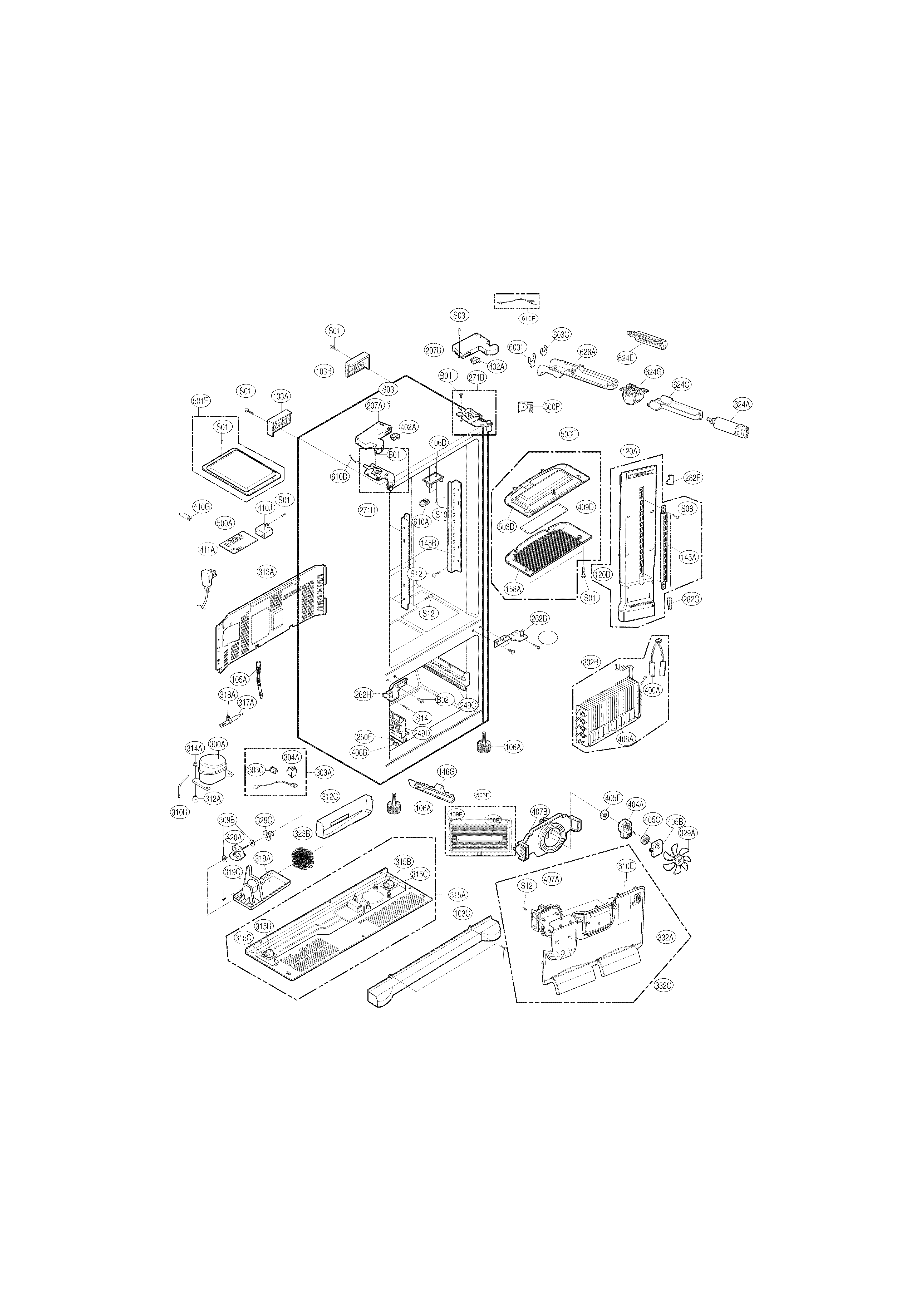

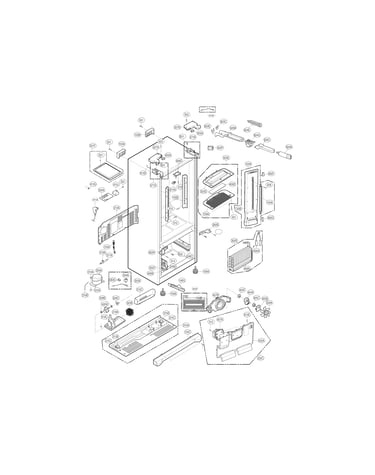

Refrigerator Water Filter Bypass

#624E

Case parts Diagram

$16.72

In Stock

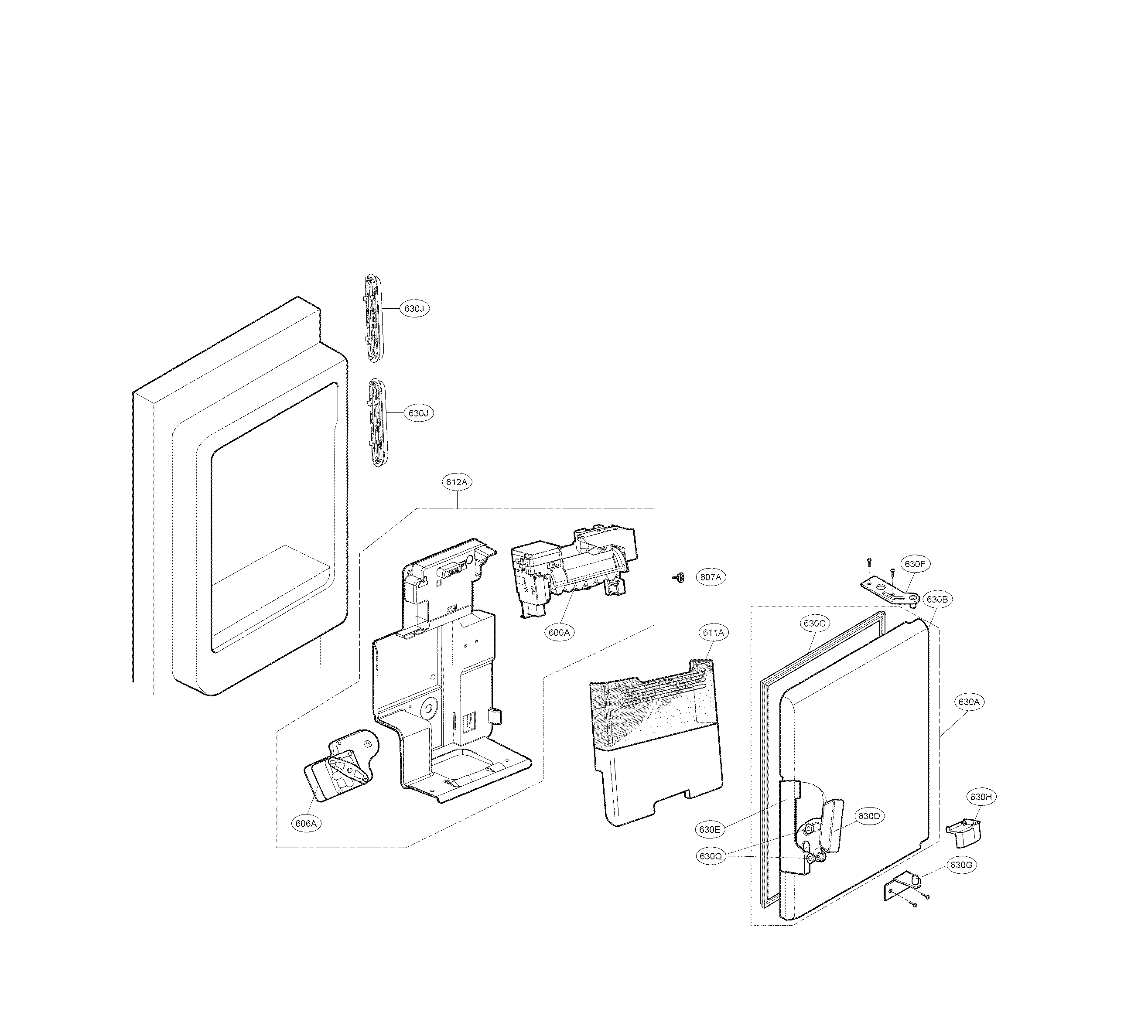

Refrigerator Ice Maker

#600A

Ice maker part Diagram

Refrigerator ice maker

Part #AEQ73110210
$147.93

In Stock

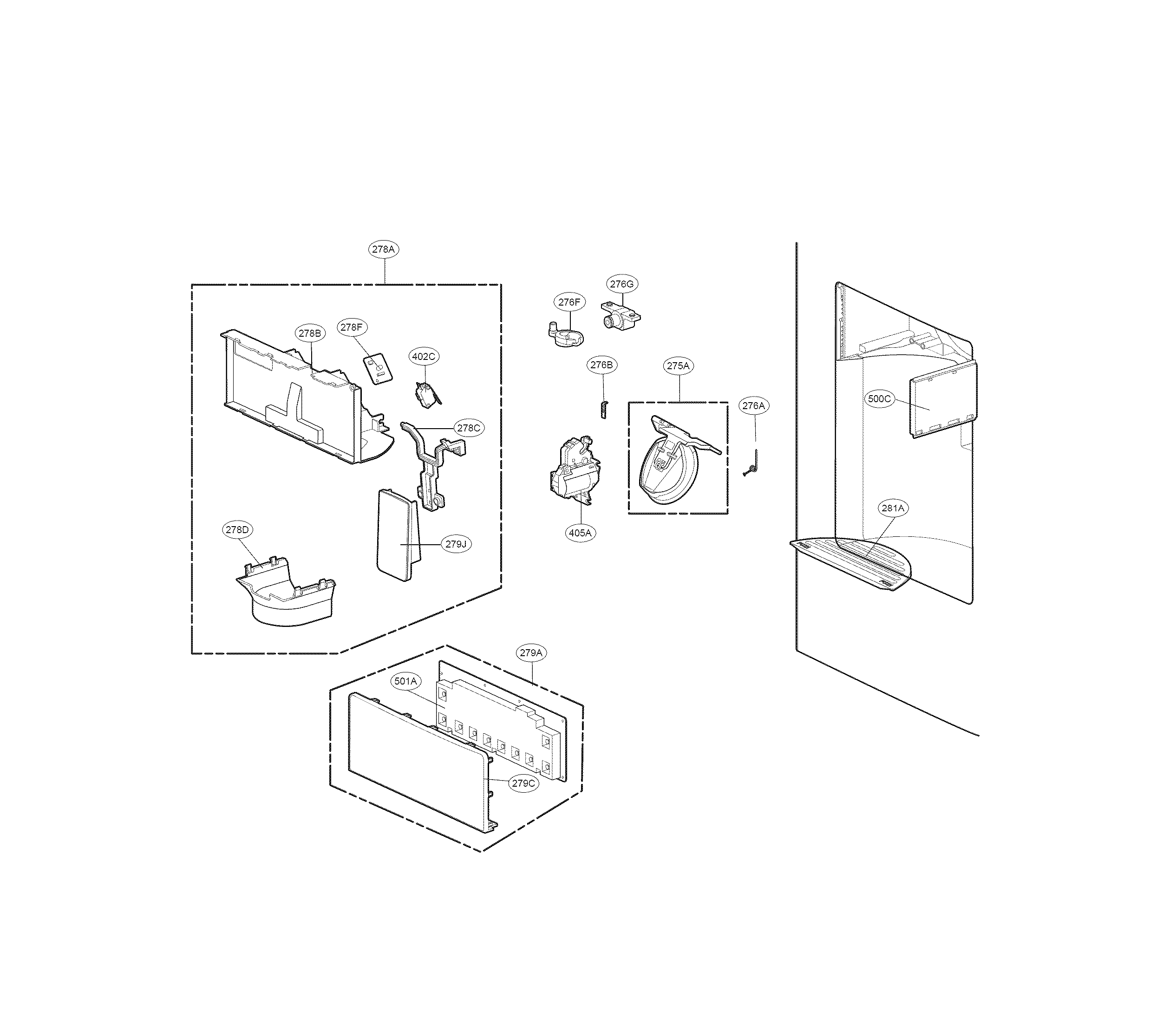

Refrigerator Dispenser Switch

#402C

Dispenser parts Diagram

$10.19

In Stock

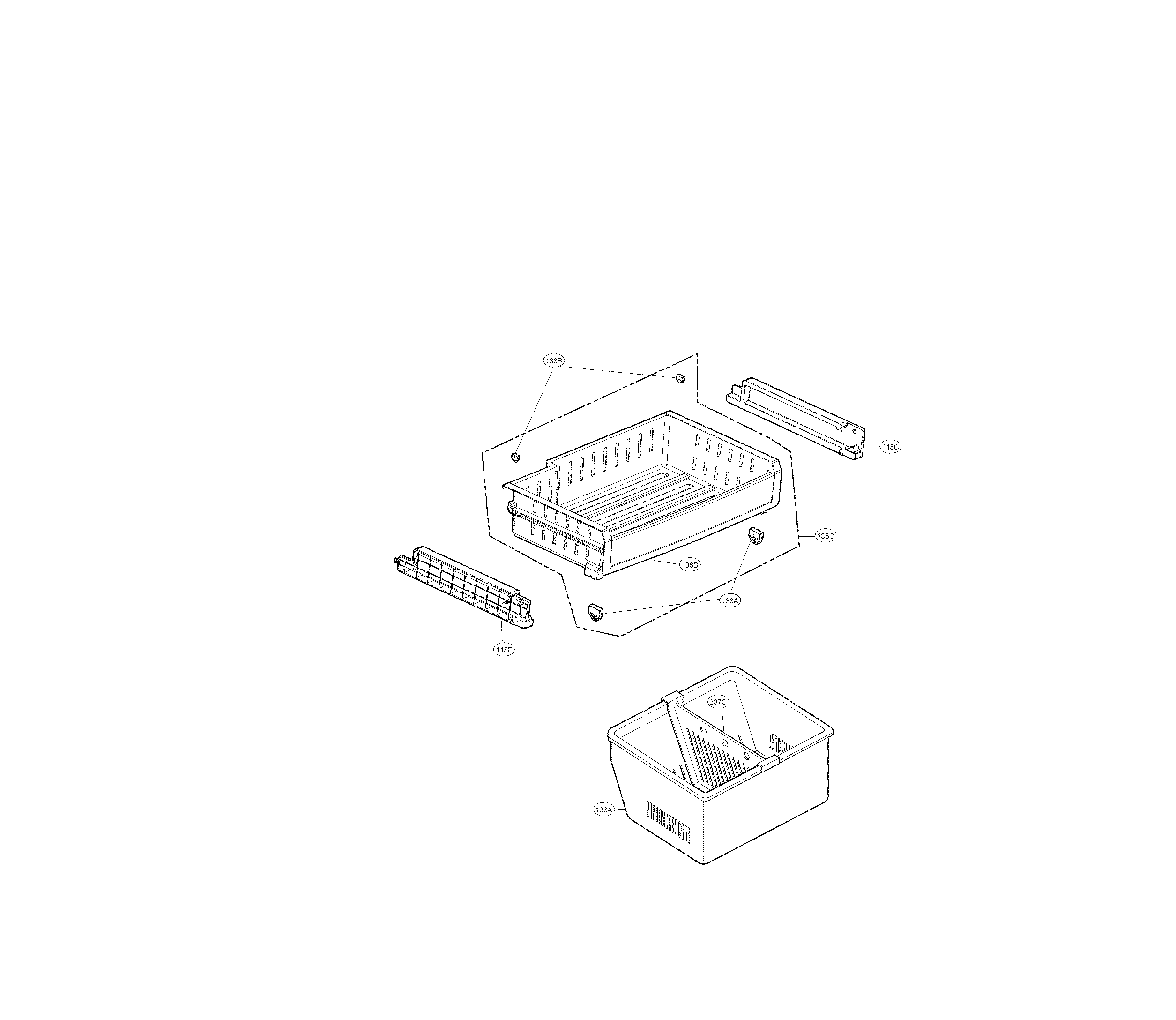

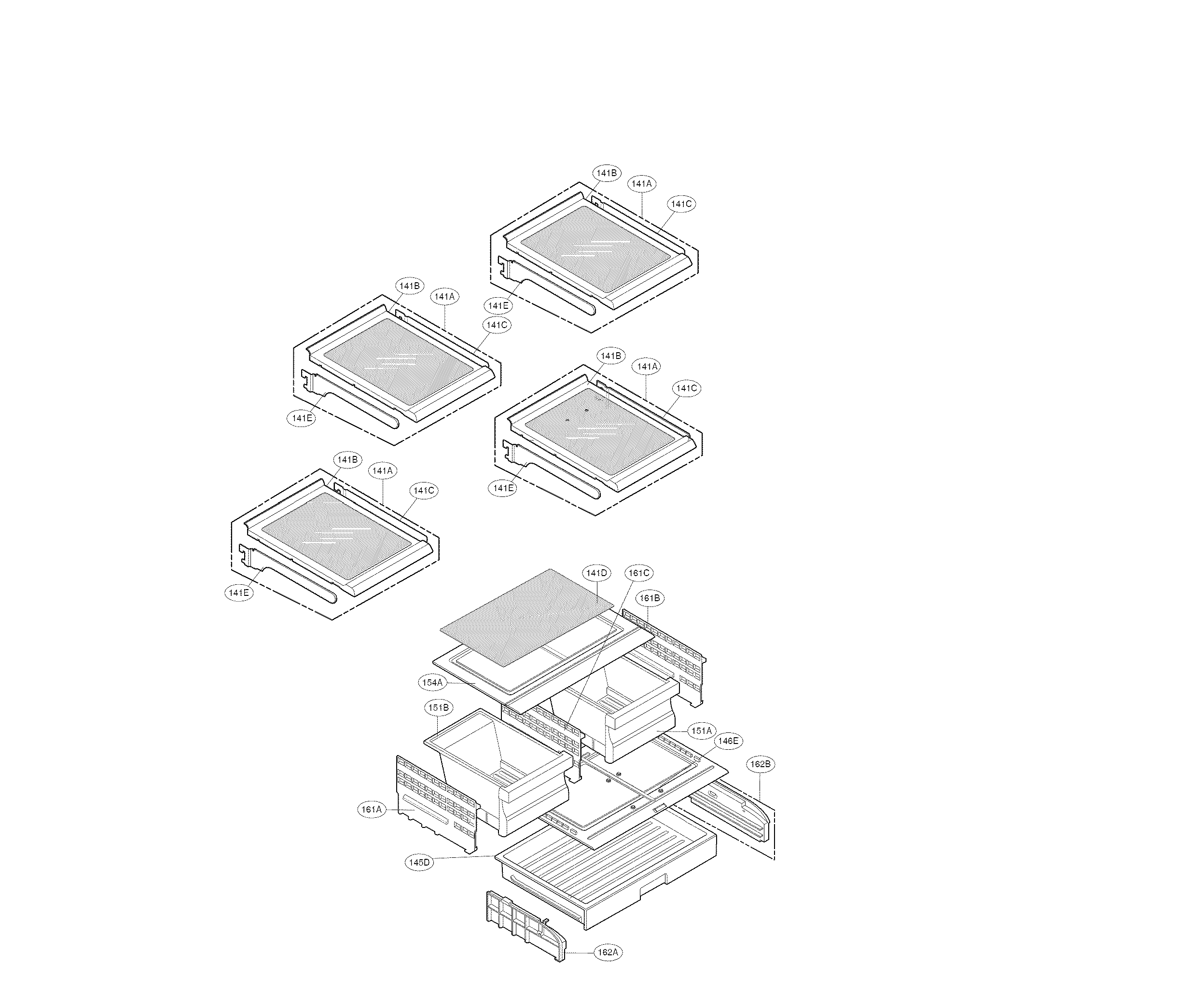

Refrigerator Deli Drawer

#145D

Refrigerator parts Diagram

Refrigerator deli drawer

Part #AJP73874601
$92.21

In Stock

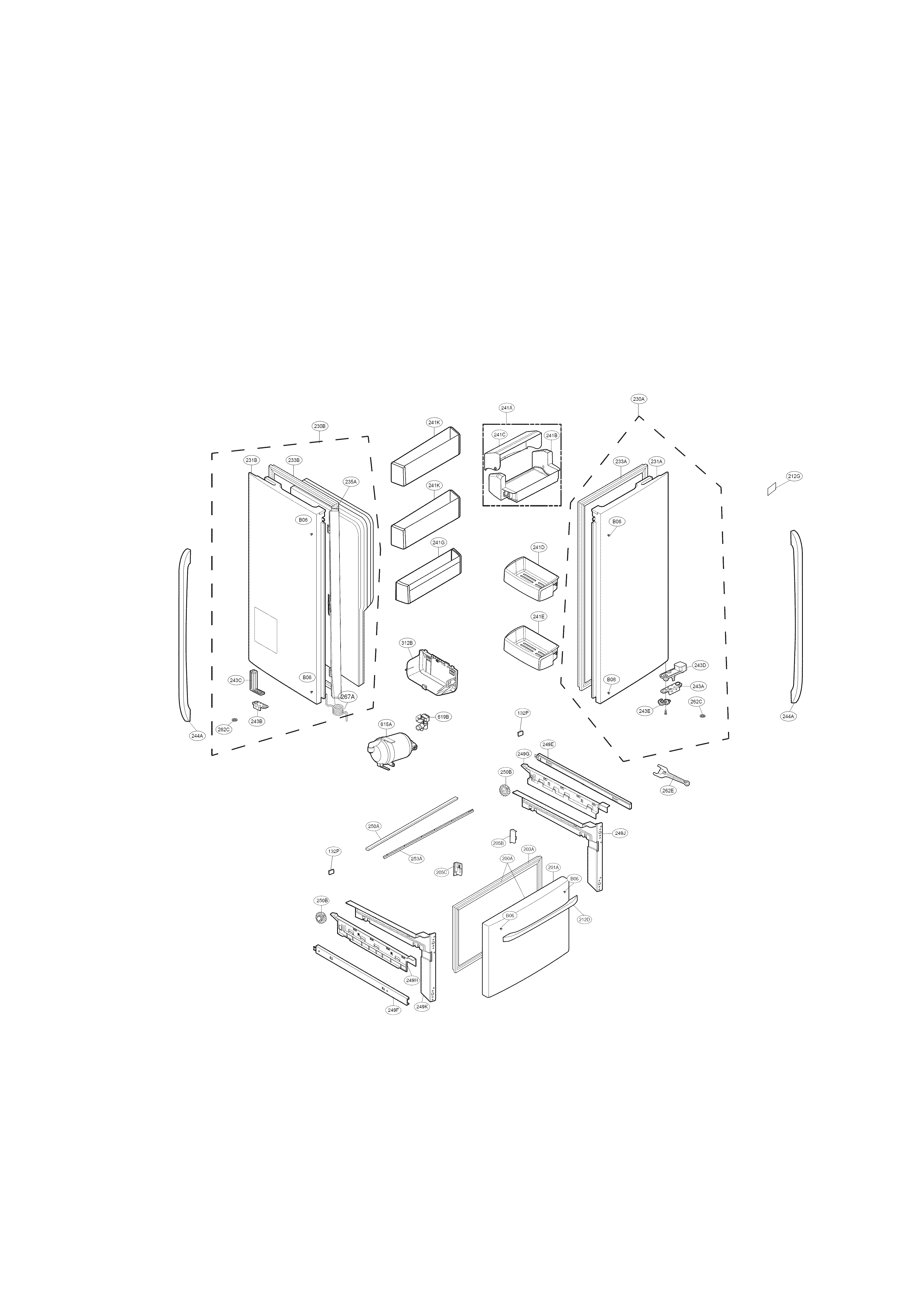

Refrigerator Flipper Assembly

#235A

Door parts Diagram

$72.27

In Stock

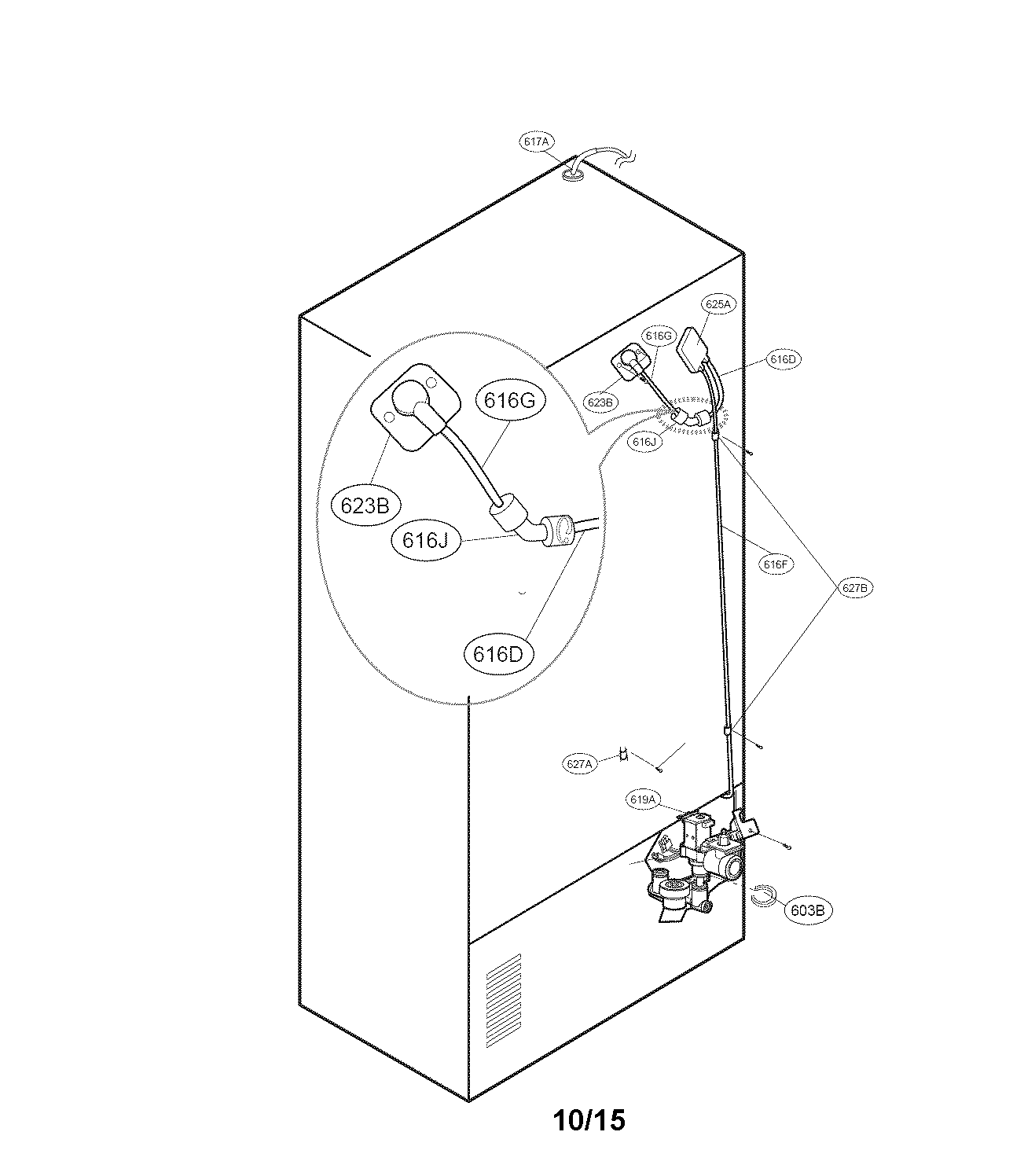

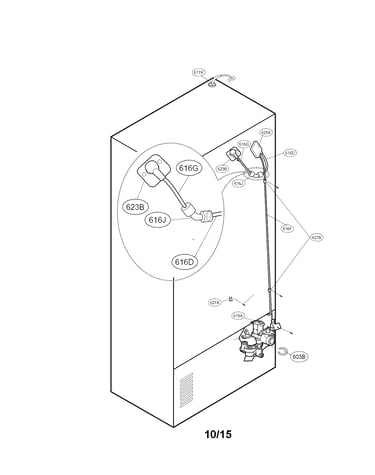

Refrigerator Water Inlet Valve

#619A

Valve and water parts Diagram

$97.84

In Stock

Refrigerator Dispenser Ice Chute Door Motor

#405A

Dispenser parts Diagram

$36.68

In Stock

Refrigerator Door Handle Mounting Bolt

#B06

Door parts Diagram

Refrigerator door handle mounting bolt

Part #MJB63190001
This item is not returnable
$3.37

In Stock

Refrigerator Water Inlet Valve

#619B

Door parts Diagram

$83.98

In Stock

Refrigerator Temperature Sensor

#610E

Case parts Diagram

$11.33

In Stock
