On the Frigidaire FRS26H5ASB4, H or HI typically indicates a high temperature alarm. It means the refrigerator or freezer temperature has been too warm for an extended period (often after a door was left open), so the control alerts you to protect food quality.

What to check first (quick fixes)

• Make sure both doors are fully closed and not being held open by a bin or package.
• Check that the door gaskets seal all the way around; gaps let warm air in.
• Confirm the refrigerator is level and slightly tilted back so doors close on their own.
• Avoid overloading shelves so air can circulate; blocked vents cause warm spots.
• After closing the doors, give the unit time to recover; temperatures can take several hours to stabilize.

Door seal and leveling tips

A poor seal is one of the most common reasons the HI/H alarm appears.

What you see	Likely cause	What to do
Door pops back open	Refrigerator not tilted back	Adjust front rollers so the cabinet tilts back about 1/4 inch (6 mm)
Visible gap or moisture near gasket	Warped or torn gasket	Clean gasket and sealing surface; replace if damaged
One door closes, the other opens slightly	Doors closed too hard	Close doors gently and recheck alignment

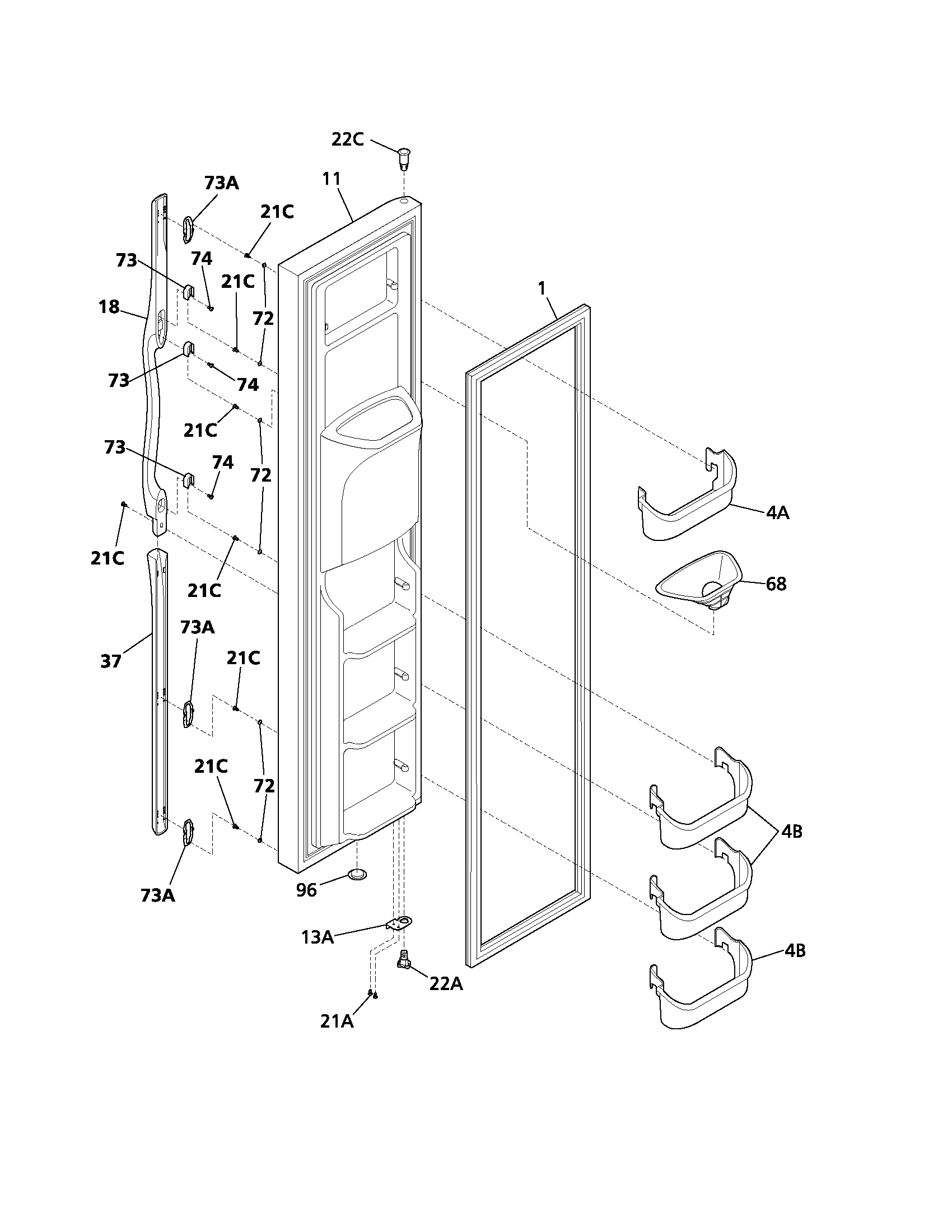

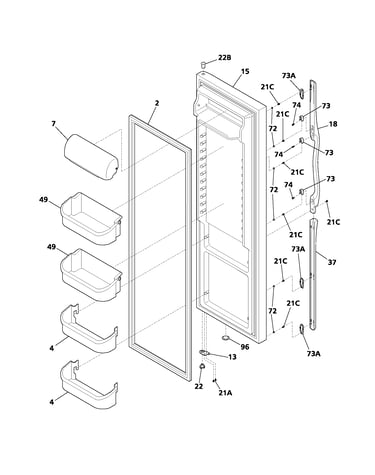

If the gasket is torn, hardened, or won’t seal after cleaning, replacing it is the lasting fix. For this model, common options include the refrigerator gasket 241786014 (freezer door gasket, gray) or the refrigerator gasket 241786013 (other door gasket), depending on which door is leaking.

Why it matters

When the refrigerator runs warm, food safety and ice production can be affected, and the compressor may run longer than normal. Restoring a tight door seal and proper airflow usually clears the alarm and helps the unit cool efficiently.

Where to find model-specific alarm behavior

For control display behavior and any alarm reset steps specific to FRS26H5ASB4, follow the guidance in the FRS26H5ASB4 owner's manual.

Last updated: February 2026

Yes. Frigidaire refrigerators, including the Frigidaire FRS26H5ASB4 side-by-side, are known for solid everyday performance and practical features at a good value. Long-term reliability depends most on correct temperature settings, good airflow, and routine care outlined in the FRS26H5ASB4 owner's manual.

What “good quality” means for a side-by-side refrigerator

Quality shows up in three areas: stable temperatures, consistent ice and water performance, and durable door sealing and shelving.

• Holds safe food temperatures when set correctly (fresh food about 34°F to 40°F; freezer 0°F or lower)
• Maintains even cooling when shelves are not overcrowded
• Runs more efficiently when the condenser is cleaned periodically
• Avoids many common ice and water issues when the dispenser system is flushed after service or filter changes
• Keeps temperatures steadier when doors seal tightly and the cabinet is level

Quick checklist to get the best performance from your Frigidaire

Use these habits to keep a Frigidaire side-by-side running like it should:

• Set temperatures to recommended ranges and give the unit 24 hours to stabilize after changes
• Do not block air vents; leave space around stored items for airflow
• Keep the refrigerator level so doors close tightly
• Clean the condenser on a regular schedule
• If you have a water dispenser, flush water for about 3 minutes after air enters the system (such as after a filter change)

Common “quality” complaints and what they usually point to

Many concerns are maintenance or adjustment related rather than a brand issue.

Symptom	Most common cause	What to check first
Warm fresh food section	Airflow restricted or controls set too warm	Reduce overcrowding; verify control settings
Frosty freezer or temperature swings	Door not sealing or frequent door openings	Inspect gaskets; confirm doors close tightly
Slow water flow or odd taste	Filter overdue or air in lines	Replace filter; flush dispenser
Noisy operation	Normal operating sounds or fan/airflow changes	Compare to “normal sounds” section in the manual

Why it matters

A refrigerator brand can only perform as well as its setup and care. Keeping proper temperatures (food safety), maintaining airflow (even cooling), and cleaning key areas (efficiency) are the biggest drivers of satisfaction and lifespan.

Last updated: February 2026

Cooling and temperature-control complaints are the most common issues we see with Frigidaire refrigerators like model FRS26H5ASB4, especially when the refrigerator section runs warm or the unit seems to run too long. In many cases, the root cause is restricted airflow, dirty condenser coils, or a defrost-related problem that leads to frost or ice buildup.

Quick checks that fix many “not cold enough” complaints

• Confirm the controls are not set to “0” (off) and allow 24 hours after any adjustment for temperatures to stabilize.
• Make sure doors are closing fully and not being held open by food containers.
• Inspect door gaskets for dirt, gaps, cracks, or poor fit; a leaking seal makes the refrigerator run longer.
• Clean the condenser coils; a dirty condenser is a common cause of warm temperatures and long run times.
• Reduce frequent door openings; warm air entering the cabinet quickly raises temperatures.

What the symptoms usually point to

Symptom	Most likely cause	What to do first
Freezer cold, fresh-food section warm	Airflow problem (often evaporator fan or frost blocking airflow)	Listen for fan operation; check for heavy frost on the back wall
Runs “all the time”	Dirty condenser, door seal leak, hot room, frequent openings	Clean coils; check gasket seal
Frost or ice buildup	Defrost system issue	Look for heavy frost; follow defrost troubleshooting in the FRS26H5ASB4 owner's manual
Clicking, gurgling, sizzling sounds	Normal operating sounds (defrost, fans, refrigerant flow)	Compare to the sound descriptions in the manual

Parts that commonly relate to these problems

If you confirm a seal or defrost issue, these model-matched parts are often involved:

• Refrigerator gasket 241786014 (door seal leaks cause warm temps and long run times)
• Refrigerator defrost bi-metal thermostat 5303918214 (defrost control component tied to frost buildup)

Why it matters

A refrigerator that is running warm or running too long can spoil food, increase energy use, and accelerate wear on the compressor. Addressing airflow, coil cleanliness, and door sealing early prevents bigger cooling failures.

Last updated: February 2026

Frigidaire refrigerators like model FRS26H5ASB4 typically do not have one universal external “reset button” for the whole unit; most resets are done by cycling power or by resetting a specific feature (such as the dispenser shutoff). For model-specific control and reset details, use the FRS26H5ASB4 owner's manual.

What “reset” usually means on this refrigerator

Most “reset” requests fall into one of these categories:

• Power reset (main control reset): unplug the refrigerator (or switch off the breaker), wait about 5 minutes, then restore power.

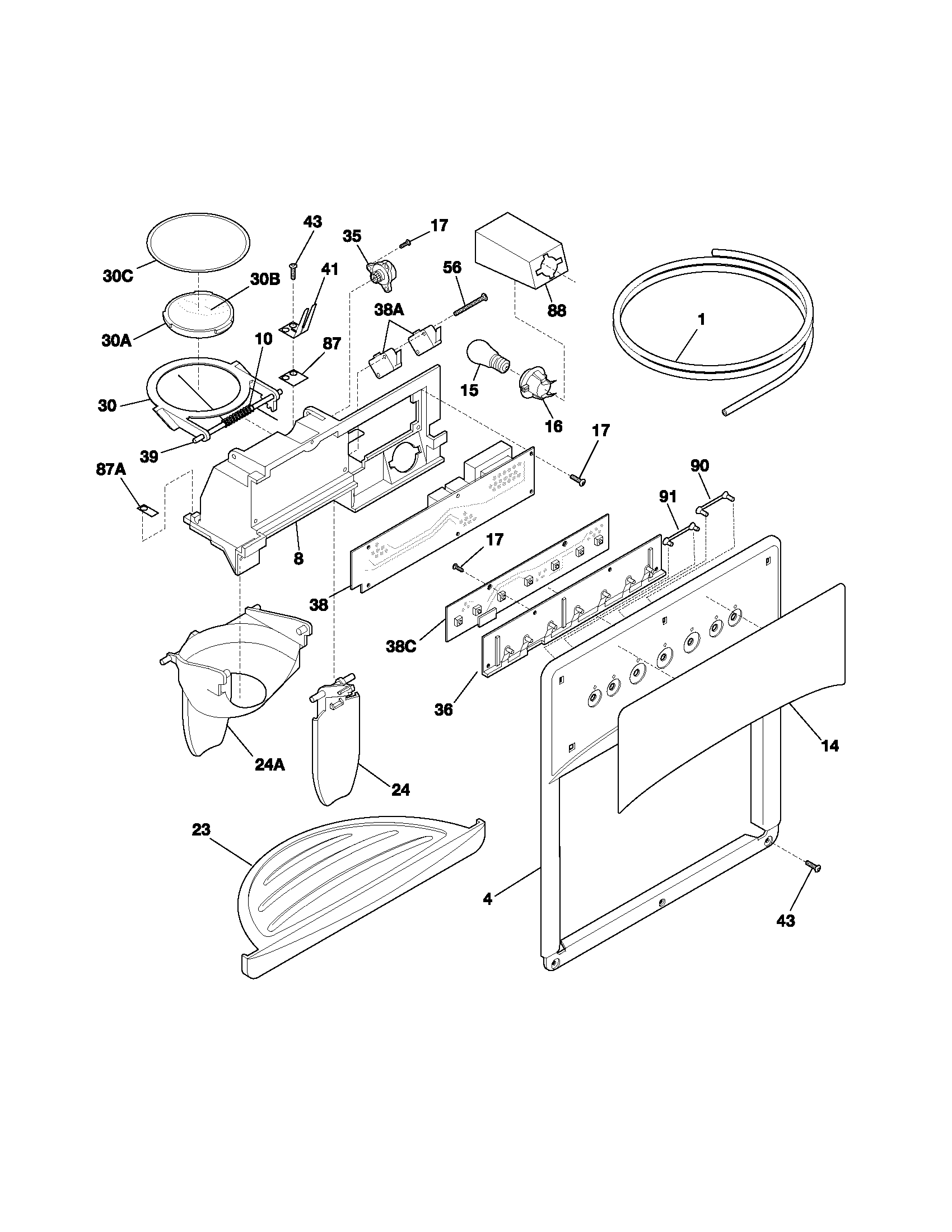

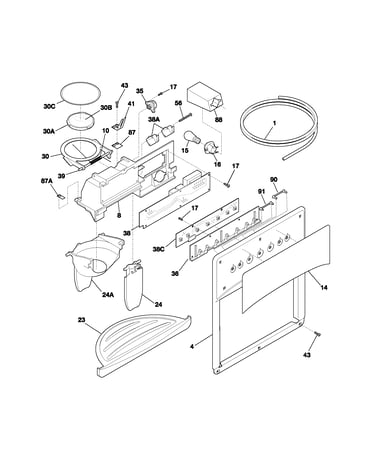

• Dispenser shutoff reset: if the dispenser stops after running continuously, release the paddle to reset the built-in 3-minute shutoff.

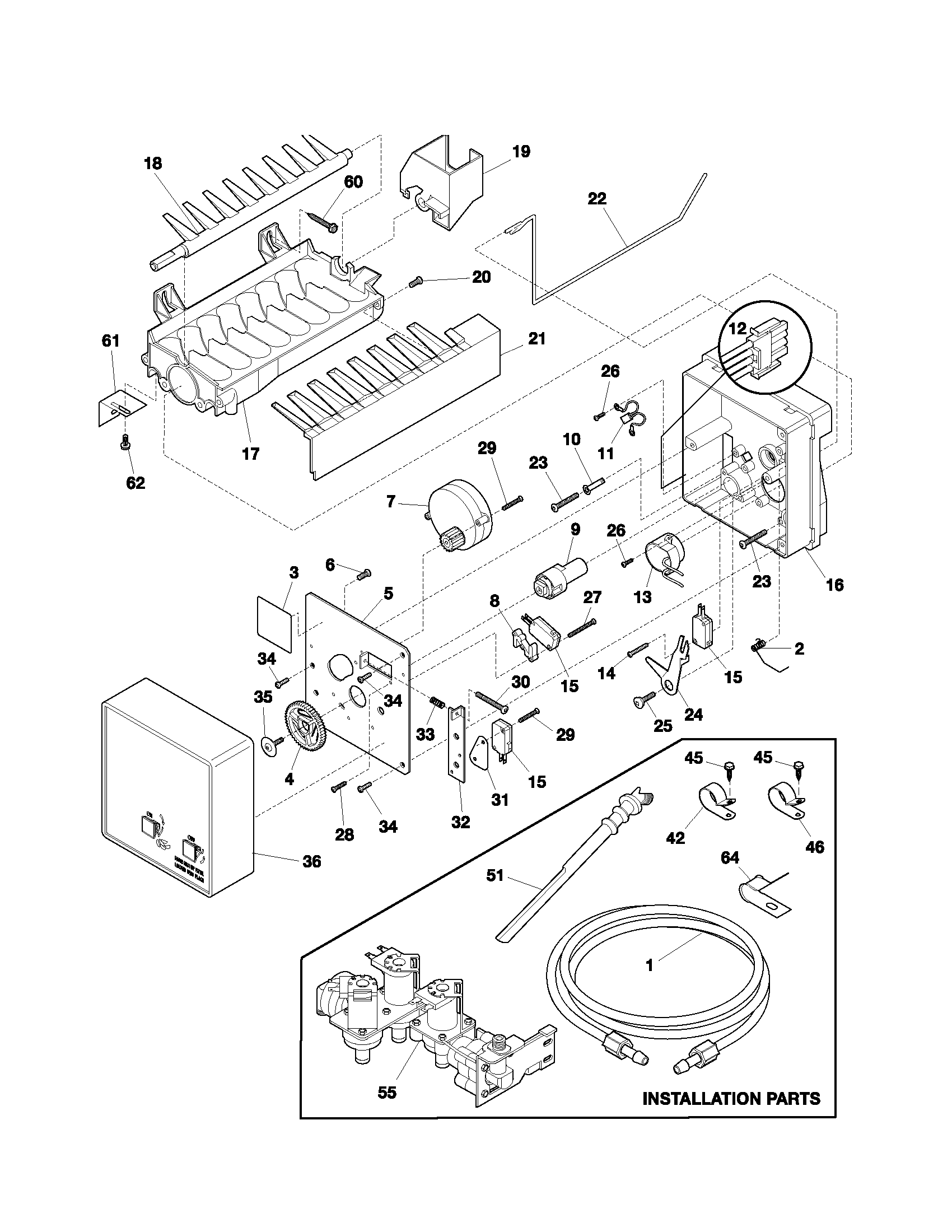

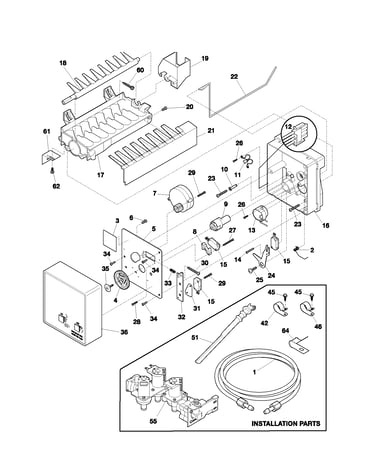

• Ice maker reset (mechanical): use the wire signal arm; down is ON, up is OFF.
• Temperature control reset: confirm the freezer control is not set to “0” (off) and allow time for temperatures to stabilize.

Quick reset steps we recommend

1. Check the basics first: make sure the unit is plugged in and the outlet has power.
2. Do a power reset: unplug for 5 minutes, then plug back in.
3. Wait for normal recovery: cooling can take 8 to 12 hours to fully stabilize after power is restored.
4. If the issue is water dispensing: flush and purge air; the first glass can take about 1 1/2 minutes after pressing the paddle when the tank is empty.

Common “no cool” or “not running” checks (fast triage)

Symptom	Most common cause	What to do
Compressor not running	Unit in defrost cycle	Wait; defrost is normal and can last about 30 minutes
No lights, no sound	No power to refrigerator	Check outlet, breaker, and cord condition
Runs too long	Doors opened often, hot room	Reduce door openings; confirm doors seal fully
Warm temps after reset	Normal stabilization time	Allow 24 hours for temps to settle after adjustments

Why it matters

Using the right “reset” prevents unnecessary part replacement and helps you pinpoint whether the problem is power-related, a normal defrost cycle, or a specific system like the dispenser or ice maker.
