Is it worth replacing a lawn mower engine?
Yes, it’s worth replacing the engine on your Craftsman lawn tractor model 917288620 when the deck, transaxle, and steering are in solid shape and the total engine swap cost stays well below the cost of replacing the entire tractor. If the tractor has multiple major issues, replacement is the better value.
Quick decision checklist
- The mower deck is straight, not rusted through, and cuts evenly after basic service
- The hydrostatic drive and steering feel normal (no slipping, binding, or severe play)
- You can complete basic maintenance safely (key out, spark plug wire disconnected)
- The engine problem is clearly internal (low compression, heavy smoke, thrown rod) versus fuel or ignition
- The engine replacement cost (engine plus labor) is under about half the price of a comparable new tractor
Repair first: common “engine” problems that are cheaper than an engine
Before committing to an engine, we recommend ruling out the most common no-start and low-power causes listed in the troubleshooting guidance.

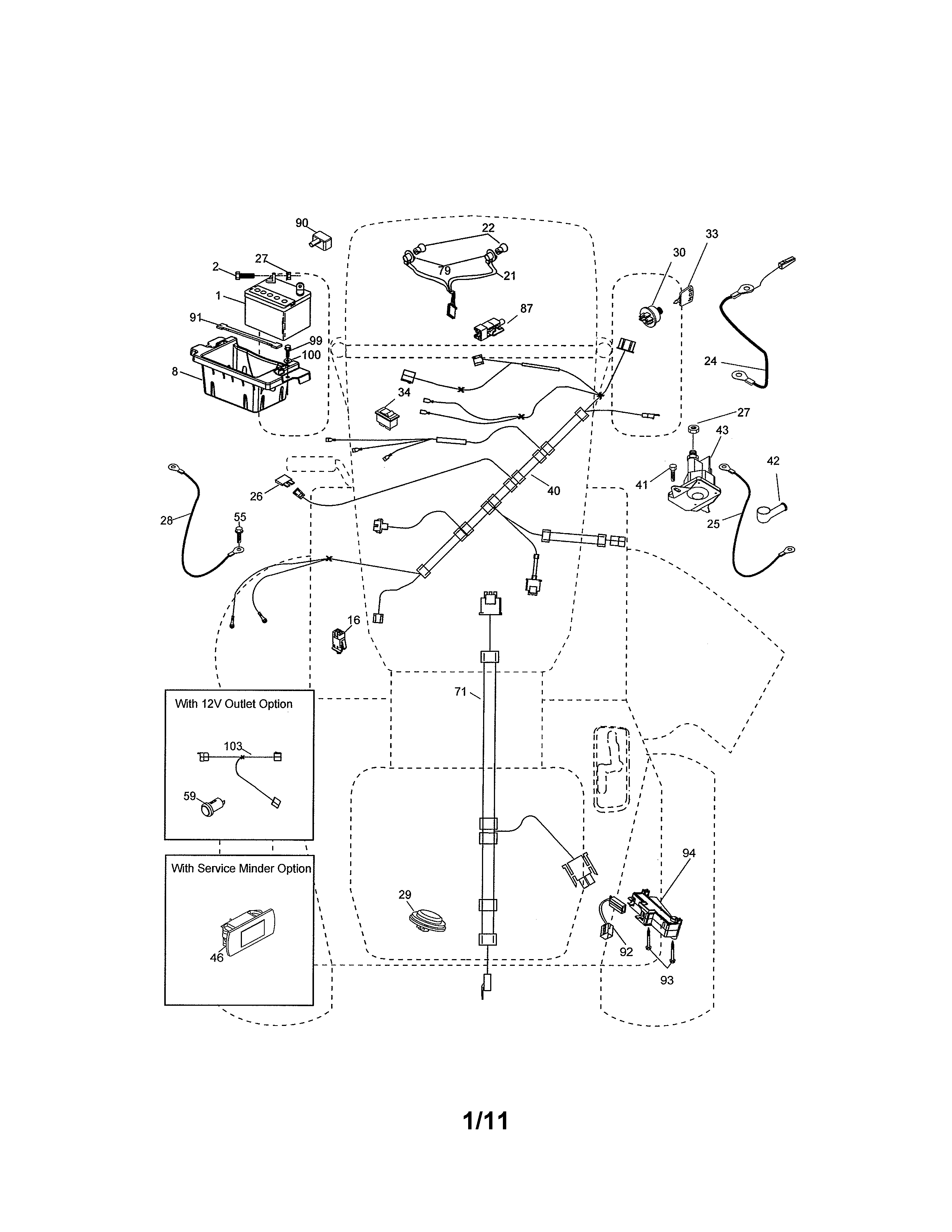

- Clicks but won’t start: battery, terminals, wiring, solenoid, starter
- Loss of power: clogged deck, dirty air filter, low/dirty oil, spark plug, fuel filter, stale fuel
- Safety shutoff issues: seat switch and interlock behavior can mimic engine failure
A failed starting circuit component is often the real culprit; for example, a weak solenoid is a common fix using the lawn tractor starter solenoid 582042802.
Cost comparison (typical)
| Option | What you get | When it makes sense |
|---|---|---|
| Tune-up and electrical repair | Restores starting and power issues | Clicking/no-start, rough running, stale fuel |
| Engine replacement | “Like-new” powerplant | Tractor is otherwise in great condition |
| Replace the tractor | New machine, new warranty | Multiple major systems are worn |
Why it matters
An engine swap is a big investment; if the deck drive system, blades, and mandrels are worn, you can still end up with poor cutting even after a new engine. Keeping the deck maintained (sharp blades, clean underside, correct belt condition) protects your investment.
Safety notes we follow during any service
Use the shutdown steps in the 917288620 owner’s manual before working around the engine or blades:
- Set parking brake; controls in neutral; PTO disengaged
- Key to STOP and remove it
- Wait for all moving parts to stop
- Disconnect the spark plug wire
Last updated: February 2026

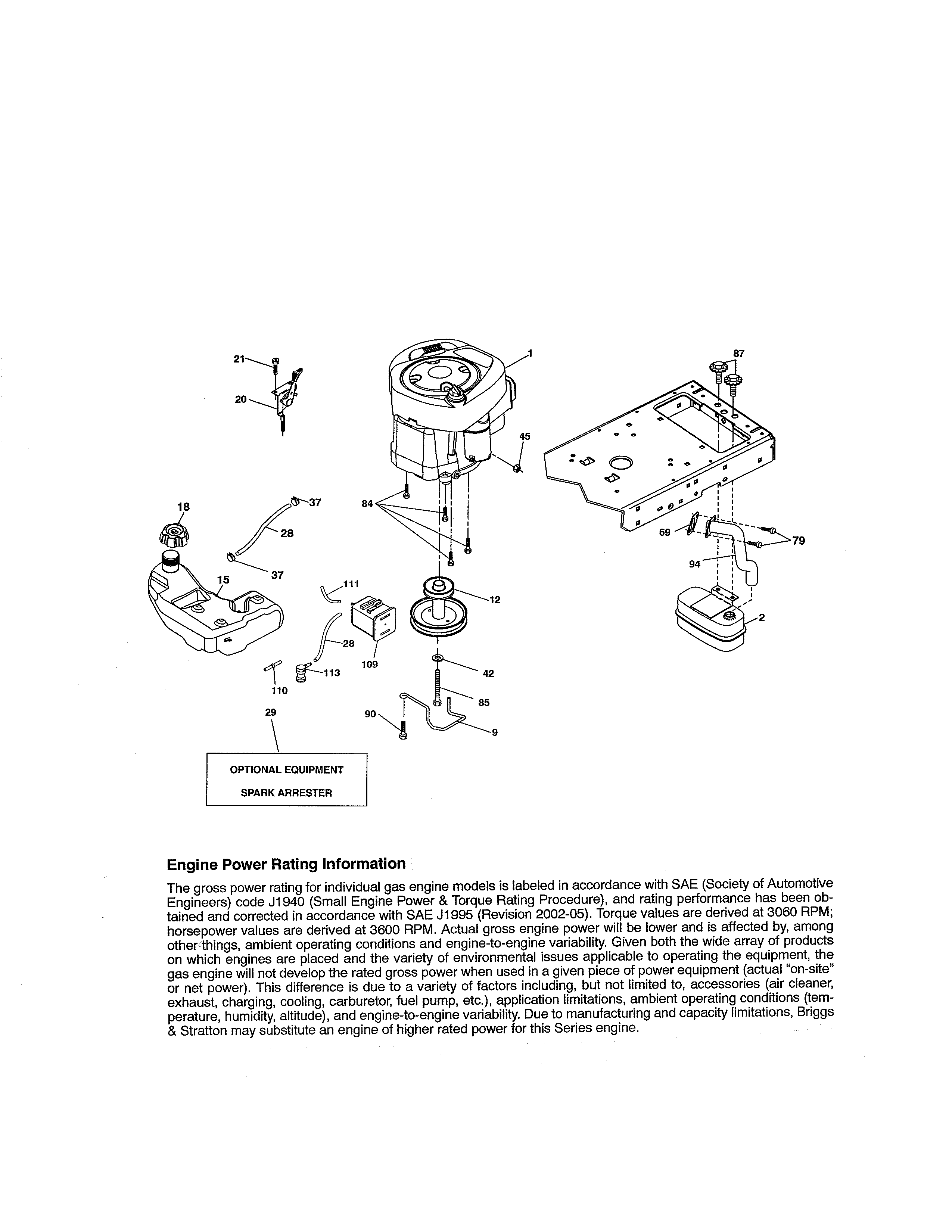

What engine does Craftsman riding mower use?
For Craftsman front-engine lawn tractor model 917288620, the operator’s manual identifies it as a low-emission gasoline engine and rates the tractor at 21.0 HP (as rated by the engine manufacturer). For the exact engine make and model, use the engine ID label and match it in the 917288620 owner's manual.
How to identify the exact engine on your tractor
We use the engine’s ID label (not the tractor model number) to confirm the engine manufacturer and model family.
- Turn the engine off, remove the key, and let the engine cool completely
- Open the hood and look for an engine label on the blower housing, valve cover, or near the starter
- Write down the engine model, type, and code (or spec number)
- Use those numbers to order engine parts (filters, plugs, carburetor parts)
- Use the tractor model 917288620 to order chassis and deck parts (belts, blades, steering)
What we can confirm from the manual (and what it means)
The manual for this tractor shows a 21.0 HP rating and notes a low-emission engine design. That tells you the power class and emissions system style, but the exact brand (for example, Briggs and Stratton, Kohler) is confirmed by the engine label.
| Item | What to use | Example of what it helps with |
|---|---|---|
| Tractor model number | 917288620 | Deck, steering, transmission, belts |
| Engine ID numbers | Model/type/code (or spec) | Tune-up parts, fuel system parts |
Why it matters
Ordering by the correct identifier prevents wrong parts. Engine parts are matched to the engine label, while mower-deck and drive components are matched to Craftsman 917288620.
If you are troubleshooting a no-start or clicking issue while identifying the engine, use riding lawn mower engine clicks but doesnt turn over video.
Last updated: February 2026
What model number is the Craftsman 42 riding mower?
For the Craftsman riding mower on this page, the model number is 917.28862 (often written without the dot as 91728862). If you are asking about a different Craftsman 42-inch mower, the model number is found on the product identification label and in the 917288620 owner's manual.
Where to find the model number on a Craftsman riding mower
We use the model number to match the correct parts (belts, blades, steering parts) and the right service procedures.
Check these common locations:
- Under the seat on the seat pan or fender area
- On the frame near the rear wheels
- Under the hood near the engine compartment
- On the left or right side of the frame rail
- In the first pages of the operator's manual
917.28862 vs 917288620: what the difference means
For Craftsman tractors, you may see the same model shown with or without punctuation or extra digits.
| You might see it as | What it usually indicates | What to do |
|---|---|---|
| 917.28862 | Manual-style model format | Use it to confirm the tractor family |
| 91728862 | Same model without the dot | Common in parts lookups |
| 917288620 | Extended/lookup format used on parts pages | Use it when searching parts online |
Why it matters for parts and repairs
Using the exact model number helps us match deck size and drive system details so you get the right items, such as a blade drive belt, ground drive belt, or deck hardware.
If you are replacing a wear item, match it to the model-specific parts list; for example, the husqvarna lawn tractor blade drive belt 584453101 is listed for this model page.
Last updated: February 2026

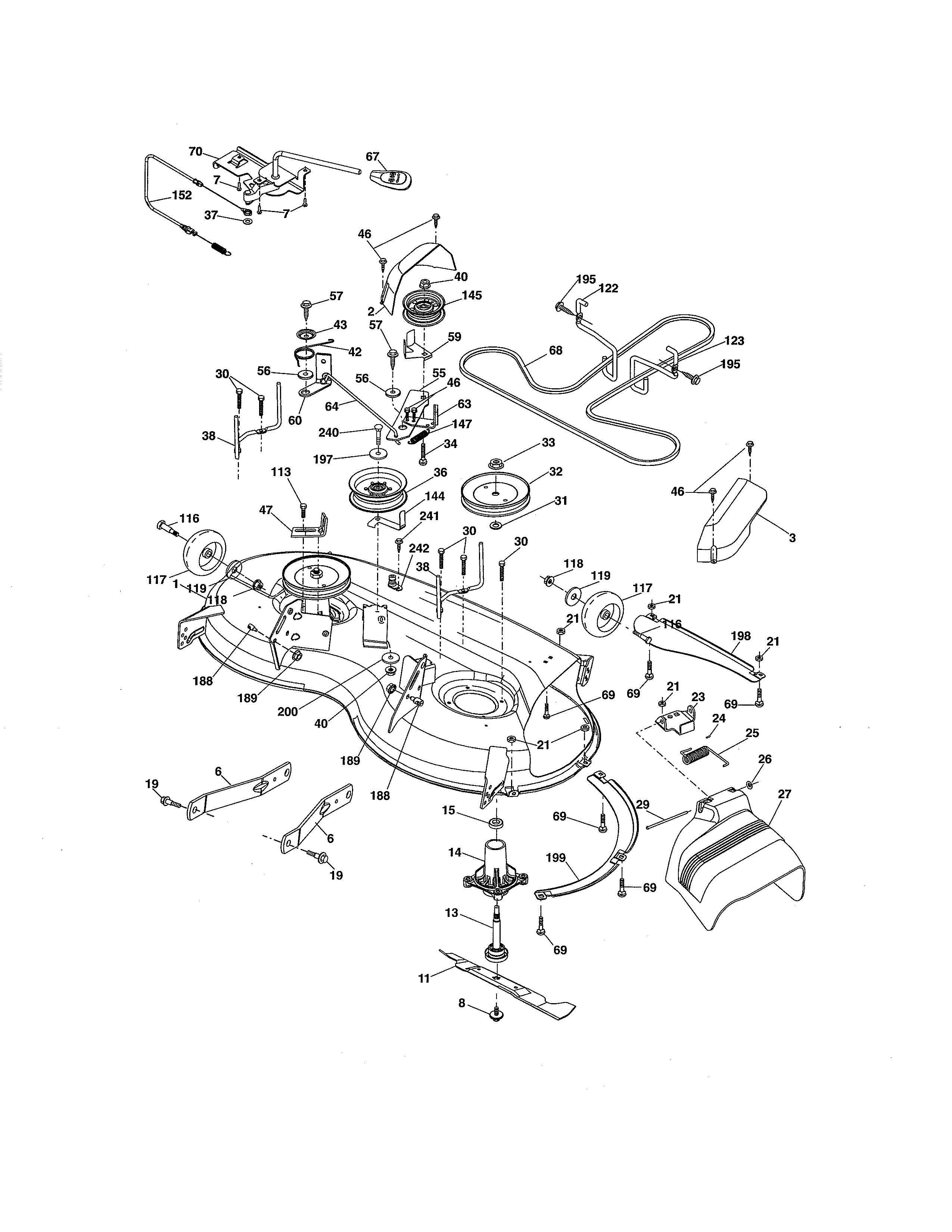

What size deck is a Craftsman model 917288620?
The Craftsman riding tractor model 917288620 uses a 46-inch mower deck. You’ll see it listed as a “46" Mower” in the 917288620 owner’s manual, which is the most reliable way to confirm deck size for ordering blades, belts, and deck parts.
How to confirm deck size on the tractor
We recommend verifying the deck size two ways so you order the right 46-in deck parts.
- Check the deck shell for a decal or stamping that shows 46 or 46"
- Measure the cutting width (blade tip-to-tip coverage) across the deck
- Count blades (most 46-in decks use two blades, but always confirm)
- Compare your blade length to the replacement blade spec for a 46-in deck
- Match belt routing and belt length to the 46-in deck configuration
Parts that commonly match a 46-in deck setup
If you’re servicing the cutting system on model 917288620, these are common deck-related items customers replace.
| Deck-related item | What it affects | Common symptom when worn |
|---|---|---|
| Blade | Cut quality | Ragged cut, streaking, clumping |
| Blade drive belt | Blade spin | Blades slip, squeal, slow to engage |
| Mandrel (spindle) assembly | Blade support | Vibration, rumbling, uneven cut |
| Mandrel pulley | Belt drive | Belt wear, noise, poor blade speed |
For example, the husqvarna lawn tractor 46-in deck high-lift blade 532405380 is a deck blade option listed for this model.
Why it matters
Deck size drives compatibility for key wear parts like blades, blade drive belts, mandrel assemblies, and deck lift components. Ordering by the confirmed 46-inch deck size helps prevent fit issues and saves time during installation.
Last updated: February 2026
What year was Craftsman model 917288620 made?
Craftsman model 917288620 was made across a production run (not a single model-year), so the exact year is identified by the manufacturing date code on the tractor’s product/serial number label. We use that label to match your specific unit to the correct parts and specifications.
Where to find the build date on the tractor
On most Craftsman front-engine lawn tractors like 917288620, the product label is typically:
- Under the seat pan (lift the seat)
- On the rear fender deck near the seat
- On the frame rail near the engine compartment
- Occasionally on the underside of the hood area
Use the diagrams and identification notes in the 917288620 owner's manual to confirm the label location and the correct way to record the model and serial information.
How to decode it (what to look for)
The label usually includes a serial number and sometimes a date code. Common formats include a month and year, or a longer serial where the date is embedded.
- Write down the full model number: 917288620
- Copy the entire serial number exactly as shown
- Look for any printed date fields (MFG DATE, DATE, DOM)
- If the label is worn, take a clear photo in good light
Quick guide: model number vs. serial number
| Item | What it tells us | Why it matters |
|---|---|---|
| Model number (917288620) | Tractor family/configuration | Gets you to the right parts lists |
| Serial number/date code | Your tractor’s specific build timing | Confirms the exact production year |
Why it matters
Craftsman tractors often keep the same model number while suppliers and components change during the run. Knowing the build year helps ensure you get the correct belt, deck, and steering parts for your exact configuration.
Last updated: February 2026
