Kenmore Elite 22-98002 electric freestanding range Parts

Kenmore Elite model 22-98002 does not use a dedicated “reset button” like some small appliances; most resets are done by cycling power or canceling a cooking mode at the control. If the range is acting up, a safe power reset is the first step before testing parts.

How to reset a Kenmore Elite electric range (22-98002)

• Press Cancel/Off to stop any active bake, broil, or self-clean cycle.
• If the control is unresponsive, turn OFF the range breaker for 1 minute, then turn it back ON.
• If the display returns but functions still fail, avoid repeated resets; it usually points to a control, sensor, or heating circuit issue.
• If the oven light is the only problem, focus on the light circuit instead of resetting.

What a “reset” fixes (and what it does not)

A power reset clears temporary control glitches, but it will not repair a failed heating element, temperature sensor, or door switch.

Symptom	Reset likely helps?	What to check next
Display frozen or keypad not responding	Yes	Power cycle, then inspect wiring connections
Oven not heating to temp	Sometimes	Bake element, broil element, oven sensor
Oven light not working	No	Bulb, light assembly, socket wiring
Door won’t close or heat leaks	No	Door hinge, door gasket

Parts that commonly relate to “won’t heat” or “acts weird” complaints

If the reset does not restore normal operation, these model-compatible parts are common next checks:

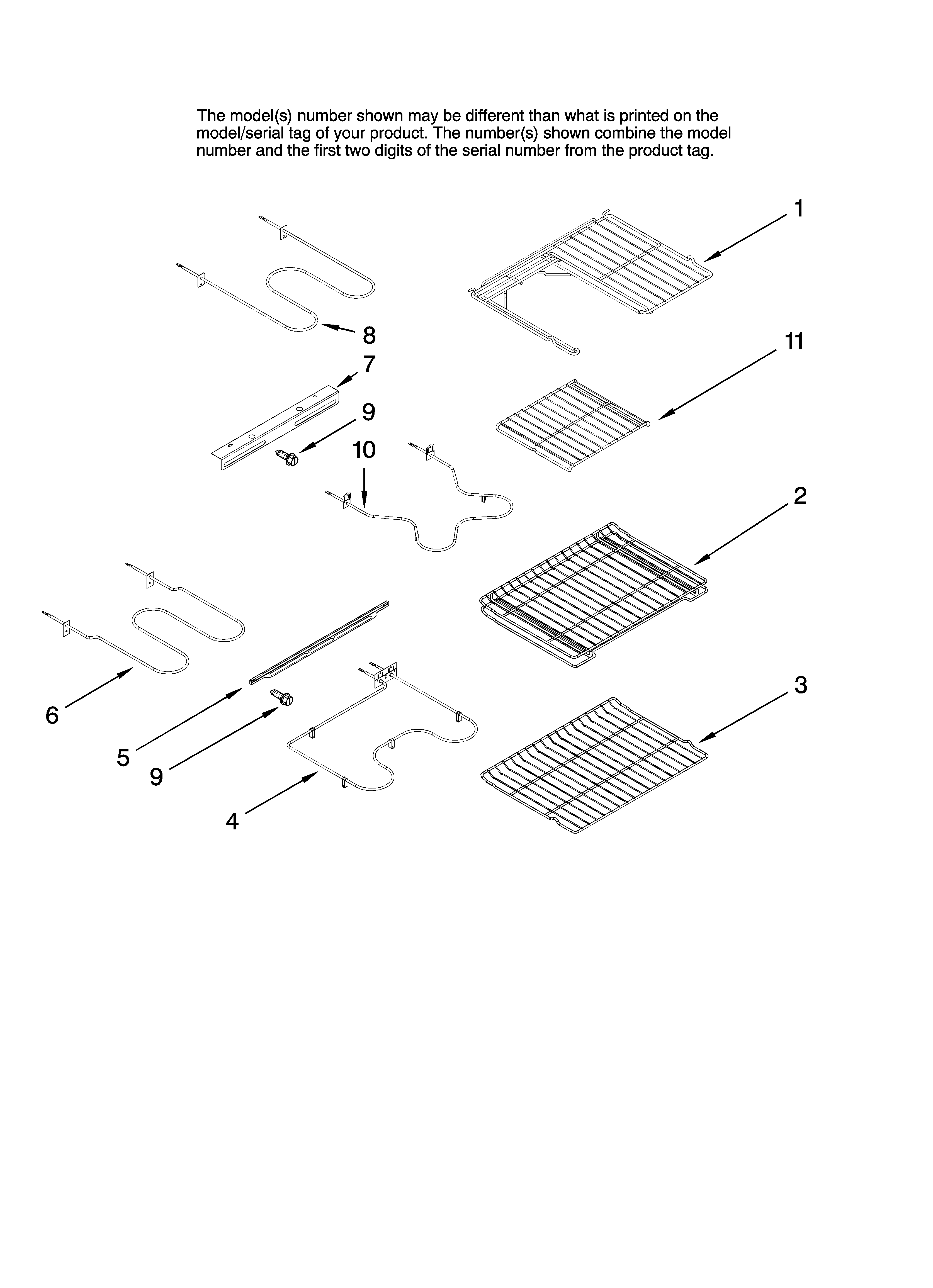

• Range bake element 74004105 for no-bake or weak-bake symptoms
• Range broil element W10201551 for no-broil or poor top heat
• Range oven door gasket WPW10162384 if heat leaks or cooking is uneven
• Oven bulb 8009 if the only issue is the oven light

Why it matters

Repeatedly “resetting” a range can mask an overheating connection or a failing component. A quick reset is fine, but consistent problems are best solved by checking the heating circuit and related parts.

Last updated: January 2026

For your Kenmore Elite electric freestanding range model 22-98002, the model number is typically printed on a rating label on the oven frame; the most common spot is along the door opening where the oven door closes.

Most common places to check

Look for a paper or metal tag that includes the model number and serial number. Check these spots first:

• Along the oven frame behind the storage drawer (remove the drawer to look on the frame)
• On the left or right side of the oven door opening (visible when the door is open)
• Behind the lower kick panel or toe panel (if your range has one)
• On the back panel of the range (you may need a flashlight)
• Inside the warming drawer area (if equipped)

What the label looks like

The rating label usually includes several identifiers. Here is what you will typically see:

Label item	What it’s used for
Model number (example: 22-98002)	Matching the correct parts and diagrams
Serial number	Identifying production run and date codes
Electrical rating (volts/amps)	Confirming power requirements for safe service

Why it matters

We use the model number to match the exact version of your Kenmore Elite range to the correct parts list. That prevents ordering look-alike parts that do not fit, such as an oven light component or door seal.

Quick tip if you’re already troubleshooting

If you are checking the model number because the oven light is out, the light-related parts commonly used on this model include the oven bulb 8009 and the wall oven light assembly WP74011278.

Last updated: January 2026

If your Kenmore Elite electric freestanding range model 22-98002 oven is not working, the most common causes are a failed heating element, a temperature-sensing problem, or a power/control issue. Start by confirming the range has proper power, then check the bake and broil circuits and related wiring.

Quick checks first (no disassembly)

• Make sure the range is fully plugged in and the cord is not loose.
• Check the home breaker: many electric ranges use a double-pole breaker; a half-tripped breaker can leave the oven dead.
• Confirm the control is set to Bake (not Delay Start or Sabbath mode, if equipped).
• If the display works but there is no heat, suspect a heating or sensing issue.

Most common part-related causes on this model

1) Failed bake or broil element

A broken element can stop heating (or cause very weak heating).

• Inspect for blisters, cracks, or burned spots.
• Test the element for continuity with a multimeter.
• For baking problems, the likely replacement is the range bake element 74004105.
• For broil problems, check the range broil element W10201551.

2) Temperature sensing issue

If the oven heats erratically, overheats, or will not maintain temperature, the oven temperature sensor or its wiring can be the cause.

• Look for loose connections at the sensor harness.
• Test sensor resistance at room temperature (typical sensors read around 1,000 to 1,100 ohms at 70 F).

3) Wiring or connection failure

Heat-related vibration and high temperatures can damage terminals.

• Inspect for burned connectors at the element and control.
• Repair damaged conductors using proper high-temp connectors.
• Use how to use a multimeter to test electrical parts video to verify voltage and continuity safely.

What to test (simple troubleshooting table)

Symptom	Most likely checks	Common fix
No heat in Bake, Broil works	Bake element, wiring to bake	Replace bake element or repair wiring
No heat in Broil, Bake works	Broil element, wiring to broil	Replace broil element or repair wiring
Oven heats but temps are off	Sensor, sensor wiring	Replace sensor or repair connection
Oven totally dead	Breaker, terminal block, control power	Restore power, repair connection, service control

Why it matters

An oven that is not heating correctly can lead to undercooked food and extended run times that stress components like elements, wiring, and insulation.

Last updated: January 2026
