Model # CFEF3012PWD Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF3012PWD electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

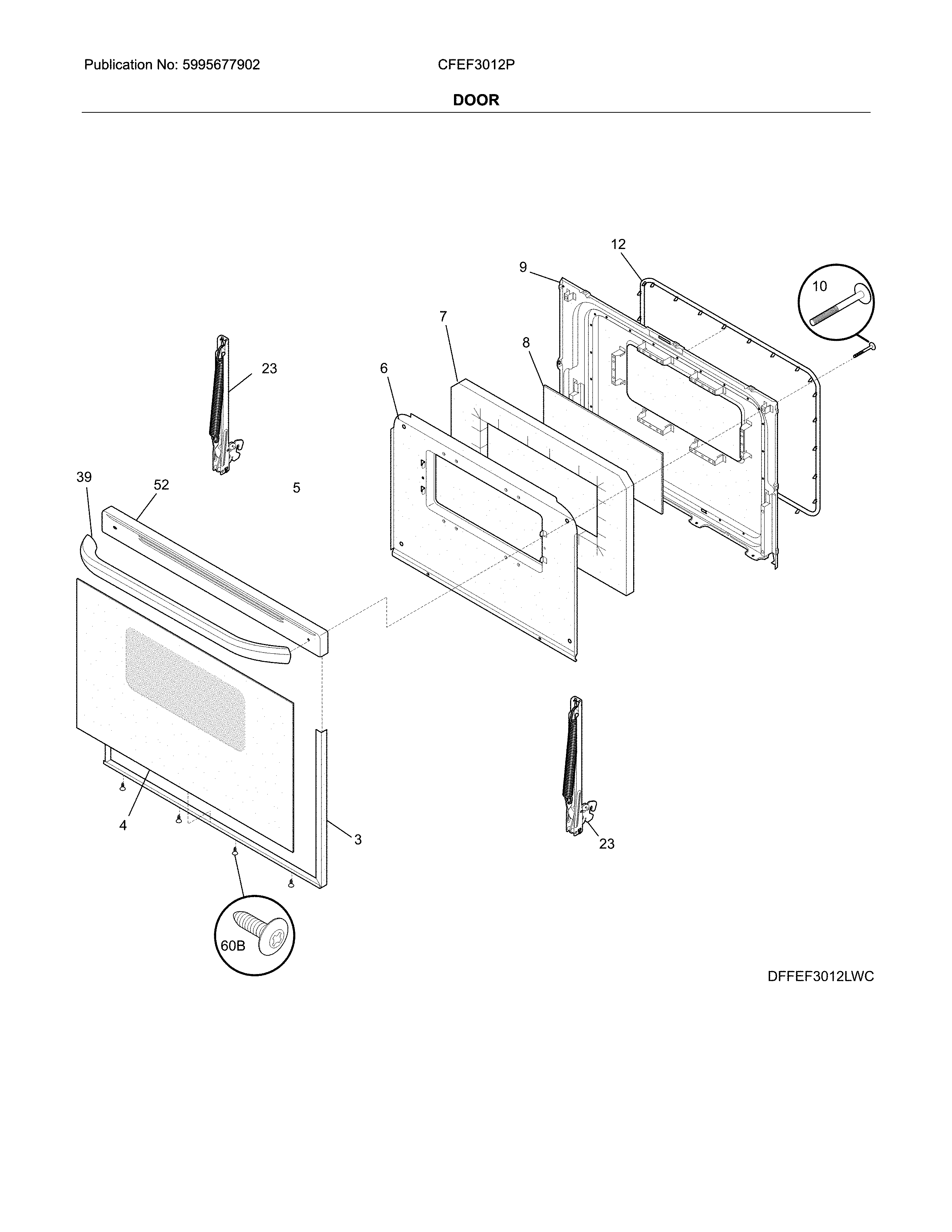

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

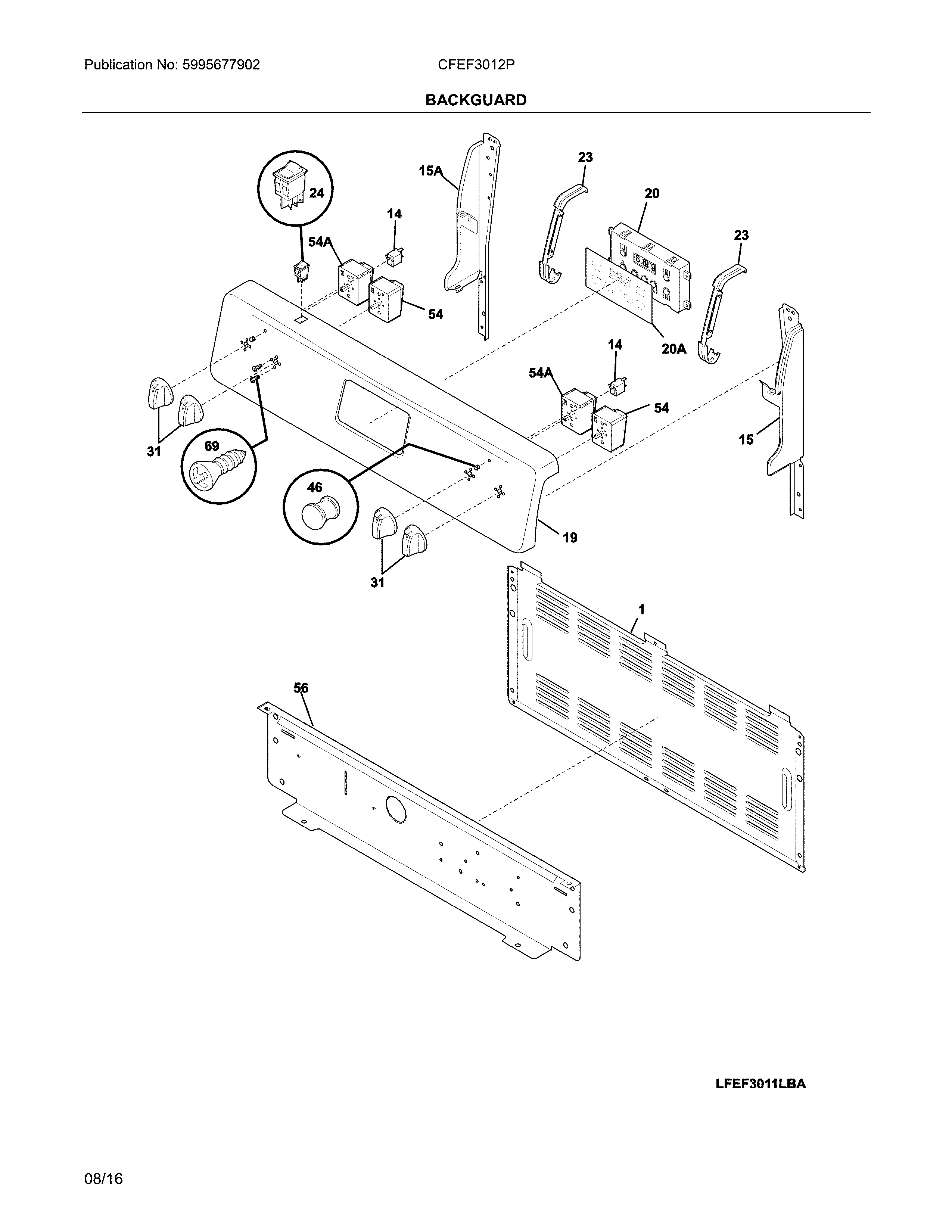

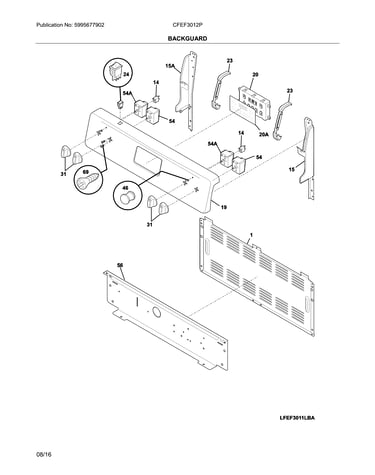

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$35.07 |
15% OFF Phone Price : $41.07
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

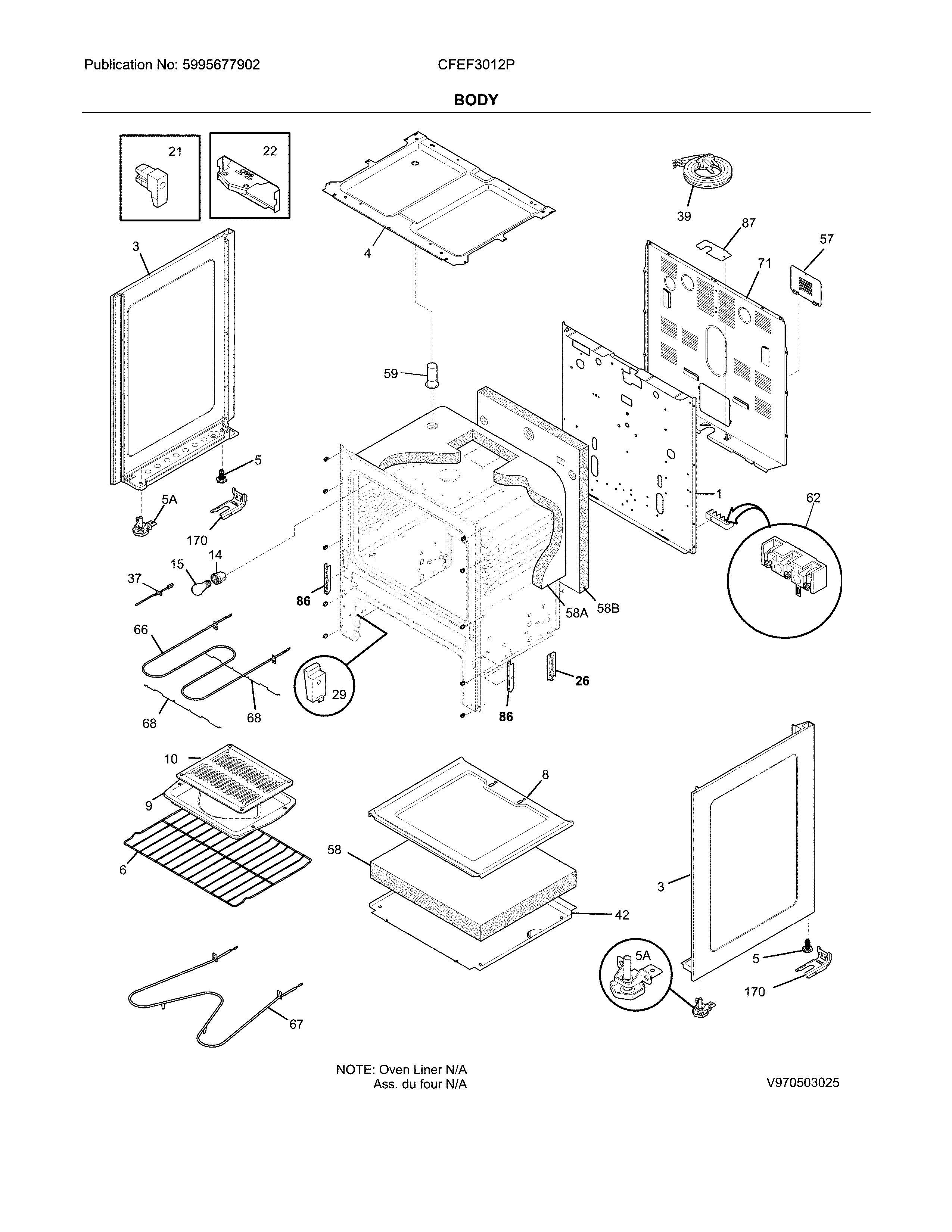

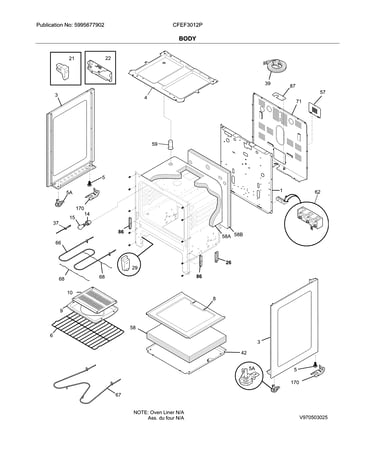

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Block 5303912666
#27

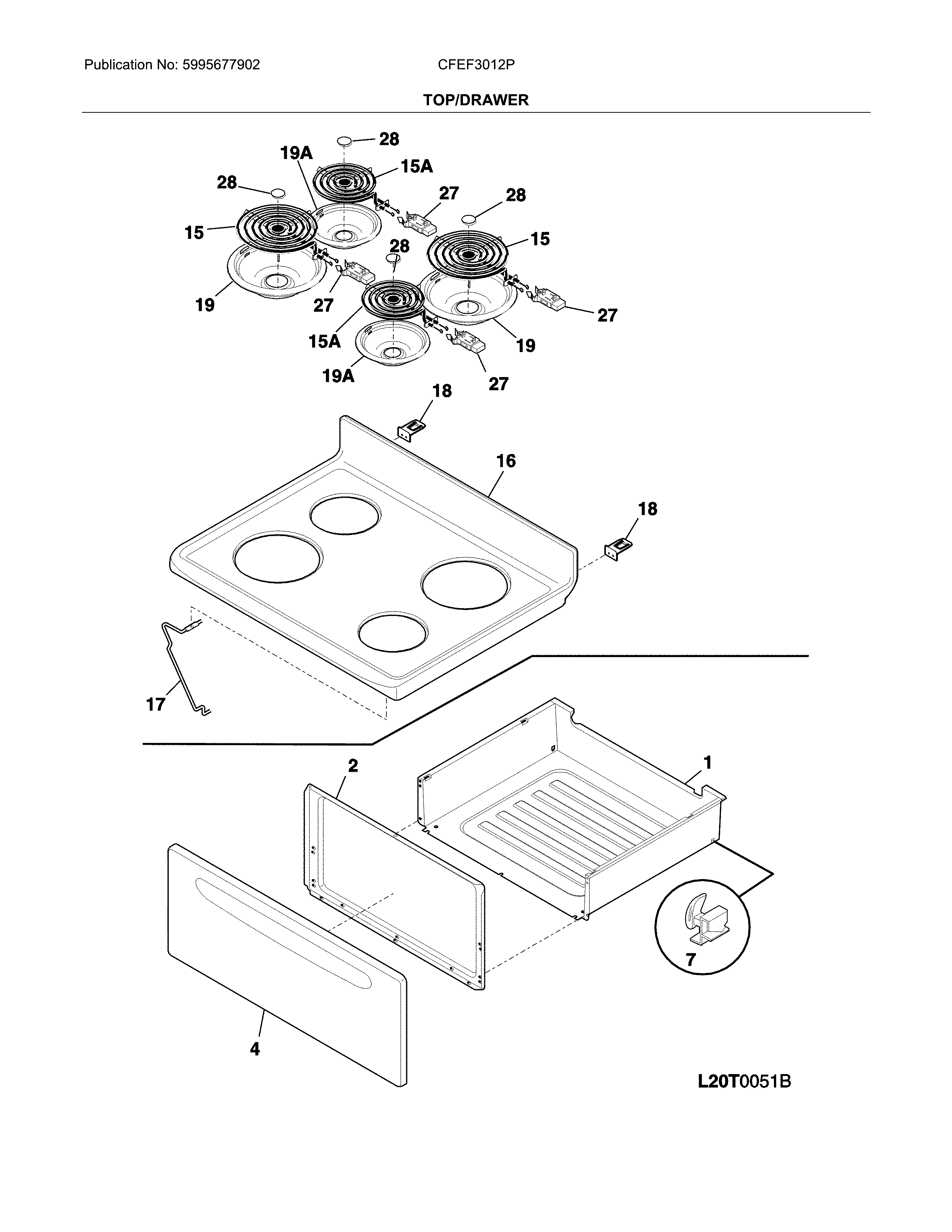

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.19 |
11% OFF Phone Price : $9.19
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$13.25 |
13% OFF Phone Price : $15.25
In Stock
Range Oven Control Overlay 316220725
#20A

Backguard diagram

Range oven control overlay

Part #316220725

BEST SELLER
$32.78 |
15% OFF Phone Price : $38.78
In Stock
Range Coil Surface Element, 6-in (replaces 316439800) 318372210
#15A

Top/drawer diagram

Range coil surface element, 6-in (replaces 316439800)

Part #318372210

BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Range Oven Control Overlay 316220722
#20A

Backguard diagram

Range oven control overlay

Part #316220722

Replaced by #316220728

?
Manufacturer substitution
This part replaces 316220722. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$31.73 |
16% OFF Phone Price : $37.73
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
