Frigidaire FGGF3054MFD gas range Parts

On the Frigidaire gas range model FGGF3054MFD, the model and serial number are on the identification plate on the right-hand surface of the oven front frame. You can access it by opening the storage drawer, warmer drawer, or broiler drawer (depending on your configuration); see the installation guide.

Where to look (fast checklist)

• Pull out and open the storage drawer (common on many ranges)
• If your range has one, open the warmer drawer
• If your range has one, open the broiler drawer
• Look at the right-hand side of the oven front frame for the identification plate
• Take a clear photo of the plate so you have it when ordering parts or scheduling service

What information to write down

Record these exactly as shown on the identification plate:

• Model number (FGGF3054MFD)
• Serial number
• Lot number or letter (often needed for parts lookups)

Why it matters

We use the model and serial information to match the correct Frigidaire parts and specifications for your exact build. The identification plate can also list burner ratings, fuel type, and the gas pressure setting the range was adjusted for at the factory.

Quick reference table

Item on tag	What it’s used for
Model number	Ensures parts diagrams and replacements match your range
Serial number	Identifies production run and configuration
Lot number/letter	Helps narrow down correct part variations

Last updated: February 2026

Yes. Looking up parts by model number is the most accurate way to get compatible replacement parts for your Frigidaire gas range model FGGF3054MFD because it filters results to the exact burner, oven, and control components used on that range.

How to find the model number on FGGF3054MFD

For this Frigidaire range, the identification plate is on the right-hand surface of the oven front frame. Open the storage drawer, warmer drawer, or broiler drawer (depending on your configuration) to access it; then record the model and serial numbers.

• Open the drawer and locate the identification plate on the oven front frame
• Write down the full model number (FGGF3054MFD) and the serial number
• Also note any lot number or letter shown on the plate (helpful for parts matching)
• Use that exact model number when searching for parts
• Confirm the part description matches the symptom you are fixing

Reference: FGGF3054MFD owner’s manual

What you can find when you search by model number

Searching by model number helps you quickly narrow to common repair parts for ignition, heating, and temperature control.

Common symptom	Likely part category	Example part for this model
Oven will not heat or takes too long to ignite	Oven igniter	Tappan range oven burner igniter 316489403
Oven temperature is inaccurate	Temperature sensor	Frigidaire range oven temperature sensor 316490000
Cooktop burner will not spark/ignite	Ignition system	Range spark module 5304508269

Why it matters

Model-number lookup prevents ordering a part that looks similar but mounts differently, uses a different connector, or is calibrated differently (common with igniters, sensors, and spark modules). That saves time and avoids repeat repairs.

Last updated: February 2026

A gas stove (gas range) like the Frigidaire FGGF3054MFD is made up of surface cooking parts (burners, caps, grates, knobs, igniters) plus an oven system (bake/broil burner and igniter, temperature sensing, racks, door components) and controls that manage ignition and heat.

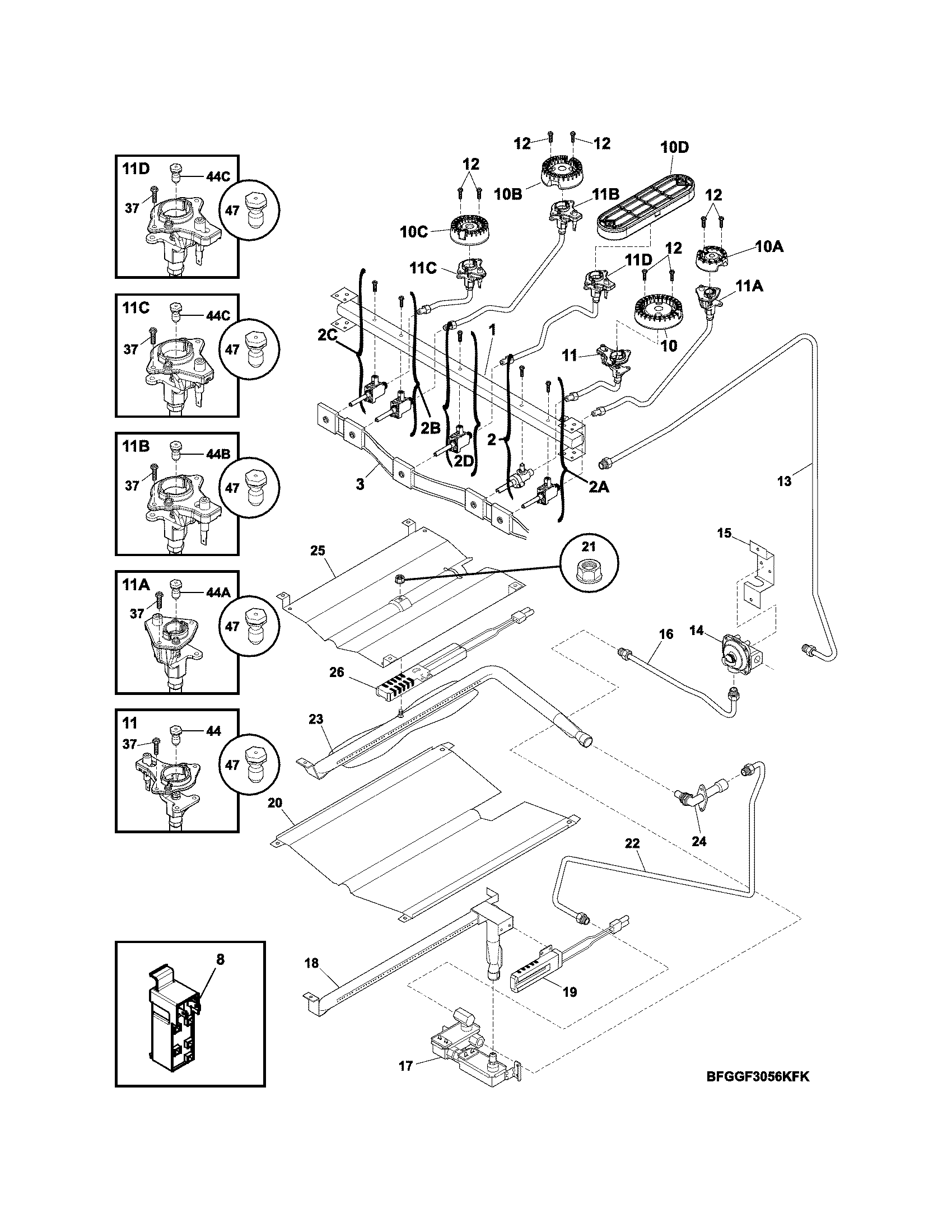

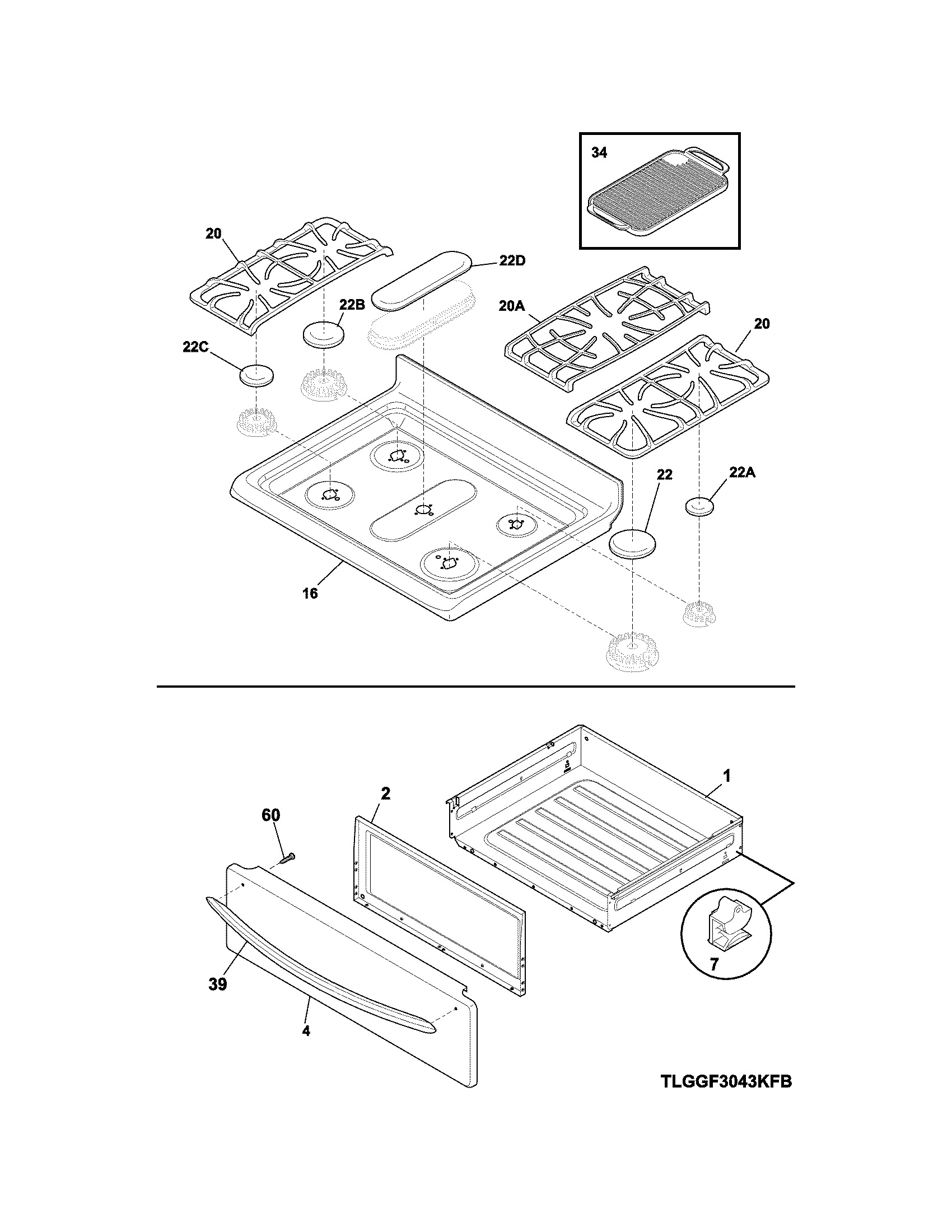

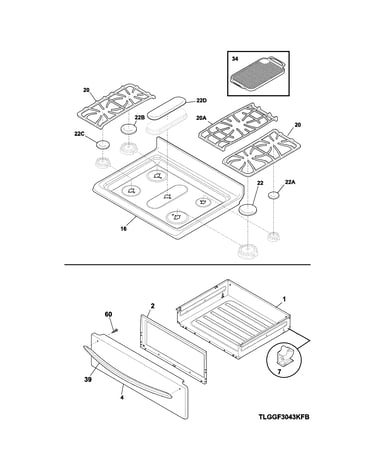

Main parts you will see on the cooktop

These are the components you handle most often:

• Burner grates (support cookware)
• Burner caps (must match the burner head size and sit correctly)
• Burner heads (secured to the cooktop and cleaned in place)
• Surface burner igniters (spark to light the gas)
• Control knobs and valves (regulate gas flow and flame size)

The installation instructions for this model emphasize correct burner cap and grate placement for proper ignition and flame size; the cooktop is not designed to be removed. See the FGGF3054MFD installation guide.

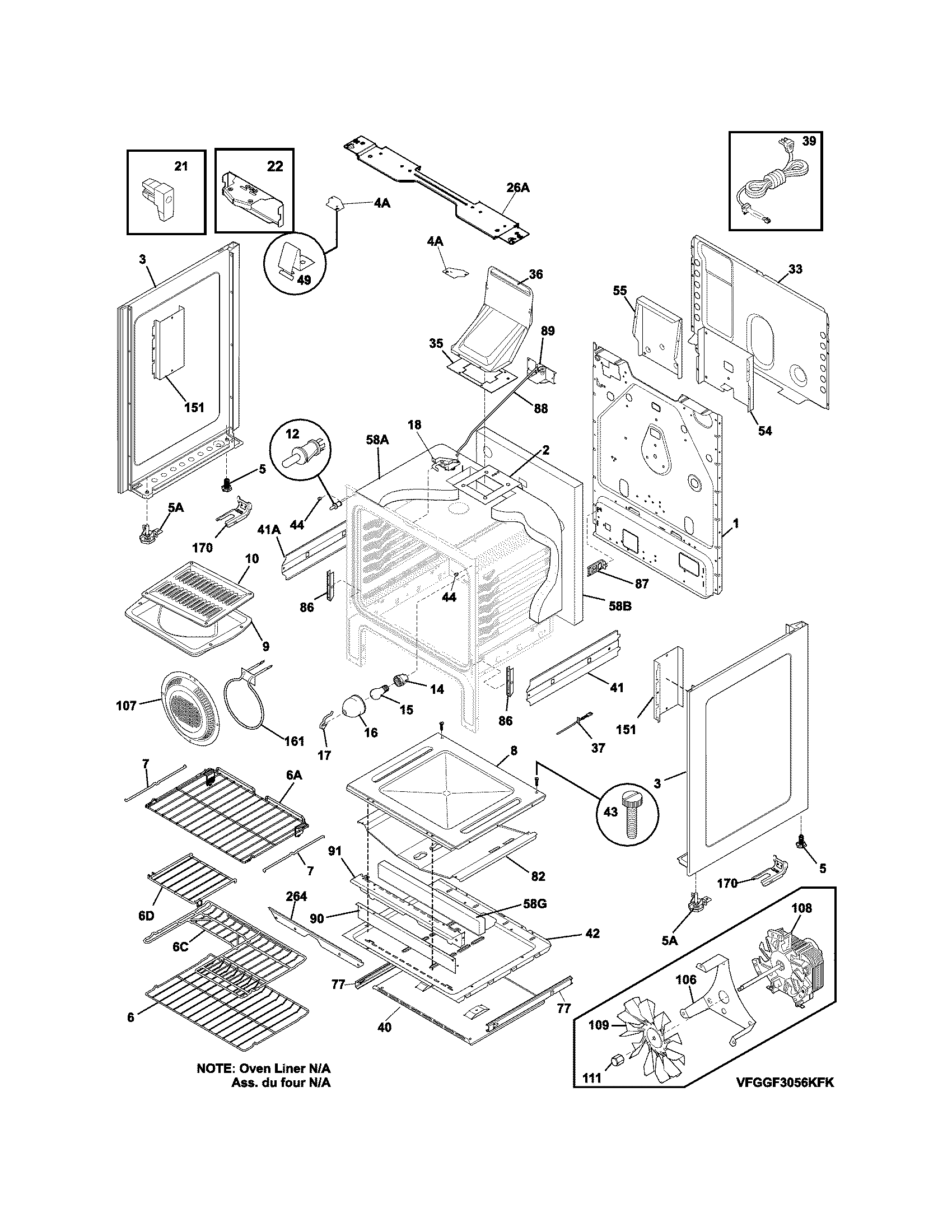

Oven system parts (bake, broil, convection)

Inside the oven, these parts create and control heat:

• Bake burner and bake igniter (lights the bake flame)
• Broil igniter (lights the broil flame)
• Oven temperature sensor (helps the control maintain set temperature)
• Oven racks (hold cookware at different positions)
• Convection components (fan motor, fan cover, convection element on convection models)

Common replacement parts for this model

What it does	Example part for FGGF3054MFD	When it’s often needed
Lights the bake burner	Tappan range oven burner igniter 316489403	No bake ignition, long preheat
Senses oven temperature	Frigidaire range oven temperature sensor 316490000	Oven temp inaccurate, uneven baking
Provides oven light	Appliance light bulb, 40-watt 316538904	Oven light out

Why it matters

Knowing the major gas range parts helps you troubleshoot faster. For example, a weak or failed igniter can prevent the oven from lighting, while mis-seated burner caps can cause poor surface burner ignition and uneven flames.

Quick safety notes we follow

• Keep burner caps and heads in place during use; do not let spills enter orifice openings.
• Do not obstruct oven venting or airflow around the range.
• Do not try to operate the electric ignition oven during a power failure; reset controls to OFF.

Last updated: February 2026
