Maytag
Electric Wall Oven

Model # MEW5527DDW16 Official Maytag 27" electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW5527DDW16 27" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Light Bulb, A-15, 40-watt STD398091
#16

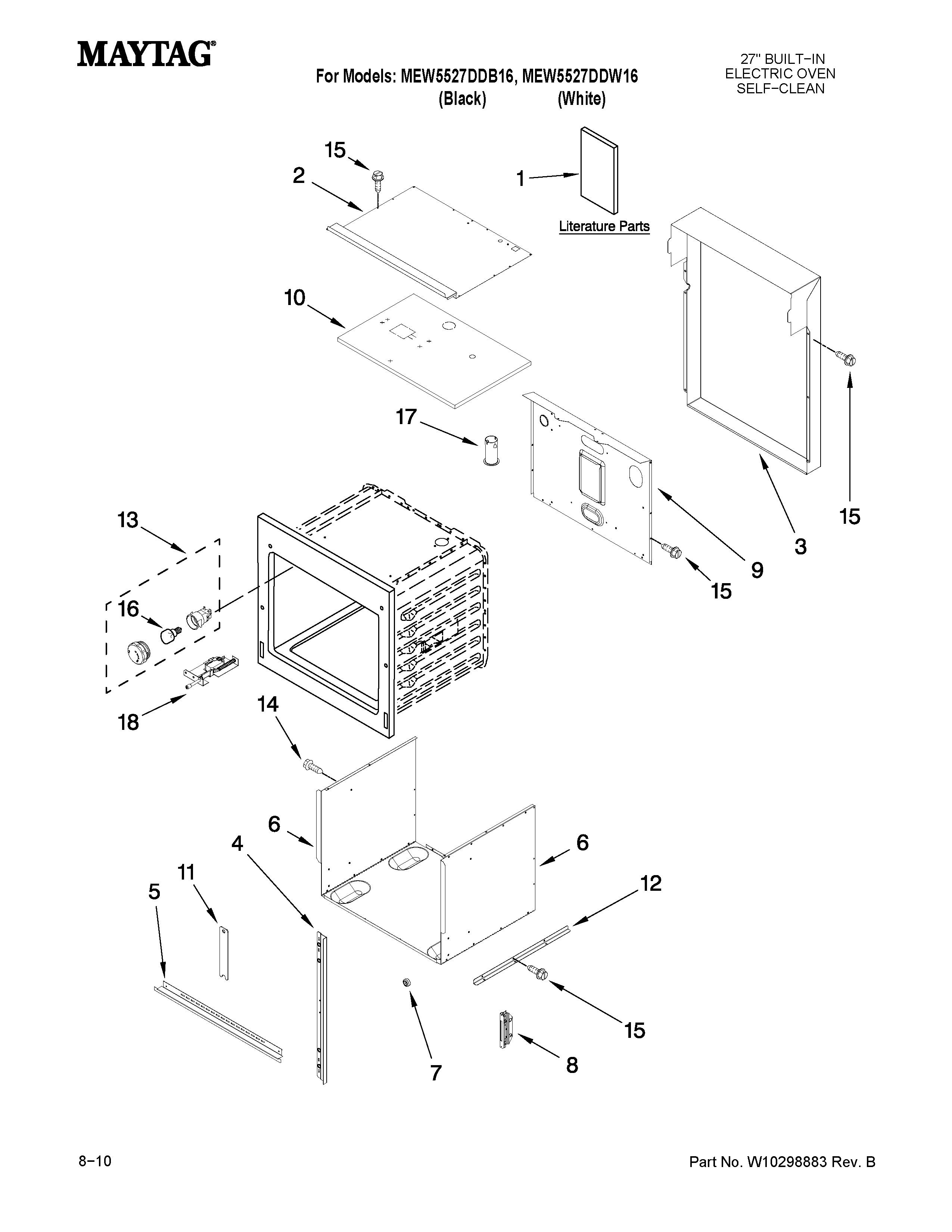

Oven parts diagram

Light bulb, a-15, 40-watt

Part #STD398091

The manufacturer no longer makes this part, and there's no substitute part

Sensor 7430P042-60
#7

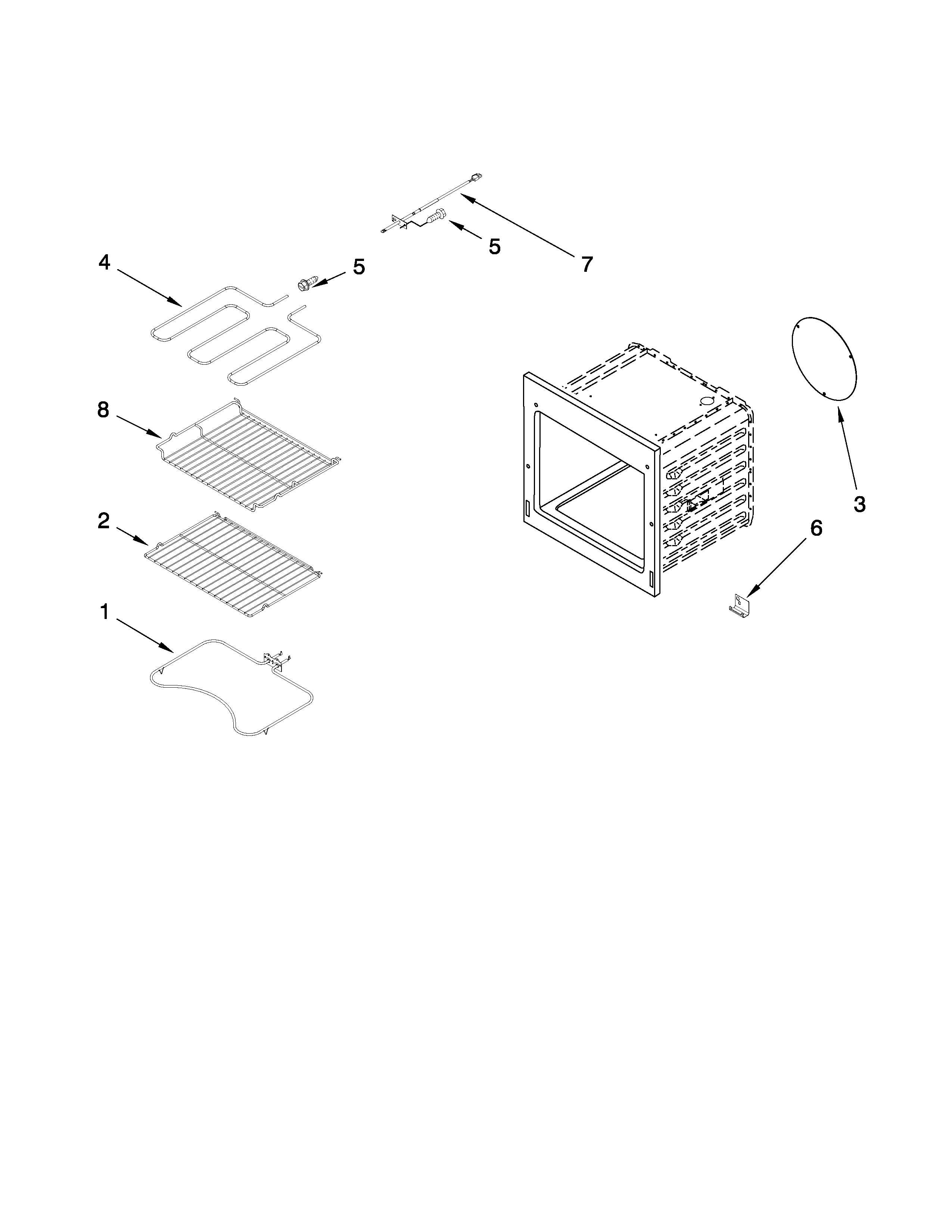

Internal oven parts diagram

Sensor

Part #7430P042-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P042-60. Substitute parts can look different from the original.
BEST SELLER
$36.23
12% OFF Phone Price : $41.23
In Stock
Adhesive 482338
#NI

Optional parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27
37% OFF MSRP : $50.00
In Stock
Screw 7101P427-60
#16

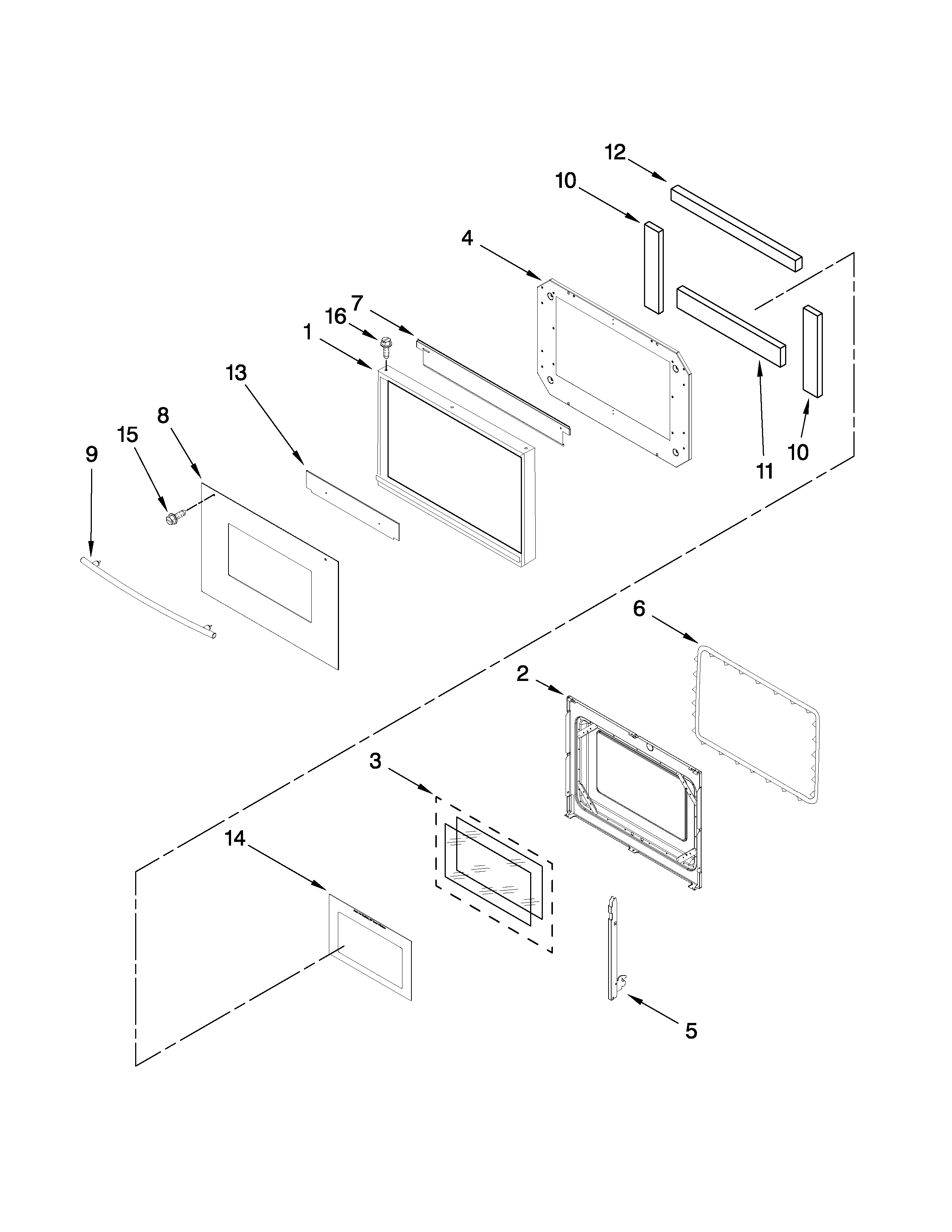

Oven door parts diagram

Screw

Part #7101P427-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P427-60. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Thermostat 7403P856-60
#7

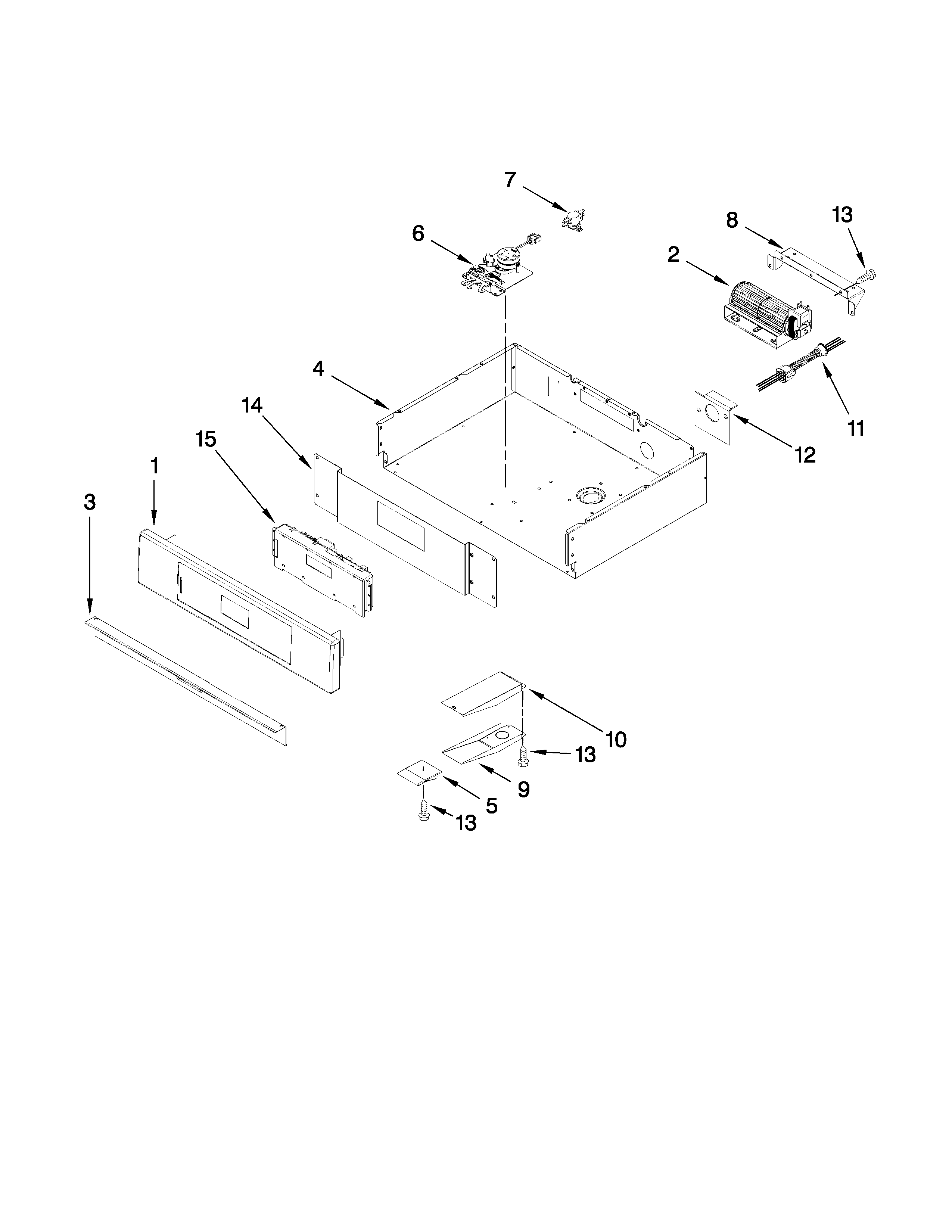

Control panel parts diagram

Thermostat

Part #7403P856-60

Replaced by #74008265

?
Manufacturer substitution
This part replaces 7403P856-60. Substitute parts can look different from the original.
$84.89
6% OFF Phone Price : $89.89
In Stock
Range Control Panel (replaces 5765m482-60, W10292709) 5765M440-60
Range control panel (replaces 5765m482-60, w10292709)

Part #5765M440-60

$193.69
12% OFF MSRP : $220.00
In Stock
Spray Bl 830864
#NI

Optional parts diagram

Spray bl

Part #830864

Replaced by #285006

?
Manufacturer substitution
This part replaces 830864. Substitute parts can look different from the original.
This item is not returnable
$28.89
15% OFF Phone Price : $33.89
In Stock
Range Control Panel 5765M482-60
#1A

Control panel parts diagram

Range control panel

Part #5765M482-60

Replaced by #5765M440-60

?
Manufacturer substitution
This part replaces 5765M482-60. Substitute parts can look different from the original.
$193.69
12% OFF MSRP : $220.00
In Stock
Oven Door Latch W10186996
#6

Control panel parts diagram

Oven door latch

Part #W10186996

Replaced by #WPW10186996

?
Manufacturer substitution
This part replaces W10186996. Substitute parts can look different from the original.
$205.44
11% OFF MSRP : $230.00
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1B

Oven parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09
17% OFF Phone Price : $12.09
In Stock
