Amana IC2-P3641502W-FRZ upright freezer

Amana IC2-P3641502W-FRZ upright freezer Parts

Here are the diagrams and repair parts for Amana IC2-P3641502W-FRZ upright freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

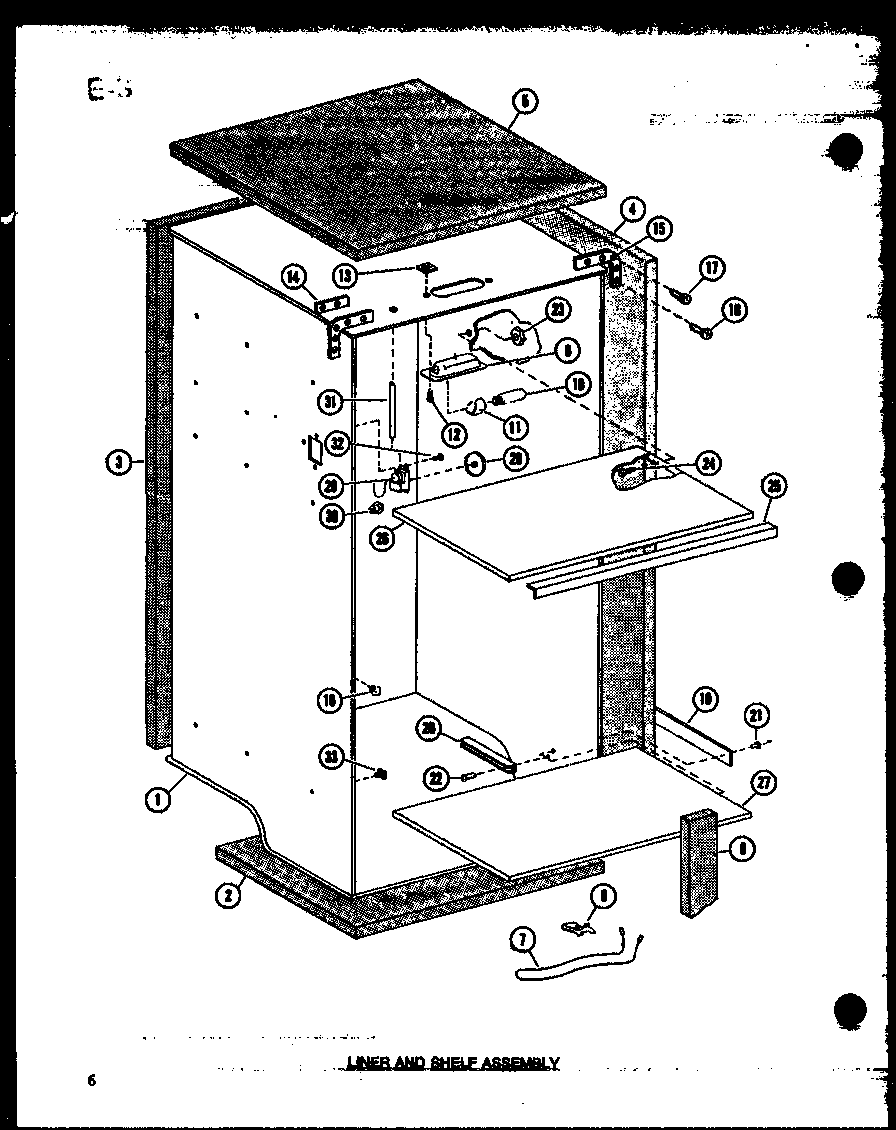

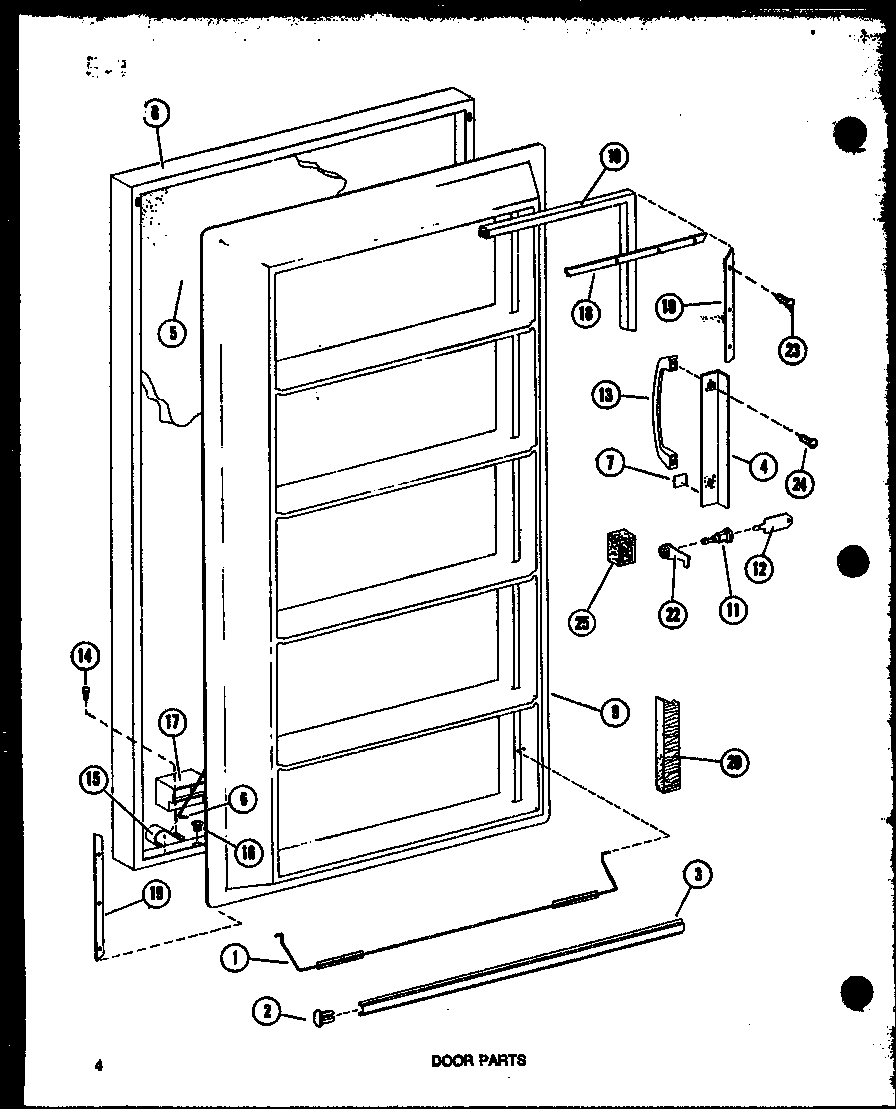

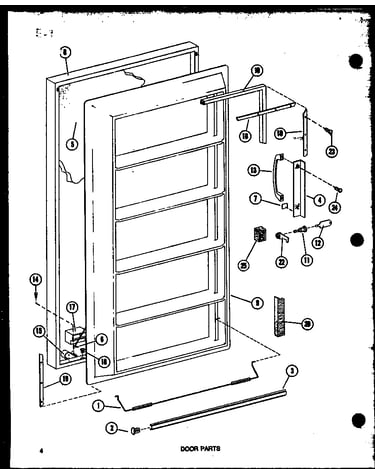

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for IC2-P3641502W-FRZ Freestanding Freezers

  • Whirlpool Refrigerator Door Switch for Amana IC2-P3641502W-FRZ - Part W11384469

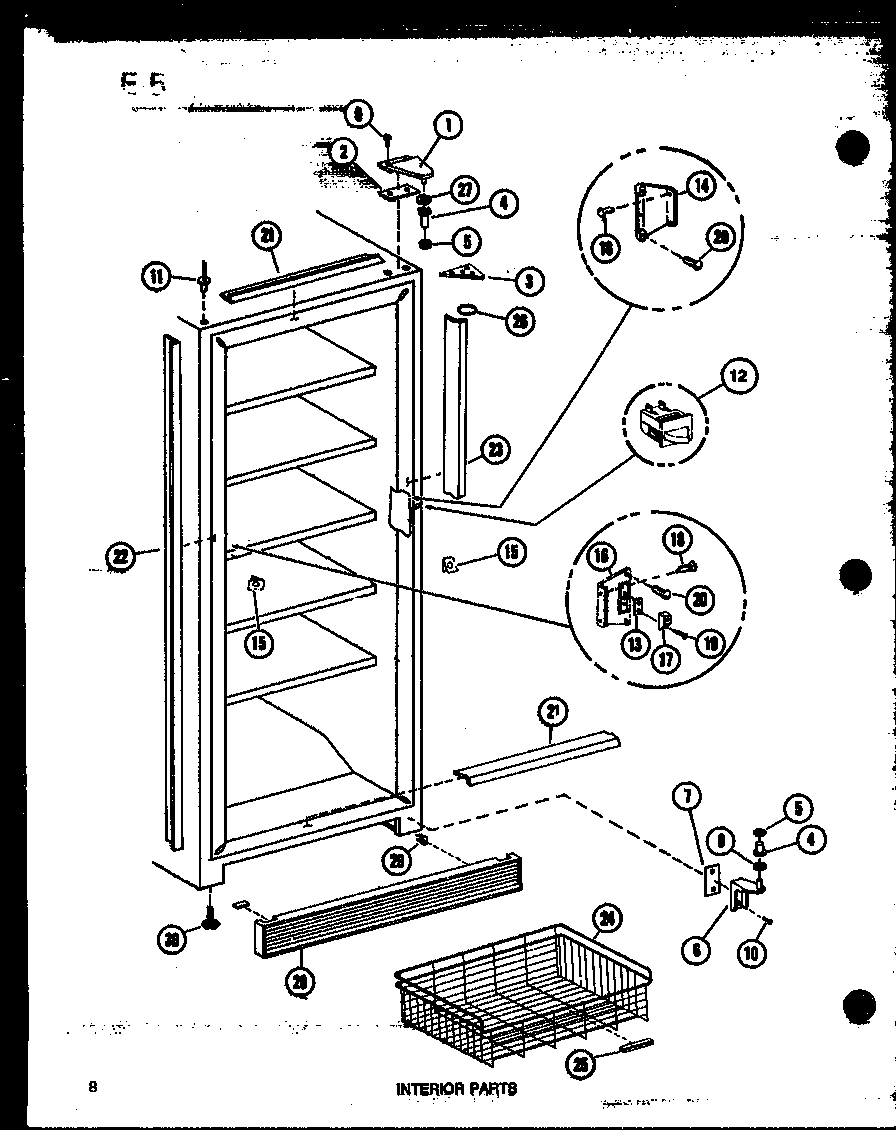

    Interior parts (uf22c/p60345-82w) diagram

    Switch

    Part #C3680304

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces C3680304. Substitute parts can look different from the original.
    In Stock
    $25.13
    19% OFF Phone Price : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for Amana IC2-P3641502W-FRZ - Part WPB2150504

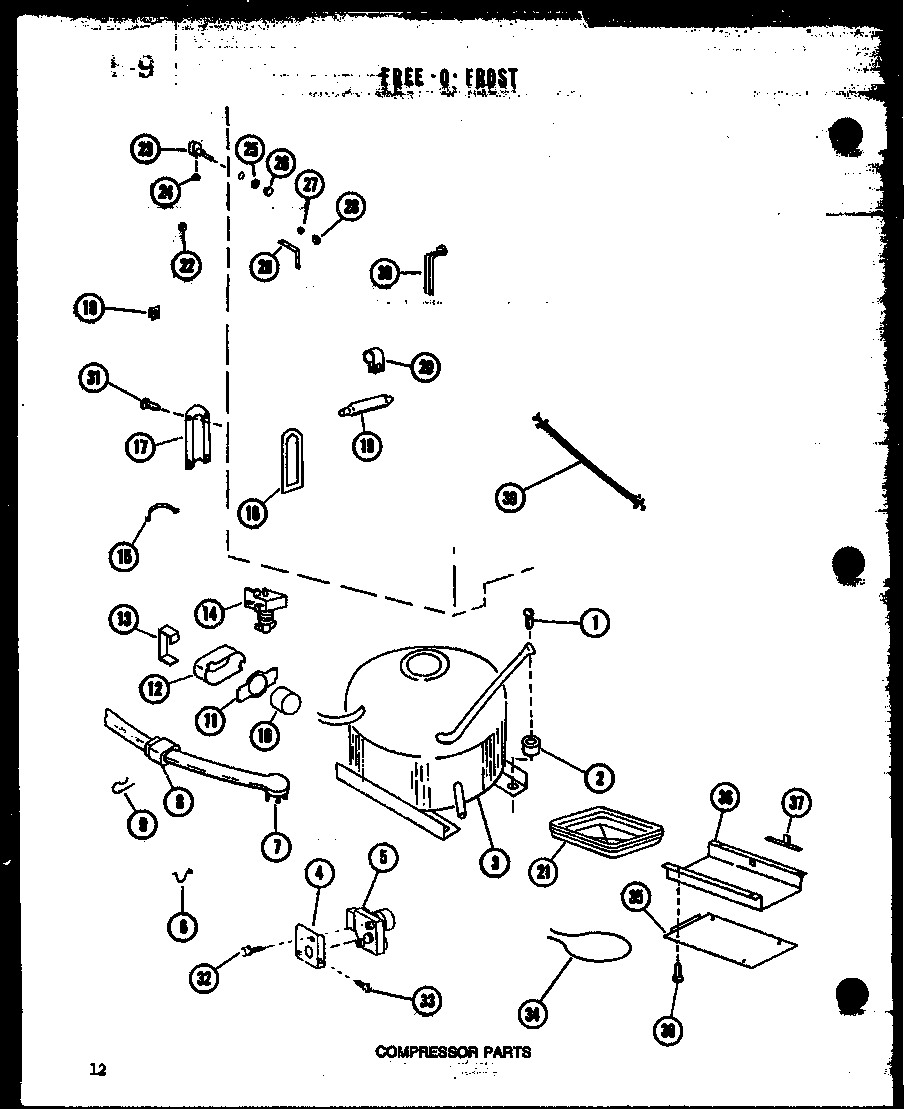

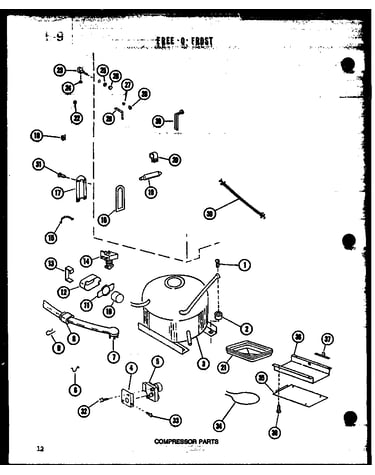

    Compressor parts (uf22c/p60345-82w) diagram

    Drier

    Part #B5715001

    Replaced by #WPB2150504

    Info Icon
    Manufacturer substitution
    This part replaces B5715001. Substitute parts can look different from the original.
    In Stock
    $96.97
    11% OFF Phone Price : $108.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana IC2-P3641502W-FRZ - Part WP90767

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana IC2-P3641502W-FRZ - Part WP90767

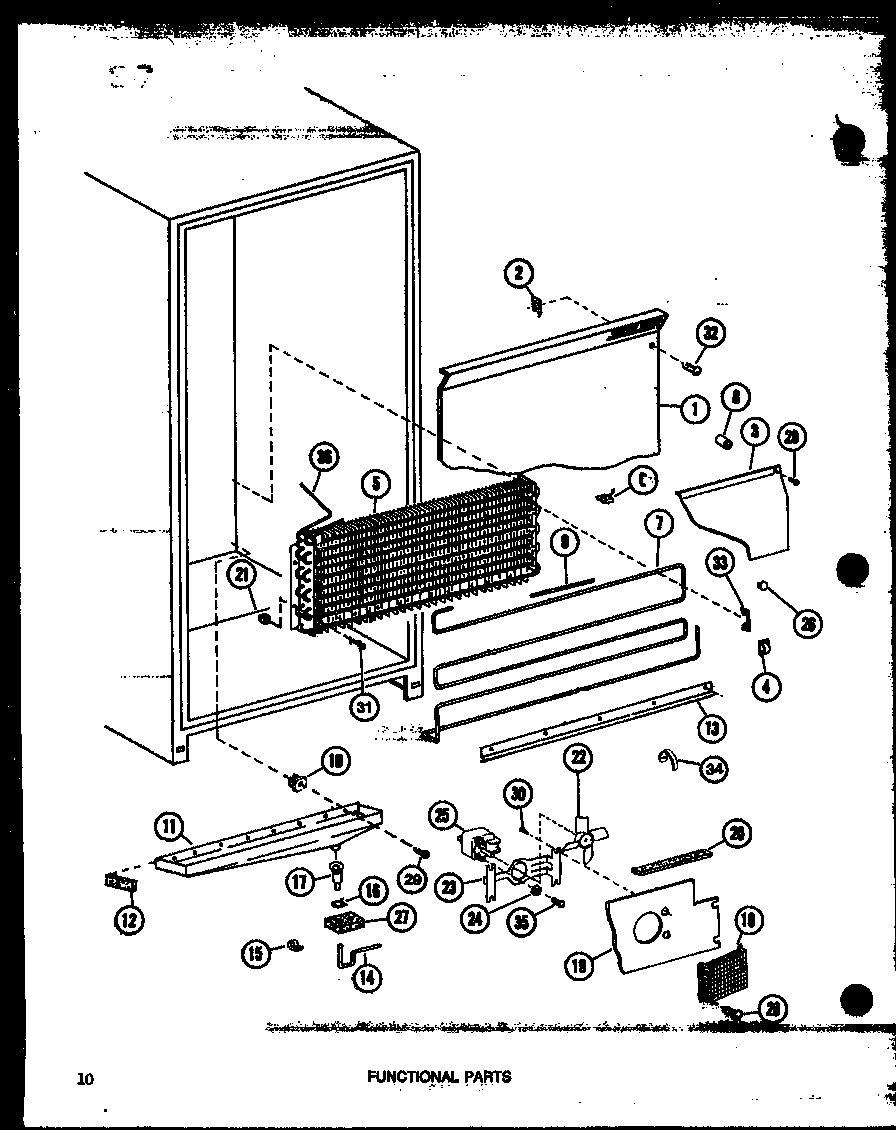

    Functional parts (uf22c/p60345-82w) diagram

    Screw

    Part #M0211016

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211016. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana IC2-P3641502W-FRZ - Part 67006425

    Screw

    Part #M0230917

    Replaced by #67006425

    Info Icon
    Manufacturer substitution
    This part replaces M0230917. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clip for Amana IC2-P3641502W-FRZ - Part WPM0114003

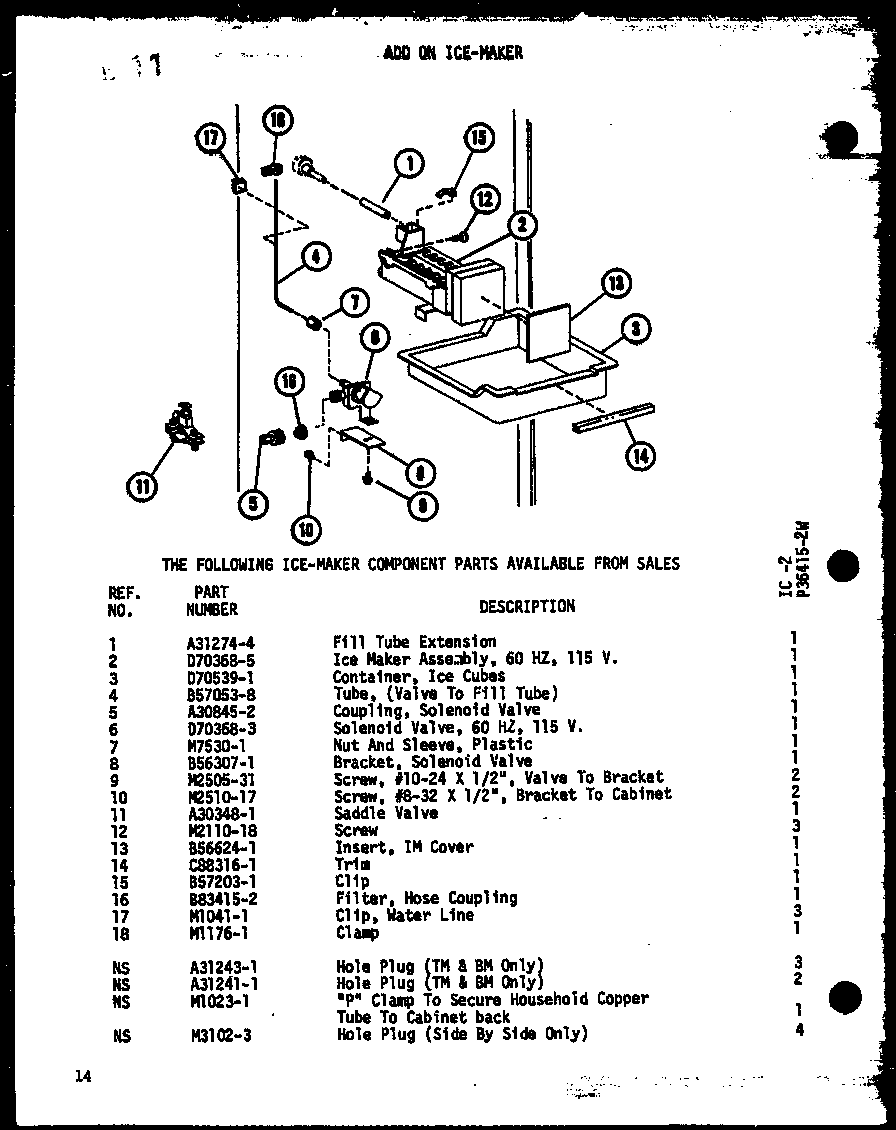

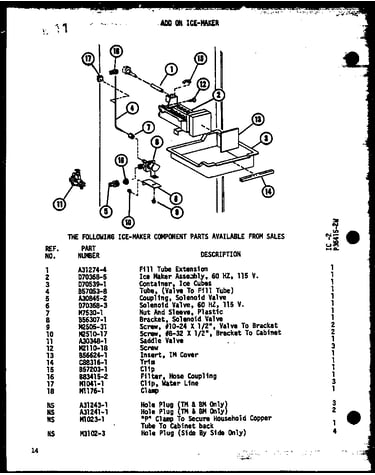

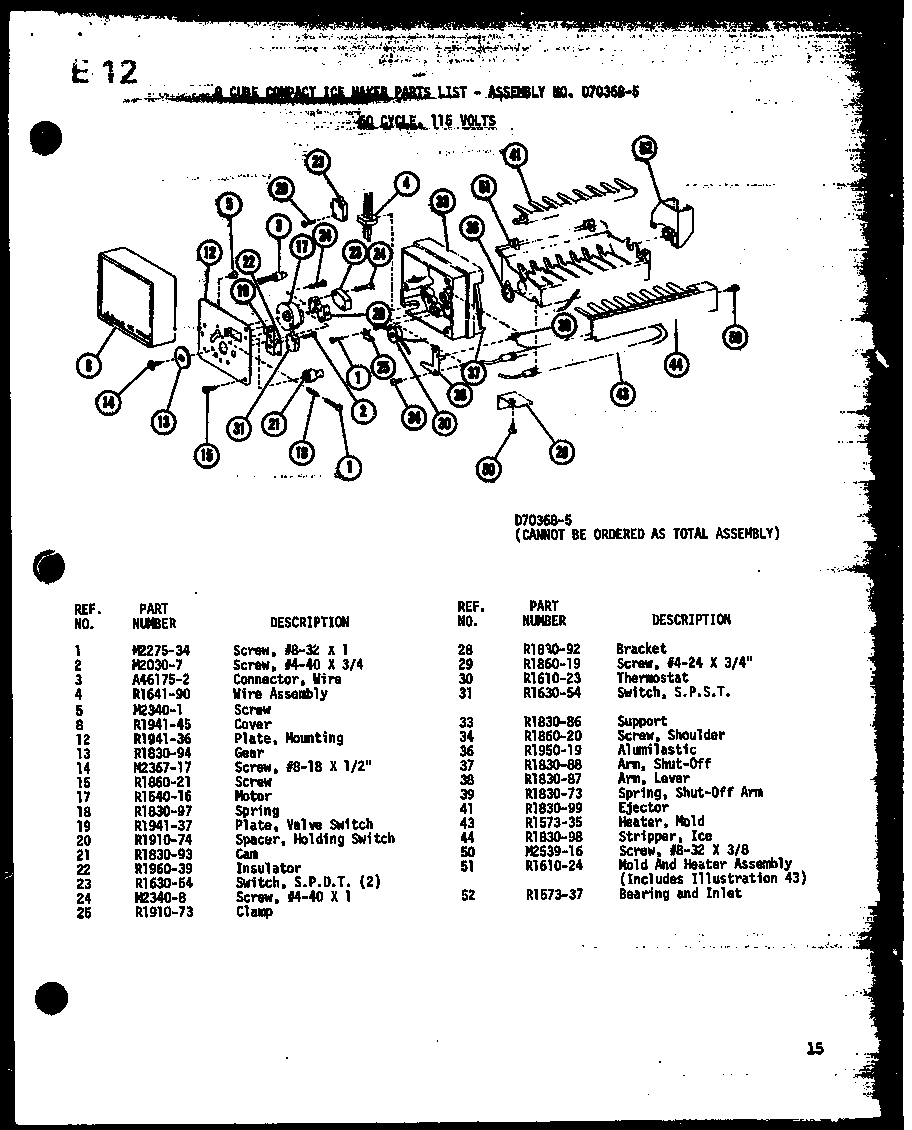

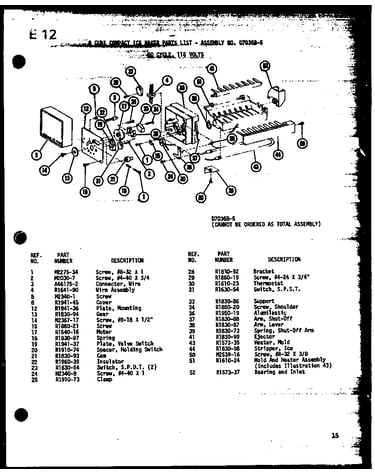

    Add on ice-maker (ic-2/p36415-2w) diagram

    Clamp

    Part #M0117601

    Replaced by #WPM0114003

    Info Icon
    Manufacturer substitution
    This part replaces M0117601. Substitute parts can look different from the original.
    In Stock
    $8.98
    10% OFF Phone Price : $9.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Toe Grille Clip for Amana IC2-P3641502W-FRZ - Part WPM0117303

    Interior parts (uf22c/p60345-82w) diagram

    Clip

    Part #M0117301

    Replaced by #WPM0117303

    Info Icon
    Manufacturer substitution
    This part replaces M0117301. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw Sm/hex for Amana IC2-P3641502W-FRZ - Part WP98165

    Screw

    Part #M0211018

    Replaced by #WP98165

    Info Icon
    Manufacturer substitution
    This part replaces M0211018. Substitute parts can look different from the original.
    In Stock
    $28.38
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw Kit, 2-piece for Amana IC2-P3641502W-FRZ - Part R9800670

    Interior parts (uf22c/p60345-82w) diagram

    Machine Screw

    Part #M0257244

    Replaced by #R9800670

    Info Icon
    Manufacturer substitution
    This part replaces M0257244. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.76
    15% OFF Phone Price : $6.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana IC2-P3641502W-FRZ - Part WP489399

    Compressor parts (uf22c/p60345-82w) diagram

    Screw

    Part #M0233103

    Replaced by #WP489399

    Info Icon
    Manufacturer substitution
    This part replaces M0233103. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
