Model # 40584086411 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 40584086411 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Water Wheel 201125290303
#6.6

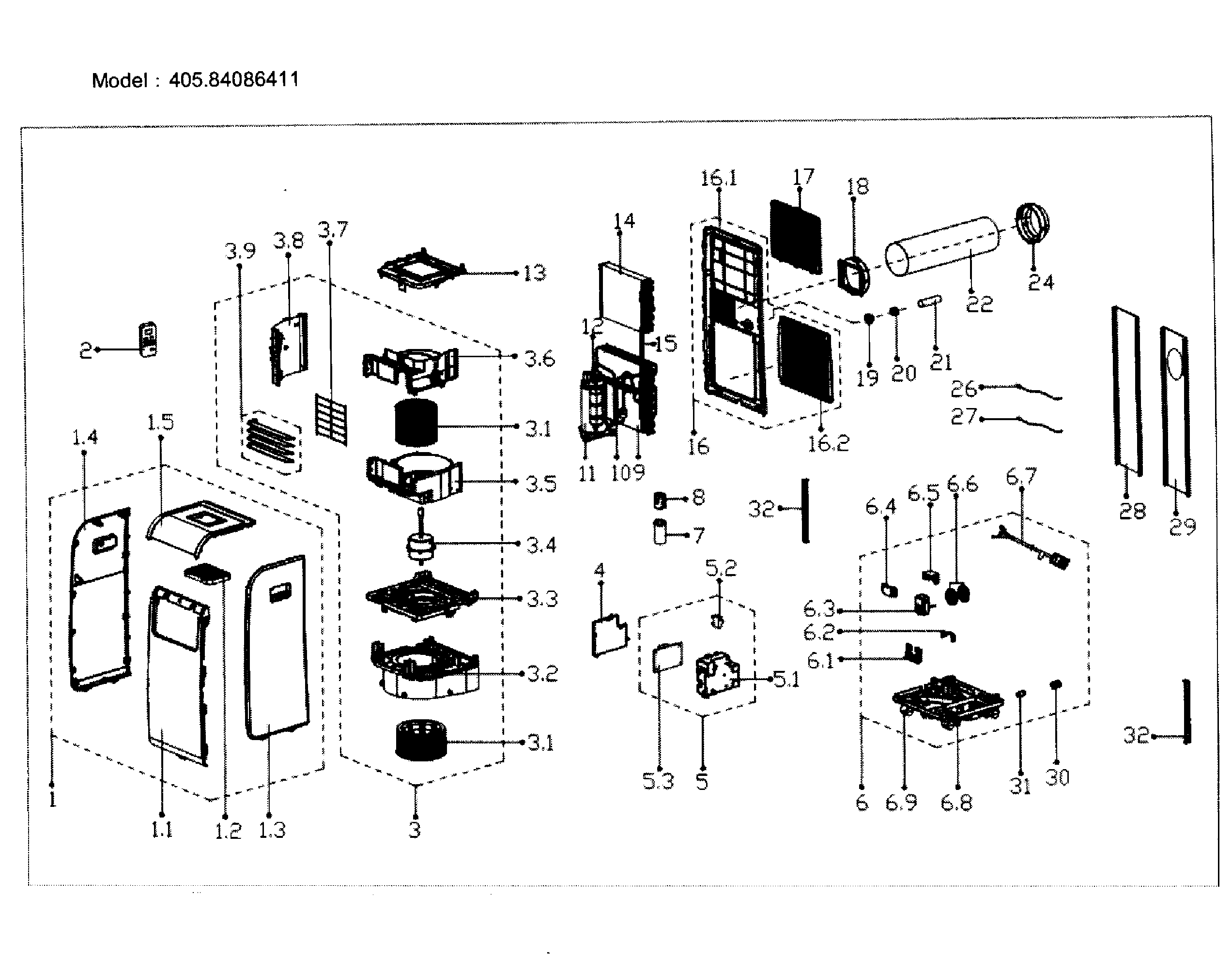

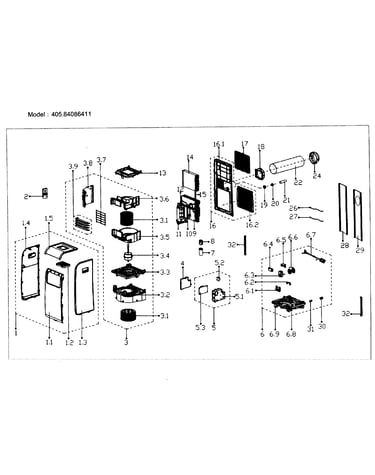

Main asy diagram

Water wheel

Part #201125290303

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Blower Wheel 201100100850
#3.1

Main asy diagram

Room air conditioner blower wheel

Part #201100100850

The manufacturer no longer makes this part, and there's no substitute part

Dispenser Box 203325290149
#1.2

Main asy diagram

Dispenser box

Part #203325290149

The manufacturer no longer makes this part, and there's no substitute part

Temperature Sensor 202301310075
#27

Main asy diagram

Temperature sensor

Part #202301310075

The manufacturer no longer makes this part, and there's no substitute part

Shaded Motor 202400700057
#6.3

Main asy diagram

Shaded motor

Part #202400700057

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Air Filter Grille 201125290313
#17

Main asy diagram

Room air conditioner air filter grille

Part #201125290313

The manufacturer no longer makes this part, and there's no substitute part

Cap 15mf 202401100989
#5.2

Main asy diagram

Cap 15mf

Part #202401100989

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Exhaust Hose 201125190159
#22

Main asy diagram

Room air conditioner exhaust hose

Part #201125190159

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 202402260354
#6.7

Main asy diagram

Power cord

Part #202402260354

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 202401090021
#7

Main asy diagram

Capacitor

Part #202401090021

The manufacturer no longer makes this part, and there's no substitute part
