Model #PAVT920AWW Maytag washer/dryer

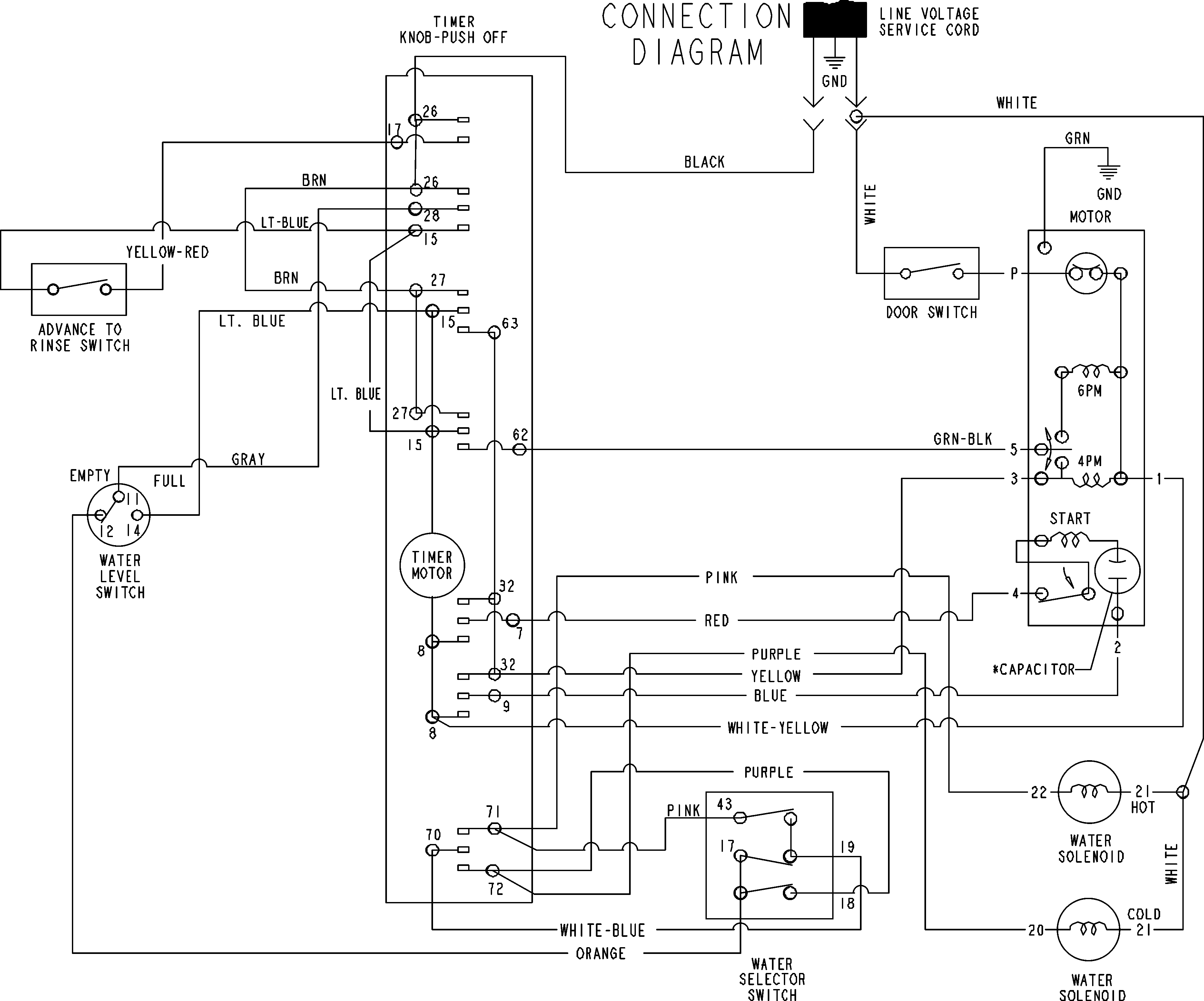

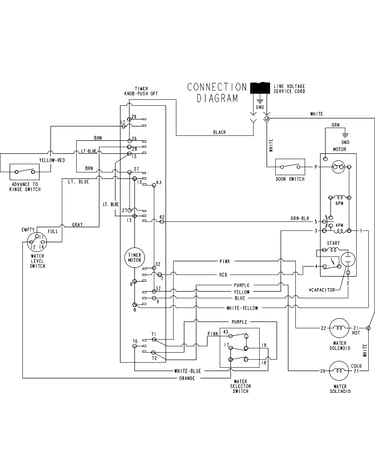

Here are the diagrams and repair parts for Maytag PAVT920AWW washer/dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 127 parts

    Washer Pulley and Thrust Bearing Kit

    #17

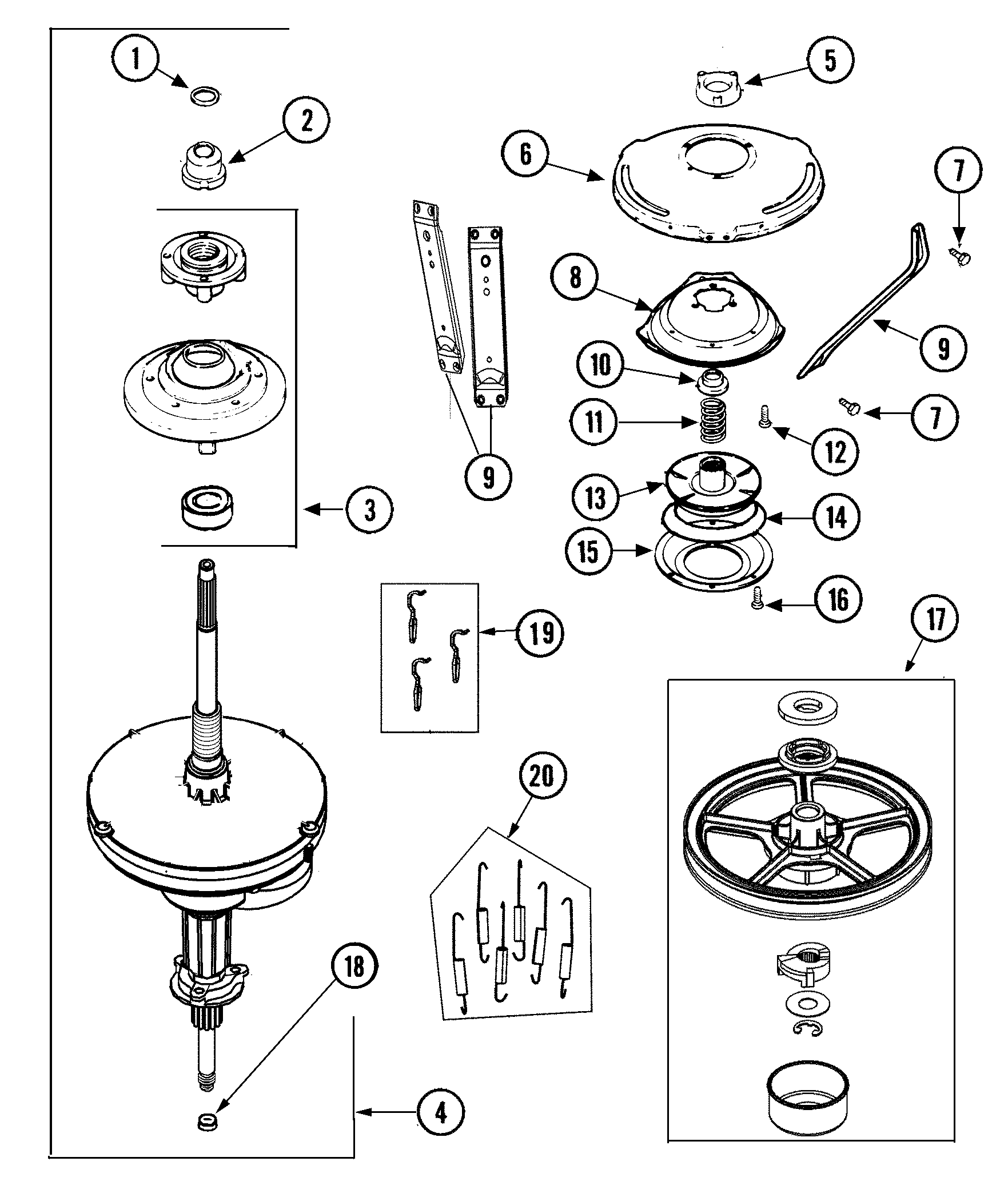

    Transmission Diagram

    $53.67

    In Stock

    Energy Label

    #3

    Supplemental information Diagram

    Energy label

    Part #21002205
    This item is not returnable
    $2.16

    In Stock

    Switch Screw

    #11

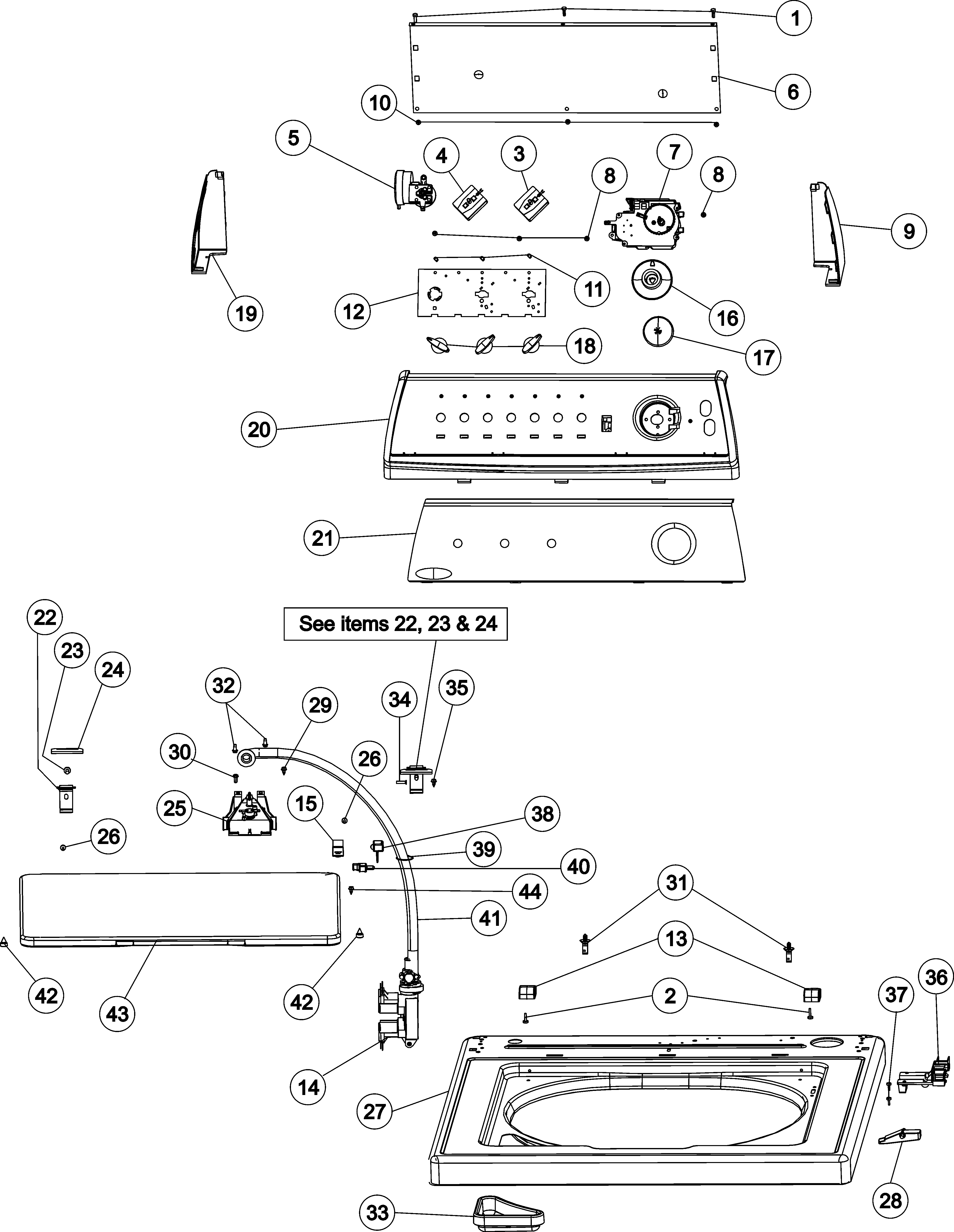

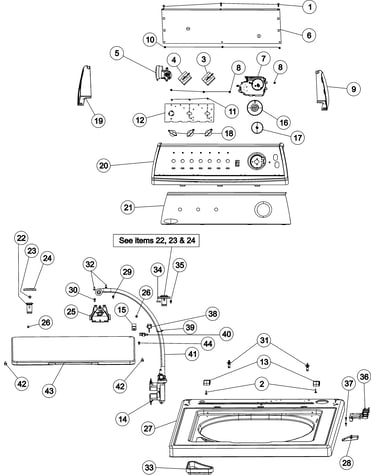

    Control panel & top Diagram

    Switch screw

    Part #25-3092
    This item is not returnable
    $4.41

    In Stock

    Washer Top Panel Hinge

    #22

    Control panel & top Diagram

    $17.93 |
    10% OFF MSRP:$19.89

    In Stock

    Flat Washer

    #12

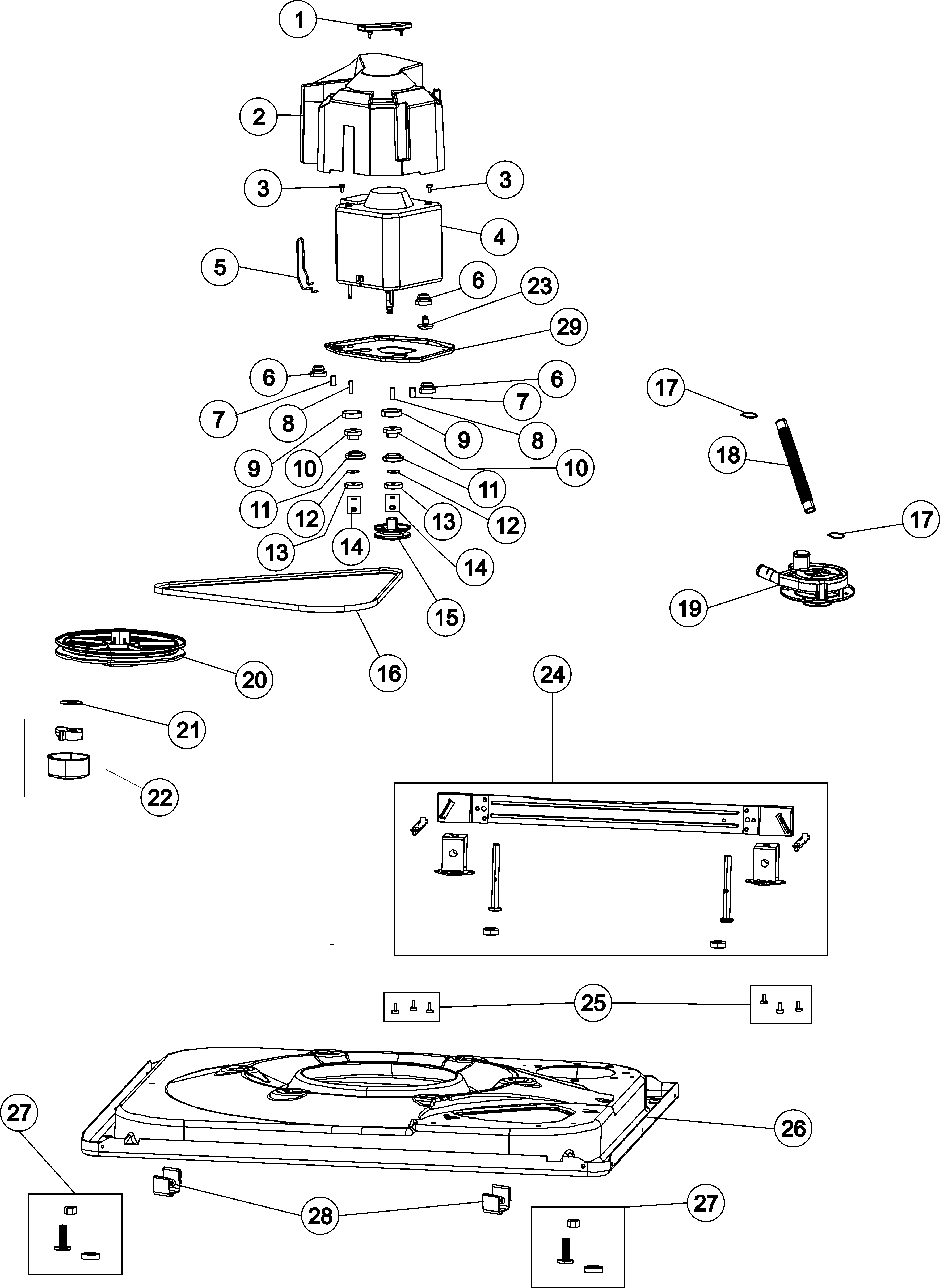

    Base & motor Diagram

    Flat washer

    Part #25-7047
    $22.33

    In Stock

    Washer Tub Fill Nozzle Hose

    #41

    Control panel & top Diagram

    $15.51 |
    6% OFF MSRP:$16.50

    Back Order

    Washer Lid Hinge

    #13

    Control panel & top Diagram

    Washer lid hinge

    Part #WP35-2044
    ?
    Manufacturer substitution
    This part replaces 35-2044. Substitute parts can look different from the original.
    This part replaces 35-2044
    This item is not returnable
    $5.45

    In Stock

    Hose Clip

    #15

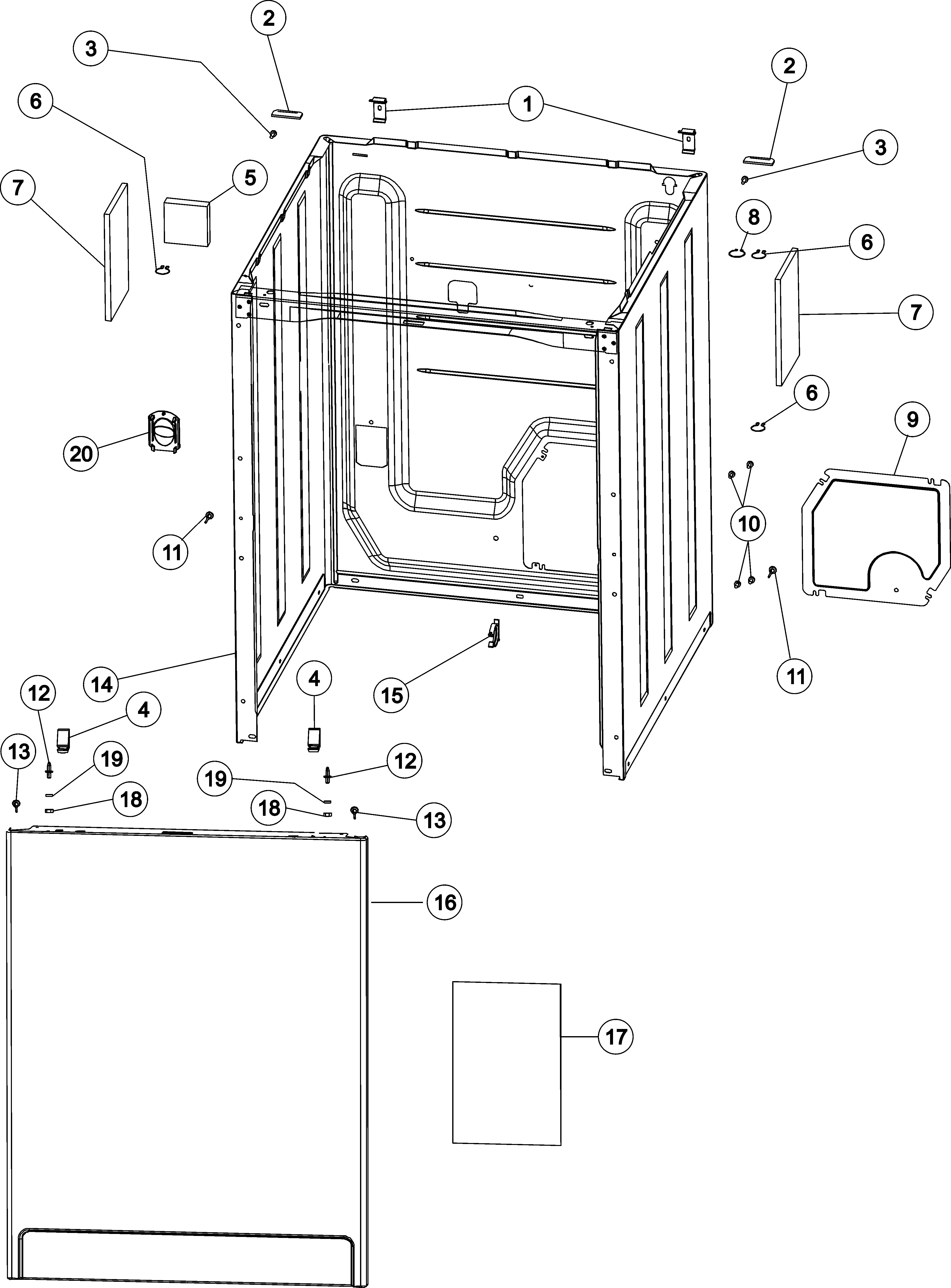

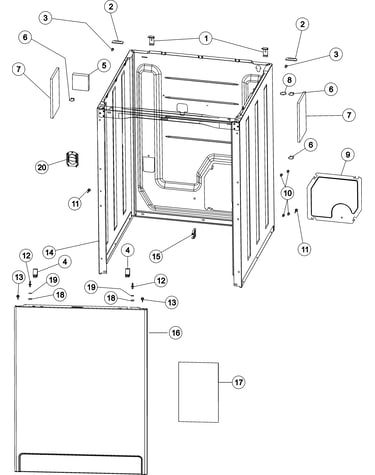

    Cabinet & front panel Diagram

    Hose clip

    Part #WP22002765
    ?
    Manufacturer substitution
    This part replaces 22002765. Substitute parts can look different from the original.
    This part replaces 22002765
    This item is not returnable
    $6.12

    In Stock

    Hose

    #2

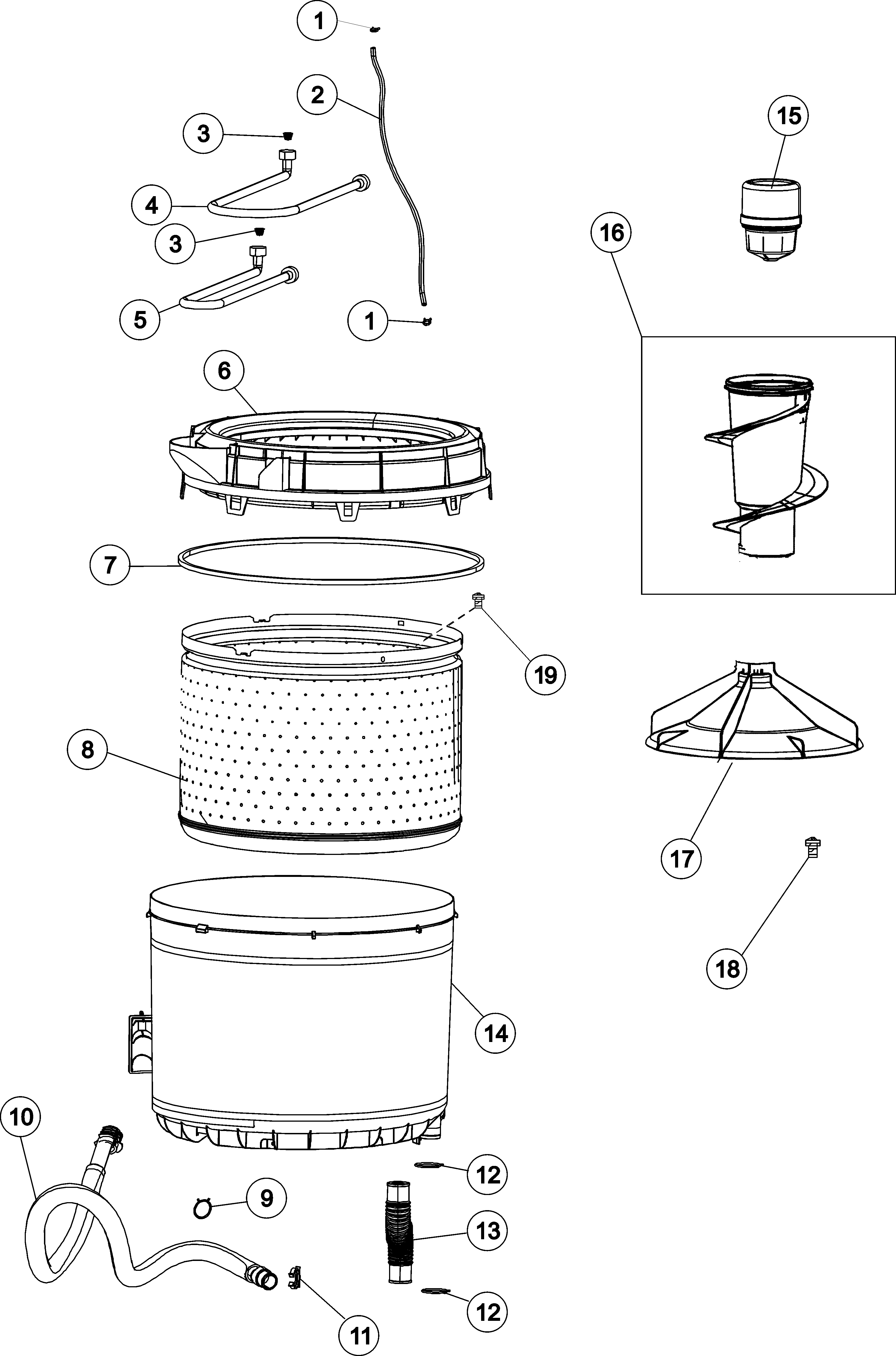

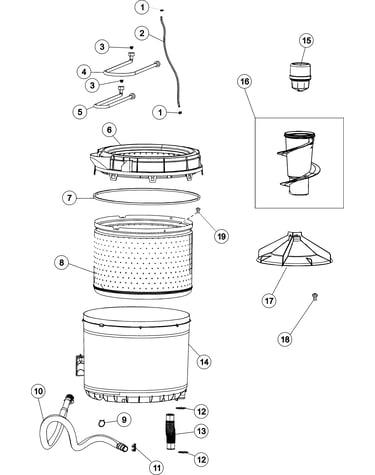

    Inner - outer tub Diagram

    Hose

    Part #WP21001748
    ?
    Manufacturer substitution
    This part replaces 21001749. Substitute parts can look different from the original.
    This part replaces 21001749
    This item is not returnable
    $4.59 |
    6% OFF MSRP:$4.89

    In Stock

    Washer Drive Motor Pivot Spring

    #5

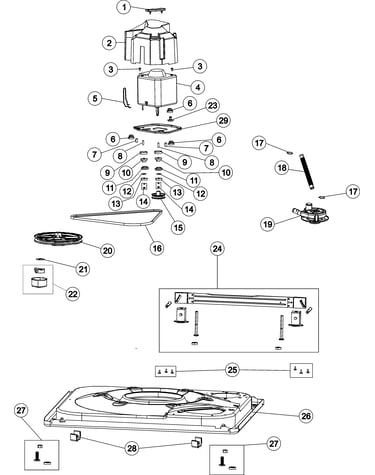

    Base & motor Diagram

    Washer drive motor pivot spring

    Part #WP22004376
    ?
    Manufacturer substitution
    This part replaces 21001110. Substitute parts can look different from the original.
    This part replaces 21001110
    This item is not returnable
    $4.82

    In Stock
