Electric Wall Oven

Model #ZET1058SF5SS GE wall oven

Here are the diagrams and repair parts for GE ZET1058SF5SS wall oven, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

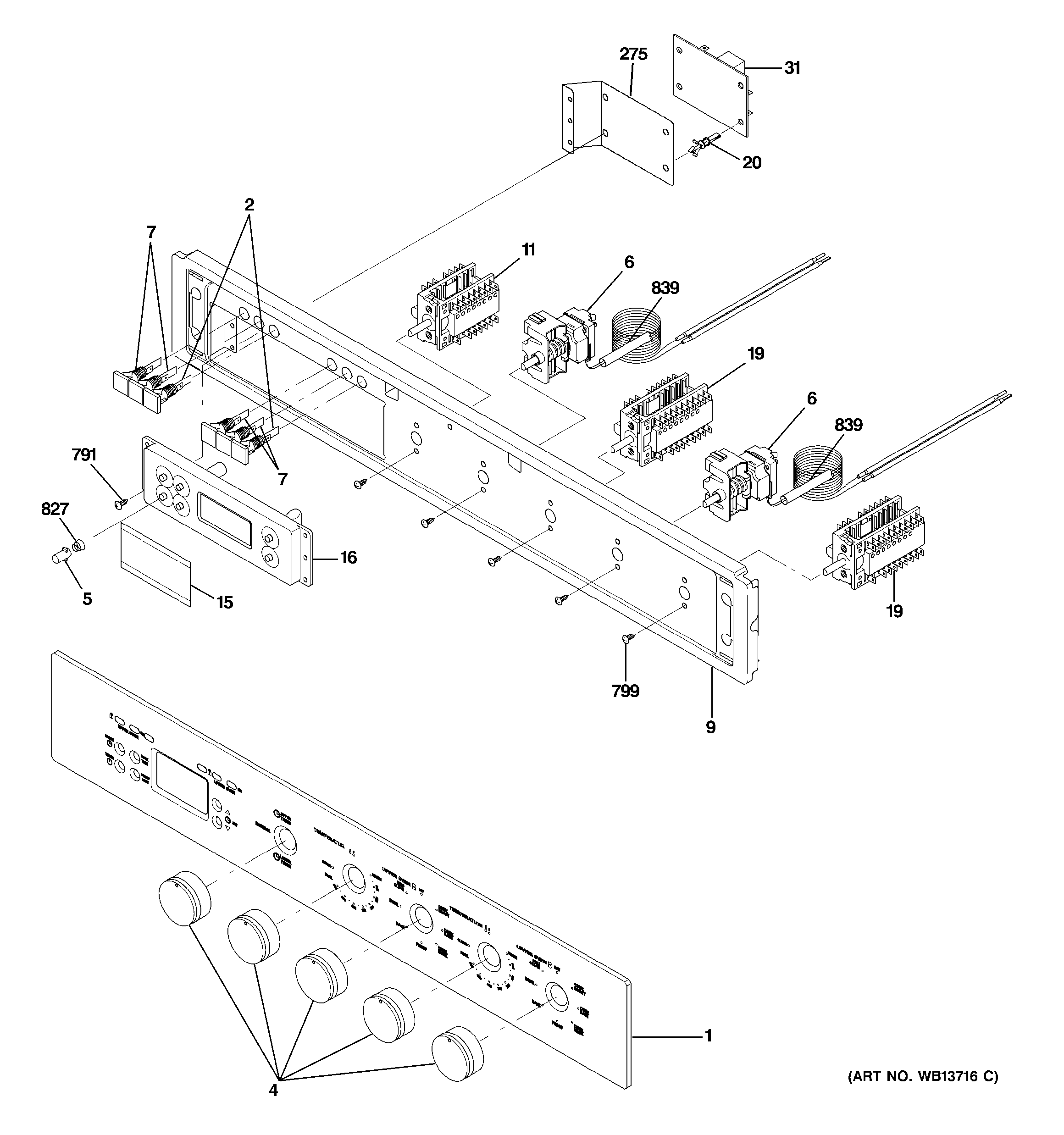

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 147 parts

Wall Oven Door Hinge Assembly, Left

#281

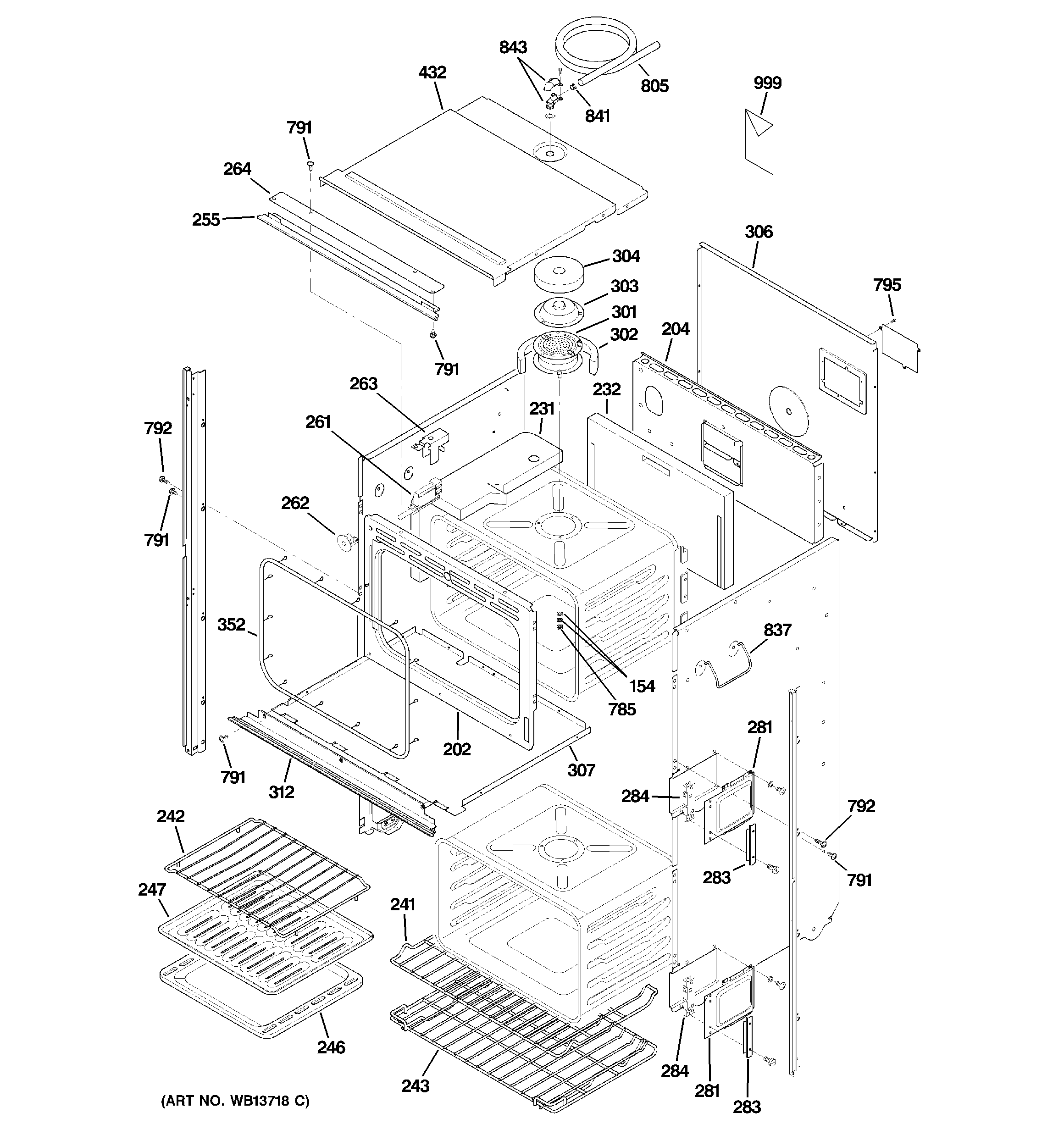

Body parts (1) Diagram

$61.06

In Stock

Int Glass

#122

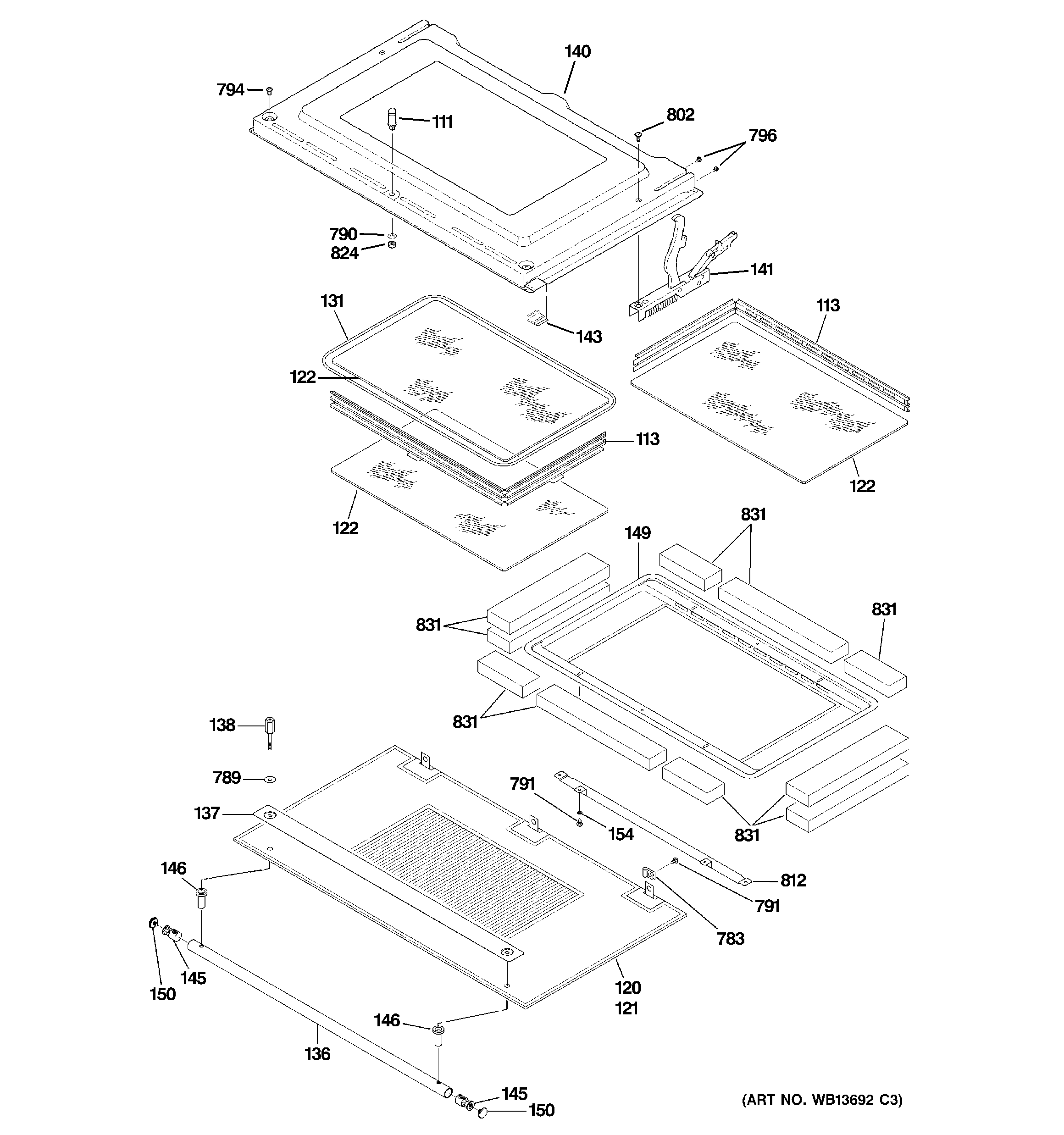

Door Diagram

Int glass

Part #WB36X10010
$79.81

In Stock

Pan Control

#310

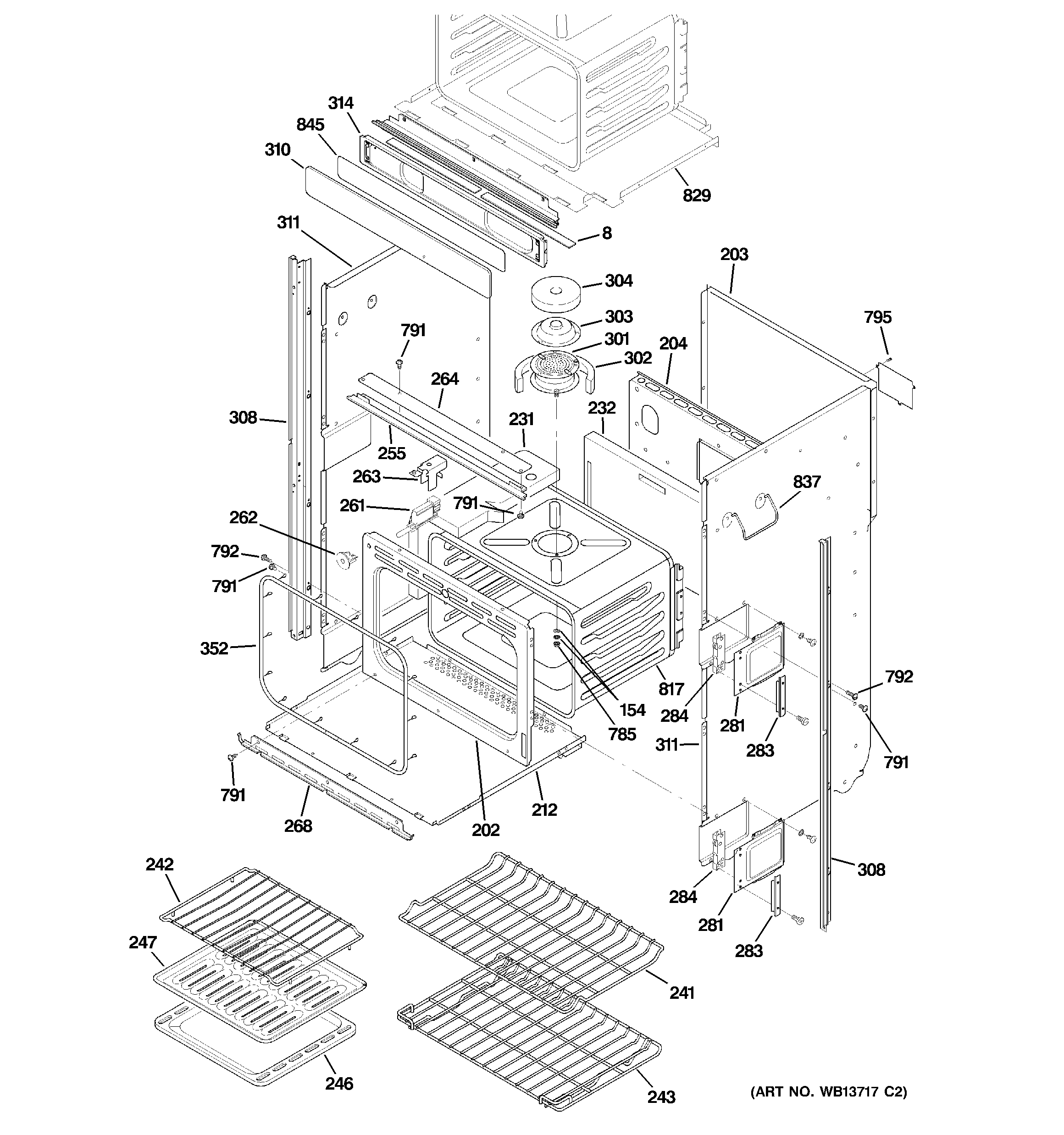

Body parts (2) Diagram

Pan control

Part #WB07X10714
$354.27

In Stock

Resistor

#165

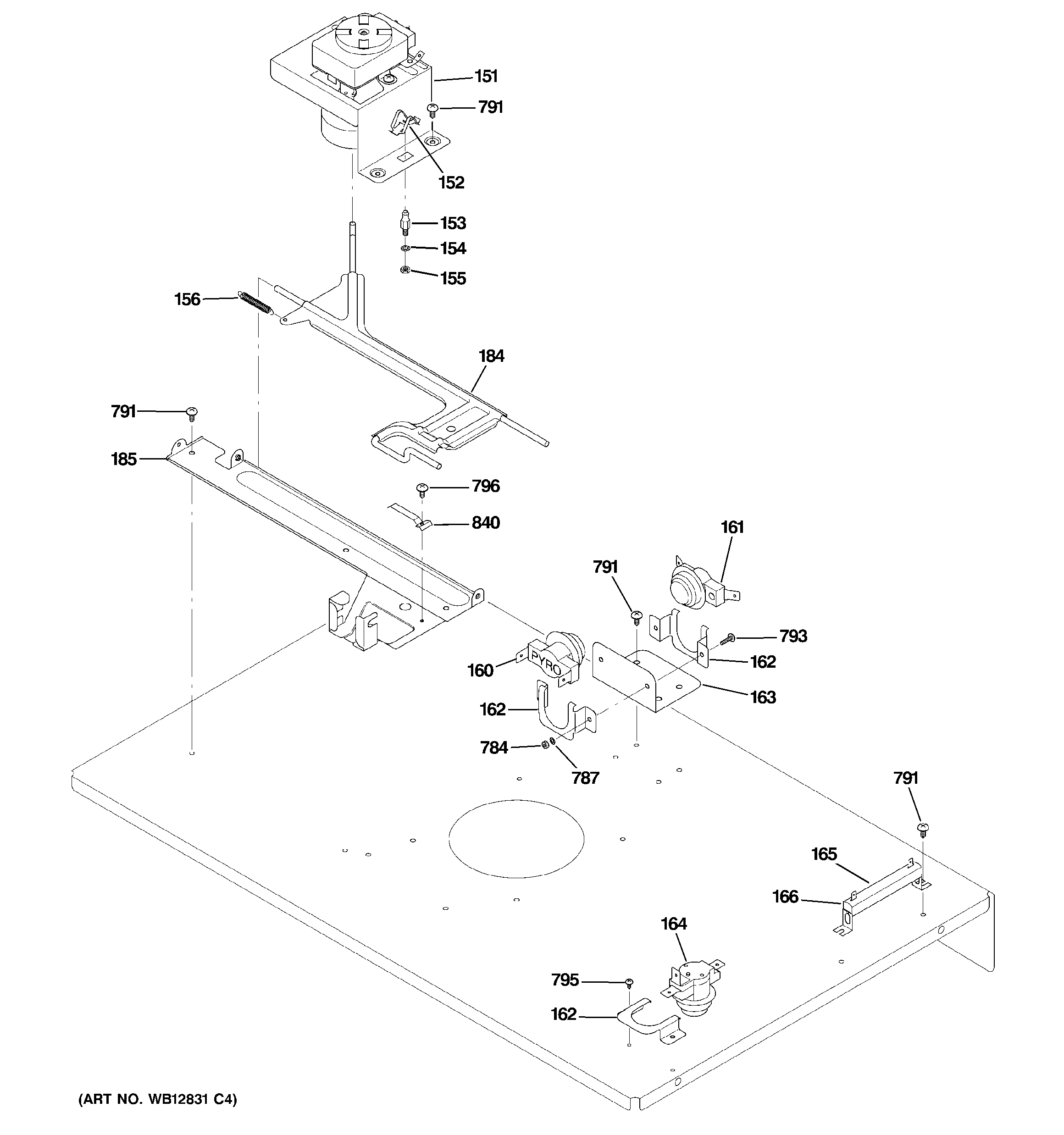

Door lock Diagram

Resistor

Part #WB20X10002
$64.99

In Stock

Terminal Block

#780

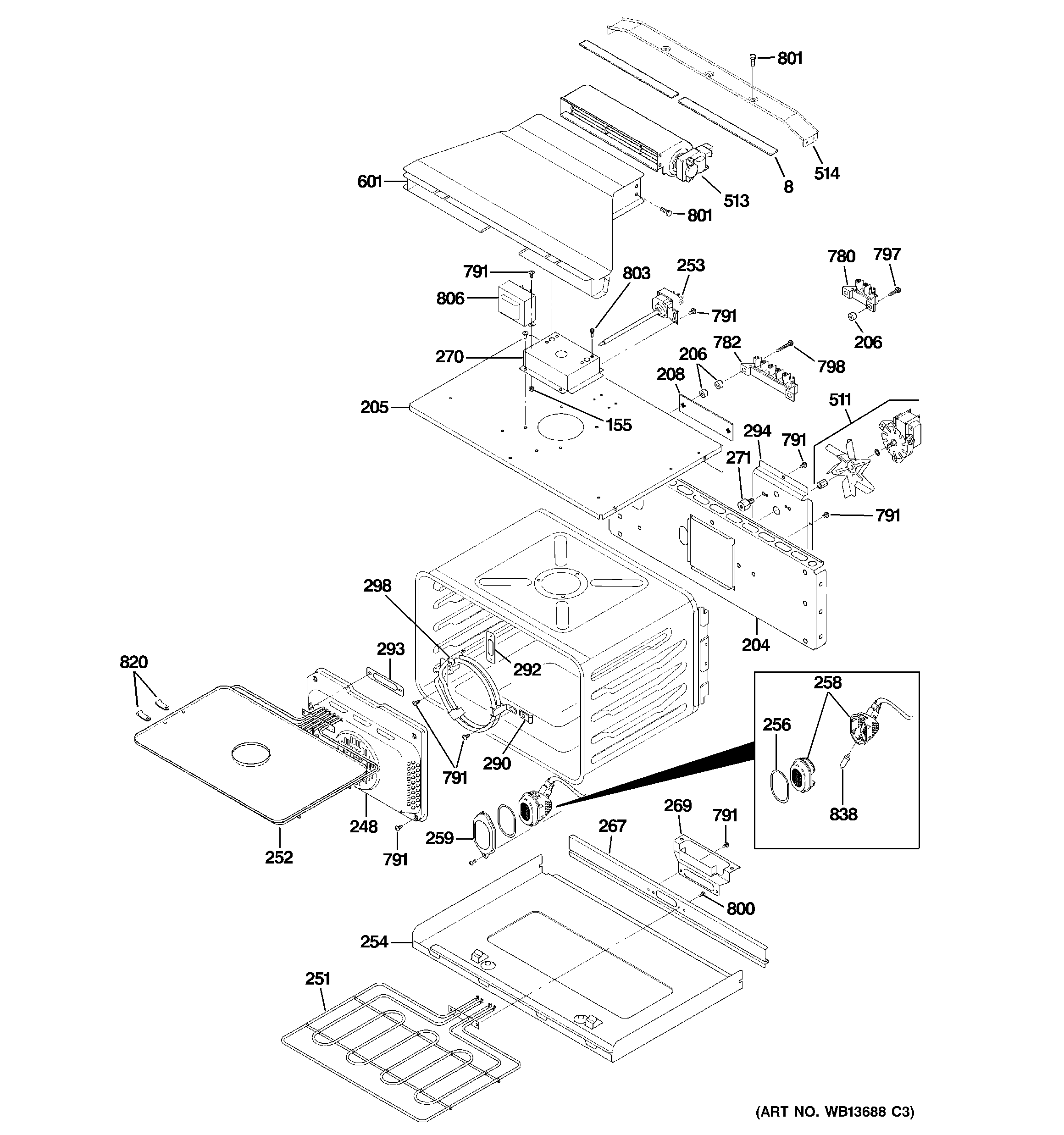

Upper oven Diagram

Terminal block

Part #WB17X10006
$49.19

In Stock

Wall Oven Door Lock Motor

#151

Door lock Diagram

Wall oven door lock motor

Part #WB14X10005
$164.99

In Stock

Door Micro S

#261

Body parts (2) Diagram

Door micro s

Part #WB24X10150
$30.11

In Stock

Hinge Support

#284

Body parts (1) Diagram

Hinge support

Part #WB10X10066
$32.52

In Stock

Insulator

#232

Body parts (2) Diagram

Insulator

Part #WB05X10004
$61.41

In Stock

Range Oven Door Outer Panel (Stainless)

#120

Door Diagram

$448.74

In Stock
