Bosch
Dishwasher

Model #SHE65P02UC/53 Bosch dishwasher

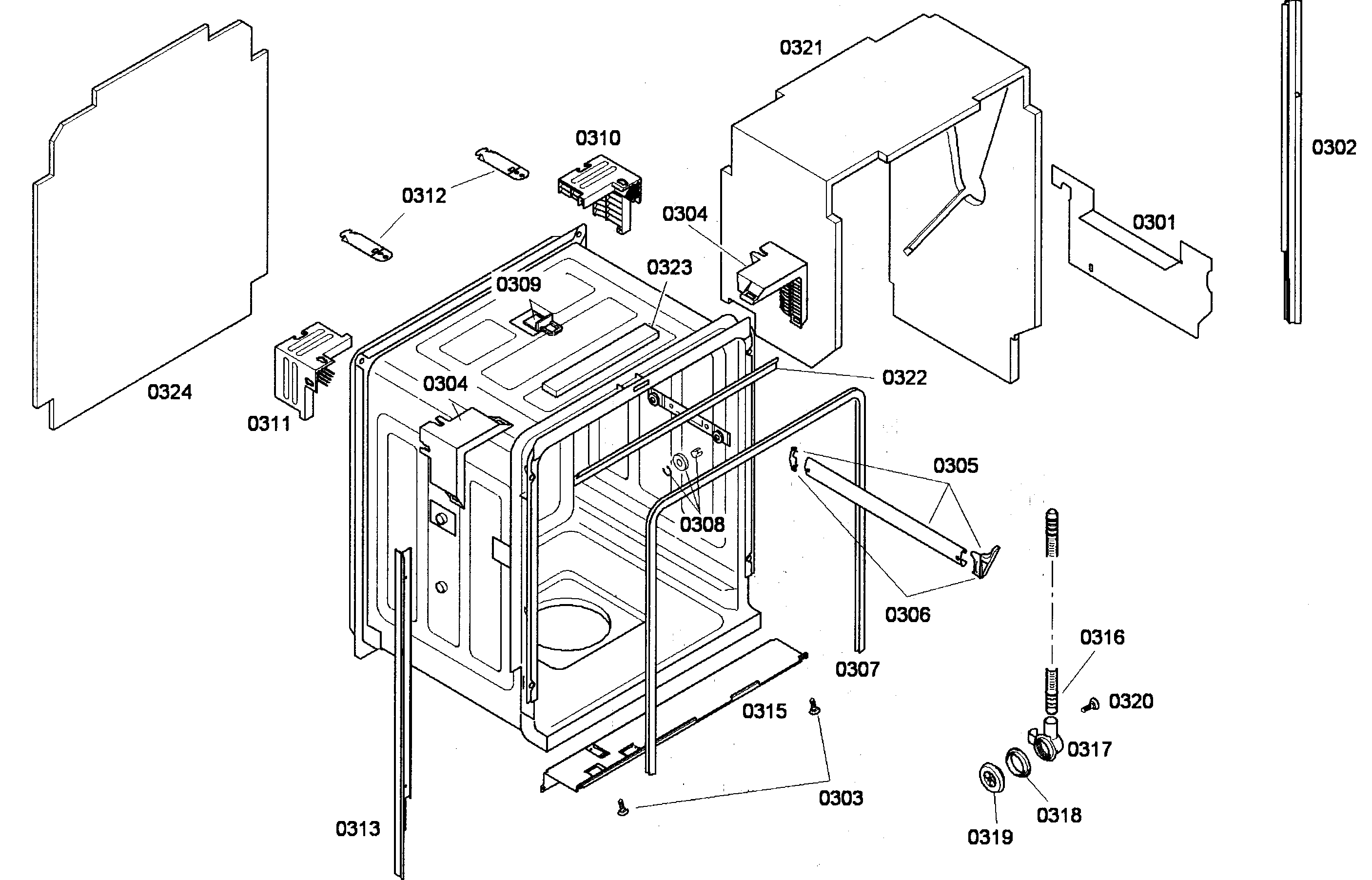

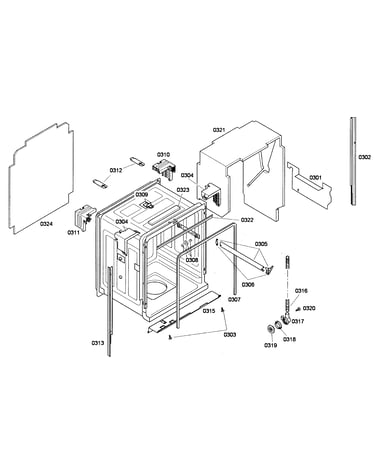

Here are the diagrams and repair parts for Bosch SHE65P02UC-53 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 154 parts

    Sealiing

    #415

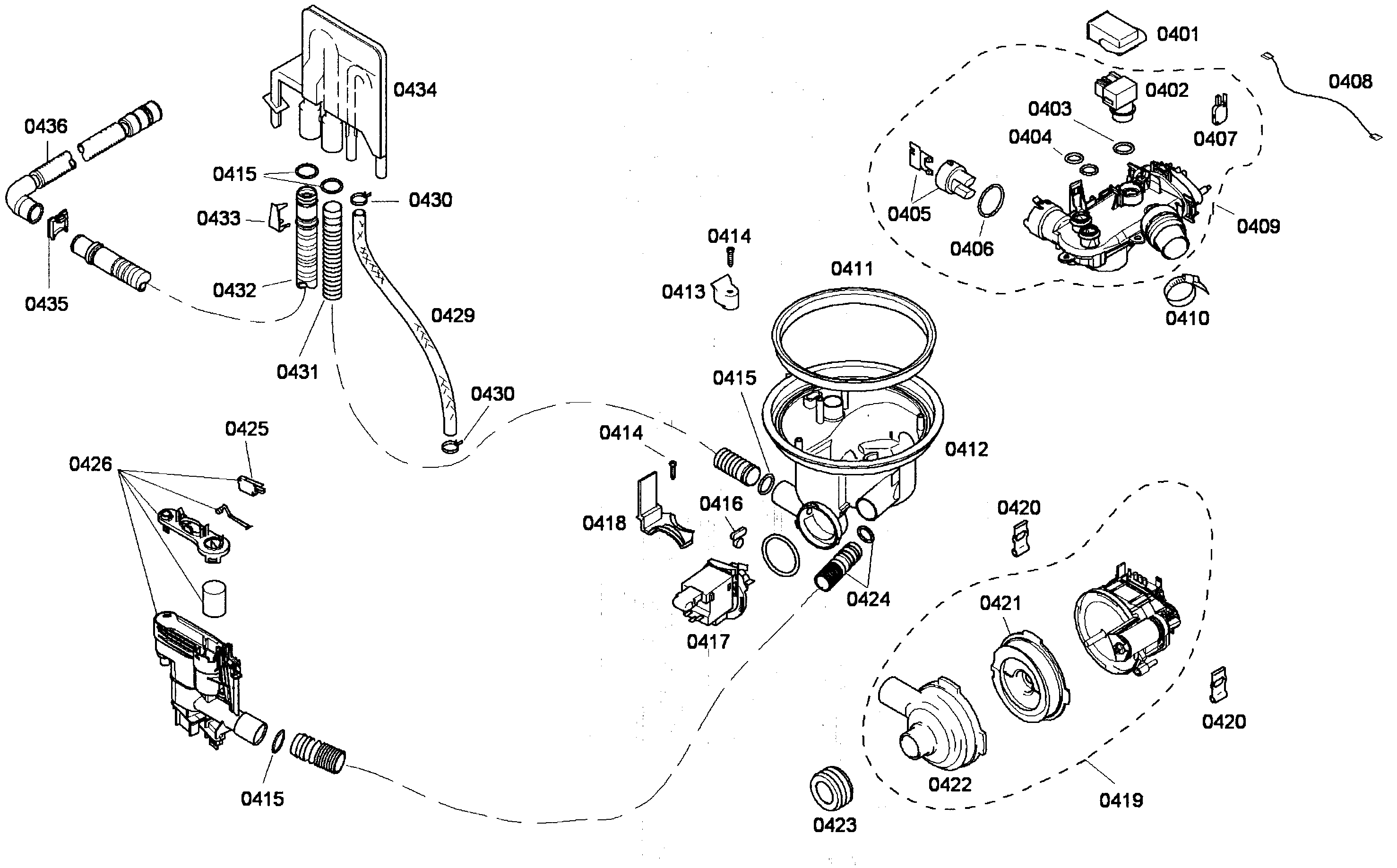

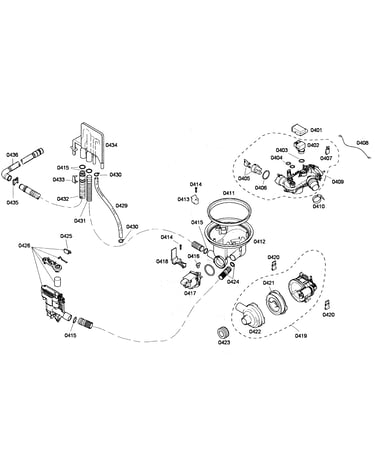

    Pump assy Diagram

    Sealiing

    Part #465331
    This item is not returnable
    $2.49

    In Stock

    Support

    #420

    Pump assy Diagram

    Support

    Part #171596
    This item is not returnable
    $3.13

    In Stock

    Dishwasher Tine Row Pivot Clip

    #626

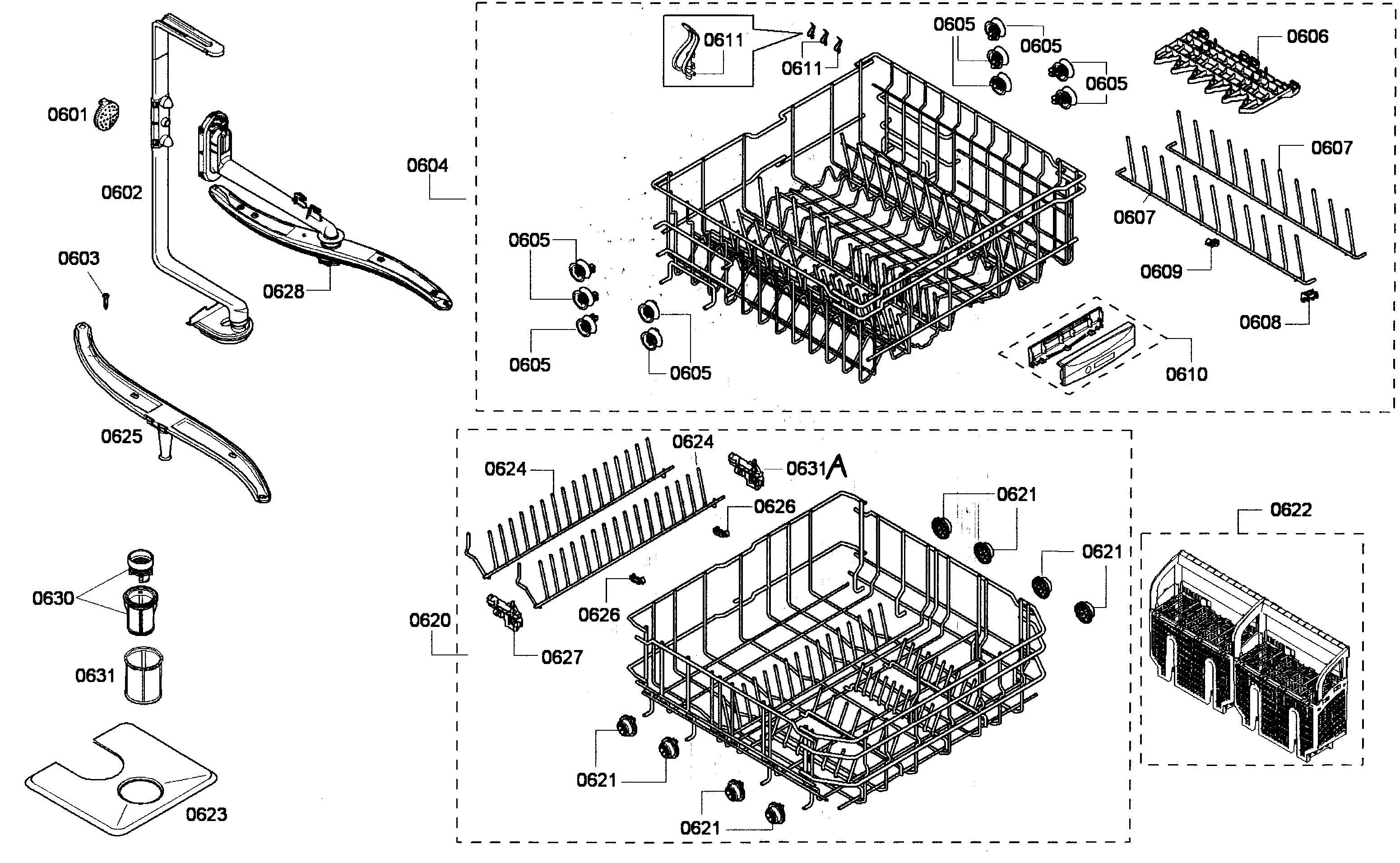

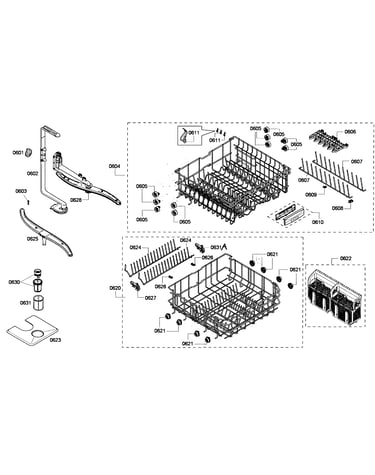

    Baskets assy Diagram

    Dishwasher tine row pivot clip

    Part #00611981
    ?
    Manufacturer substitution
    This part replaces 611981. Substitute parts can look different from the original.
    This part replaces 611981
    This item is not returnable
    $2.29

    In Stock

    Dishwasher Door Latch Handle

    #110

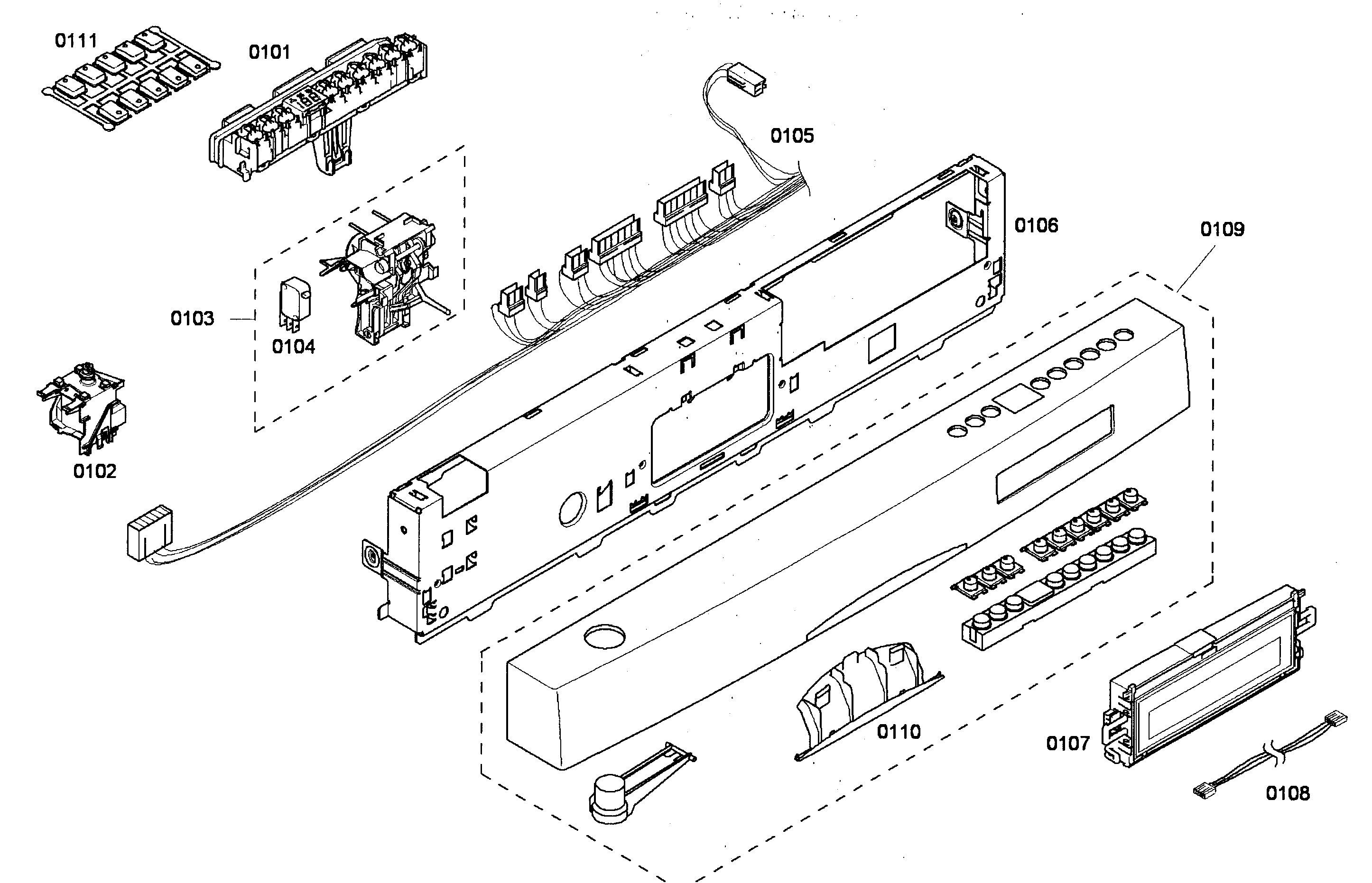

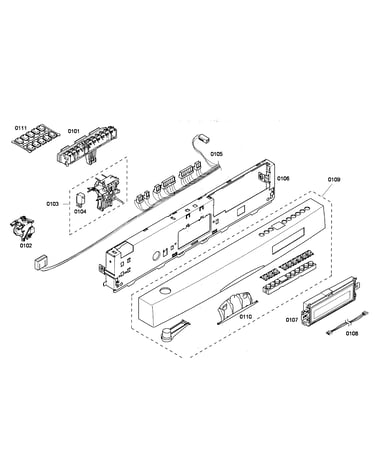

    Front panel Diagram

    Dishwasher door latch handle

    Part #00609802
    ?
    Manufacturer substitution
    This part replaces 609802. Substitute parts can look different from the original.
    This part replaces 609802
    $34.99

    In Stock

    Dishwasher Terminal Block Cover

    #513

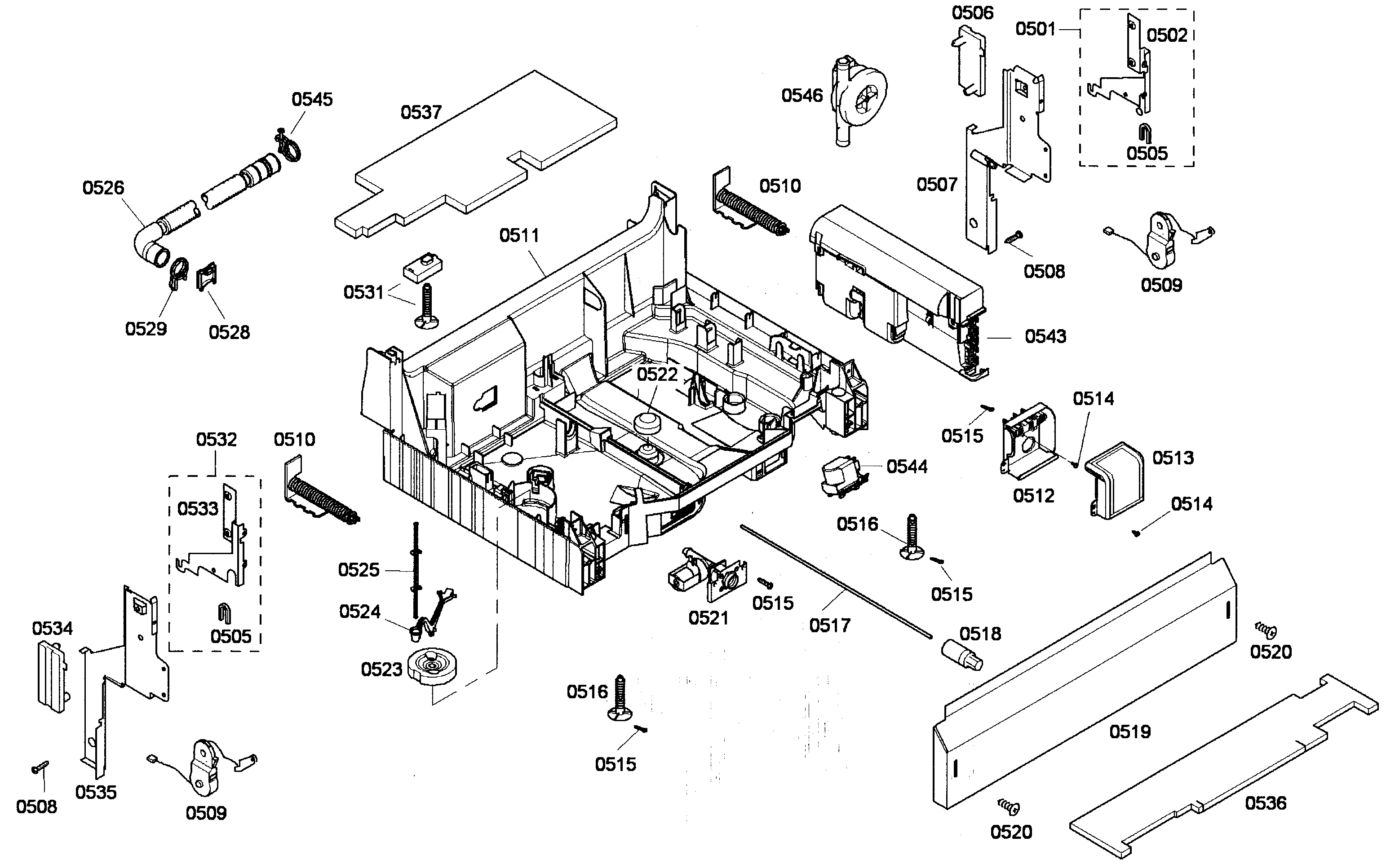

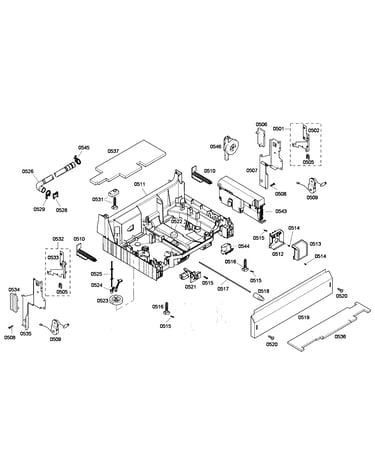

    Base assy Diagram

    Dishwasher terminal block cover

    Part #00640477
    ?
    Manufacturer substitution
    This part replaces 640477. Substitute parts can look different from the original.
    This part replaces 640477
    $10.99

    In Stock

    Dishwasher Toe Panel Insulation

    #536

    Base assy Diagram

    Dishwasher toe panel insulation

    Part #00640488
    ?
    Manufacturer substitution
    This part replaces 640488. Substitute parts can look different from the original.
    This part replaces 640488
    $25.24

    In Stock

    Support

    #219

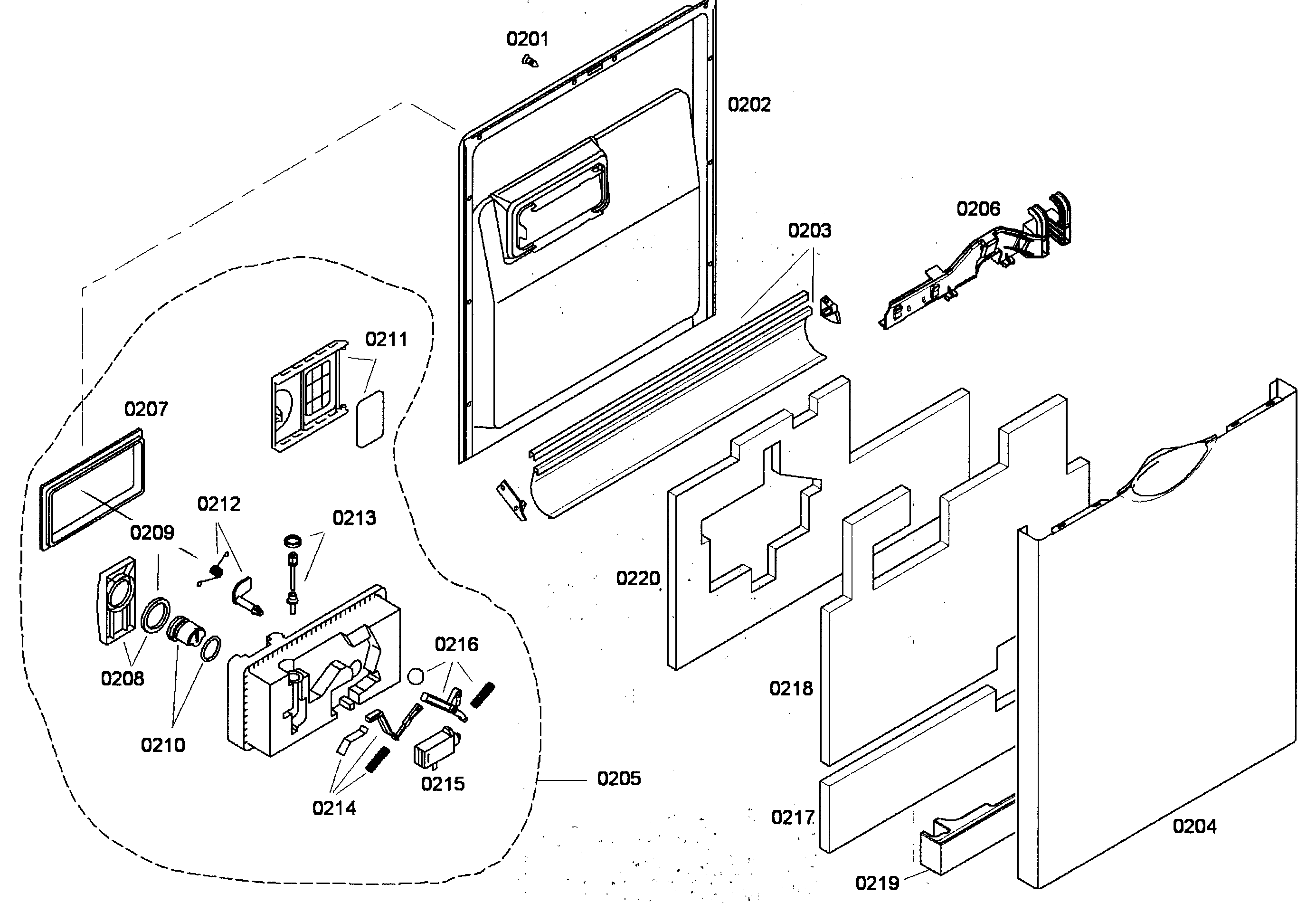

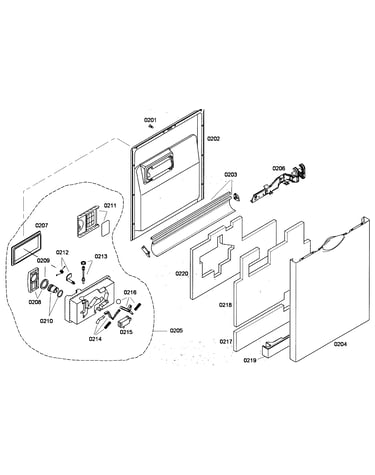

    Door assy Diagram

    Support

    Part #00665331
    ?
    Manufacturer substitution
    This part replaces 665331. Substitute parts can look different from the original.
    This part replaces 665331
    $8.81

    In Stock

    Dishwasher Drain Pump Housing

    #421

    Pump assy Diagram

    Dishwasher drain pump housing

    Part #00267739
    ?
    Manufacturer substitution
    This part replaces 267739. Substitute parts can look different from the original.
    This part replaces 267739
    $25.42

    In Stock

    Dishwasher Door Hinge Support Bracket, Right

    #507

    Base assy Diagram

    Dishwasher door hinge support bracket, right

    Part #00298570
    ?
    Manufacturer substitution
    This part replaces 298570. Substitute parts can look different from the original.
    This part replaces 298570
    $39.57

    In Stock

    Rfi Filter

    #544

    Base assy Diagram

    Rfi filter

    Part #429052

    The manufacturer no longer makes this part, and there's no substitute part
