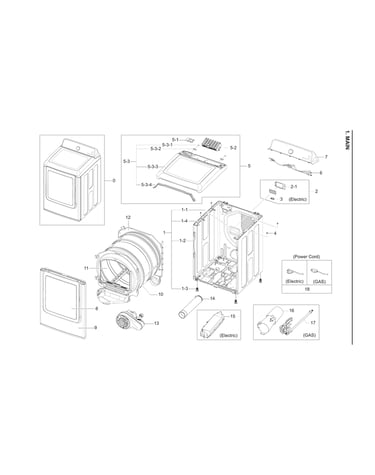

Samsung DV40J3000EW/A2-02 dryer Parts

On our Samsung DV40J3000EW dryer, a bad thermal fuse is typically open (no continuity), which can make the dryer not run or stop heating. The most reliable way to tell is to unplug the dryer and test the fuse with a multimeter for continuity, then correct any venting or lint restriction before replacing the fuse.

What you’ll notice when the thermal fuse is bad

A blown thermal fuse is a safety device that opens when the dryer overheats. Common symptoms include:

• Dryer won’t start or stops mid-cycle
• Dryer runs but has no heat (some failures show up this way)
• Burning smell or unusually hot cabinet (often caused by restricted airflow)
• Repeated overheating symptoms after long dry times

How we test the thermal fuse (quick, accurate method)

Before servicing, unplug the dryer (and shut off gas on gas models).

1. Disconnect power.
2. Access the fuse location (varies by design); use the DV40J3000EW owner’s manual for access guidance and safety notes.
3. Pull the two wires off the fuse terminals (note their positions).
4. Set a multimeter to continuity or lowest ohms.
5. Test across the fuse terminals:
   • Good fuse: continuity (near 0 ohms)
   • Bad fuse: no continuity (open/infinite)

What to do if it tests open

Replace the fuse and fix the overheating cause first. For this model’s heating and safety circuit, common related parts include the dryer thermal cut-off fuse, 320-degree f DC47-00015A and the dryer high-limit thermostat DC47-00018A.

Airflow checks to prevent repeat fuse failures

Overheating is usually caused by poor airflow. The manual’s troubleshooting guidance emphasizes lint filter and exhaust duct cleaning.

• Clean the lint filter before every load
• Inspect and clean the exhaust duct (at least yearly)
• Confirm the outside vent hood opens freely
• Use 4-inch rigid metal duct where possible
• Avoid crushing or kinking the vent behind the dryer

Quick decision table

Test result	What it means	What we do next
Continuity present	Fuse is good	Check venting, heat circuit, and thermostats
No continuity (open)	Fuse is blown	Replace fuse, correct airflow restriction

Why it matters

The thermal fuse helps prevent overheating. If we replace it without fixing lint buildup or a blocked vent, the dryer can overheat again, leading to long dry times, no-heat complaints, and repeat part failures.

Last updated: February 2026

A Samsung dryer like model DV40J3000EW typically lasts 10 to 15 years with normal household use, proper venting, and routine maintenance. Keeping airflow strong and addressing wear parts early (belt, rollers, heat components) helps you reach the upper end of that range.

What affects dryer lifespan the most

• Vent restriction (long ducts, crushed flex vent, clogged exterior hood) that overheats the heater and thermostats
• Overloading that strains the drum belt, motor, and drum support rollers
• Lint buildup inside the cabinet or blower housing that reduces airflow
• Heat cycling issues from failing sensors or safety cutoffs
• Moisture and corrosion around electrical connections and terminals

Maintenance that helps you get 10 to 15 years

• Clean the lint screen every load
• Check airflow at the outside vent; strong flow means safer, faster drying
• Keep loads sized correctly (the manual recommends filling the drum about 3/4 full for a large load)
• Inspect for early wear noises (thumping, squealing, scraping)
• If drying times increase, correct venting first before replacing heat parts

Common wear parts that can shorten life if ignored

If your DV40J3000EW starts getting noisy or drying poorly, these are frequent culprits:

Symptom	Common cause	Example part on this model
Thumping or rumbling	Worn drum rollers	Samsung dryer drum support roller DC97-16782A
Drum not turning	Worn or broken belt	Samsung dryer drum belt 6602-001655
No heat or overheating shutdown	Failed heater or safety devices	Samsung dryer heating element DC47-00019A

Why it matters

A dryer that runs hot because of poor airflow or worn components can burn through heaters, thermostats, and fuses faster. Preventive cleaning and quick repairs reduce repeat failures and keep cycles consistent.

For model-specific use, load guidance, and troubleshooting steps, follow the DV40J3000EW owner's manual. If you need to order replacement parts, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

The Samsung dryer model DV40J3000EW has a 7.2 cu. ft. drum capacity, which is a full-size capacity designed for typical family loads. For model-specific specs and installation clearances, we recommend checking the DV40J3000EW owner's manual.

What 7.2 cu. ft. means for everyday loads

A 7.2 cu. ft. Samsung dryer like DV40J3000EW is sized for common laundry needs, including:

• Mixed loads of everyday clothing
• Towels and bedding (dry in fewer batches than compact dryers)
• Medium to large loads from a matching washer
• Bulky items (dry best with extra space and proper airflow)

Quick spec snapshot (from the manual)

These specs help you plan space and venting so the dryer performs correctly.

Spec	DV40J3000EW typical value	Why you care
Capacity	7.2 cu. ft.	Load size and drying efficiency
Width	27 in.	Fit through doorways and into laundry rooms
Depth	29.96 in.	Clearance behind dryer for venting
Height	44.0 in. (adjustable)	Leveling and stacking area planning

Why capacity and installation setup matter

Capacity is only part of good drying performance. Overloading reduces tumbling and airflow, and restricted venting can cause long dry times and overheating. Following the venting and clearance guidance in the manual helps the moisture sensor and heater operate as intended.

Best practices we recommend

• Fill the drum loosely; leave room for items to tumble
• Clean the lint screen before every load
• Use 4-inch rigid metal ducting where possible
• Keep the vent run short and straight; tape joints (avoid screws that catch lint)
• Maintain the minimum clearances around the cabinet

Parts that commonly affect drying performance

If the dryer tumbles but does not heat or takes too long to dry, these model-compatible parts are common checks:

• Dryer thermistor DC32-00007A (temperature sensing)
• Dryer high-limit thermostat DC47-00018A (overheat protection)
• Samsung dryer heating element DC47-00019A (electric heat source)

For additional replacement parts for DV40J3000EW, you can use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A bad heating element in your Samsung DV40J3000EW dryer typically causes “runs but doesn’t heat,” very long dry times, or a breaker that trips when heat should turn on. The sure test is checking resistance and checking for a short to the heater housing with the dryer unplugged.

Symptoms that point to a failed element

• Drum tumbles but there is no heat on heated cycles
• Dry times increase even with a clean lint screen
• Heat never comes on, or seems to cut out quickly
• Burning smell during a heat cycle
• Breaker trips when a heated cycle starts

How we test the heating element

1. Unplug the dryer (or switch off the breaker).
2. Follow access steps and safety notes in the DV40J3000EW owner's manual.
3. Remove at least one wire from the element terminal.
4. Test resistance across the two element terminals.
5. Test for a short to ground: one meter lead on an element terminal, the other on the metal heater canister.

What the meter results mean

Test	Normal result	Bad result
Terminal-to-terminal resistance	Continuity (some resistance)	Open circuit (no continuity)
Terminal-to-canister (short test)	No continuity	Any continuity (shorted)

Problems that mimic a bad heater

The DV40J3000EW troubleshooting for “Doesn’t heat” also highlights issues that stop heating even when the element is good.

• Check both house breakers or fuses (electric dryers can run on 120V but not heat without full power)
• Make sure you are not using Air Fluff
• Clean the lint screen and inspect the exhaust duct for restrictions

Parts often replaced when the element fails

If your tests show the heater is open or shorted, replace the Samsung dryer heating element DC47-00019A. If overheating is involved, also inspect the dryer high-limit thermostat DC47-00018A and the dryer thermal cut-off fuse, 320-degree f DC47-00015A.

Why it matters

A shorted element can overheat wiring and trip breakers; restricted venting can overheat the heater area and cause repeat failures.

You can order parts from the list for this model or search by model number on Sears PartsDirect.
