Samsung
Side-By-Side Refrigerator

Model # RSG307AARS/XAA-02 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RSG307AARS-XAA-02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

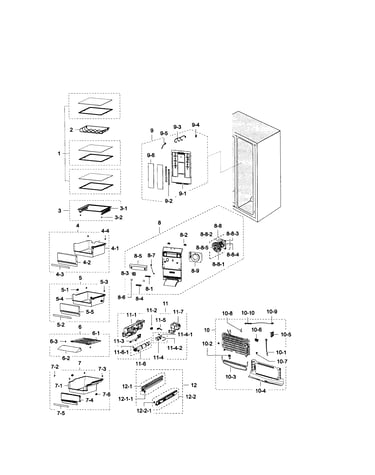

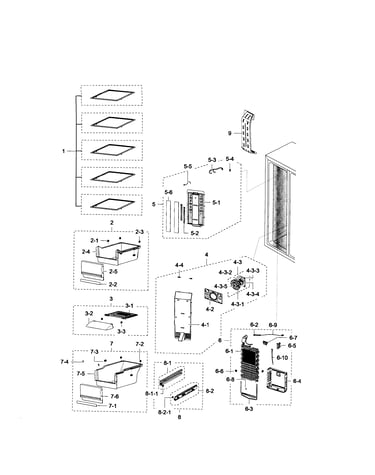

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Refrigerator Dryer DA62-04309A
#9

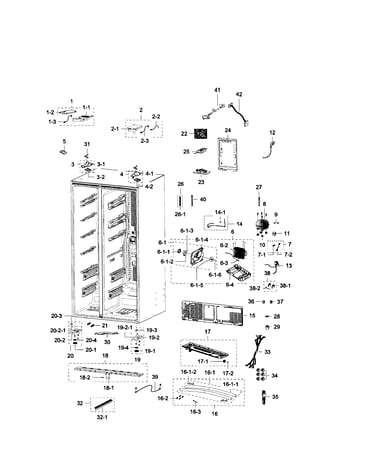

Cabinet diagram

Refrigerator dryer

Part #DA62-04309A

BEST SELLER
$42.27
In Stock
Refrigerator Compressor (replaces Mkv190cl2b/e0i) MKV190CL2B/E01
#8

Cabinet diagram

Refrigerator compressor (replaces mkv190cl2b/e0i)

Part #MKV190CL2B/E01

BEST SELLER
$216.17 |
5% OFF Phone Price : $228.17
In Stock
Refrigerator Ice Maker DA97-11092B
#8-1

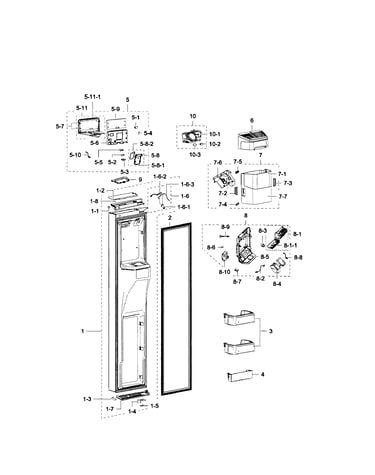

Left door diagram

Refrigerator ice maker

Part #DA97-11092B

BEST SELLER
$165.63 |
7% OFF Phone Price : $177.63
Back Order
Refrigerator Inverter Power Control Board (replaces Da94-00678a, Da94-00680a) DA92-00215C
#23

Cabinet diagram

Refrigerator inverter power control board (replaces da94-00678a, da94-00680a)

Part #DA92-00215C

BEST SELLER
$165.97 |
7% OFF Phone Price : $177.97
In Stock
Refrigerator Drain Tube Kit (replaces Da97-04049j) DA97-04049E
#26

Cabinet diagram

Refrigerator drain tube kit (replaces da97-04049j)

Part #DA97-04049E

BEST SELLER
$27.20 |
18% OFF Phone Price : $33.20
In Stock
Refrigerator Door Closer (replaces Da66-00558a) DA66-00558B
#1-5

Left door diagram

Refrigerator door closer (replaces da66-00558a)

Part #DA66-00558B

BEST SELLER
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Refrigerator Door Bin DA97-11500A
#3

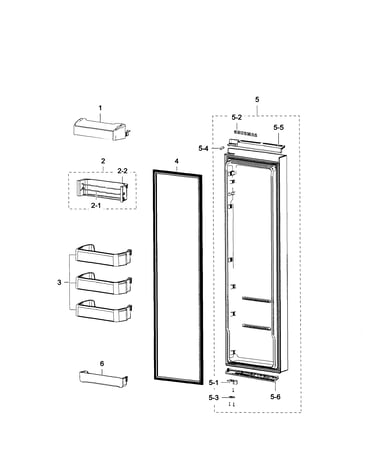

Right door diagram

Refrigerator door bin

Part #DA97-11500A

BEST SELLER
$54.97 |
10% OFF Phone Price : $60.97
In Stock
Refrigerator Compressor Overload Protector DA34-00004D
#7-1

Cabinet diagram

Refrigerator compressor overload protector

Part #DA34-00004D

BEST SELLER
$43.34 |
12% OFF Phone Price : $49.34
In Stock
Refrigerator Dispenser Lever DA66-00850A
#5-81

Left door diagram

Refrigerator dispenser lever

Part #DA66-00850A

BEST SELLER
This item is not returnable
$15.04 |
12% OFF Phone Price : $17.04
Back Order
Refrigerator Door Handle Mounting Stud DA61-03734A
#16-2

Cabinet diagram

Refrigerator door handle mounting stud

Part #DA61-03734A

BEST SELLER
This item is not returnable
$6.20 |
14% OFF Phone Price : $7.20
In Stock
