For LG refrigerators like model LFXS28968D, the most common service issue we see is a cooling problem (refrigerator or freezer too warm). The most frequent root causes are airflow restrictions, doors not sealing or closing, and failures in key cooling-system components such as the compressor or fans; use the owner's manual troubleshooting chart to narrow it down.

Quick checks we recommend first (no tools)

• Confirm the doors fully close and stay closed; avoid long door openings.
• Make sure food packages are not blocking interior air vents.
• Allow up to 24 hours for temperatures to stabilize after installation or major loading.
• Verify the refrigerator is not installed in an area above 110 °F.
• If ice or water quality is off, discard the first batches after long non-use (the manual notes about 140 to 160 cubes).

Common symptoms and the most likely parts involved

Symptom	Most likely cause	Parts on this model that often apply
Fresh food section warm, freezer OK	Blocked vents, door not closing, sensor issue	Refrigerator temperature sensor 6500JB2002X
Both sections warm, unit runs a lot	Dirty condenser area, condenser fan issue, sealed system issue	Refrigerator condenser fan motor EAU63923602, compressor,set assembly TCA38091801
Clicking, won’t start cooling	Compressor protection/starting issue	Refrigerator compressor overload protector 6750CL0001D
Water dispenser slow or no ice production	Water supply restriction or valve issue	LG refrigerator water inlet valve AJU72992601

Why it matters

Cooling problems can look the same from the outside, but the fix is very different. A blocked vent or door seal issue is a quick correction, while a failed compressor or condenser fan motor can prevent the refrigerator from reaching safe food temperatures.

Helpful DIY guides for this LG refrigerator

• Use LG bottom freezer refrigerator error codes if the display shows an error; it helps pinpoint the system involved.
• If the issue is water or ice related, follow how to prevent water dispenser and ice maker problems to reduce repeat failures.

Ordering the right part

We list model-matched parts for LFXS28968D on this page; for broader part searches by model number, use Sears PartsDirect.

Last updated: February 2026

Most LG refrigerators, including the LG LFXS28968D bottom-mount refrigerator, last 12 years. With normal use and basic maintenance (good airflow, clean seals, correct temperatures), 10 to 15 years is typical before major repairs like a compressor, control board, or sealed-system work become more likely.

Typical lifespan ranges (what to expect)

These ranges help you plan for maintenance and replacement parts over time:

• Average service life: 12 years
• Common real-world range: 10 to 15 years
• Long-life outcome with strong maintenance: 15+ years
• Earlier failure risk increases when doors do not seal, condenser airflow is blocked, or the ice maker and dispenser are heavily used

Item	Typical timing	What usually drives it
Overall refrigerator lifespan	12 years	Normal wear on cooling and electronics
Sealed system components	10 to 15 years	Heat load, airflow, compressor run time
Ice maker and dispenser parts	5 to 10 years	Mineral buildup, wear, freezing/clogging

Maintenance that extends life

We see the biggest lifespan gains from a few simple habits:

• Keep the refrigerator level so doors close and seal consistently
• Leave air space around the cabinet for condenser airflow
• Keep door gaskets clean so the unit does not run constantly
• Replace the water filter about every 6 months (or when the Replace Filter icon turns on)
• Use correct temps: about 37°F fresh food and 0°F freezer

For model-specific care and control-panel indicators, use the owner's manual.

Why it matters

A refrigerator that runs longer than it should (because of warm air leaks, restricted airflow, or heavy frost) puts extra stress on the compressor and sealed system. That added run time is one of the fastest ways to shorten overall lifespan and increase energy use.

When parts replacement makes sense

If cooling is weak, temperatures swing, or the unit runs constantly, these are common repair paths:

• Sealed-system or cooling performance issues: compressor,set assembly TCA38091801
• Water/ice fill problems: LG refrigerator water inlet valve AJU72992601

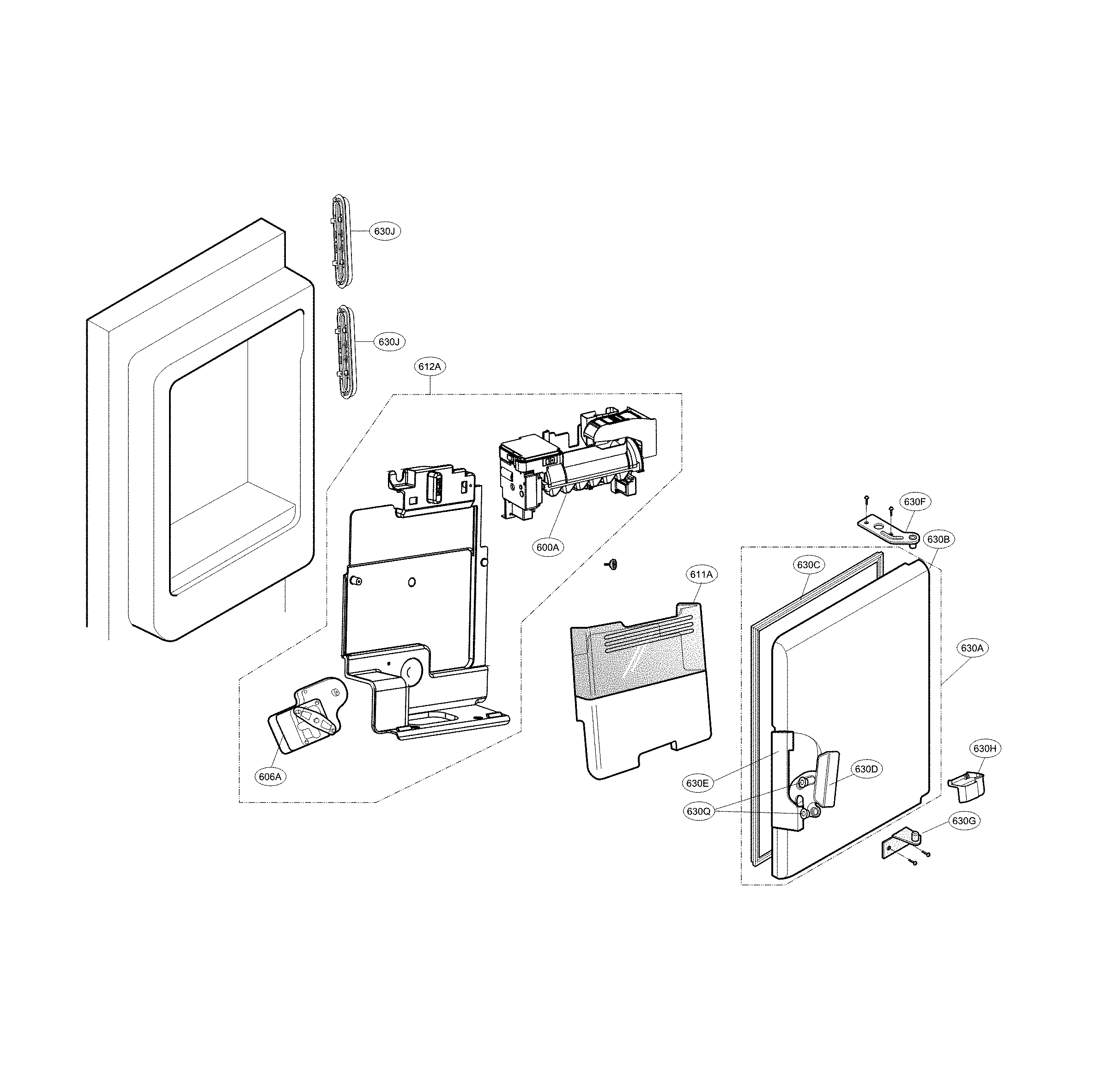

• Ice production issues: refrigerator ice maker assembly AEQ73110210

You can order replacement parts for your LG LFXS28968D from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On an LG LFXS28968D bottom-mount refrigerator, water leaking from the bottom is usually caused by a clogged defrost drain overflowing into the base, or a slow drip from the ice and water system (inlet valve, ice maker fill, or tubing) that runs down and pools underneath. Follow the safety steps in the owner's manual before inspecting.

Quick checks we recommend

• Unplug the refrigerator before removing covers or reaching near wiring.
• Identify where the water shows up: front puddle often points to dispenser or ice maker; rear puddle often points to supply line, inlet valve, or drain pan.
• Check whether the leak happens after dispensing water or after an ice-making cycle.
• Look for ice on the freezer floor; that commonly indicates a blocked defrost drain.

Most common causes and what to do

1) Clogged defrost drain

Defrost water should flow through the drain to the drain pan. When the drain is blocked, water backs up and leaks into the bottom.

• Melt visible ice at the drain opening using warm water.
• Flush the drain with hot water until it runs freely.
• If the tube is restricted, loose, or damaged, replace the refrigerator drain tube 5251JA3003D.

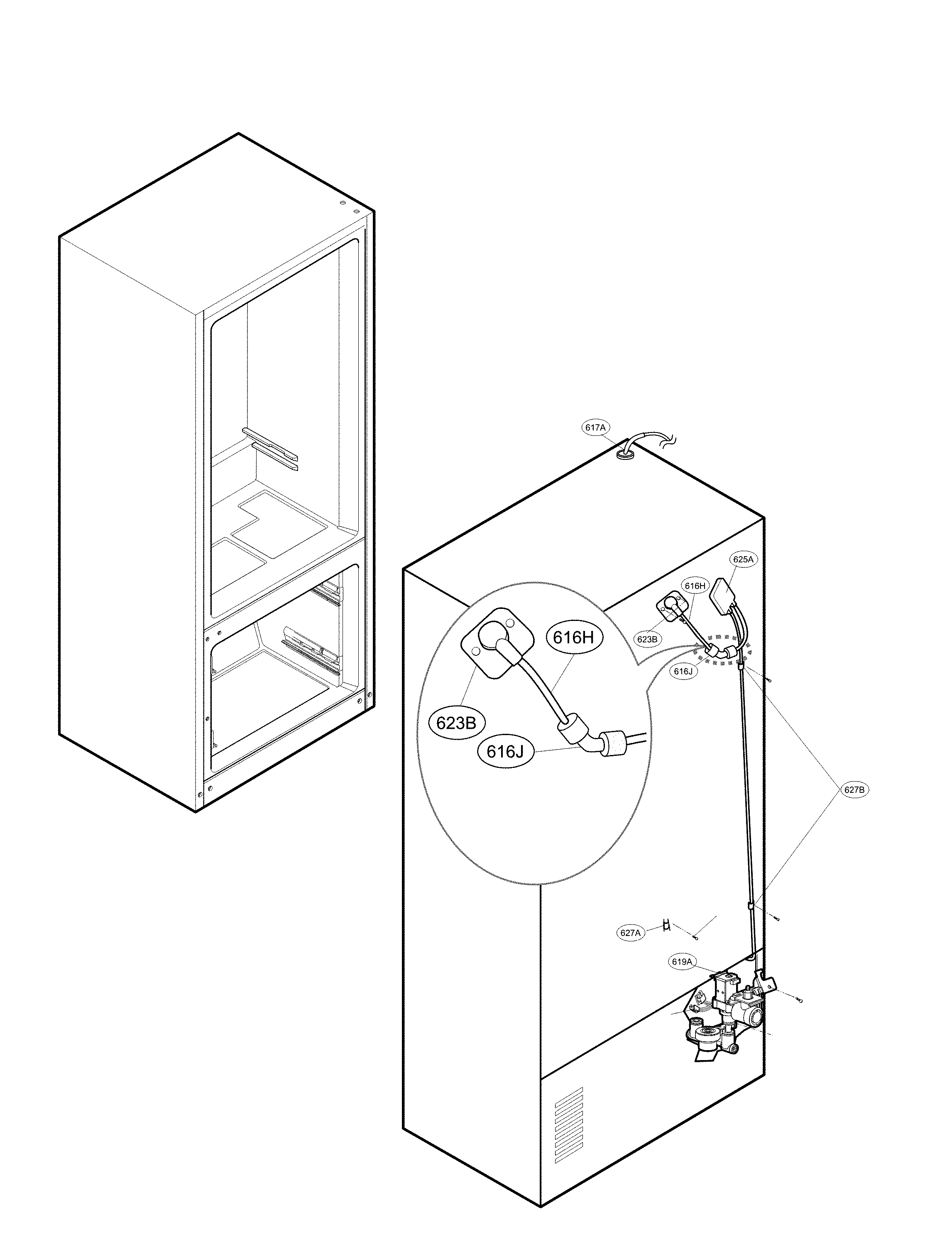

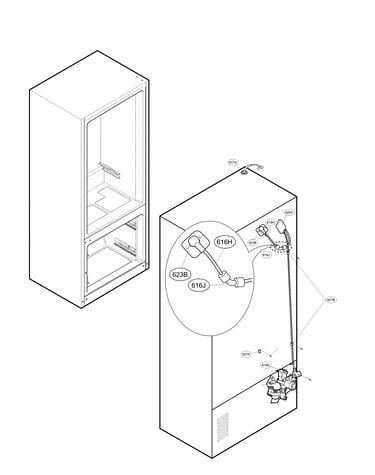

2) Water inlet valve seeping

A valve that does not fully close can drip into the ice maker fill tube or internal lines.

• Inspect the valve area and fittings for slow drips.
• Replace a leaking valve; options listed for this model include LG refrigerator water inlet valve AJU72992601 and LG refrigerator water inlet valve 5221JB2010G.

Symptom-to-cause guide

What you notice	Most likely cause	Best next step
Ice on freezer floor, water under freezer	Defrost drain clogged	Clear ice, flush drain, check drain tube
Leak after using dispenser or ice	Inlet valve or tubing	Inspect valve and fittings for drips
Slow puddle over days	Seeping valve or drain overflow	Monitor after ice cycles, recheck drain

Why it matters

Water under the refrigerator can damage flooring and can reach electrical components. Clearing the drain path or stopping a supply leak quickly helps prevent repeat leaks and protects cooling performance.

You can order the exact replacement parts from the parts list for your model, or search by model number on Sears PartsDirect.
