Model # FFGF3052TSC Official Frigidaire free standing gas range

Here are the diagrams and repair parts for Official Frigidaire FFGF3052TSC free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |

Appliance Light Bulb, 40-watt 316538901
#15

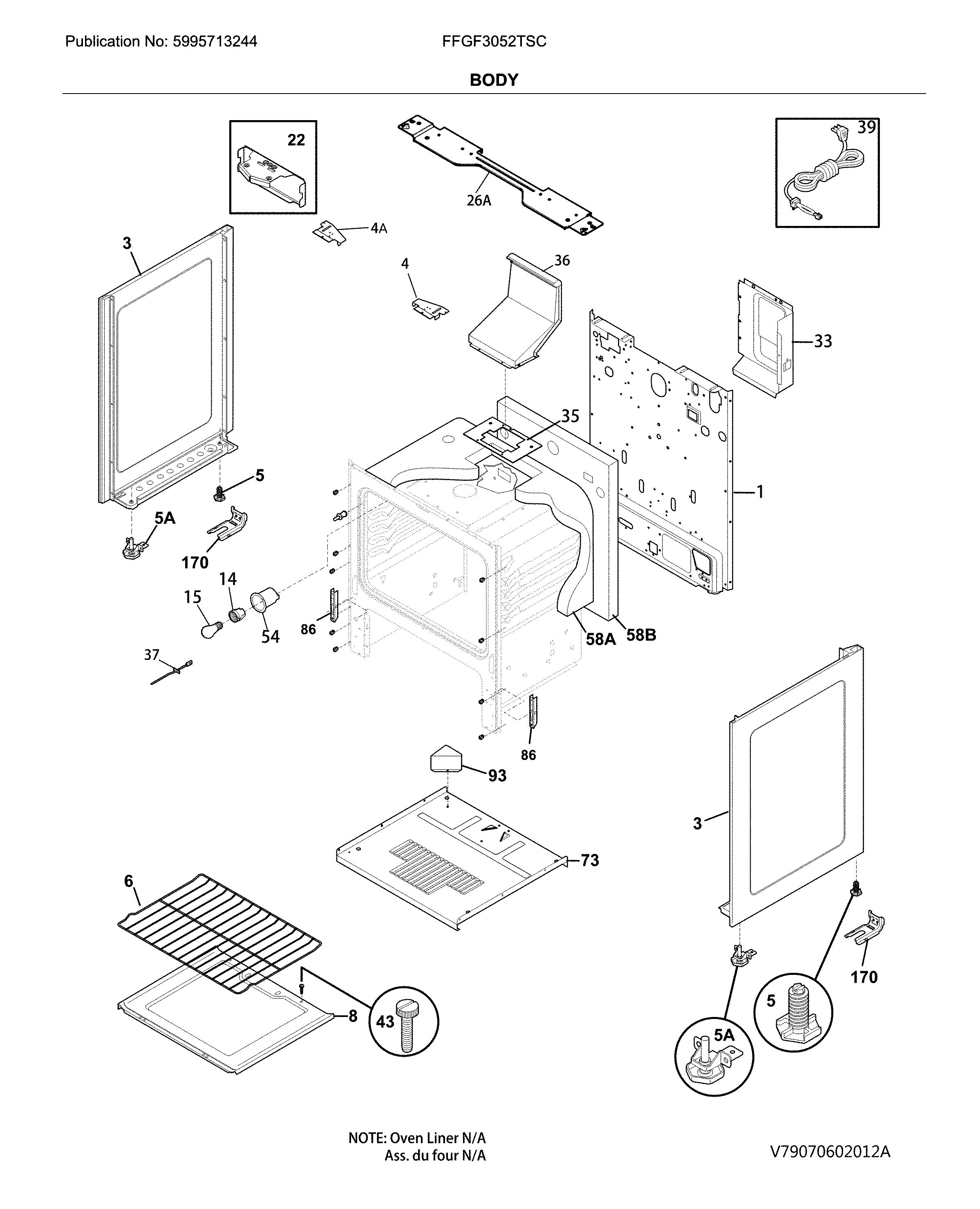

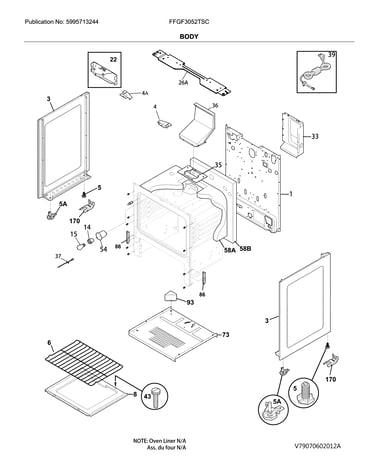

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.78
11% OFF Phone Price : $17.78
In Stock
Range Oven Burner Igniter (replaces 316489402, 316489408) 5304509706
#19

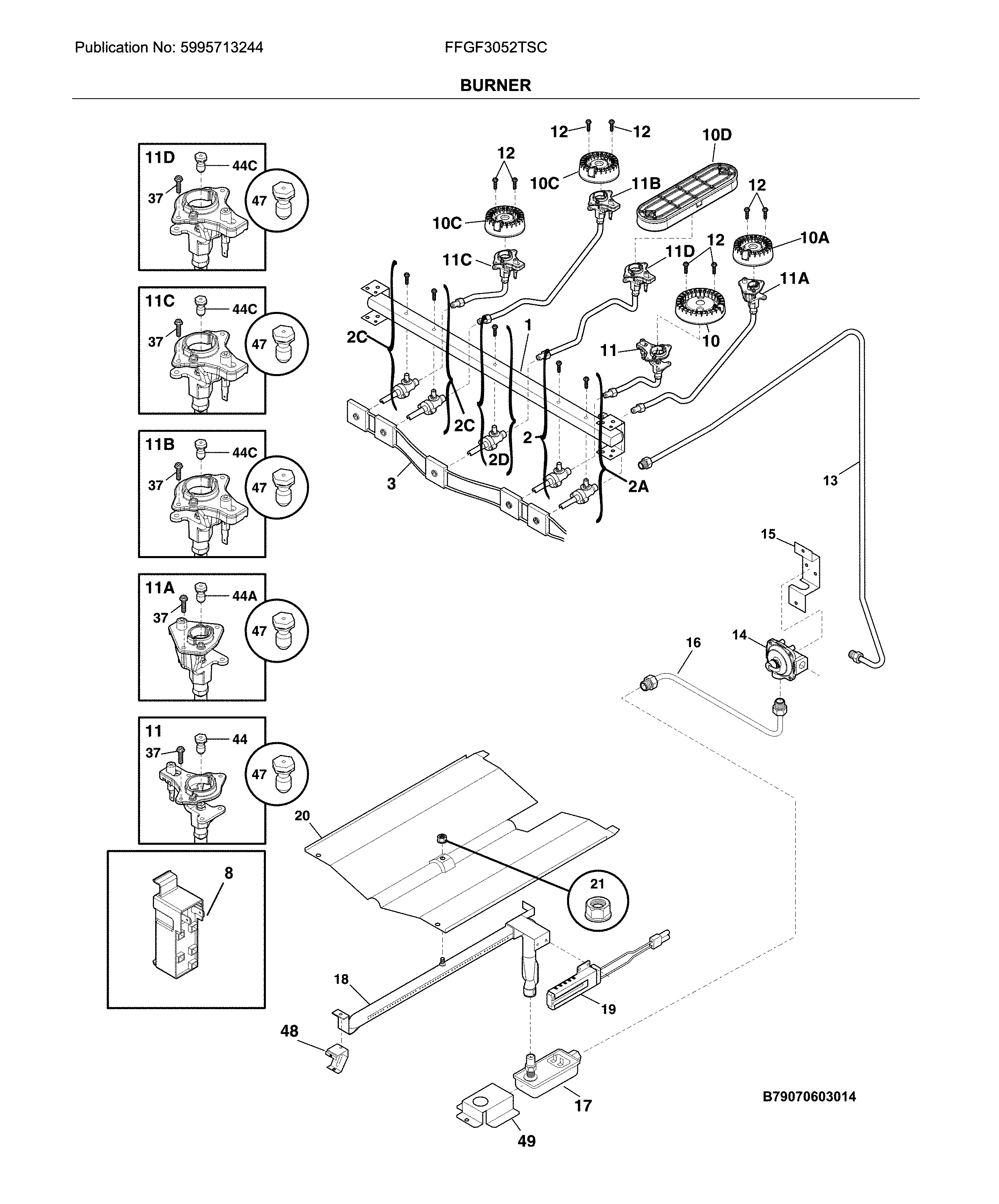

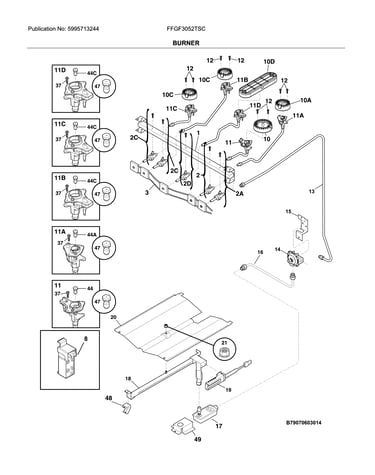

Burner diagram

Range oven burner igniter (replaces 316489402, 316489408)

Part #5304509706

BEST SELLER
$126.39
10% OFF MSRP : $140.00
In Stock
Range Oven Door Inner Glass (replaces 316117502, 316117503) 5304503232
#8

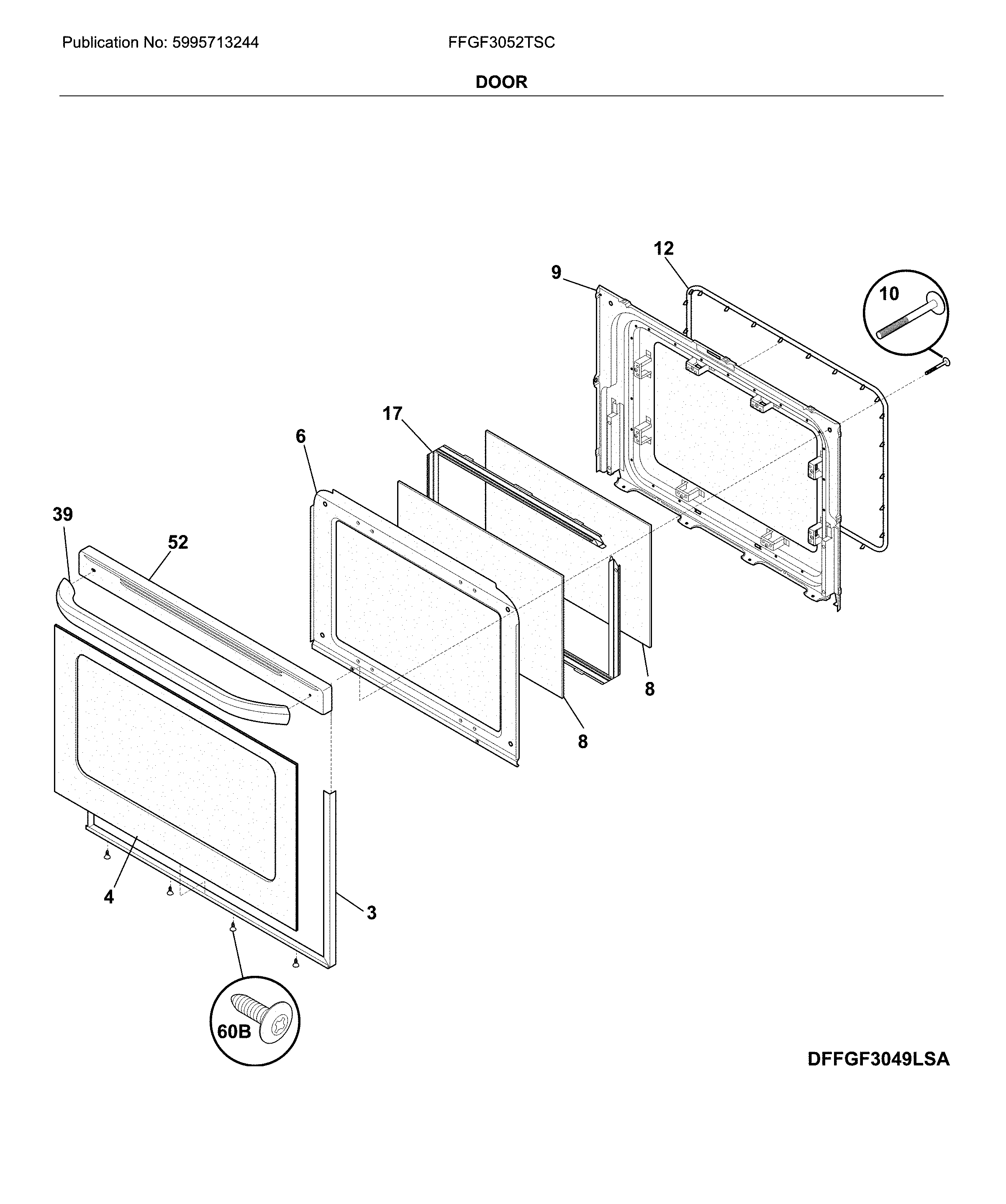

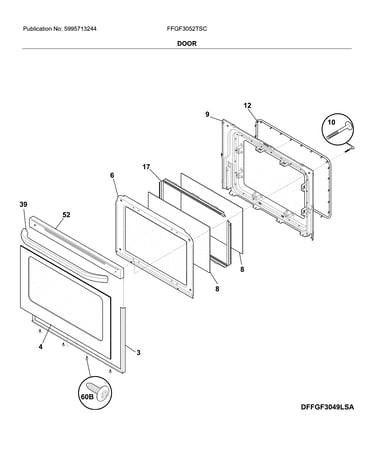

Door diagram

Range oven door inner glass (replaces 316117502, 316117503)

Part #5304503232

BEST SELLER
$85.47
6% OFF Phone Price : $90.47
In Stock
Range Oven Temperature Sensor 316233903
#37

Body diagram

Range oven temperature sensor

Part #316233903

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233903. Substitute parts can look different from the original.
BEST SELLER
$25.89
16% OFF Phone Price : $30.89
Back Order
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11B

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$78.09
6% OFF Phone Price : $83.09
In Stock
Range Surface Burner Cap 316262104
#22

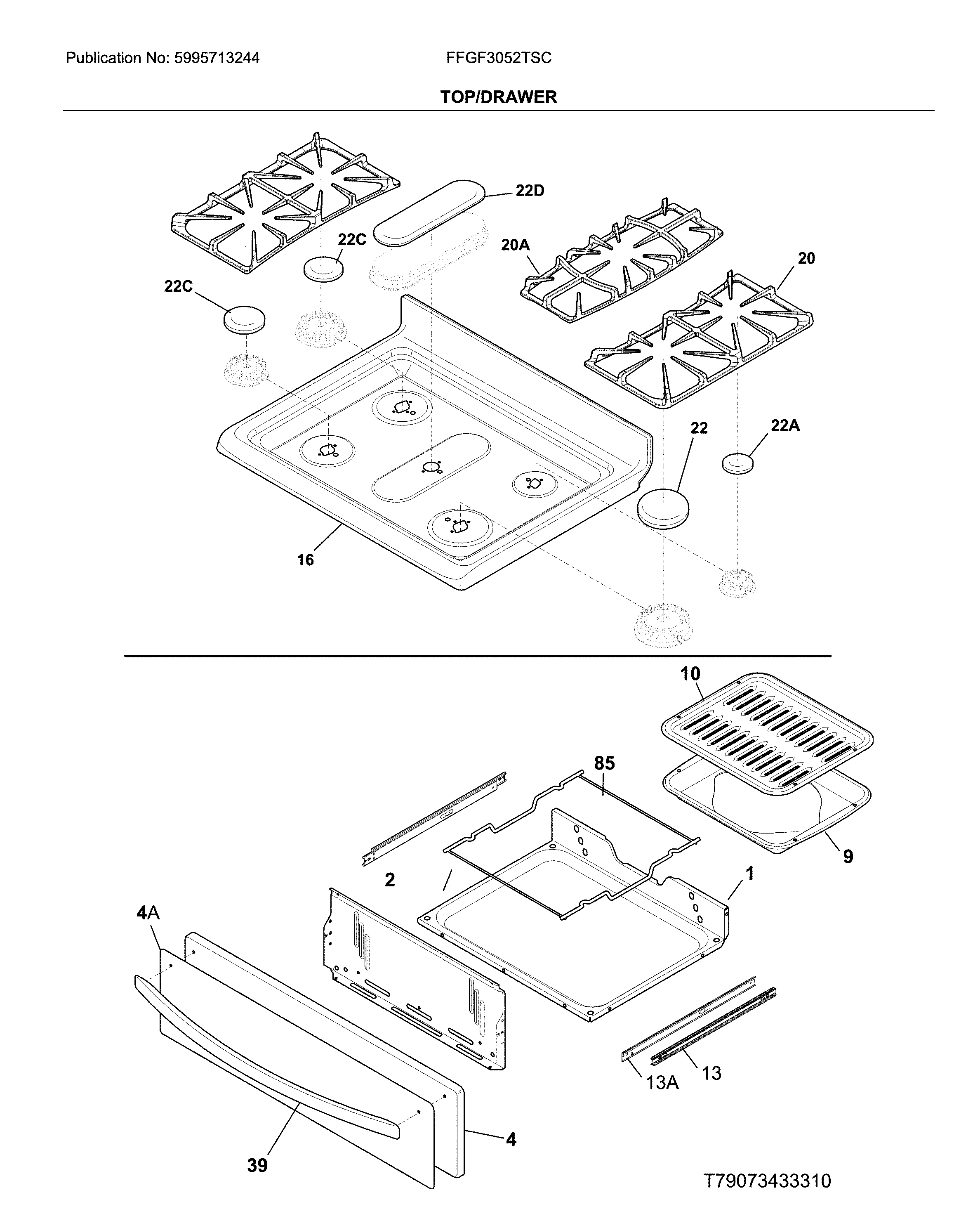

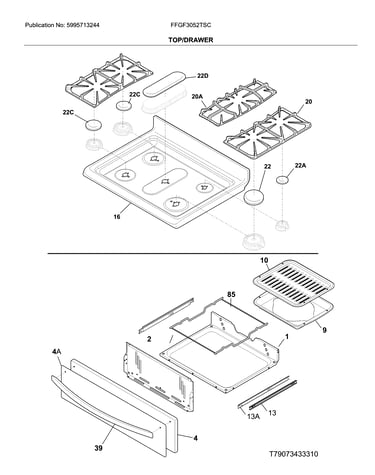

Top/drawer diagram

Range surface burner cap

Part #316262104

Replaced by #5304508468

?
Manufacturer substitution
This part replaces 316262104. Substitute parts can look different from the original.
BEST SELLER
$34.29
13% OFF Phone Price : $39.29
In Stock
Range Oven Control Board 316455410
#20

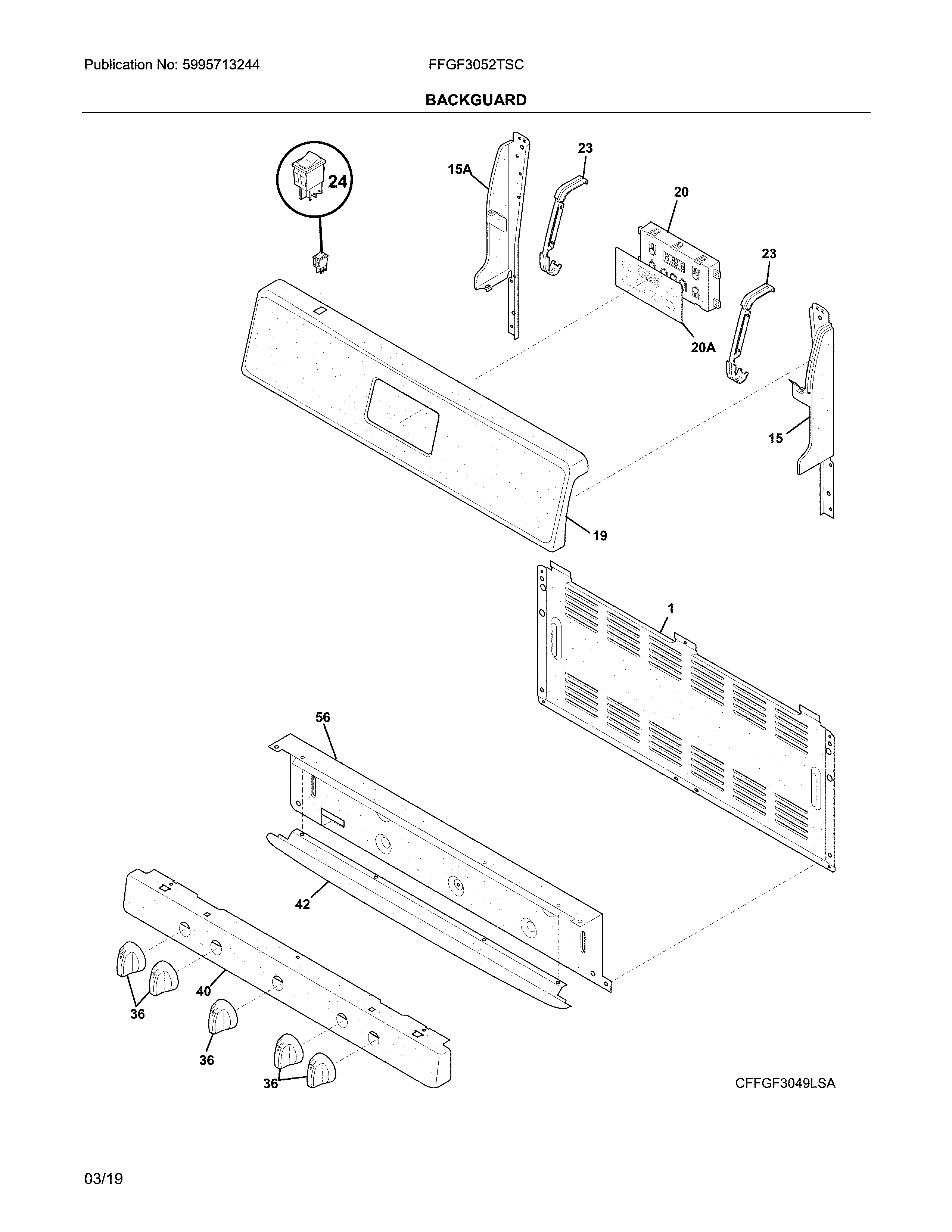

Backguard diagram

Range oven control board

Part #316455410

Replaced by #5304518661

?
Manufacturer substitution
This part replaces 316455410. Substitute parts can look different from the original.
BEST SELLER
$130.14
7% OFF Phone Price : $140.14
In Stock
Range Surface Burner Orifice (replaces 7316527500) 316527500
#44C

Burner diagram

Range surface burner orifice (replaces 7316527500)

Part #316527500

BEST SELLER
$17.89
10% OFF Phone Price : $19.89
In Stock
Range Leveling Leg And Bracket Assembly, Front (replaces 316498900) 5304509869
#5A

Body diagram

Range leveling leg and bracket assembly, front (replaces 316498900)

Part #5304509869

BEST SELLER
This item is not returnable
$5.89
15% OFF Phone Price : $6.89
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10C

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$39.43
11% OFF Phone Price : $44.43
In Stock
