Whirlpool WFW9150WW01 washer Parts

Whirlpool washer parts are only interchangeable when the replacement part is listed as compatible with your exact washer model. For Whirlpool model WFW9150WW01, we recommend using FSP (Factory Specified Parts) so the part fits right and works right, just like the original.

What “interchangeable” really means

Parts can look identical across Whirlpool-built washers, but small differences (mounting points, electrical connectors, hose diameters, software revisions) can prevent a correct repair.

Use these checks before you buy:

• Match the model number exactly: WFW9150WW01
• Confirm the part is shown as a fit for your model in the parts list
• Compare part ID and description, not just appearance
• For electrical parts, match connector style and wire count
• For hoses and clamps, match diameter and attachment type

Common examples on WFW9150WW01

These parts are model-matched examples that are safe to use as references when comparing compatibility:

Repair area	Example part (model-matched)	What must match
Draining	Washer drain pump assembly WPW10730972	Port orientation, electrical plug, mounting
Door seal	Washer bellow WPW10381562	Boot shape, vent/drain holes, lip size
Filling	Washer water inlet valve WPW10212596	Solenoid count, connector type, flow ports

Why it matters

Using the correct Whirlpool FSP replacement part helps prevent leaks, drain errors, door-lock issues, and repeat failures. It also reduces the chance of damaging related components like the electronic control or wire harness.

Best next step

Confirm the correct part using the exploded-view parts list and procedures in the WFW9150WW01 owner's manual.

Last updated: February 2026

On the Whirlpool WFW9150WW01 washer, the E01 and F09 (often shown together as F9E1) error points to a drain problem: the washer is not draining water out as expected, so the cycle stops to prevent overflow and protect the pump.

What to check first (fast fixes)

• Press POWER to cancel the cycle.
• If the tub is full, run Rinse/Drain & Spin to try clearing the water.
• Check the drain hose for kinks, crushing, or a clogged standpipe.
• Make sure the drain hose is not shoved too far down the drain (it can siphon or restrict flow).
• Look for coins, socks, or lint blocking the pump filter area (if accessible on your setup).
• Unplug the washer for 1 minute, restore power, then restart the cycle.

Most common causes on this model

Symptom you notice	Most likely cause	What usually fixes it
Water stays in tub, humming sound	Drain pump jammed or failing	Clear blockage or replace pump
Drains slowly, then errors	Partial clog in hose/standpipe	Clear hose and household drain
Intermittent drain errors	Loose connection or intermittent pump	Inspect wiring, replace pump if needed

If you suspect the pump itself is the issue, the correct replacement for this model is the washer drain pump assembly WPW10730972.

Why it matters

A long or failed drain can leave water in the tub, cause repeated cycle interruptions, and overwork the drain pump. Fixing the drain restriction early helps prevent leaks, odors, and repeat error codes.

Where to confirm the code and reset steps

We list the error-code behavior and the recommended cancel and restart steps in the WFW9150WW01 owner's manual.

Last updated: February 2026

The Whirlpool WFW9150WW01 front-load washer has a 3.5 cu. ft. capacity, which is a common size for 27-inch Whirlpool Duet-style washers and supports medium to large everyday loads.

How to confirm capacity for your exact configuration

We recommend checking the model’s documentation for the listed capacity and cycle details, especially if you are comparing pedestals, stacking, or installation clearances.

• Look for “capacity” or “cu. ft.” in the specifications section of the WFW9150WW01 owner's manual
• Match the full model number WFW9150WW01 on your rating label to avoid mix-ups with similar models
• Use capacity as a guide, but load by drum fill level (front-loaders clean best with space to tumble)

Practical loading guidance (what 3.5 cu. ft. means day to day)

A 3.5 cu. ft. front-load washer typically handles most family laundry efficiently when loaded correctly.

• Fill the drum loosely to about 3/4 full for mixed loads
• Wash bulky items (comforters, jackets) one at a time if they restrict tumbling
• Avoid packing items down; overloading reduces cleaning and can cause vibration
• Use HE detergent and measure carefully to reduce oversudsing

Quick reference table

Item	What to expect on WFW9150WW01	Why it matters
Capacity	3.5 cu. ft.	Helps compare washer sizes and load planning
Washer type	Front load	Needs tumbling space for best cleaning
Typical width class	27-inch platform	Impacts fit, pedestal, and stacking decisions

Why it matters

Capacity affects how many items you can wash per cycle, how well clothes tumble for cleaning, and how likely you are to see out-of-balance vibration. Correct loading also helps protect key components like the door boot and drain system.

Last updated: February 2026

For Whirlpool washers like model WFW9150WW01, the most common customer complaints are drain and spin problems, followed by leaks and excess vibration/noise. These issues usually trace back to a clogged drain path, a failing drain pump, a door seal (bellow) leak, or an out-of-level installation.

What we see most often (and what to check first)

• Won’t drain or stops with water left in the tub: check the drain hose for kinks and clear any blockage in the drain path.
• Won’t spin or ends off-balance: confirm the washer is level and the feet are firmly on the floor.
• Leaking at the door: inspect the door seal for tears, debris, or items stuck under the seal.
• Slow fill or fill issues: clean the inlet hose screens and confirm both hot and cold supply valves are fully open.
• Error codes or flashing status light: count flashes or read the display code and follow the model’s troubleshooting steps.

For model-specific troubleshooting and error code steps, use the WFW9150WW01 owner's manual.

Common symptoms and the most likely parts involved

Symptom	Most likely cause	Parts that commonly fix it (when applicable)
Drain problem (may show F9E1)	Restricted drain path or weak pump	Washer drain pump assembly WPW10730972
Water on floor near door	Damaged/dirty door seal or loose clamp	Washer bellow WPW10381562, washer door boot spring clamp WP8540108
Loud vibration or walking	Washer not level, load issues	Leveling feet and locking nuts (adjust and tighten)
Slow/no fill	Clogged inlet screens or valve issue	Washer water inlet valve WPW10212596

Why it matters

Drain, leak, and vibration problems can quickly turn into bigger repairs. A drain restriction can trigger a drain error and stop the cycle; a small door-seal leak can damage flooring; an unlevel washer can cause repeated off-balance spinning and extra wear on the tub and drive system.

Quick safety and setup reminders

• Do not use an extension cord; plug the washer directly into a properly grounded outlet.
• Turn off water before removing inlet hoses.
• Unplug power before inspecting internal components.

If you’re seeing a flashing Wash Status light or a drain-related code, our Whirlpool duet alpha front load washer error codes guide helps you match the code to the right next step.

Last updated: February 2026

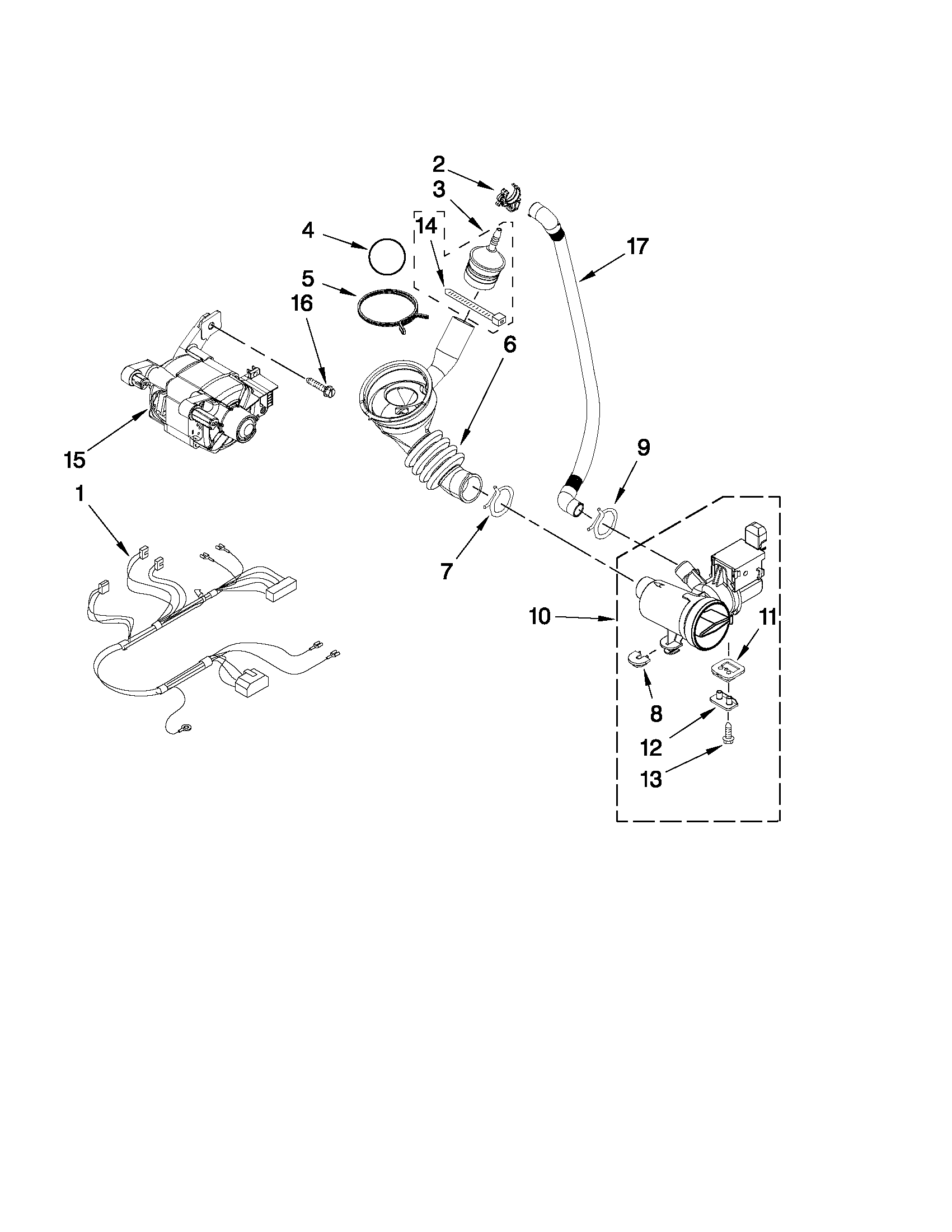

On the Whirlpool WFW9150WW01 (Duet-style front-load) washer, the drain pump cleanout (filter) is accessed from the lower front of the cabinet, behind the bottom access panel (kick plate). Open that panel, then use the small drain hose and pump cleanout cap to empty water and remove debris; see the WFW9150WW01 owner's manual.

How to access and drain it safely

• Unplug the washer.
• Place a shallow pan and towels under the lower front area.
• Remove the lower front access panel (kick plate).
• Pull out the small black drain hose (if equipped), unclip it, and remove the plug to drain into a container.
• Slowly turn the pump cleanout cap counterclockwise to release remaining water.
• Remove lint, coins, and small items; reinstall the cap snugly.

What to check while you are there

If the washer will not drain, drains slowly, or leaves water in the drum, check these common causes:

• Debris in the pump cleanout (filter) or pump inlet.
• Kinked or clogged drain hose.
• Drain hose pushed too far into the standpipe (more than about 4 1/2 inches).
• Standpipe or laundry tub draining too slowly.
• Excess suds from non-HE detergent (can trigger long drain behavior).

Quick specs and setup targets (drain hose)

These installation targets help prevent siphoning and drain problems (typical for this Whirlpool platform):

Item	Target	Why it matters
Standpipe height	At least 30 in. above floor	Prevents siphoning and “stuck” fill or drain
Hose insertion depth	About 4 1/2 in. max	Maintains an air gap for proper draining
Air gap	Do not tape or seal hose	Prevents backflow and siphoning

When the pump itself is the problem

If the cleanout is clear but the washer still hums, will not drain, or trips a drain-related error, the pump may be failing. For this model, the correct replacement is the washer drain pump assembly WPW10730972.

Why it matters

A clogged pump cleanout can cause no-drain, long cycle times, leaks at the front, and repeated error codes. Keeping the cleanout clear protects the drain pump and helps the washer spin properly.

Last updated: February 2026
