GE CDWT980R10SS dishwasher Parts

On the GE CDWT980R10SS dishwasher, replacing the filter is a quick maintenance task: remove the lower rack, lift out the old filter from the sump area, seat the new filter, then twist it clockwise until it locks before reinstalling the rack. Use the CDWT980R10SS owner's manual for the exact filter location and orientation.

Steps to replace the dishwasher filter

• Turn off the dishwasher and let the tub cool if it was recently running.

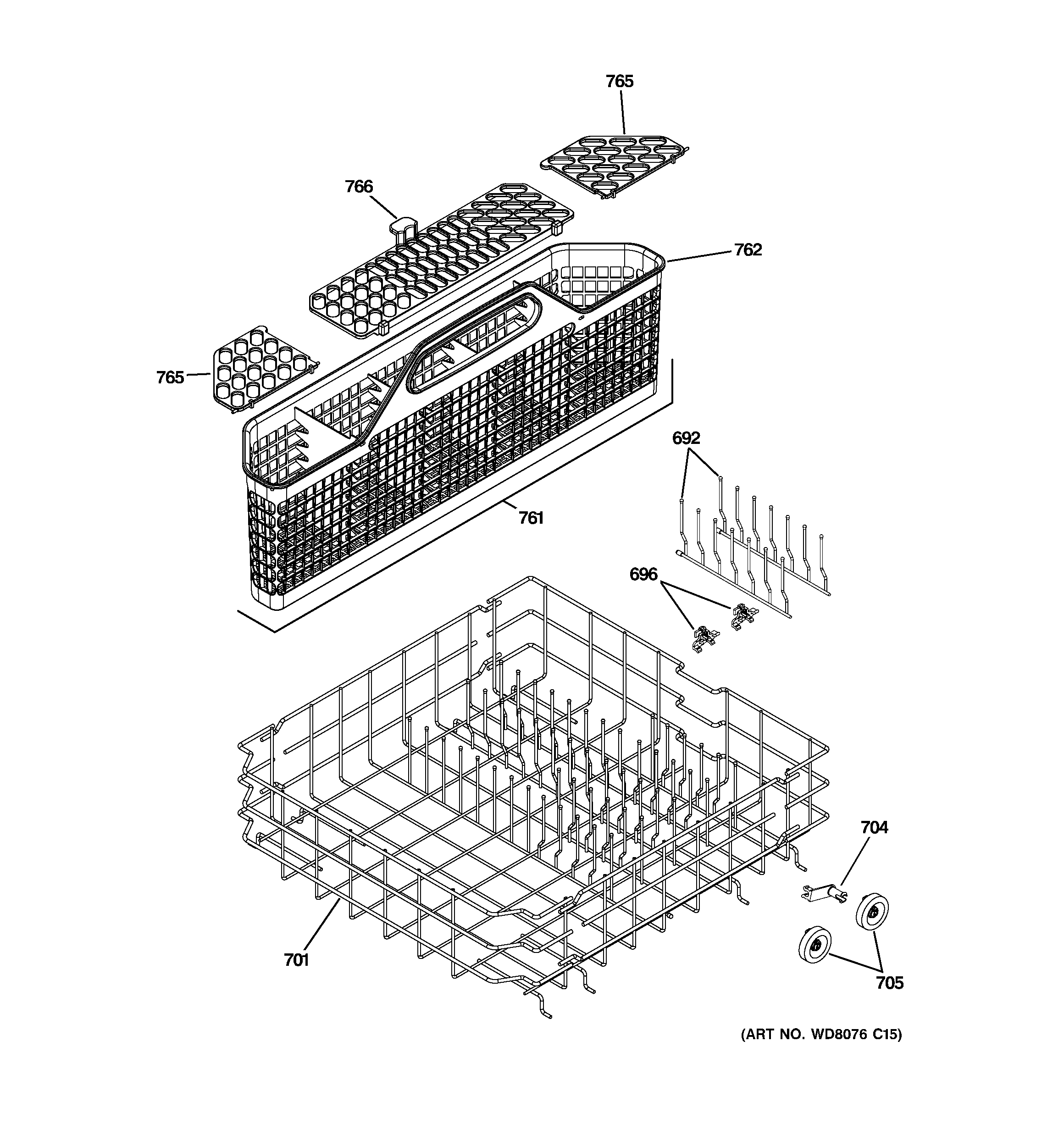

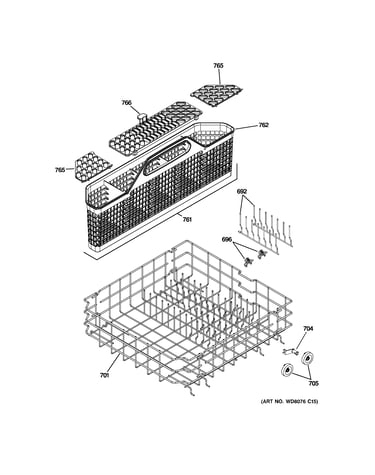

• Pull out the lower rack to access the sump area at the bottom.
• Remove the old filter (most GE filters lift out, then unlock with a short twist).
• Install the replacement filter and twist clockwise until it locks in place.
• Reinstall the lower rack and run a short rinse cycle to confirm normal wash action.

Which filter part do I need?

This model can use different filter components depending on the filter style installed. Match the part by comparing your existing filter to the part photo and mounting tabs.

Part option	Part name	When it fits best
WD22X10077	Dishwasher filter	Common replacement when the filter body and locking tabs match
WD12X10109	Dishwasher filter	Alternate filter style used on some builds

If your current filter matches, use dishwasher filter WD22X10077 or dishwasher filter WD12X10109.

Why it matters

A clogged or damaged filter reduces water flow through the circulation system, which can cause poor cleaning, redepositing food soil, and longer cycle performance issues. Keeping the filter clean also helps protect the pump and spray arm.

Quick checks if cleaning is still poor after replacement

• Make sure the spray arm holes are not blocked by debris.
• Use fresh dishwasher detergent and the correct amount for your water hardness.
• Avoid loading tall items that stop the spray arms from spinning.
• Confirm the hot water supply is working properly at the sink before starting a cycle.

Last updated: February 2026

The most common GE dishwasher problem is a no-start or won’t-run condition. On the GE CDWT980R10SS, we see this most often when the cycle is interrupted (door not fully latched, START/RESET pressed, or a brief power loss), which can trigger a drain and restart behavior described in the CDWT980R10SS owner’s manual.

Quick checks we recommend first

• Confirm the door is fully closed and latched; a partially latched door can stop the cycle from running.
• Press START and allow the dishwasher time to respond; after an interruption it may drain before resuming.
• Check the home breaker or GFCI outlet (if used) and restore power if it tripped.
• If the START/RESET light is flashing, wait for the unit to finish draining, then restart a cycle.
• If the dishwasher has power but still will not run, look for an error indication and use the GE electronic dishwasher error codes reference.

Other very common GE dishwasher issues

Even when the dishwasher starts, these are the next most frequent complaints:

Symptom	Common cause	What to do next
Not draining	Air gap or high drain loop issue, blockage	Verify an air gap or high drain loop per the CDWT980R10SS installation guide
Not cleaning well	Loading blocks spray arms or dispenser	Reload so large items don’t block wash arms or the dispenser
Spots/film	Water temp too low, rinse aid empty, hard water	Target at least 120°F incoming water; use rinse aid
Leaks	Worn seals or gasket	Inspect the dishwasher door seal WD08X10055 and tub gasket area

Why it matters

A “won’t start” complaint is often a simple interruption or latch issue, while draining, cleaning, and spotting problems usually trace back to installation (drain routing), loading, water temperature, or routine maintenance. Fixing the root cause prevents repeat failures and protects parts like the control module and pump.

Last updated: February 2026

Yes. You can buy replacement parts for a dishwasher, including for the GE CDWT980R10SS. Common replacements include door seals, filters, racks and baskets, fill and drain hoses, and pump or control components; matching parts to your exact model helps ensure proper fit and performance.

What parts are most commonly replaced?

For the GE CDWT980R10SS, these are frequent wear or failure items we see customers replace:

• Door and tub sealing parts (to help stop leaks)
• Filters (to restore wash performance and reduce debris)
• Detergent dispenser parts (if the cup will not open or leaks)
• Fill and drain components (if it will not fill or will not drain)
• Pump, motor, and control parts (for no-wash, poor wash, or intermittent operation)

Examples of model-matched parts available

Here are a few examples of replacement parts that fit this model:

Symptom or need	Part type	Example part for this model
Water leaking at the door	Door seal	Dishwasher door seal WD08X10055
Poor cleaning, debris left behind	Filter	Dishwasher filter (match by model)
Detergent cup not dispensing	Dispenser	Dishwasher detergent dispenser assembly
Not draining or slow drain	Drain path	Drain tube or drain pump

How we recommend choosing the right part

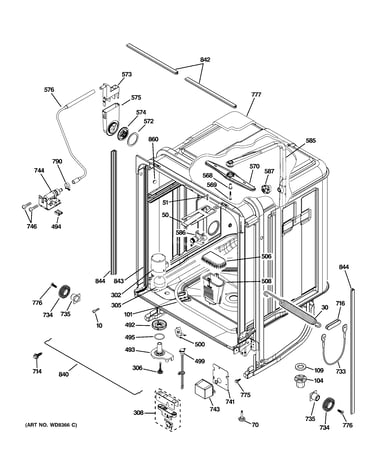

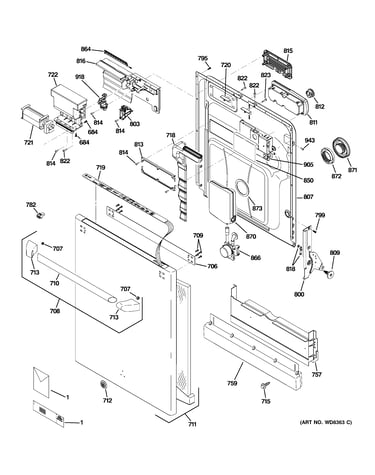

Use your model number (CDWT980R10SS) and confirm the part’s location and function in the diagrams.

• Match by exact model number first (not just brand or series)
• Compare the part name and where it installs (door, sump, tub, pump area)
• Check for related hardware you may need (clamps, screws, seals)
• If you are fixing a leak, replace the seal or gasket that matches the leak point
• If you are fixing a performance issue, clean the filter and spray arm passages before replacing parts

Why it matters

Dishwasher parts are designed around specific tub shapes, door geometry, and pump systems. Using GE CDWT980R10SS model-matched parts reduces leaks, improves cleaning and drying results, and prevents repeat repairs.

For safety and correct installation steps, follow the CDWT980R10SS owner’s manual and the CDWT980R10SS installation guide.

Last updated: February 2026

On the GE CDWT980R10SS dishwasher, the most commonly replaced parts are the door sealing parts, wash and drain components, and a few key control and safety items. These parts directly affect leaking, cleaning performance, draining, and whether the dishwasher will start and run normally.

Commonly replaced dishwasher parts (and what they affect)

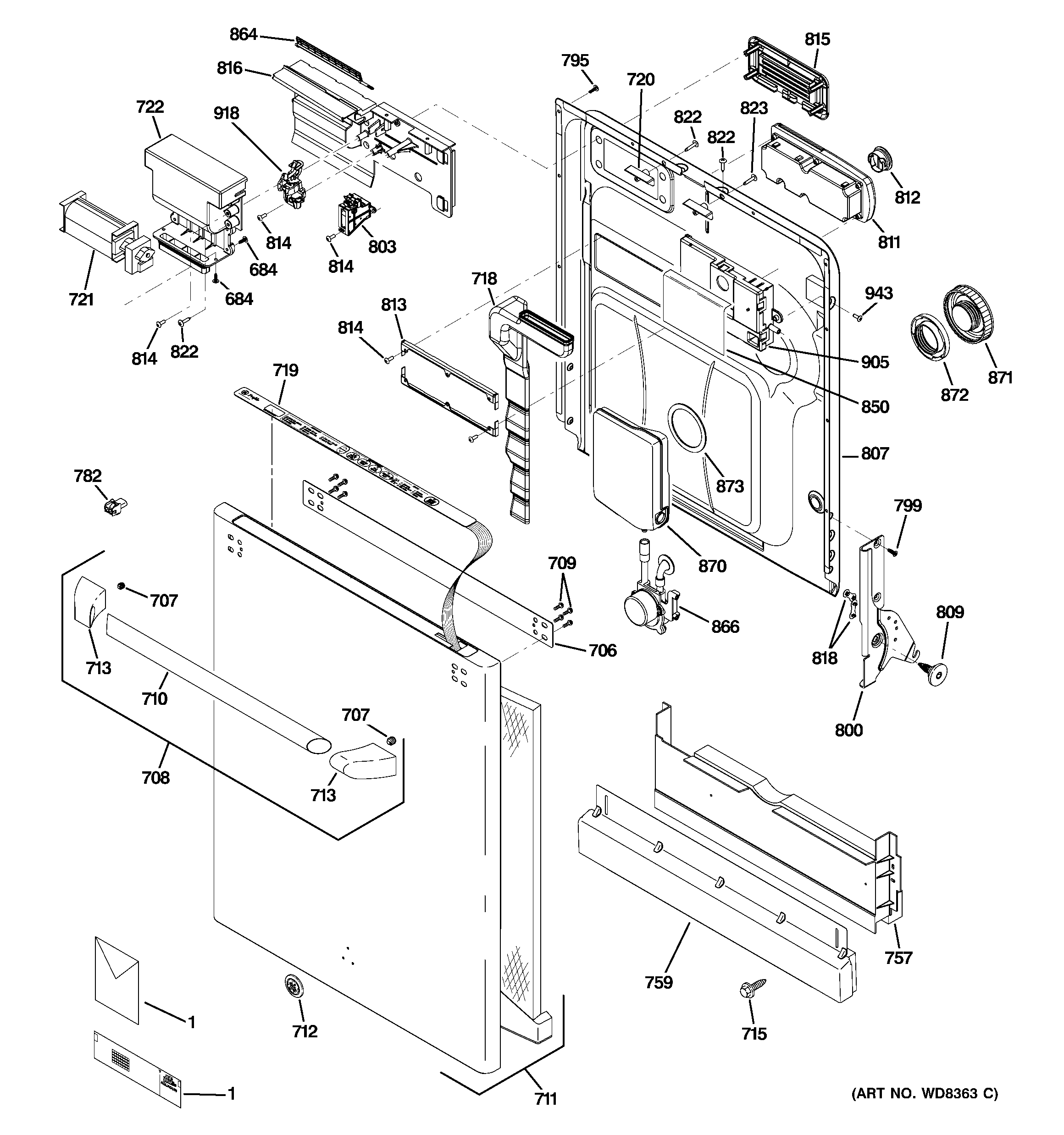

• Door sealing parts: stop leaks around the door and tub opening (for example, a worn dishwasher door seal WD08X10055 or tub gasket)
• Filters: prevent debris from recirculating and clogging the pump (for example, dishwasher filter WD22X10077)
• Spray arm: restores wash pressure and spray coverage when jets clog or the arm cracks
• Drain parts: help the unit empty properly (drain pump, drain tube, drain hose)
• Detergent dispenser: fixes detergent cup not opening or poor detergent release

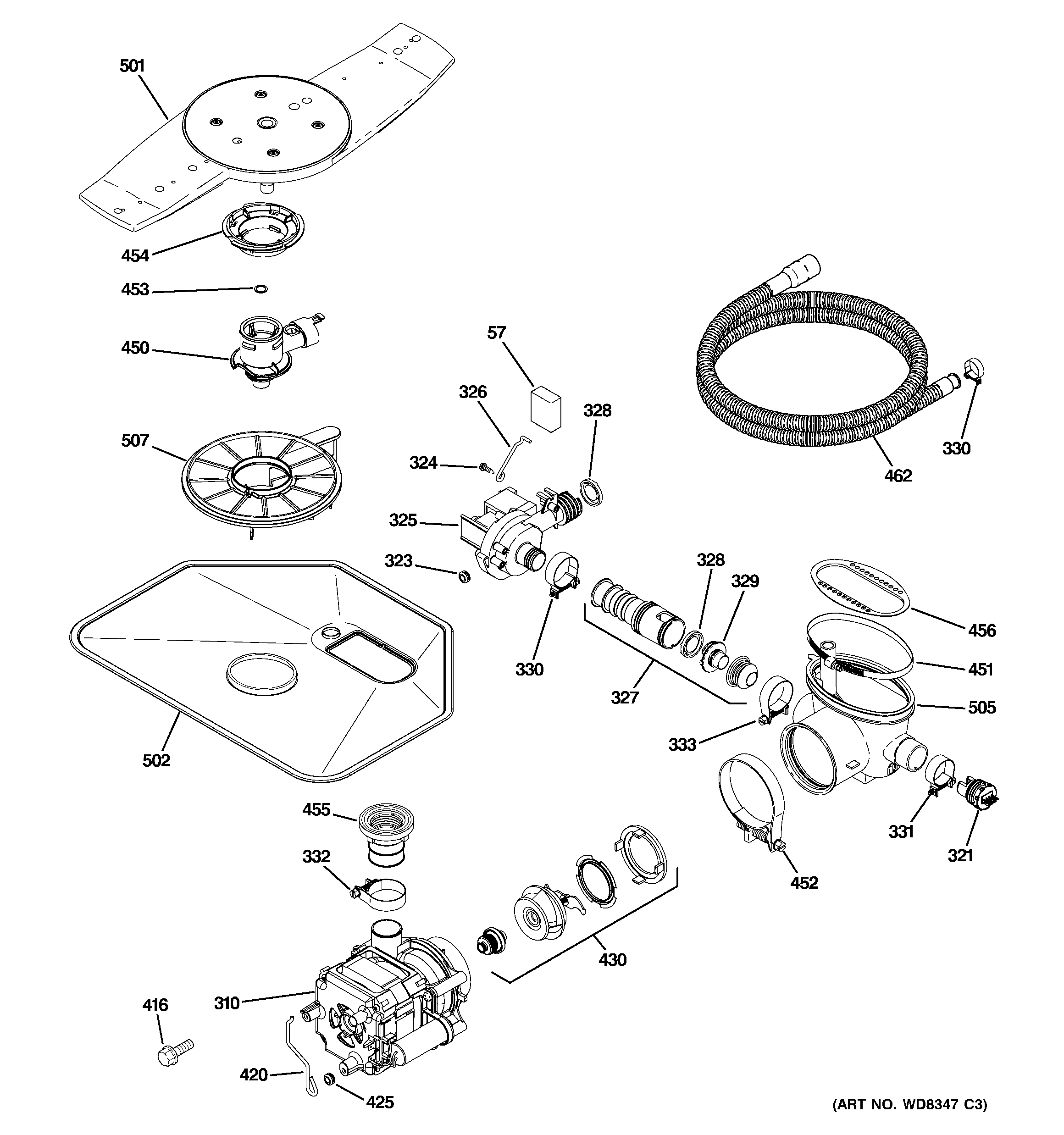

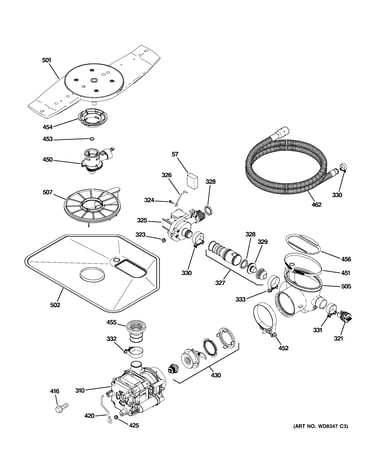

• Pump and motor assembly: addresses weak wash action, grinding noises, or no circulation
• Control parts: help resolve no-start, mid-cycle stopping, or odd behavior (control module, door latch related issues)

Quick symptom-to-part guide

Symptom	Most likely part area	Example part for this model
Water leaking at the front	Door sealing	WD08X10055 door seal
Dishes gritty or food left behind	Filtration or spray	WD22X10077 filter
Standing water in bottom	Drain system	Drain pump or drain tube
Detergent not dispensing	Dispenser	WD12X10163 dispenser
Won’t start or acts “dead”	Power/control	Control module or door latch circuit

Why it matters

Replacing the right part first saves time and prevents repeat problems. For example, a clogged filter can mimic a failing pump, and a worn door seal can look like a tub leak.

Model-specific tips before you order parts

• Confirm the symptom happens on more than one cycle.
• Clean the filter area and check for debris before replacing pump or drain parts.
• If the dishwasher is on a wall switch, turn it on and wait 5 to 10 seconds before pressing Start/Reset so the control can initialize (common on electronic controls).
• Avoid washing non-dishware items (filters, paint brushes) that can damage the dishwasher.
• Use the CDWT980R10SS owner’s manual for your exact control behavior, care guidance, and operating notes.
• If you’re seeing a code, use GE electronic dishwasher error codes to match the code to the most likely failure.

Last updated: February 2026
